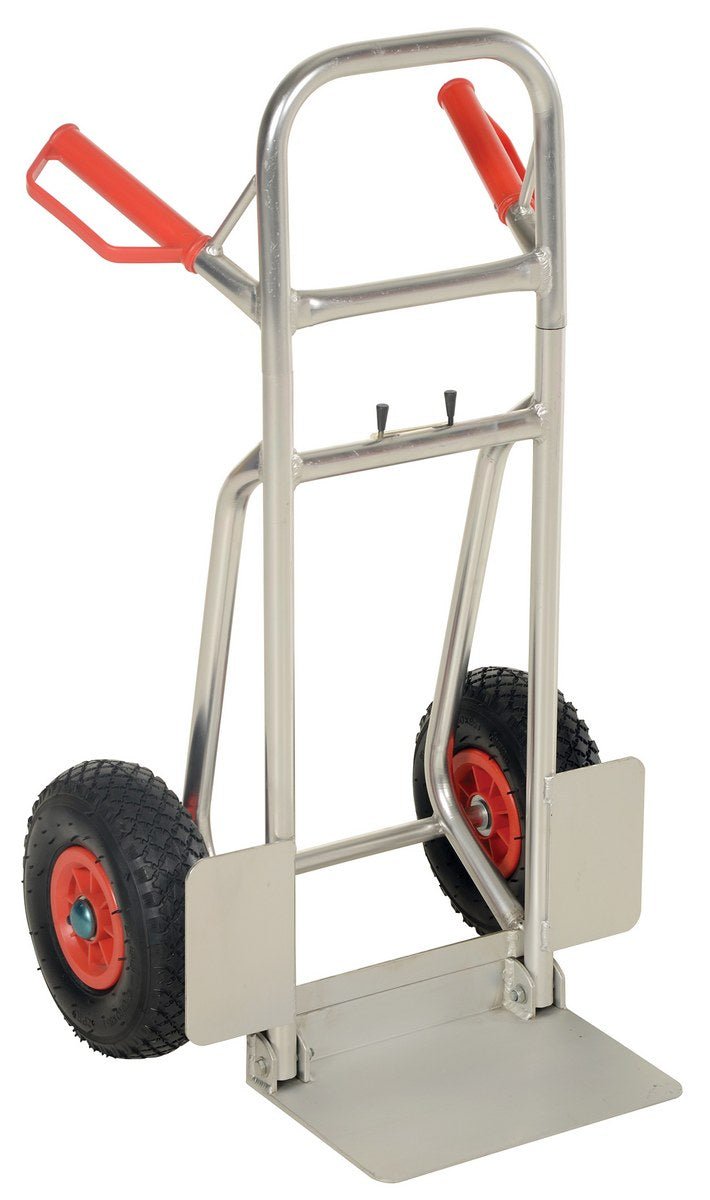

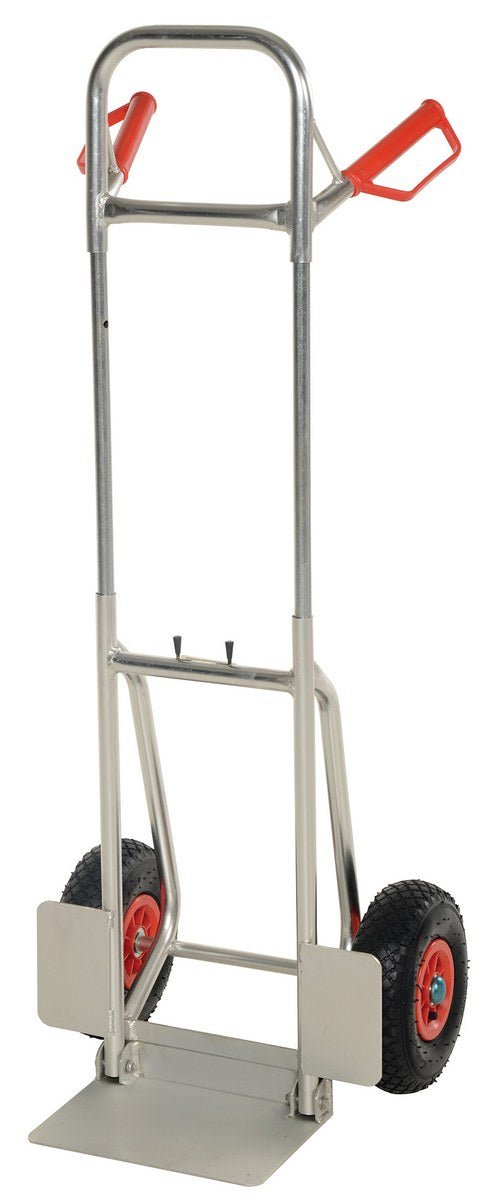

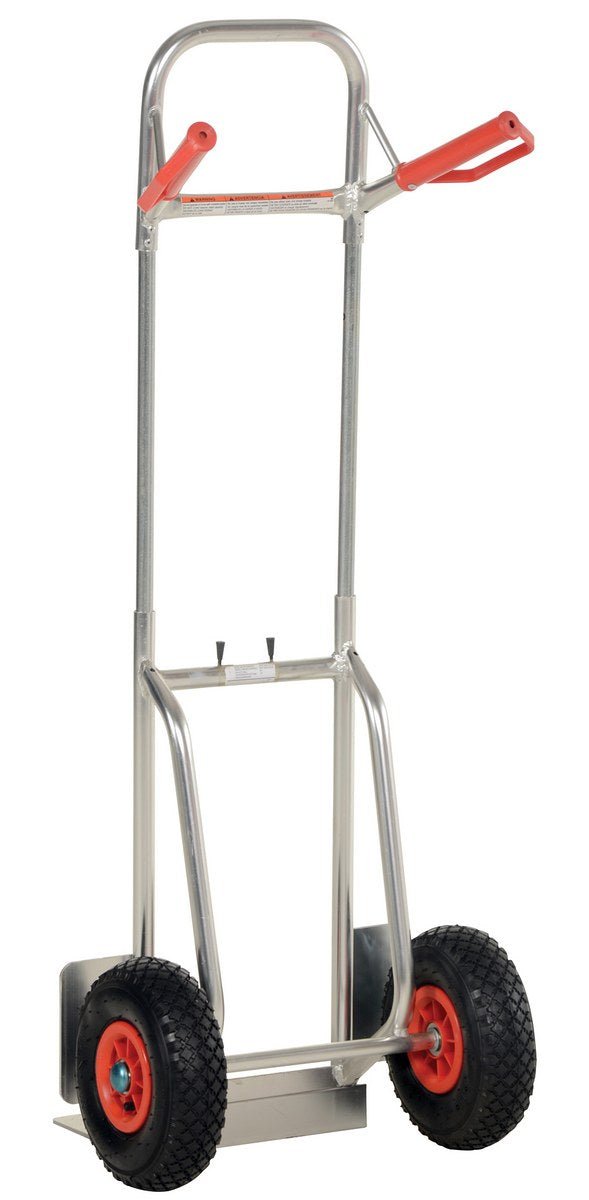

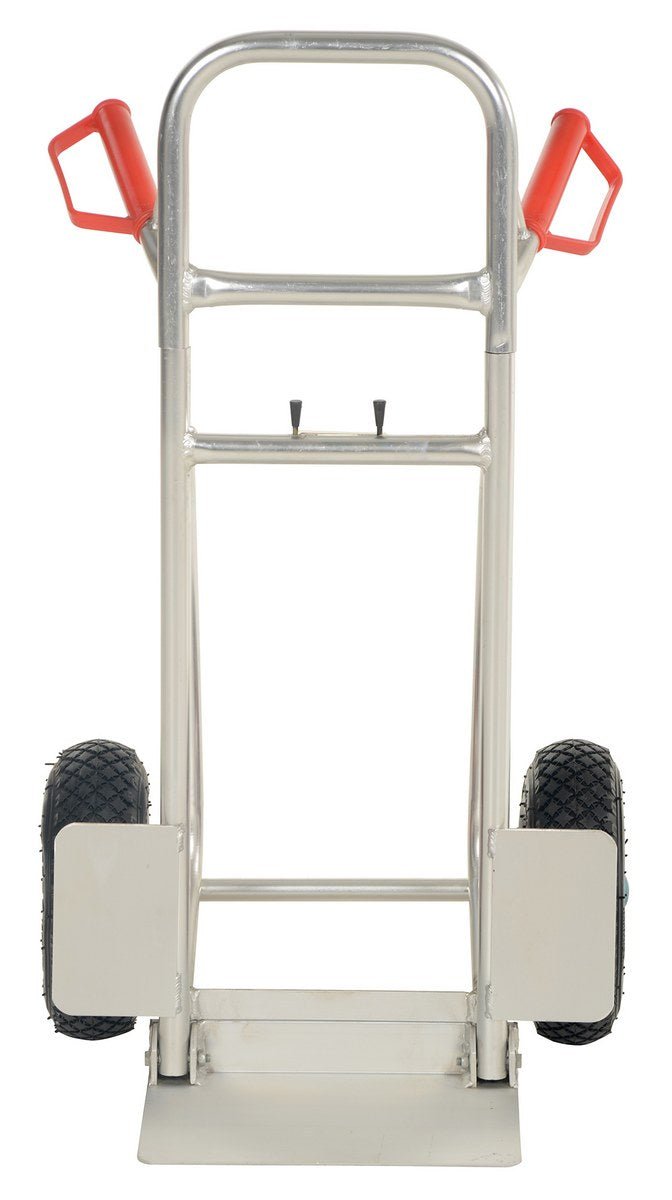

Fold-Down Aluminum Hand Trucks are lightweight aluminum hand truck folds-down for storage.

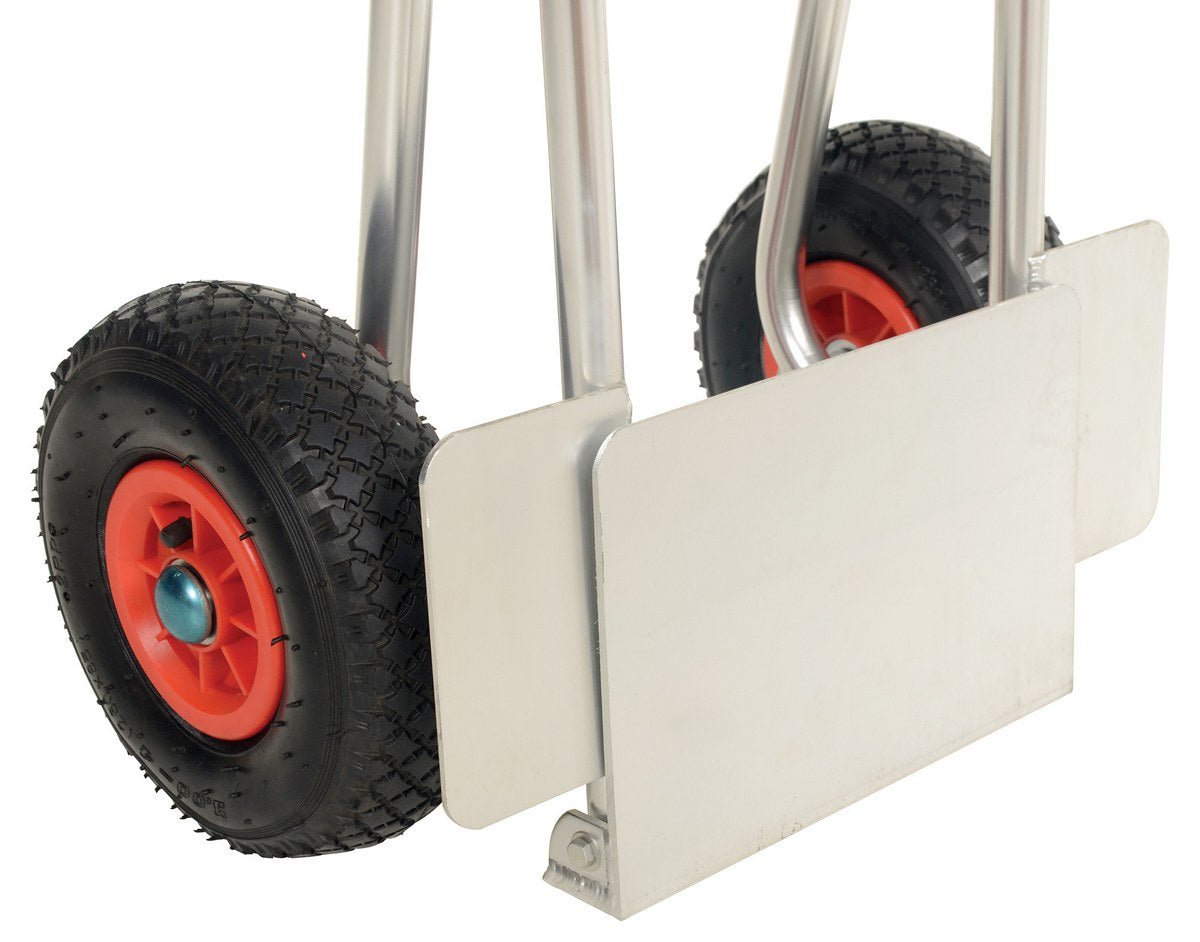

Telescopic upright is adjusted with spring-loaded locking mechanism. Noseplate measures 11-13/16"W x 6-13/16"L. Dual handle design with plastic grips and knuckle guards. Rolls smoothly with two 10" diameter wheels. Wheel guards are included for use with oversize objects. Overall extended size 19-7/8"W x 18-3/8"L x 48-3/8"H. Overall size folded 19-7/8"W x 12-5/16"L x 33"H. Units ships fully assembled and ready to use.

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Fold-Down Aluminum Hand Truck
Model Image PDF Wheel Type Uniform
Capacity (lbs)
DHHT-250A-FD-PN Warranty PDFCompliance Certificate Pneumatic 250 18
DHHT-250A-FD-UR Warranty PDFCompliance Certificate Red Flat-Free Urethane 250 18
DHHT-250A-FD-UB Warranty PDFCompliance Certificate Blue Flat-Free Urethane 250 18
DHHT-250A-FD-UY Warranty PDFCompliance Certificate Yellow Flat-Free Urethane 250 18
DHHT-250A-FD-UBK Warranty PDFCompliance Certificate Black Flat-Free Urethane 250 18

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
