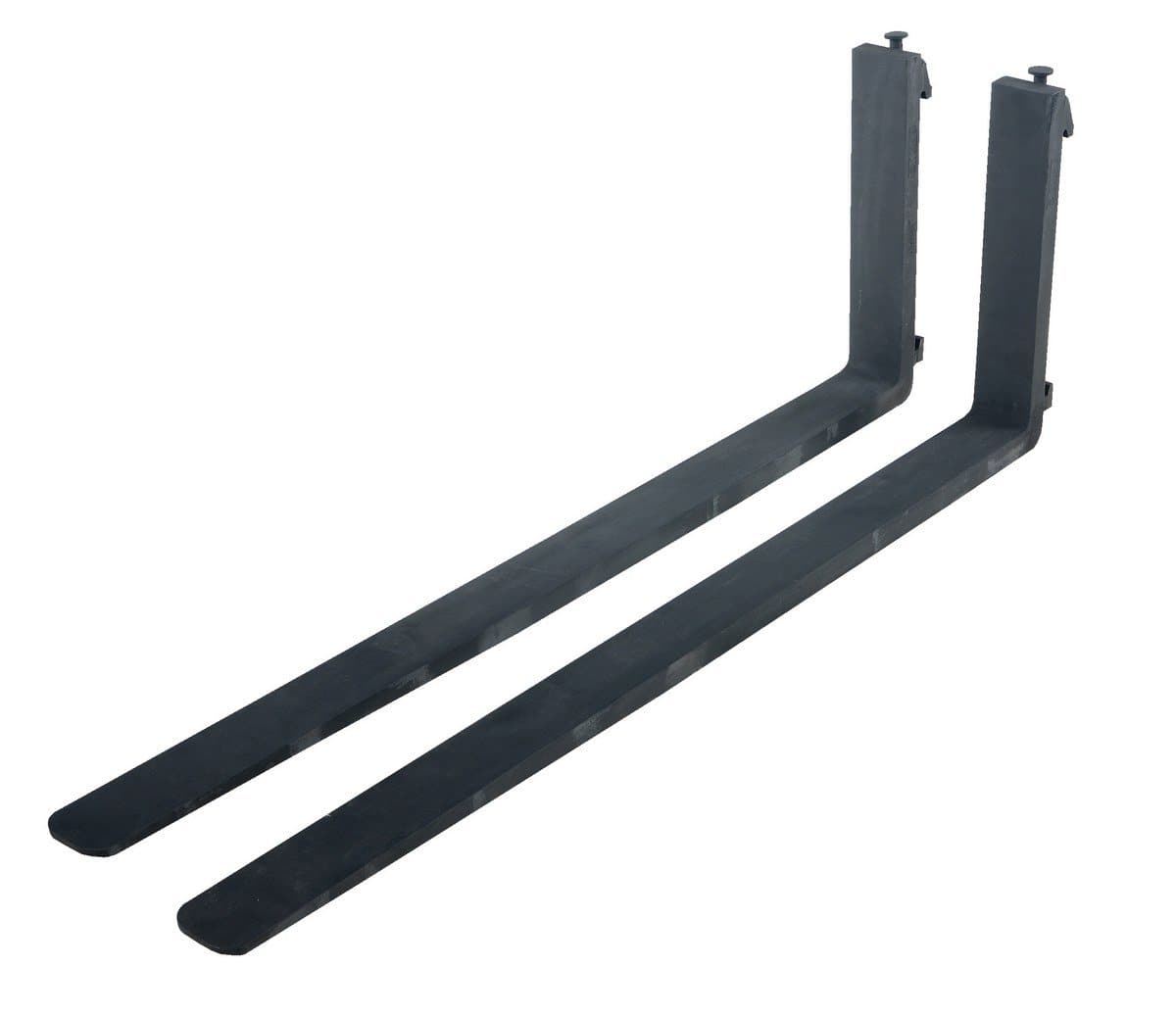

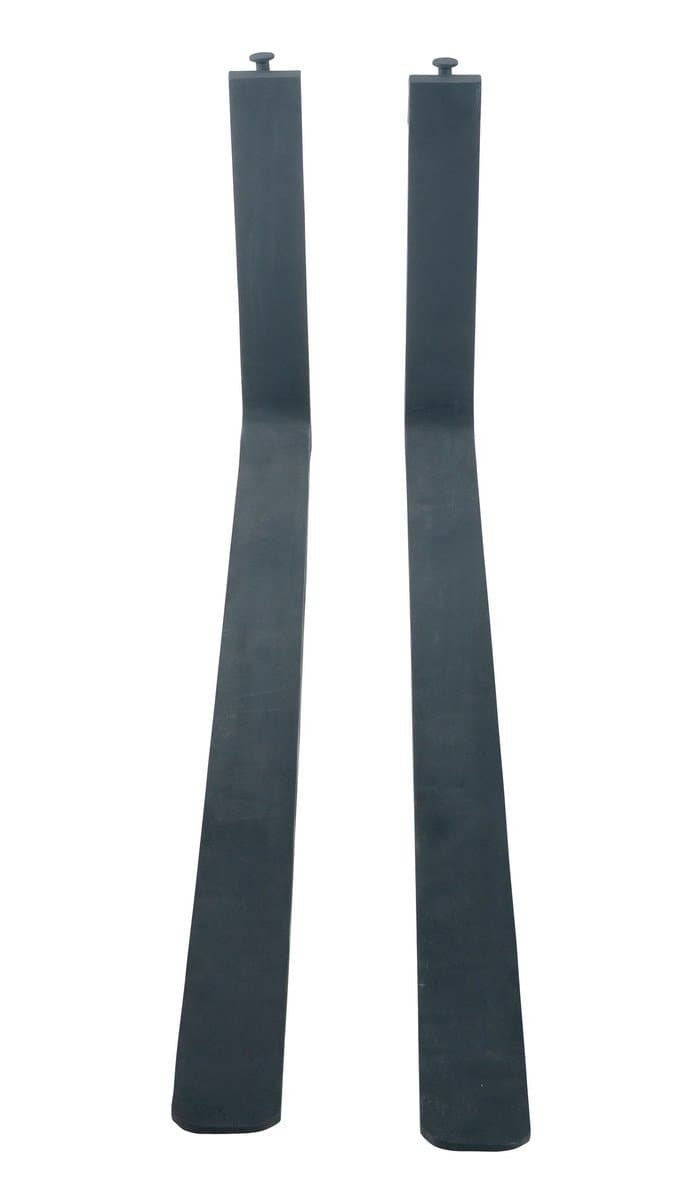

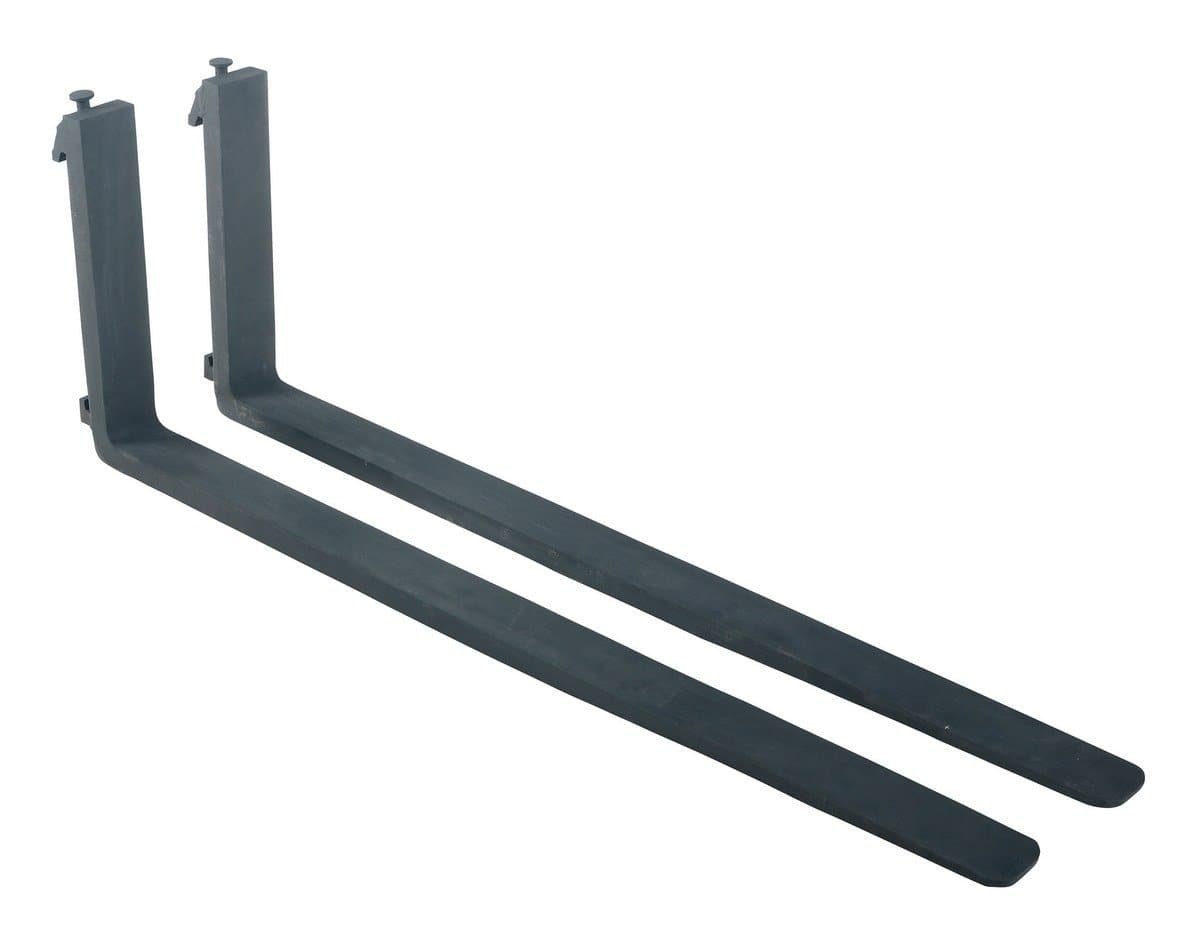

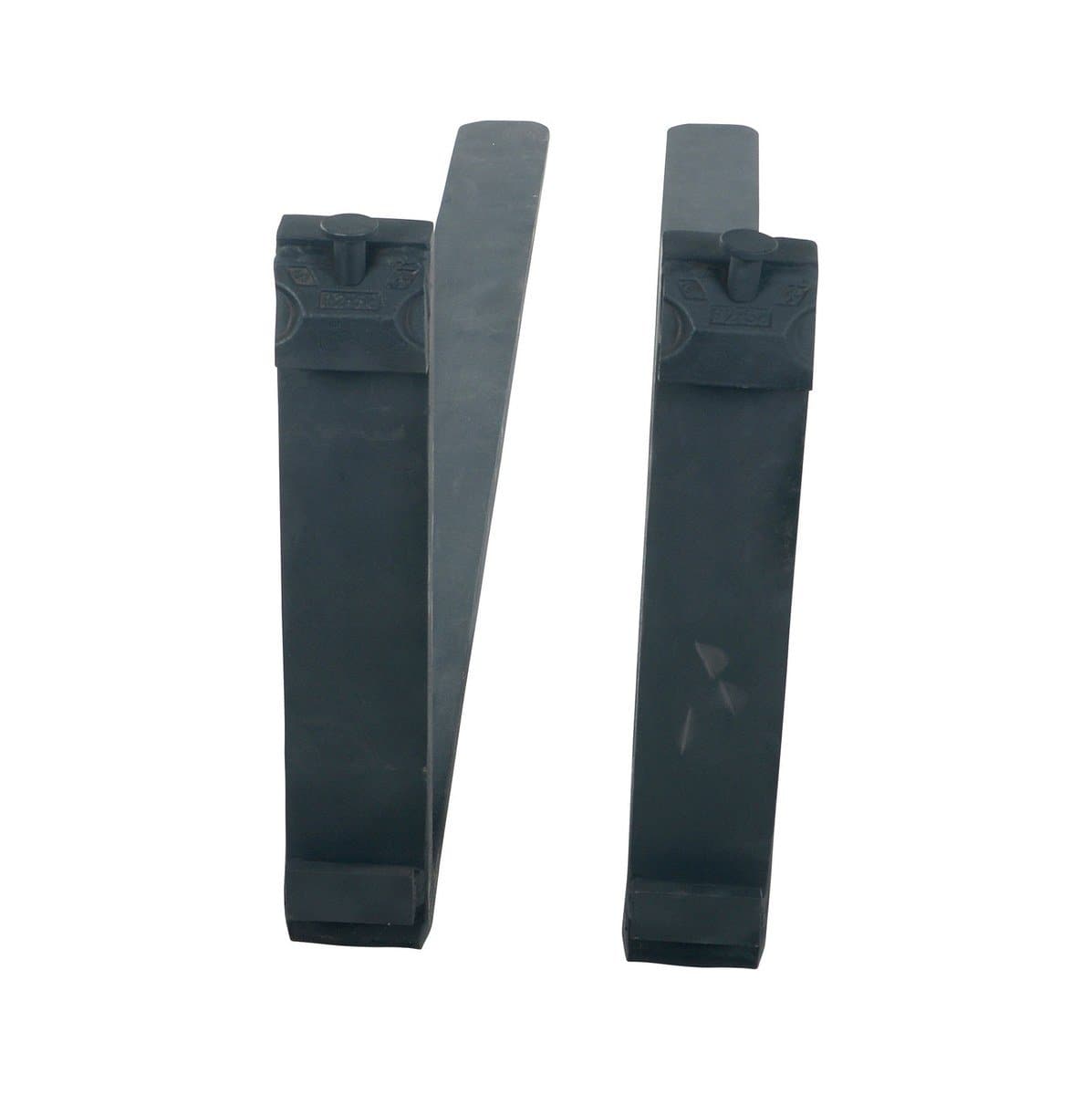

Forged Steel Forks
SKU: F4-1.25-36
Change your current fork length or buy an extra pair of forks for an emergency with our new Forged Steel Forks. Forks are 4" wide each. Designed for class II carriage mounting. Meets I.T.A. standards. Available with and without carriage pins.
| Forged Steel Forks | ||||||
| Model | Image | Length (Inches) |
Thickness (Inches) |
Capacity (lbs) |
Wt. (lbs) |
|
| F4-1.25-36 |  |
 |
36 | 1-1/4" | 3,000 | 201 |
| F4-1.25-48 |  |
|
48 | 1-1/4" | 3,000 | 205 |
| F4-1.50-36 |  |
|
36 | 1-1/2" | 4,000 | 210 |
| F4-1.50-42 |  |
|
42 | 1-1/2" | 4,000 | 249 |
| F4-1.50-48 |  |
|
48 | 1-1/2" | 4,000 | 277 |
| F4-1.50-60 |  |
|
60 | 1-1/2" | 4,000 | 328 |
| F4-1.75-36 |  |
|
36 | 1-3/4" | 5,000 | 251 |
| F4-1.75-42 |  |
|
42 | 1-3/4" | 5,000 | 277 |
| F4-1.75-48 |  |
|
48 | 1-3/4" | 5,000 | 309 |
| F4-1.75-60 |  |
|
60 | 1-3/4" | 5,000 | 344 |
| Carriage Pin Included | ||||||
| F4-1.25-36-CPL |  |
|
36 | 1-1/4" | 3,000 | 201 |
| F4-1.25-48-CPL |  |
|
48 | 1-1/4" | 3,000 | 205 |
| F4-1.50-36-CPL |  |
|
36 | 1-1/2" | 4,000 | 210 |
| F4-1.50-42-CPL |  |
|
42 | 1-1/2" | 4,000 | 249 |
| F4-1.50-48-CPL |  |
|
48 | 1-1/2" | 4,000 | 277 |
| F4-1.50-60-CPL |  |
|
60 | 1-1/2" | 4,000 | 328 |
| F4-1.75-36-CPL |  |
|
36 | 1-3/4" | 5,000 | 251 |
| F4-1.75-42-CPL |  |
|
42 | 1-3/4" | 5,000 | 277 |
| F4-1.75-48-CPL |  |
|
48 | 1-3/4" | 5,000 | 309 |
| F4-1.75-60-CPL |  |
|
60 | 1-3/4" | 5,000 | 344 |
KEY:
= Approval Drawing -- = Warranty --
= Testing Certificate
