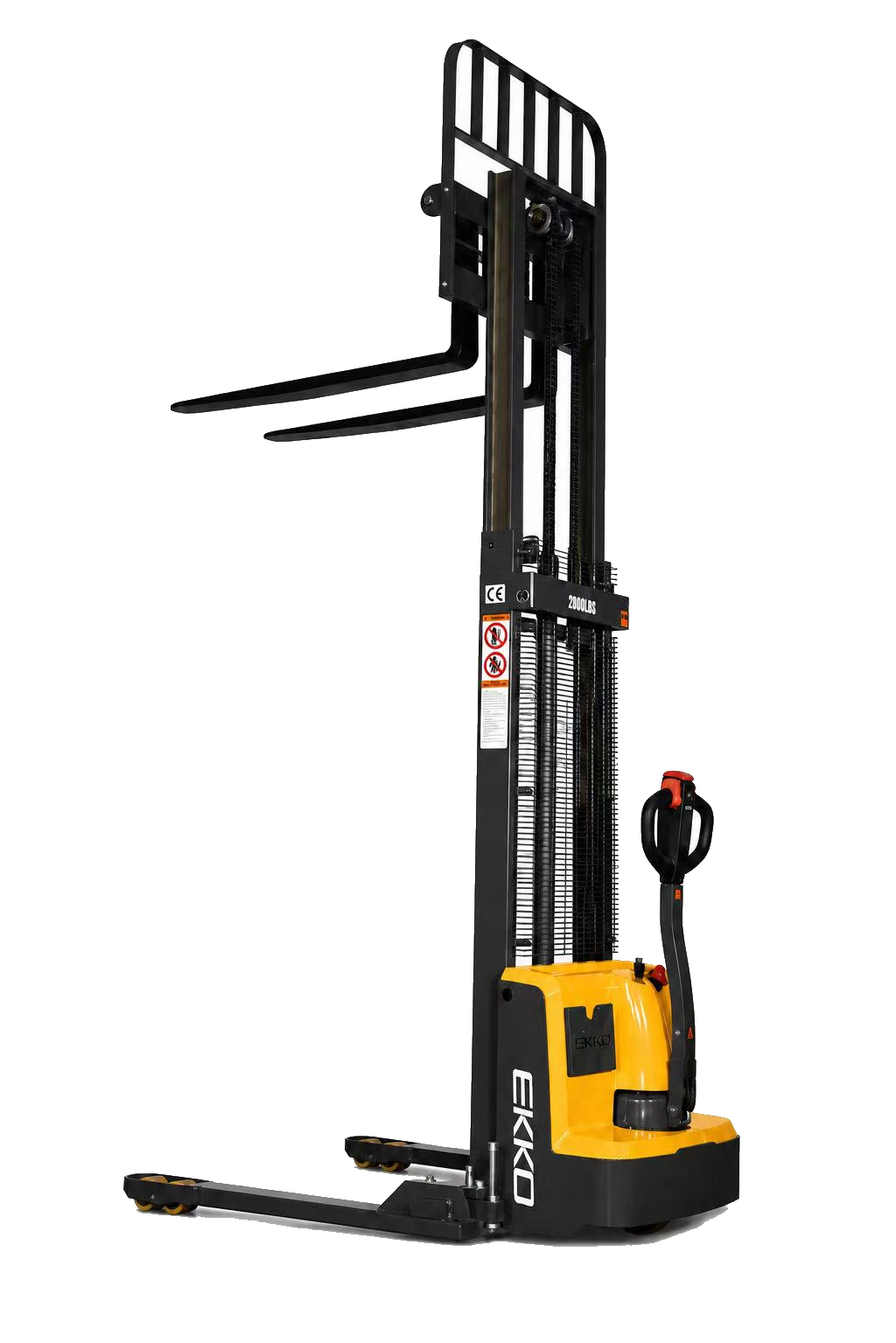

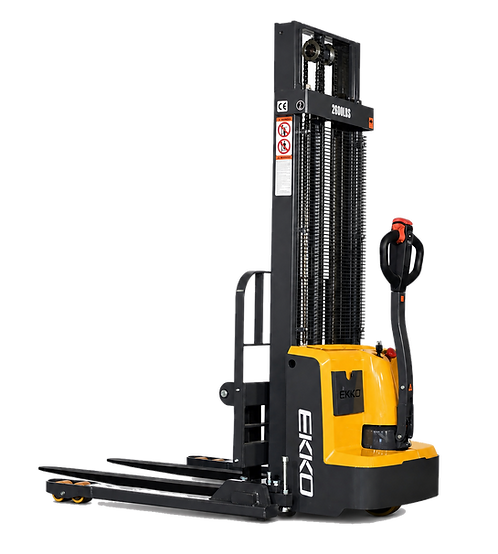

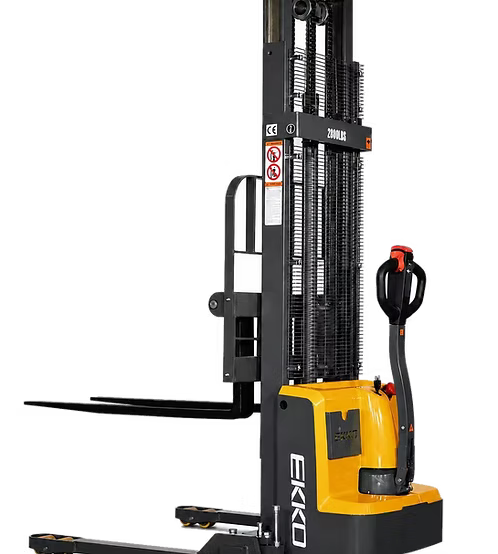

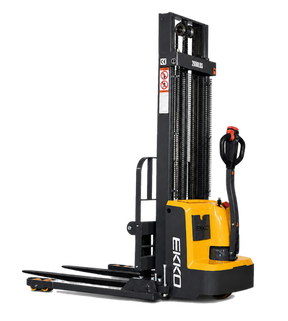

EKKO EB13E Full Powered Electric Straddle Stacker — 2,800 lb Capacity, 119" Lift Height

The EKKO EB13E Full Powered Electric Straddle Stacker is a heavy-duty, battery-powered material handling unit engineered for contractors and warehouse professionals who need reliable, high-capacity lifting in demanding environments. With a 2,800 lb load capacity and a maximum lifting height of 119 inches, it handles the rigors of loading docks, manufacturing floors, stock rooms, and warehousing operations. Its fully powered drive and lift systems eliminate manual pushing effort, making it suitable for continuous, high-cycle applications across large facilities.

Unlike standard walkie stackers or manual-drive alternatives, the EB13E combines the versatility of a forklift, reach truck, and walkie stacker in a single unit. Adjustable forks (8.3–33.5 in overall width) and adjustable outrigger legs (45.5–59.1 in) allow the machine to adapt to varied pallet sizes and aisle configurations without tool changes. The Curtis Instrument controller and 24V center drive motor provide precise, responsive handling, while robotic-welded steel construction ensures long-term structural integrity under daily commercial use.

Technical Specifications

Key Features & Benefits

Full Power Drive & Lift

Both the drive (0.75 kW) and lift (2.2 kW) functions are fully powered, requiring no manual pushing or pumping from the operator. This reduces operator fatigue during high-cycle shifts and allows the unit to cover larger facility footprints consistently. Laden driving speed of 4.0 km/h keeps material flow moving efficiently across warehouse floors and loading areas.

Curtis Instrument Controller with 24V Center Drive Motor

The Curtis Instrument controller delivers precise throttle and lift response, giving operators reliable control during load placement and travel. The 24V center drive configuration supports balanced weight distribution and responsive steering through the 52.6 in turning radius. This combination is especially valuable in tighter stock rooms and dock areas where precise maneuvering is required.

Adjustable Forks and Outrigger Legs

Fork width adjusts from 8.3 to 33.5 inches overall, accommodating a wide range of standard and non-standard pallet sizes without changing attachments. Outrigger legs adjust from 45.5 to 59.1 inches, allowing the stacker to straddle pallets or racking bases of different footprints. This dual adjustability makes the EB13E adaptable across multiple job sites and storage configurations.

Low Fork Profile for Ground-Level Loading

The lowered fork height of just 2.35 inches allows the forks to slide under low-clearance pallets and skids that standard stackers cannot engage. This is critical when loading directly from floor level or working with pallets that have minimal ground clearance. The 45.3 in fork length provides sufficient load support depth for standard industrial pallets.

Robotic-Welded Steel Construction

The frame is fabricated from high-quality steel using robotic welding processes, producing consistent weld quality throughout the chassis. This construction method is designed to withstand impact, directional changes, and demanding daily usage on manufacturing and warehouse floors. The result is a structurally sound unit built for long service life in commercial applications.

Integrated Internal Charger & Dual Battery System

The onboard 24V / 15A charger eliminates the need for a separate external charging station, simplifying the charging setup and reducing infrastructure costs. The dual 12V / 100Ah battery configuration provides the power reserve needed to sustain full-shift operations. Having the charger built in means the unit can be plugged in wherever a standard outlet is available.

Polyurethane Wheels & Ergonomic Controls

Polyurethane wheels are durable across a variety of indoor flooring surfaces including concrete, tile, and sealed warehouse floors, while protecting floor surfaces from marking. Ergonomic handle and control layout reduces operator strain during extended use, supporting productivity over full work shifts.

Common Applications

Loading Dock Operations

The EB13E's fully powered drive and 2,800 lb capacity make it well suited for loading and unloading trucks at commercial and industrial docks. The low fork profile and adjustable legs allow it to engage pallets inside truck beds and transfer them efficiently to dock-level storage.

Warehouse Stacking & Retrieval

With a maximum lifting height of 119 inches, the EB13E can place and retrieve palletized loads on multiple rack levels in standard warehouse racking systems. Adjustable fork width accommodates varied pallet configurations within the same warehouse.

Manufacturing Floor Material Handling

On manufacturing floors, the stacker can transport raw materials and finished goods between production stations and staging areas. Its compact turning radius of 52.6 inches supports navigation in production environments where space between equipment is limited.

Stock Room Replenishment

In retail or distribution stock rooms with tighter aisle widths, the EB13E's adjustable outrigger legs and maneuverable footprint allow operators to stock and retrieve inventory efficiently. The powered drive eliminates manual pushing in spaces where repeated trips are required throughout a shift.

Compatible Materials

• Standard wooden pallets
• Plastic pallets
• Skids and flatbed platforms
• Palletized boxed and crated goods
• Palletized building and construction materials
• Industrial bagged materials on pallets

Frequently Asked Questions

Q: Does the EB13E include a charger, or is one purchased separately?
A: The EB13E includes a built-in internal 24V / 15A charger, so no external charging station is required.

Q: What is the maximum lift height of the EB13E?
A: The maximum lifting height is 119 inches. The extended mast height reaches 135 inches, and the lowered mast height is 82 inches.

Q: Can the fork width be adjusted to fit different pallet sizes?
A: Yes. The overall fork width is adjustable from 8.3 to 33.5 inches to accommodate a wide range of standard and non-standard pallets.

Q: What type of controller does the EB13E use?
A: It uses a Curtis Instrument controller, which provides precise and responsive control of both drive and lift functions.

Q: What warranty is included with the EB13E?
A: The EB13E comes with a 3 Year Limited Warranty.
