Full-Powered Lithium Walkie Pallet Jack, 3300 lb Capacity with LiFePO4 Battery

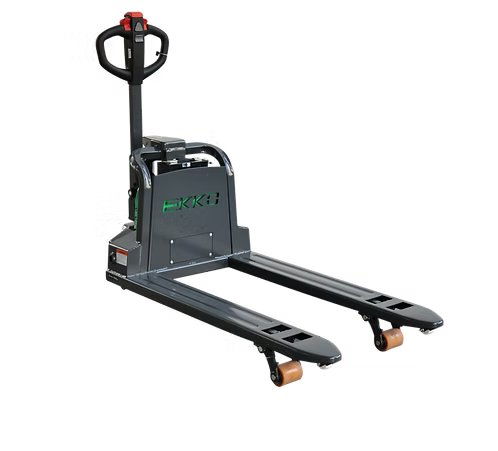

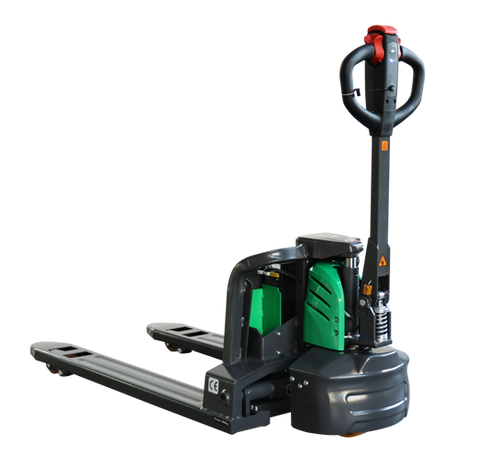

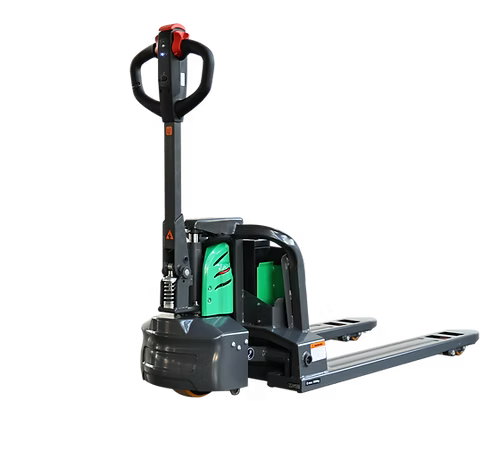

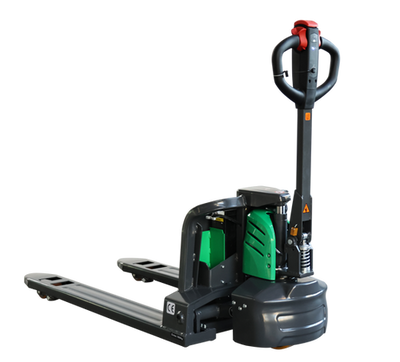

EKKO EPF15Li Full-Powered Lithium Walkie Pallet Jack — 3300 lb Capacity with LiFePO4 Battery

The EKKO EPF15Li is a full-powered lithium walkie pallet jack delivering both powered lifting and powered driving in a single compact unit. Rated for 3,300 lb load capacity, it is engineered for demanding material handling environments including loading docks, delivery trucks, stock rooms, manufacturing floors, and warehouse operations. The unit runs on a 24V/30Ah Lithium Iron Phosphate (LiFePO4) battery, providing reliable, maintenance-free power for sustained daily use.

Unlike conventional lead-acid walkie pallet jacks, the EPF15Li uses LiFePO4 battery technology, which eliminates the watering, equalization, and off-gassing associated with lead-acid systems. The combination of full-powered drive and lift, robotic-welded steel construction, and pinwheel capability sets this unit apart from semi-powered or manual alternatives in high-frequency applications.

Technical Specifications

Key Features & Benefits

Full-Powered Lift and Drive

Both the lifting and driving functions are electrically powered, eliminating the manual pumping and pushing effort required by semi-electric or manual pallet jacks. For contractors and warehouse operators moving heavy loads repeatedly throughout a shift, this reduces operator fatigue and increases throughput on loading docks and manufacturing floors.

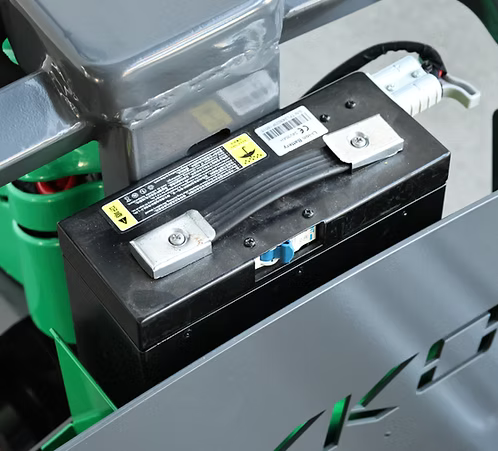

Lithium Iron Phosphate (LiFePO4) Battery

The 24V/30Ah LiFePO4 battery is included with the unit and requires no watering, equalization charges, or ventilated charging areas unlike lead-acid alternatives. This chemistry also supports opportunity charging, allowing operators to top off the battery during breaks without reducing battery life.

Charger Included

A compatible charger ships with the unit, so the EPF15Li is ready to deploy without additional charger procurement. This reduces upfront setup time and ensures the correct charging profile for the LiFePO4 battery is used from day one.

Robotic-Welded Steel Construction

The frame is constructed from high-quality steel using robotic welding processes, producing consistent, high-strength weld joints throughout the chassis. This construction approach is designed to withstand impact, directional changes, and the repetitive loading cycles common in high-usage commercial and industrial environments.

Polyurethane Wheels

Polyurethane wheels provide durability on smooth warehouse and dock floors while resisting marking and flat-spotting during extended stationary periods. They are suited for the paved and sealed concrete surfaces typical of stock rooms, loading docks, and manufacturing facilities.

Pinwheel Capability

Pinwheel capability allows the pallet jack to turn within its own footprint, making it practical in confined spaces such as truck trailers, tight stock room aisles, and crowded loading dock staging areas where turning radius is a limiting factor.

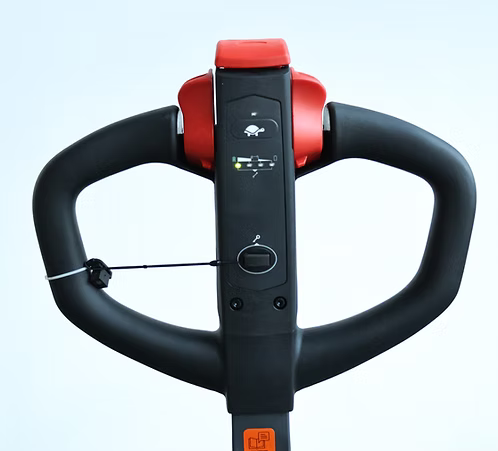

Ergonomic Handle and Controls

The handle and control layout is designed for operator comfort during extended use. Accessible, intuitive controls reduce the learning curve for new operators and support efficient operation across varied applications.

Common Applications

Loading and Unloading Trucks

The 2.95 in lowered height allows the forks to engage standard pallets in truck trailers, and the powered drive reduces operator effort when moving loaded pallets across the trailer floor.

Loading Dock Operations

The EPF15Li is designed for the repetitive pallet movement typical of busy loading docks, where full-powered drive and lift capability accelerates staging and transfer operations.

Stock Room Material Handling

In stock rooms with tight aisles, pinwheel capability and the compact walkie form factor allow operators to maneuver loaded pallets into position without requiring wide turning clearances.

Manufacturing Floor Logistics

The steel construction and durable drivetrain are built to handle the continuous use and varied terrain changes encountered on active manufacturing floors.

Warehousing and Distribution

For general warehousing operations, the 3,300 lb capacity and 27 x 45 in fork size accommodate standard GMA pallets, supporting high-volume pallet movement across warehouse aisles and staging areas.

Compatible Materials

• Standard wooden GMA pallets
• Plastic pallets
• Smooth concrete floors
• Sealed warehouse floors
• Loading dock surfaces
• Truck trailer floors
• Manufacturing floor surfaces

Product Documents

• EKKO Lifts Line Card (PDF)

Frequently Asked Questions

Q: Does the EPF15Li include a battery and charger?
A: Yes. The unit ships with one 24V/30Ah Lithium Iron Phosphate (LiFePO4) battery and a compatible charger included.

Q: What is the lowered fork height, and will it fit under standard pallets?
A: The lowered fork height is 2.95 inches, which is compatible with standard pallet entry clearances for loading dock and truck trailer use.

Q: What type of battery does the EPF15Li use, and why does it matter?
A: The EPF15Li uses a Lithium Iron Phosphate (LiFePO4) battery, which does not require watering or equalization and eliminates the off-gassing concerns associated with lead-acid batteries, simplifying maintenance and charging logistics.

Q: What is the warranty on the EPF15Li?
A: The EPF15Li is covered by a 3 Years Limited Warranty.

Q: Can the EPF15Li operate in tight spaces?
A: Yes. The unit includes pinwheel capability, allowing it to rotate within its own footprint for use in confined areas such as truck trailers and narrow stock room aisles.
