Shop Kingspan

GreenGuard VW Building Wrap

SKU# VW45100*

Sale price $4,743.43 Was: Regular price $5,108.31 Save $364.88
Shipping calculated at checkout.

Size/Quantity
Secure Checkout
Best to call to order for product mixing, shipping, pricing, and availability.
HPV Building Wrap is also available.

Safe & Secure Payments

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Meta Pay
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

You might also be interested in

  • GreenGuard Seam Tape Kingspan

    Kingspan

    GreenGuard Seam Tape

    Regular price$3,625.60 – $3,626.40
    View details
  • Mutual Industries

    Sump Pit

    Regular price$56.56 – $135.00
    View details
  • Chimney Cap Stainless Steel Mutual Industries

    Mutual Industries

    Chimney Cap Stainless Steel

    Regular price$195.60 – $508.20
    View details
  • Sale

    Tamlyn

    CS Coil Straps

    Sale price$211.06 – $221.50Save up to $22.15
    View details
  • Chimney Cap Painted Mutual Industries

    Mutual Industries

    Chimney Cap Painted

    Regular price$125.60 – $191.40
    View details
  • Sale

    SpiderLath

    SpiderLath Fiberglass Lath

    Sale price $118.94 Was: Regular price $130.83 Save $11.89
    View details
  • Sale

    Tamlyn

    WB Wall Bracing - Box of 20

    Sale price $244.33 Was: Regular price $268.76 Save $24.43
    View details
  • Sale

    SpiderLath

    Self Furring Roll Fiberglass Lath

    Sale price$139.00 – $369.00Save up to $20.00
    View details
  • Sale

    Tamlyn

    TLCE4 Post Caps - Box of 100

    Sale price $196.17 Was: Regular price $215.79 Save $19.62
    View details
  • Sale

    Tamlyn

    Tamlyn TS Termite Shield Versatile Metal Pan - Box of 25

    Sale price$62.50 – $166.02Save up to $18.44
    View details
  • Sale

    Tamlyn

    WBT12 Wall Bracing - Box of 20

    Sale price$228.87 – $311.62Save up to $31.16
    View details

Product Description

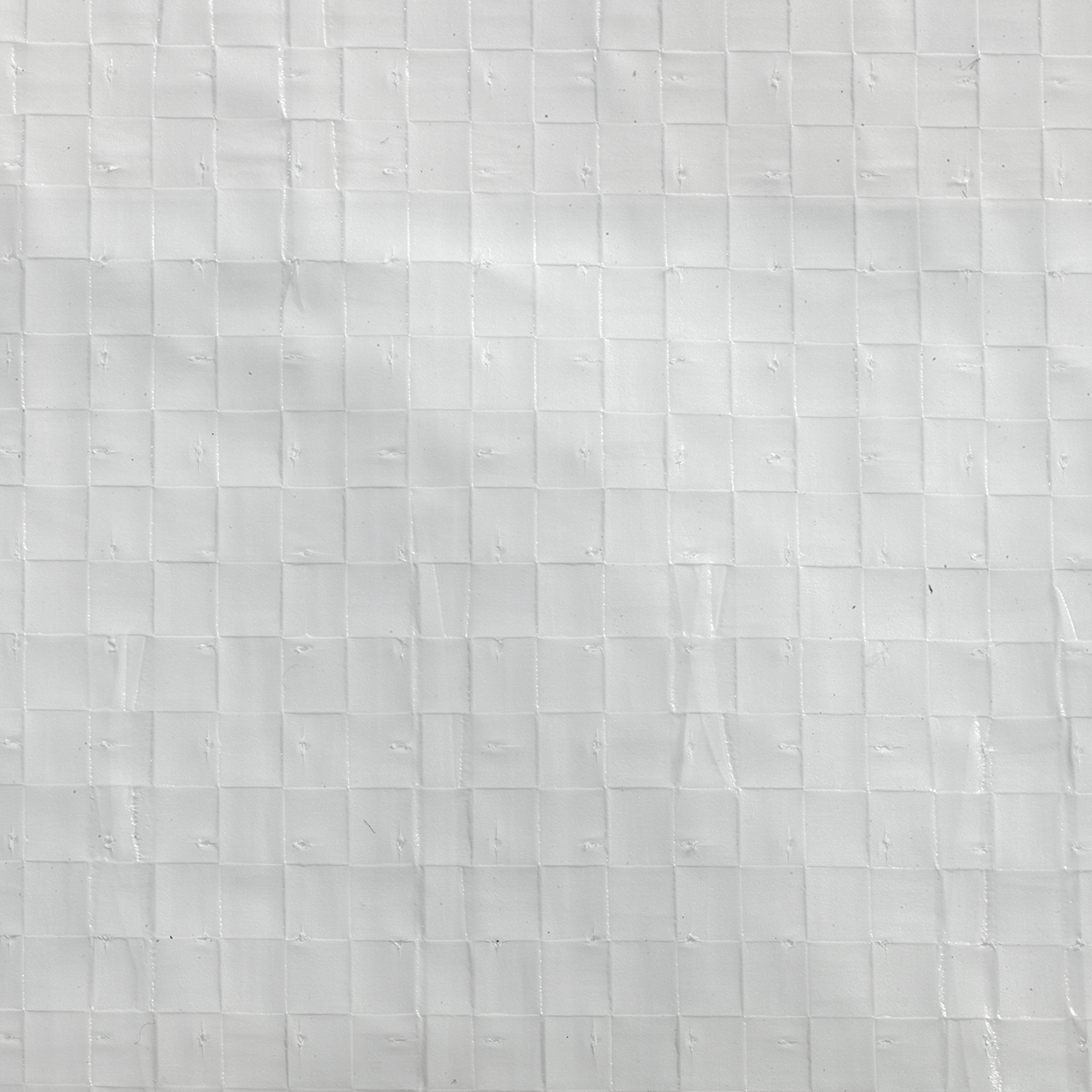

Its strong, cross-woven structure resists tearing, so there’s less waste.

This house wrap protects structures against air and water infiltration. Plus, it breathes to allow moisture vapor to escape, reducing the potential for condensation buildup. The translucent design of VW makes it quick and easy to install. It stays UV-stable up to 6 months.

Product Highlights

  • Protects against air and water infiltration
  • Designed not to tear, making it tough and reliable
  • Meets AC38 and the Building Code

Protection Against Air and Water Infiltration

VW Building Wrap breathes to allow moisture vapor to escape, reducing the potential for condensation buildup.

Is it OK to install the building wrap upside down, sideways, or with the printing facing the wall?

In the case of RainDrop® building wrap, the product must be installed with the correct side to the exterior and the drainage channels vertical, or at a slight angle from vertical, for the product to function properly. (Horizontal drainage channels do not really work.) Performance of flat wraps is not particularly affected by install direction, from a fabric perspective. However, installing wrap consistently indicates that you have followed guidelines to achieve a proper water-resistive barrier. Care should be taken to install the wrap in a shingling fashion (check local codes for overlap requirements). In addition, the appearance of the final job sends a message. You can guess what message a sloppy, inconsistent installation sends.

Should I install the fanfold or building wrap first?

Depends. If you are doing a full siding tear off and replacing the whole window units it is recommended to install the fanfold first and then the building wrap on top. You will then install the windows on top of these layers and flash accordingly. If you are keeping the existing windows, it is often easier to install the building wrap first to flash it to the existing window and then install the layer of fanfold on top.

Can you use house wraps under any exterior facade?

House wraps can be used under most exterior cladding materials. In fact, the International Building, Residential and Energy Codes require the use of water-resistive barriers (House wrap or felt building paper) in exterior walls. There are special requirements for some applications or systems, such as conventional stucco systems, which may require more than one layer of a water-resistive barrier when wood sheathing is used.

Why use a house wrap?

House wraps enhance the thermal performance of a wall system by reducing air leakage through the wall cavity, thus increasing the comfort level of a home or building.  They are also effective at protecting the wall system components from exposure to bulk water, which can have a negative effect on some building materials, leading to the potential for rot and degradation.

Can fanfold siding underlayment be used in place of building wrap?

GreenGuard siding underlayments are in compliance with the ICC-ES “Acceptance Criteria for Foam Plastic Sheathing Panels Used as Weather–resistive Barriers” (AC71). This means that GreenGuard fanfold siding underlayments may be used in either new or retrofit construction applications without an additional water-resistive barrier (felt building paper or building wrap), when they are installed in strict accordance with the installation instructions.

Documents

  1. Product Data Sheet
  2. Insulation Board Line Sheets
  3. Safety Data Sheet (SDS)
  4. Technical Bulletins (Leed)
  5. Installation Guide

Technical Info

GreenGuard VW can be used in the residential, commercial, etc. applications.

GreenGuard VW Building Wrap is a strong, cross-woven structure resists tearing, so there’s less waste.

Greenguard VW comes in multiple widths and lengths.

Code Compliance

  • Code Compliance Research Reports: CCRR-1018
