Easy to maneuver in tight spaces. Offers a combination of light frame and rollers with self-lubricating ball bearings.

Handle is ergonomically designed for operator comfort, reducing lifting and rolling effort. Supplemental rollers allow an easier entrance and a quicker exit from the closed pallets. Features robotically welded frames for consistent strength. Easy to assemble handle.

  • Compact design allows maneuvering in small areas
  • Transports products smoothly on rollers
  • Strong construction promotes longevity
  • Load capacity for restriction for safety
- Pramac Hand Pallet Truck Our Full Featured Pallet Truck
# of pump to lift 4,315 lbs. (1,957 kgs): 17-18 pumps (pump piston size -30.00mm) 14-15 pumps (pump piston size -38.00mm)
Ease of Pump: Easy to pump up around 20-25 lbs pump up force. Harder to pump up around 35-40 pump up force
Number of pumps without load: 20 pumps 20 pumps
Start up - Pull force: 115-120 lbs. 100 - 110 lbs.
Sustained pull force: 75-100 lbs. 100-110 lbs
Push force: 80-90 lbs. 80-90 lbs.
Service range: 3-1/8"-7-5/8" 3" - 7-5/8"
Fork Size: 6" 7"
Net weight: 154 lbs. 176 lbs.


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

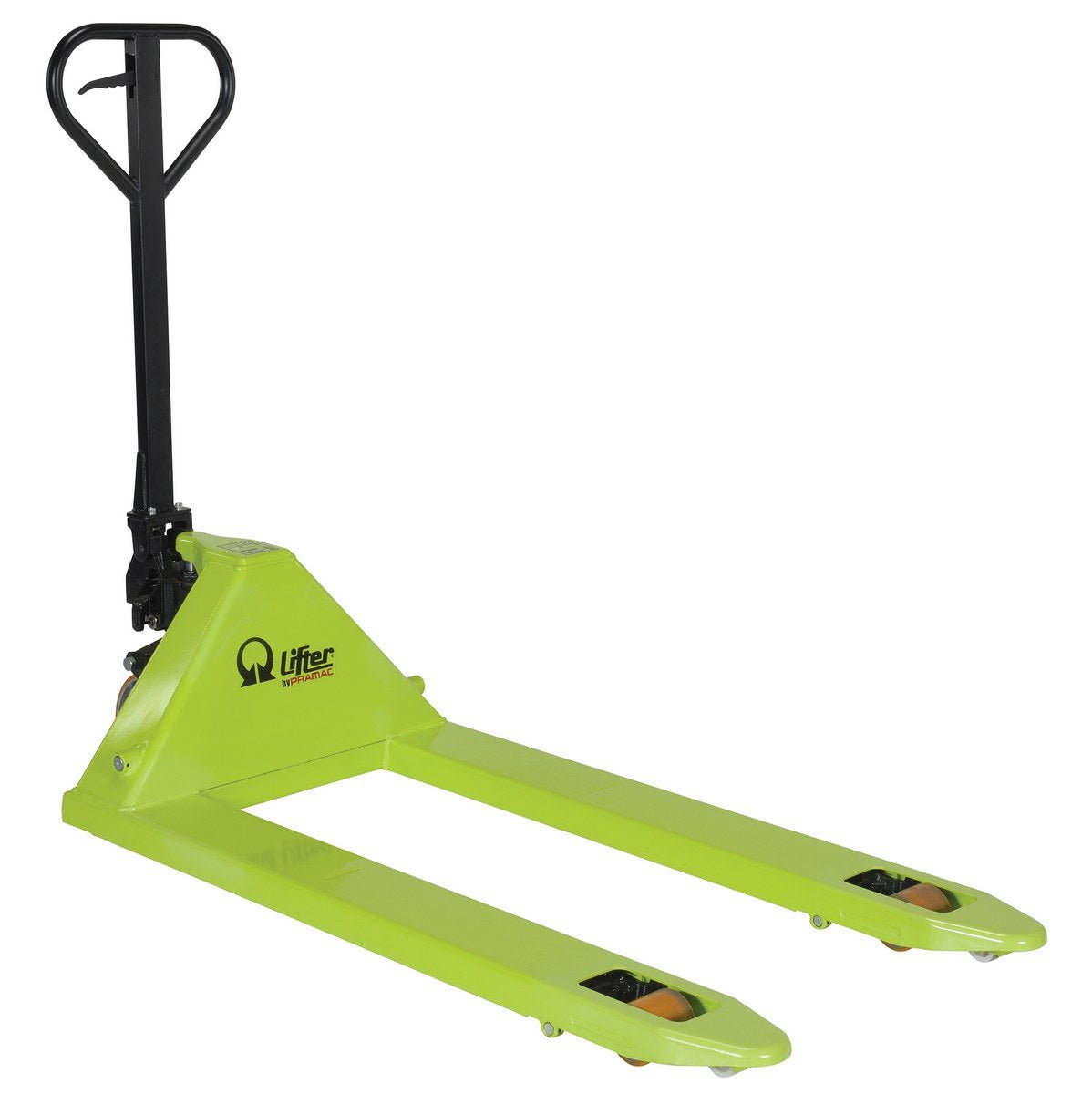

Hand Pallet Truck
Model Image PDF's Overall Fork
Size (WxL)
Fork Width
Capacity (lbs)
PMC-PM5-1632 Warranty PDF 16"x32" 6-1/2" 3-3/8" to 7-7/8" 5,500 149
PMC-PM5-2748** Warranty PDF 26-1/2" x 44-1/2" 6-1/2" 3-3/8" to 7-5/8" 5,500 212
PMC-PM5-2748-N* Warranty PDF 26-3/4" x 45-1/4" 6-1/4" 3-3/8" to 8" 5,500 209

*Nylon Wheels/**Polyurethane wheels

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
