Hook Plates
From
$15196
Unit price
/
Unavailable

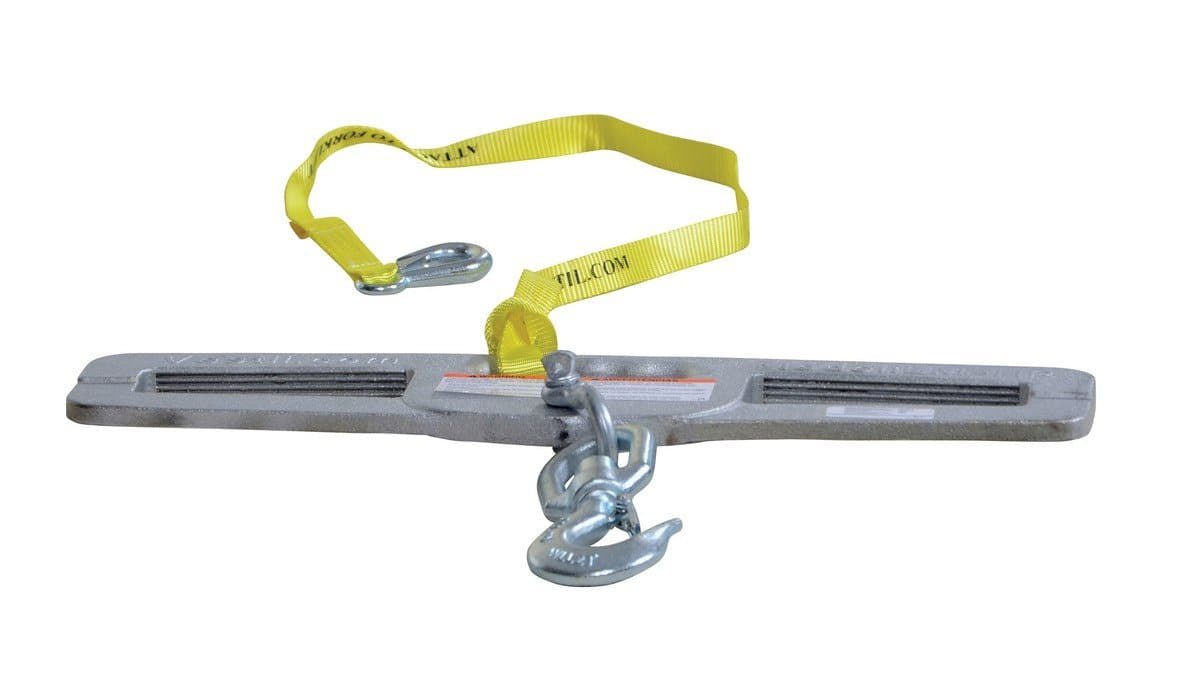

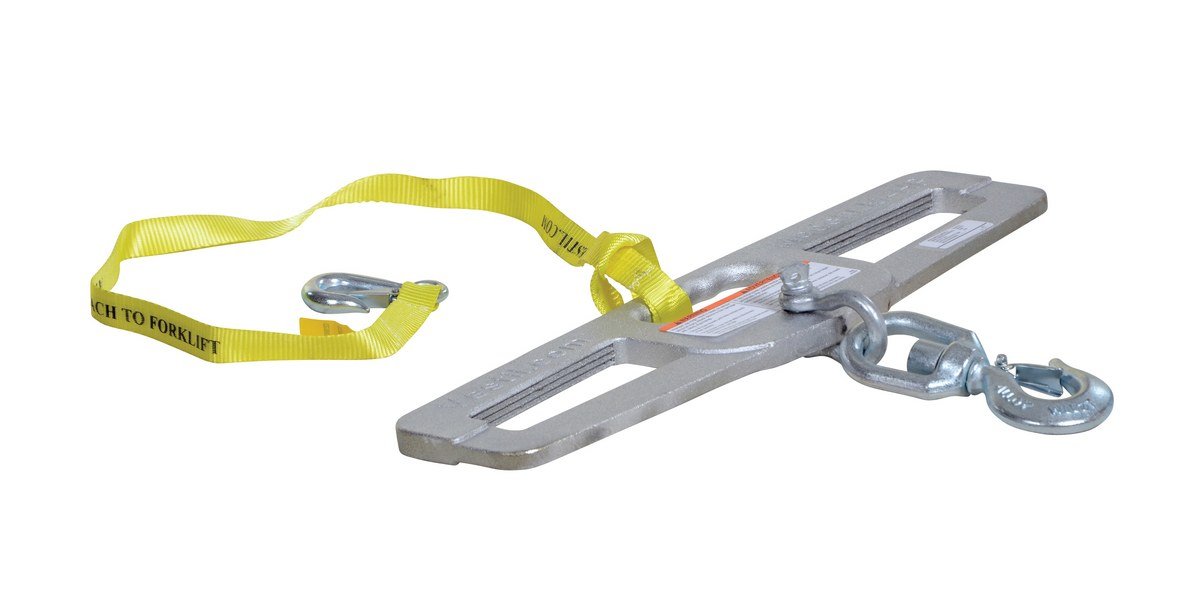

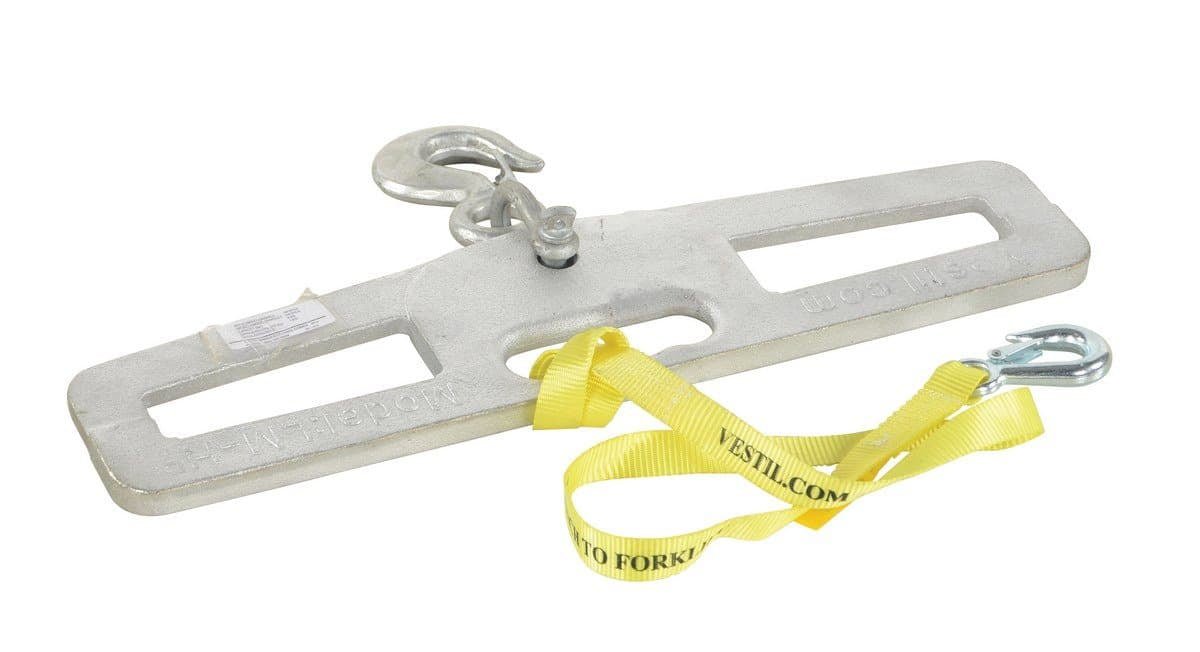

Hook Plates enable any fork truck to safely lift a load using chains, cables, or slings.
Features slanted fork openings measuring 6-1/2" wide by 1-3/4" high to prevent the hook plate from being used upside down. A hook with anchor shackle is included. A safety restraint secures the unit to the fork truck. Model LM-HP10-SL has fork openings measuring 7"x2" and includes a swivel lifting hook with a latch.
| Hook Plates | |||||||
| Model | Image | PDF's | Hook Type |
Overall Height |
Overall Width |
Capacity (lbs) |
Wt. (lbs) |
| LM-HP4-S |  |

|
Swivel | 13-5/8" | 24" | 4,000 | 23 |
| LM-HP4-R |  |
|
Rigid | 12-1/8" | 24" | 4,000 | 23 |
| LM-HP6-S |  |
|
Swivel | 15" | 24" | 6,000 | 25 |
| LM-HP10-SL |  |
|
Swivel | 20-9/16" | 25" | 10,000 | 52 |
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
