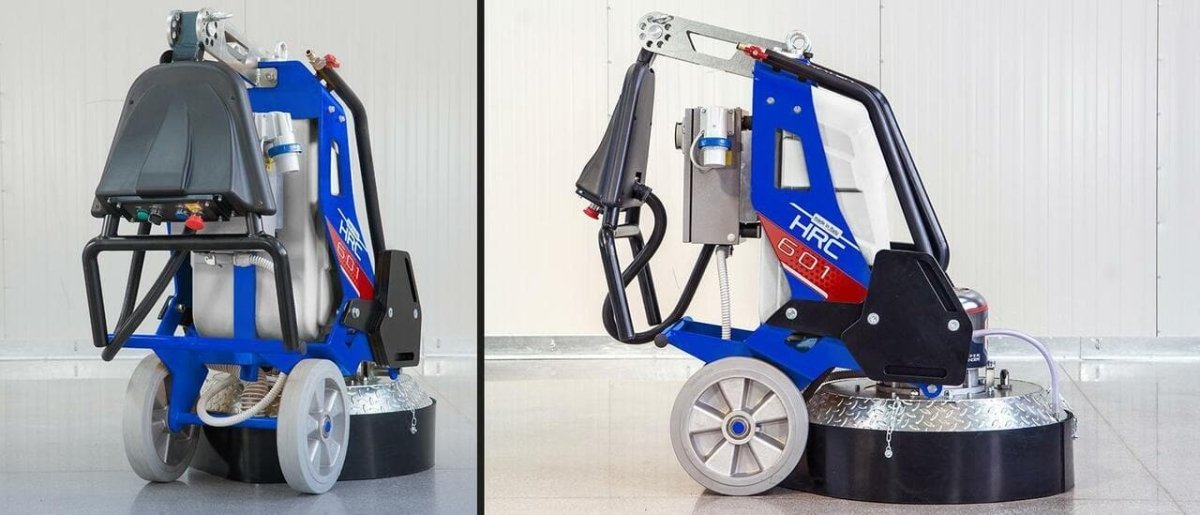

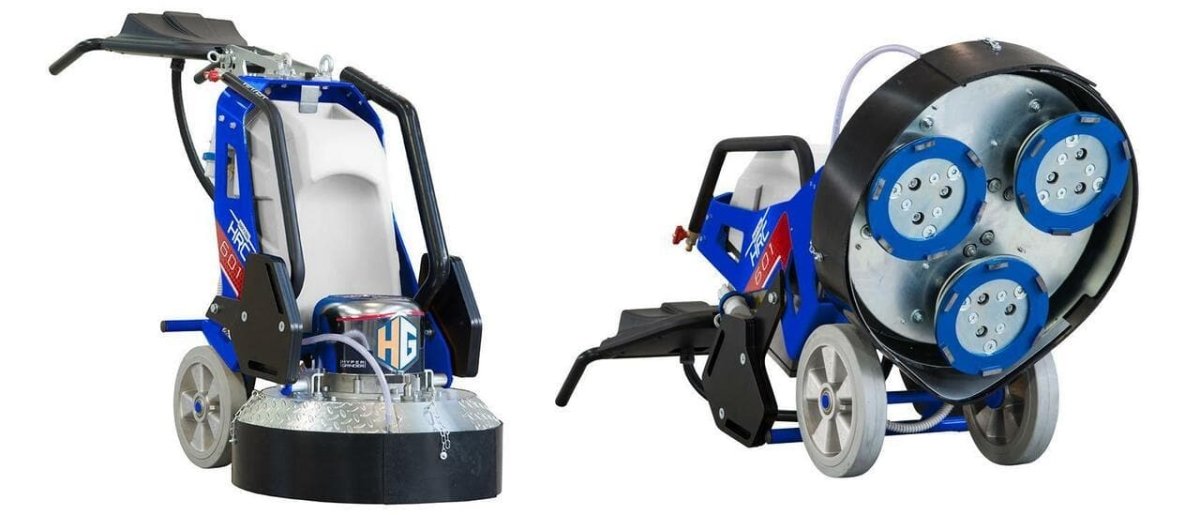

HRC 601 PROFESSIONAL GRINDER WITH EXCLUSIVE DOUBLE ROTATION SYSTEM DCT "DUAL CUT TECH".

The DCT system allows you to choose to smooth use only using the rotation of the tools (DCT ON mode), or with the classic complete rotation of the planetary (DCT OFF mode).

The new range of HRC grinders introduces the exclusive DCT transmission. Thanks to this innovative function, it is possible to lock the rotation of the main plate and allow only the rotation of the tools simply by pressing a lever on the planetary (DCT ON). With the DCT in the ON position you gain higher speeds of the satellites for a more aggressive and effective grinding. The DCT ON system is ideal for glue and resin removal work, surface preparation and floor levelling. Turning off the DCT (DCT OFF) lever will cause the main plate to rotate in the direction of the tools. In DCT OFF mode the planetarium is counter-rotating for general polishing, marble polishing, natural stone and concrete.

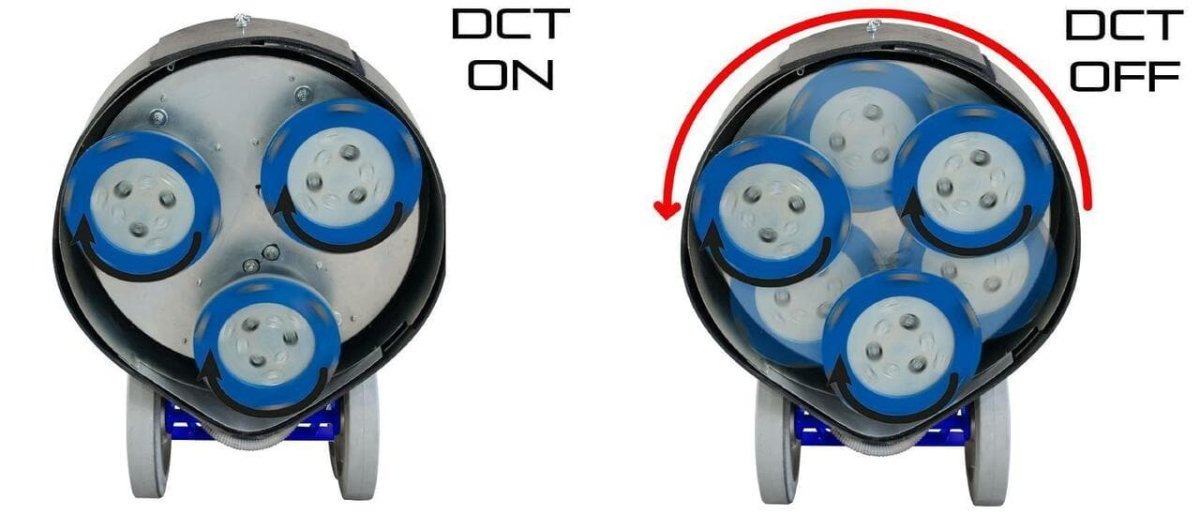

DCT ON: Only allows rotation of the tool holder satellites, this option makes HRC extremely effective and aggressive for the preparation, removal of glues and resins, for leveling the surface and for rapid exposure of the concrete aggregate.

DCT OFF: Allows rotation of the planetary in counter-rotating mode, ideal for sanding and polishing concrete, marble and natural stone floors.

MAIN CHARACTERISTICS:

  • Single-shell chassis, robust and compact for less space.

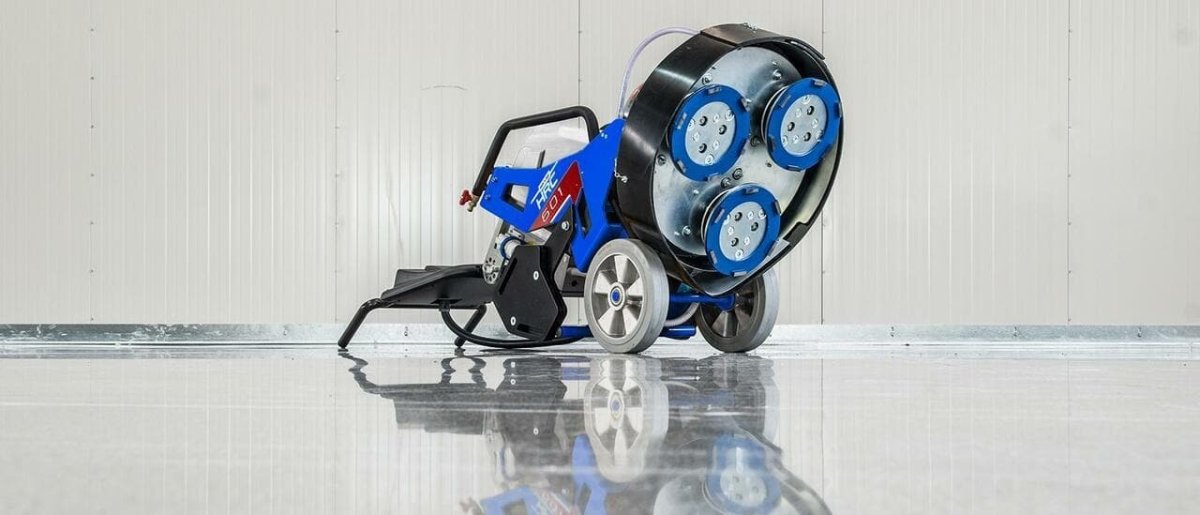

  • 180 ° overturning system for extra weight. The displaced weights increase the grinding pressure. The weights moved back facilitate the tilting operation for tool changes. (Optional)

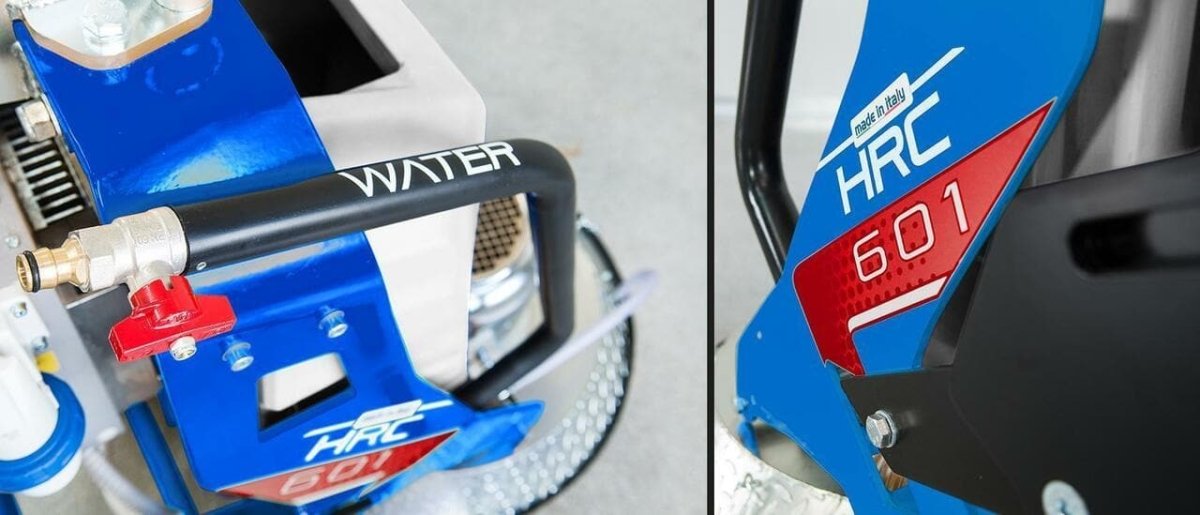

  • 46 litre water tank.
  • Powerful front and rear LED spotlights (optional).
  • Total transmission with heat treated gears for maximum reliability and durability.
  • Noise reduction levitating planetarium.
  • 2 Year Warranty: The GUARANTEE for machines equipped with "hour counter" is up to 2 years or 600 hours of work.
Model HRC 601 HRC 601 VS HRC 601 T5 VS HRC 601 USA
Motor 2900 Watt Max 3000 Watt Max 5.5 HP 7 HP
Drive Inverter - 4 kW 230V 4 kW 380V 7.5 kW 200V
Volt 220 mono 220 mono 380-480 200-240/1-3 Phase
Hertz 50 50/60 50/60 50/60
Amp - - 16 30
Tool Speed rpm 800 600-1000 600-1000 800
Work Diameter 600mm 600mm 600mm 600mm
Tool Size 3x240mm 3x240mm 3x240mm 3x240mm
Water Tank 46 lt 46 lt 46 lt 46 lt
Size LxAxP cm 120x125x62 120x125x62 120x125x62 120x125x62
Weight 140 Kg 155 Kg 160 Kg 160 Kg
ESTIMATED PRODUCTION
Concrete Polishing 7 step 10-15 m2/h
Concrete Grinding 1 step 40-80 m2/h
Terrazzo Polishing 5 step 9-15m2/h
Resin Removal 1 step 40-80 m2/h
Paint Removal 1 step 40-80 m2/h
Marble Polishing 5 step 7-12m2/h
Granite Polishing 7 step 5-7m2/h



Data may vary depending on surface conditions, tools used, operator convenience, equipment, etc.



Model HRC 601
Volume 0.72 m3
Size 120x80x75 cm
Weight 220 kg
