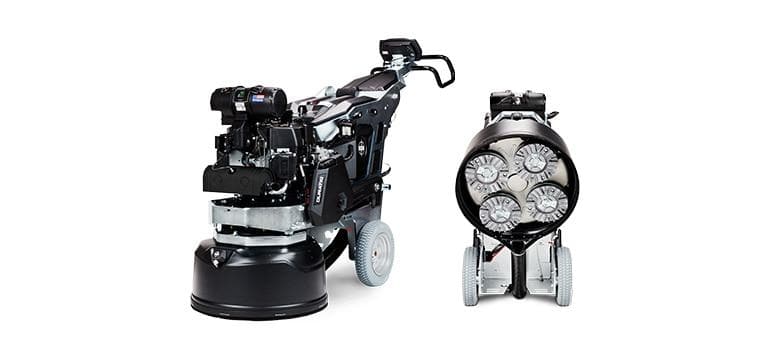

HTC DURATIQ XP6 Born to be unleashed

With the DURATIQ, HTC has set an entirely new standard for reliability, precision and control within floor grinding.

The all new DURATIQ XP6 is a propane driven, four head planetary grinder with world class engineering. The dust proof, hermetically sealed grinding head together with the powerful 22 hp (16,2 kW) engine means reliability and power. The electronic fuel injection system reduces the risk of freezing - while the exhaust catalyst makes for low emissions.

These features combined with the intuitive and smart digital control panel and Mist Cooler System™ give you all the control and precision to maximize your grinder performance. The DURATIQ XP6 model will be available in selected markets.


  • Powered by propane

    Propane drive - No need for electrical cords or generators.


  • Ajust grinding pressure

    Adjust the grinding pressure easily with the integrated weights which come as a standard feature.


  • The Grinding head

    The heart of the DURATIQ, the grinding head, is built on an all-new design - based on equal portions of precision and strength. The completely dust tight, hermetically sealed design increases the service life of all components, while increasing grinding precision.


  • Intuitive and smart

    The HTC DURATIQ is here to reveal the future with an entirely new, intuitive digital control panel called HMI (Human/Machine Interface) and an equally smart remote control unit.


  • Operability

    The DURATIQ is based on an entirely new chassis design with full consideration to center of gravity, maneuverability and feel. This makes the DURATIQ easier to operate, with better ergonomics and increased safety.


  • Maximized synergies

    The DURATIQ features a number of innovations that all interact to increase efficiency and improve the work environment.

TECHNICAL DATA

Name HTC DURATIQ XP6
Item no. 967978001
Length 1400 mm / 55 inches
Width 600 mm / 24 inches
Height 1070 mm / 42 inches
Weight 456 kg / 1005 lbs
Motor output Kohler PCV680 22 hp / 16,2 kW
Grinding pressure 171-242 kg / 377-533 lbs
Revolution speed 750-1010 rpm
Grinding discs 4 x 230 mm / 9 inches
Grinding head weight 123 kg / 271 lbs
Grinding width 600 mm
Grinding motors 1
Water tank 13 l / 3,4 gallons
Mist Cooler System Yes
Recommended Dust Extraction Systems HTC D60
