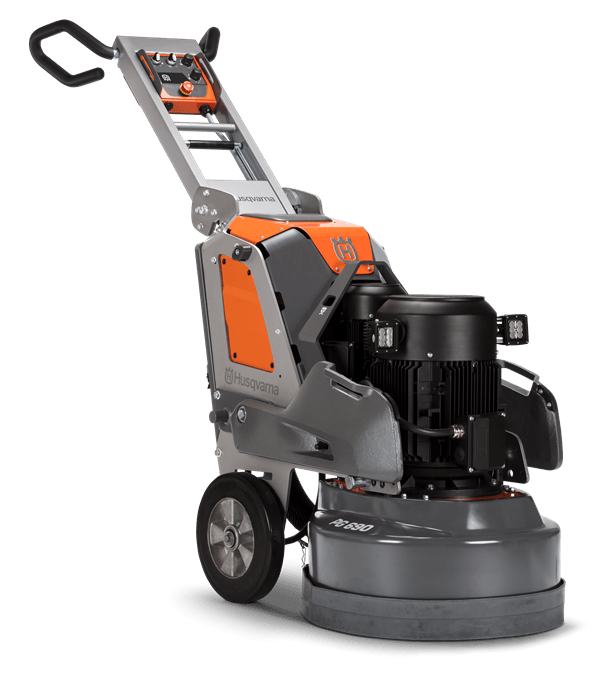

The PG 690 is a versatile and powerful floor grinder but still compact enough to pass through a standard door (total width: 26 in / 67 cm).

This is the go-to-choice for most grinding jobs, both industrial and commercial, and for users that prefer a non-motorized drive. The planetary drive system and the improved, Husqvarna-unique Dual Drive Technology™ deliver excellent grinding performance. Adjustable weights for extra grinding pressure and LED lights are optional. Suitable for all applications: floor prep, grinding and polishing. A good choice for the HiPERFLOOR® concrete polishing system. To maximize reliability and reduce maintenance, the vital components of the PG 690 are protected against dust and slurry inside the hermetically sealed grinding head and electrical cabinet.

  • Rated input power
    17 hp
  • Phases
    3

FEATURES

Want to take a closer look? Learn more about the product in depth by exploring its features and benefits.

Enhanced Dual Drive Technology™

Husqvarna’s unique Dual Drive Technology™ has now even higher disc speed capabilities. It enables you to individually control the speed and direction of the disc rotation and the speed and direction of the grinding head.

Adjustable grinding pressure

The optional weights are a musthave for every professional grinder, as they allow to adjust the grinding pressure in three pre-set positions. They also make tilting the machine that much easier.

Protected electronics

Dust sealed electrical cabinet with external cooling technology.

Low maintenance, smooth operation

Re-designed Dual Drive Technology™ transmission, fully sealed against dust. Self lubricating drive chain.

SPECIFICATIONS

Motor

Rated input power
17 hp
Rated current
30 A
Voltage
440-480 V
Phases
3
Pins
3P+E

Other

Grinding disc diameter
10.5 in
Direction of rotation
Independent FWD/REV direction control on both grinding discs and planetary head.
Number of grinding discs
3

Dimensions

Product size length
51.2 in
Product size width
26.4 in
Product size height
45.3 in
Weight
1107 lbs
