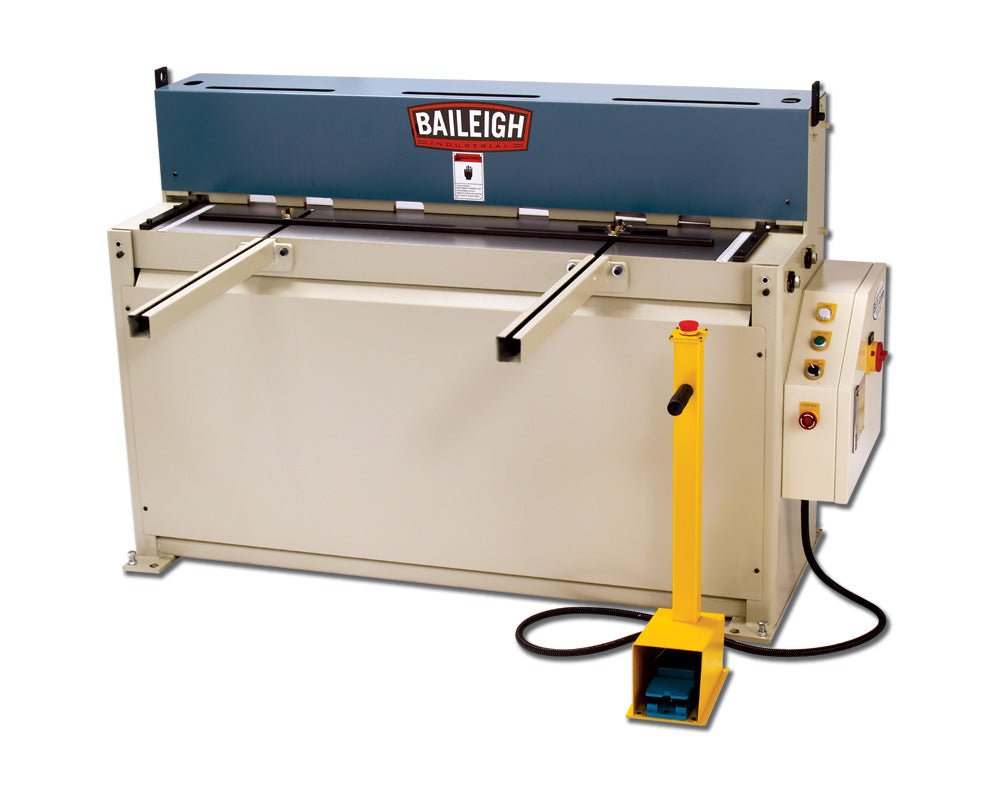

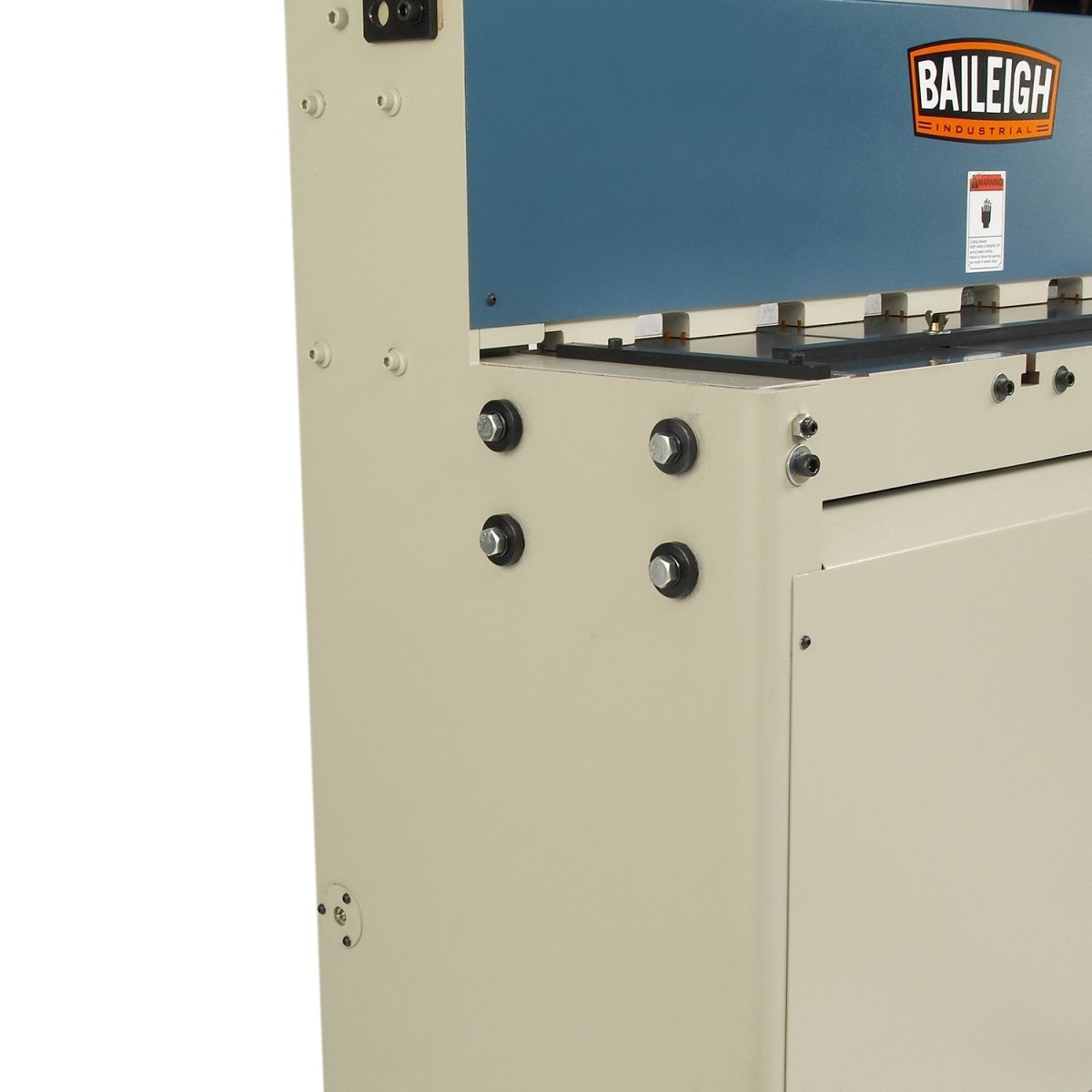

A dependable tool for a great price, this hydraulic shear draws strength from a welded steel plate frame. Auto mode with 35 strokes per minute makes the SH-5214 efficient for production.

• 52” length.
• 14 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• Runs on 220-volt single-phase power.

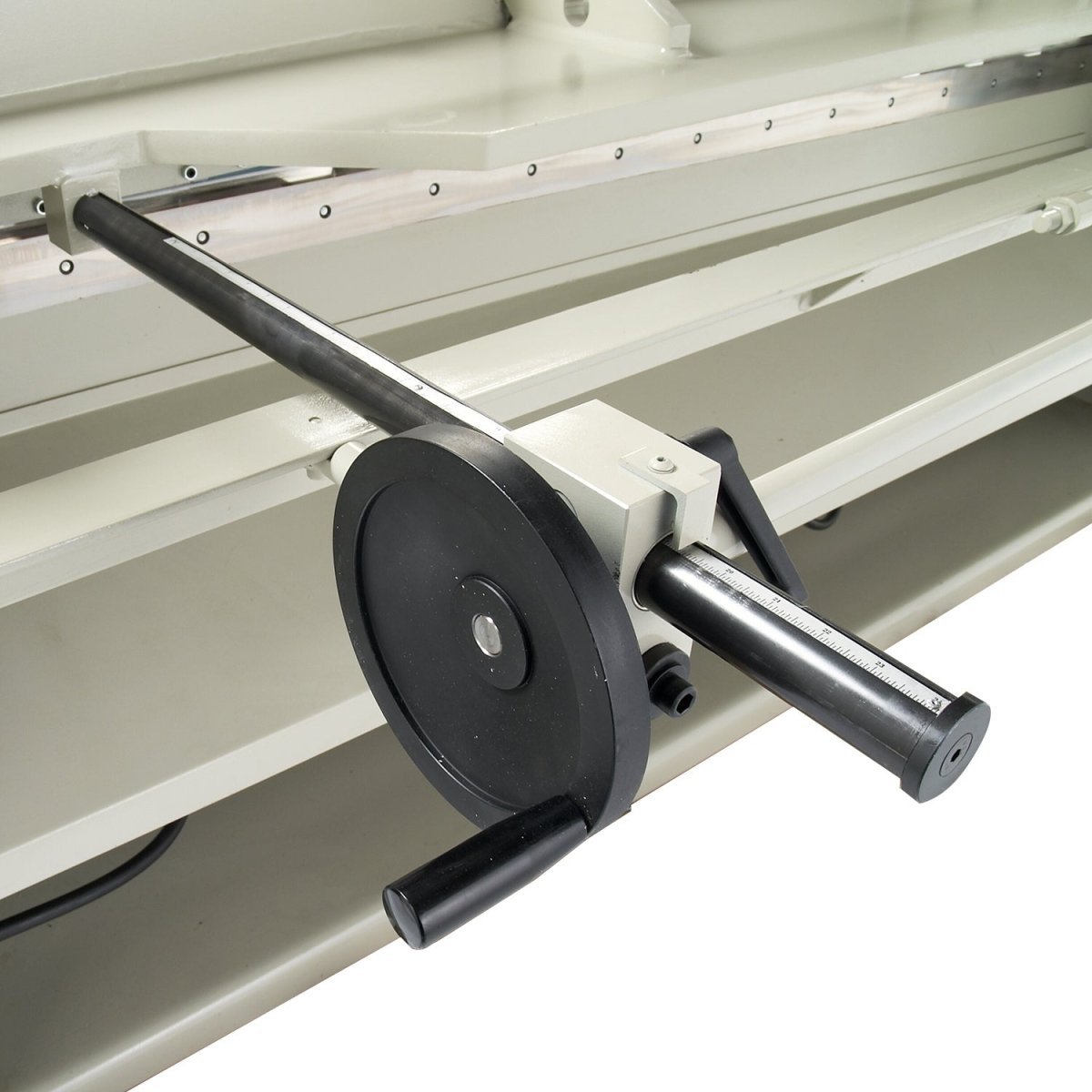

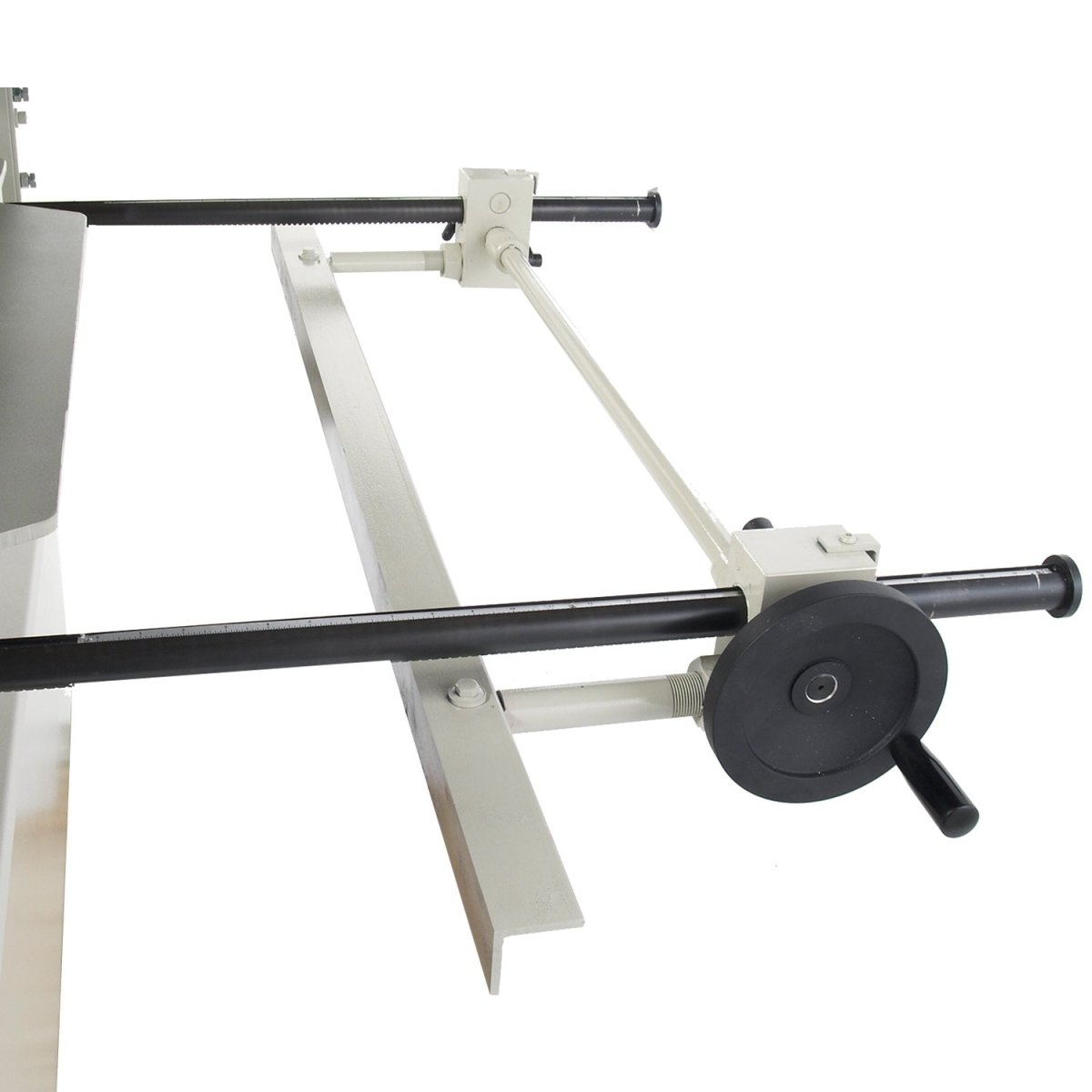

• Adjustable 24” backgauge ensures precise repeatability.

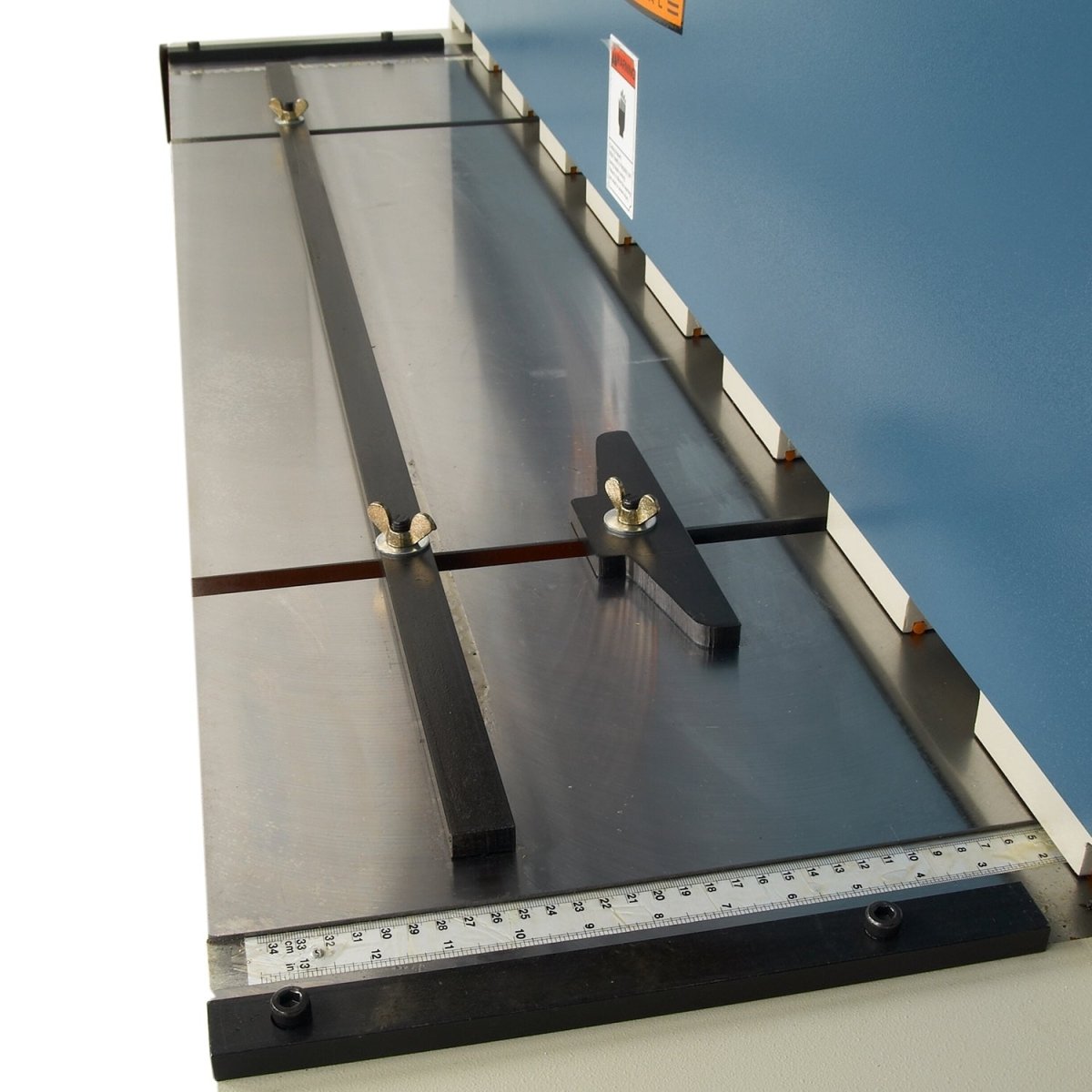

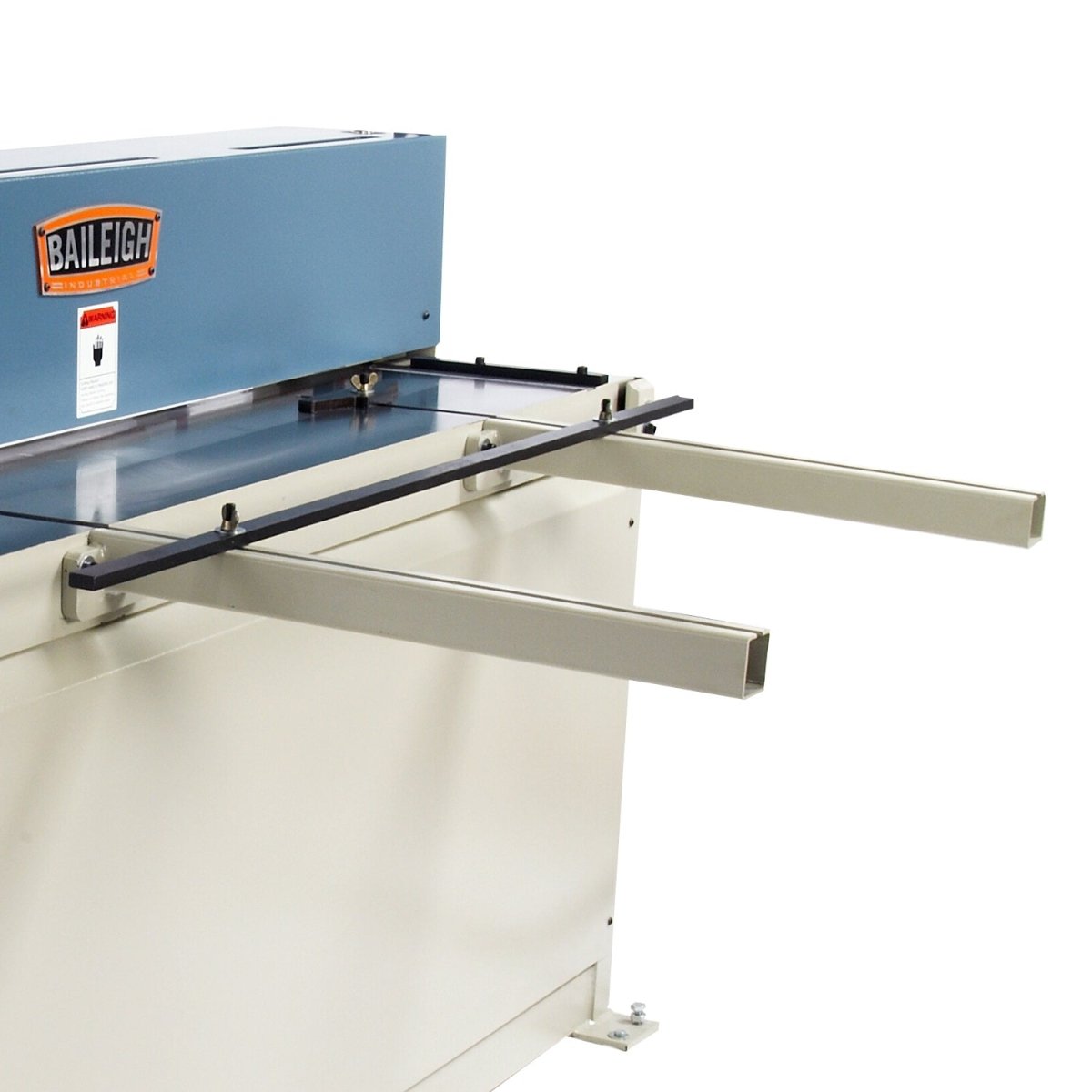

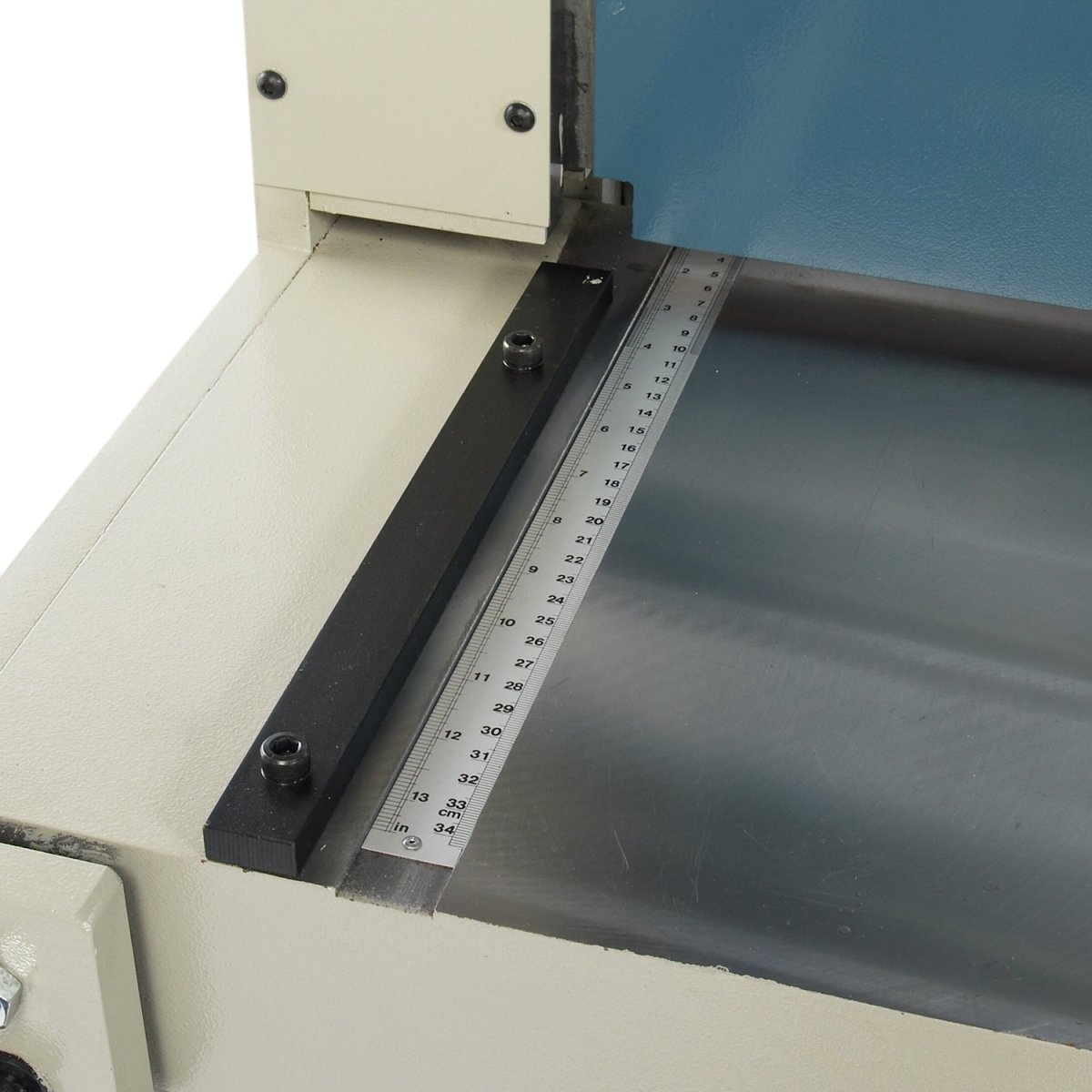

• Front arm extensions and table guides keep the material square to the blade.

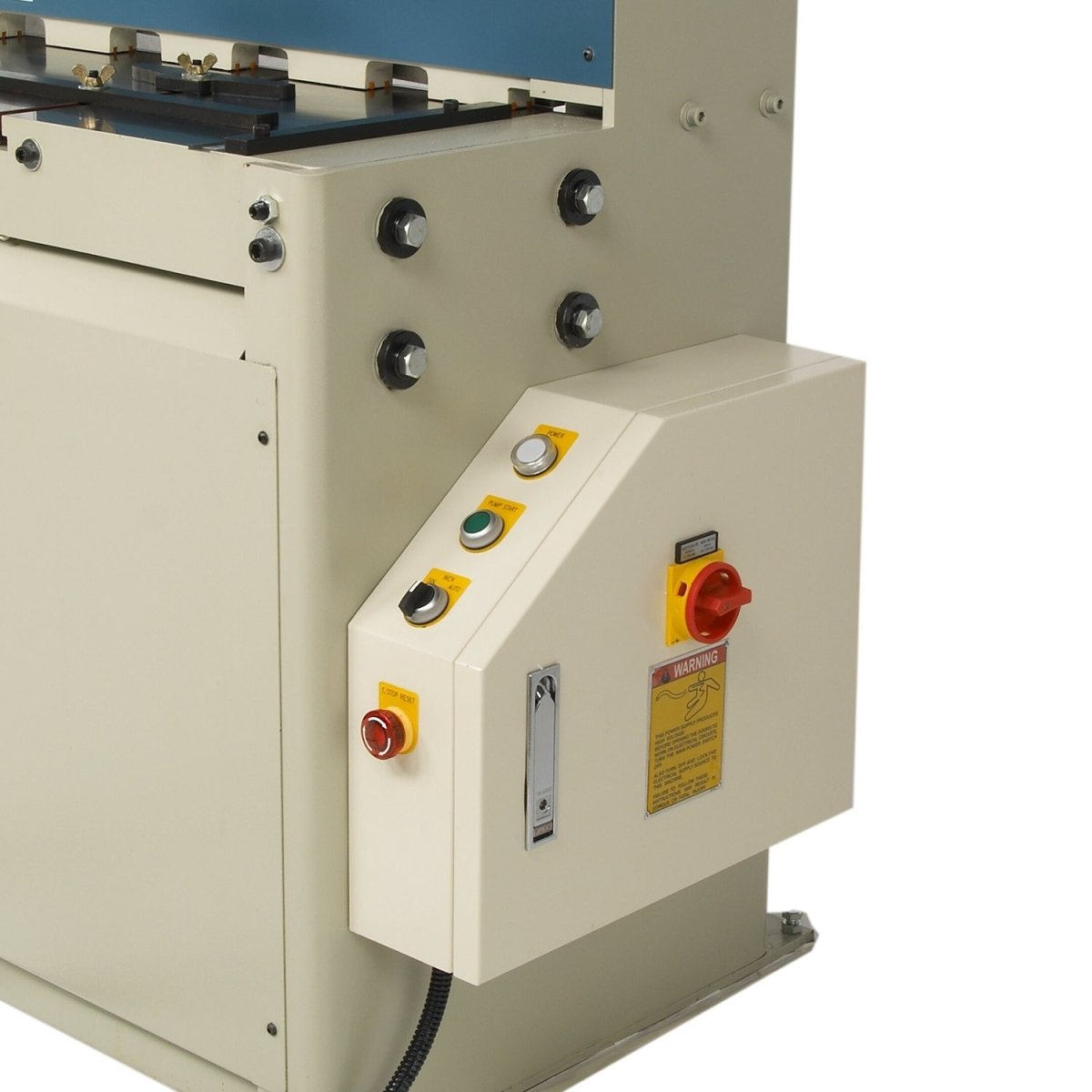

• 3 modes on the operator console:
  • Inch mode: Jog the control and ease the blade down to the material.

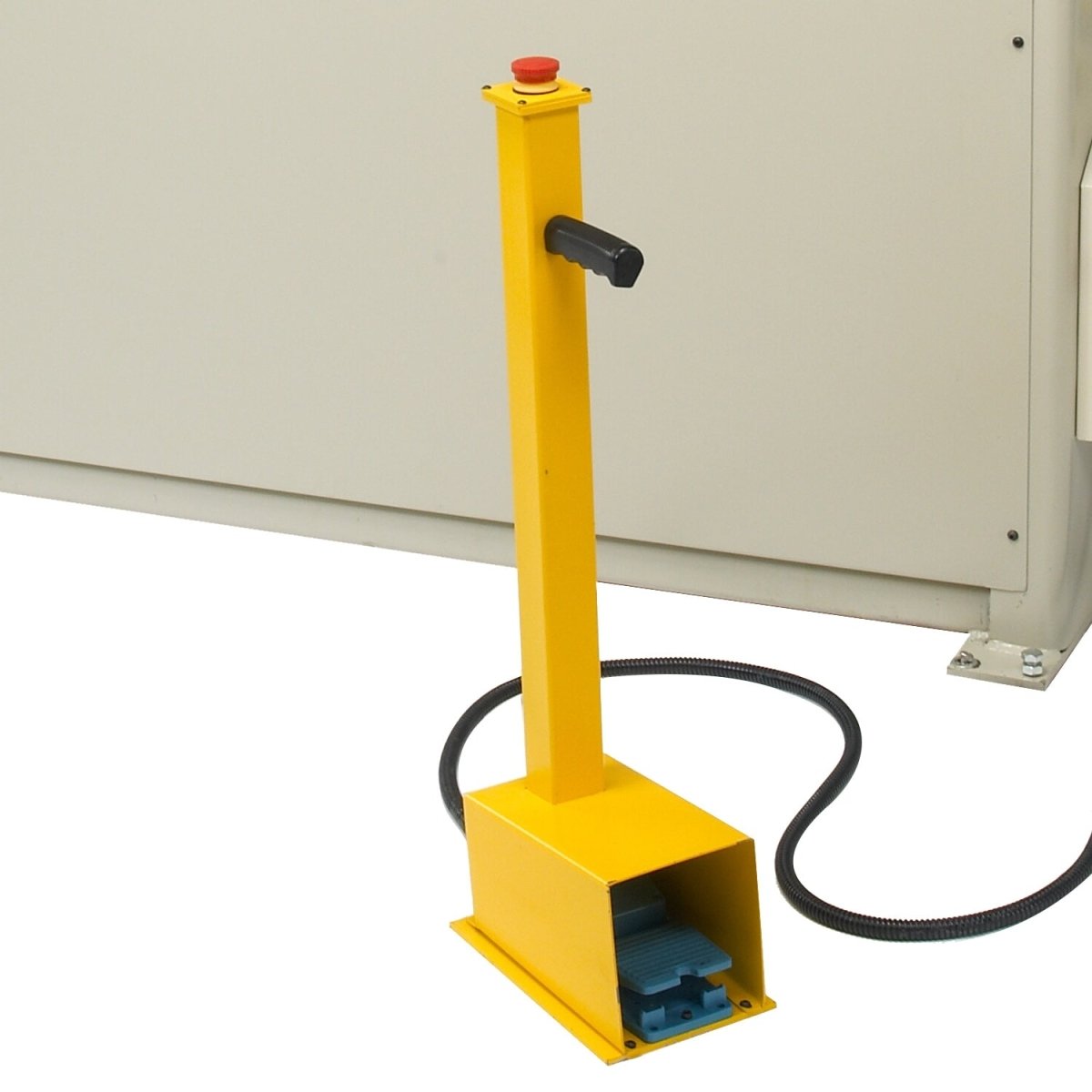

  • Single mode: Make one cut cycle per foot pedal push.
  • Auto mode: Continue cycling as you hold the pedal down.
• Comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
• Covered by a 1-year parts warranty.
• We stock replacement parts, including blades, in house for fast shipping.

Specs on the Hydraulic Medium Duty Shear SH-5214

Item Number	SH-5214
Back Gauge Length	24"
Shear Length	52"
Motor	3 hp
Thickness (SS)	14 ga. (18 ga.)
Strokes Per Minute	35
Front Gauge Length	24"
Blade Angle	1°
Power	220V Single Phase
Shipping Weight	1880lbs
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	75x33x55

* specifications subject to change without notice.
