Hydraulic Power Units

$8,630⁰⁰ ~~$10,085⁰⁰~~

Shipping calculated at checkout.

Hoses Sold Separately

Options

5 or 8 GPM 1 -14.5 GPM (variable control valve)

Product variants

Safe & Secure Payments.

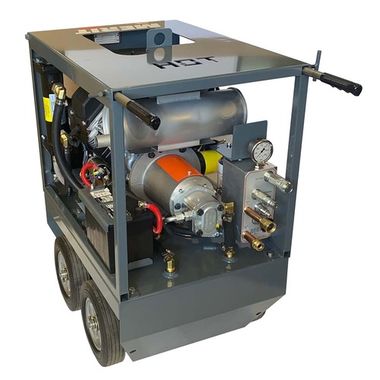

MODEL P95-HYDRAULIC POWER UNIT

Delivers up to 14.5 GPM @ 2000 PSI
Portable and compact
Easy to operate and simple to maintain
Ideal for use with our hydraulic power tools
Designed for heavy duty operation in construction, industrial, marine and other industries
Available with gas, electric or diesel engines
Contact us for more information

Rugged construction
Easy to move with lift and latch handle
18 HP gas engine
Electronic Throttle with two power modes: Automatic Control senses working load and adjusts to tool demand and returns to idle when load falls below threshold. Always-On maintains constant engine speed at all workloads.
Easy servicing with access to parts and removable upper frame
All-electric control system with fully sealed and potted rotary switches
Quartz hour meter records engine time
Hydraulic pump is mounted directly on engine to insure alignment and long life of drive coupling
In-tank hydraulic filter continually cleans and refills hydraulic fluid
Easily accessible 35 Ah, non-spill, no-maintenance battery
Automatic pressure lubrication system keeps bearings bathed in oil with automatic low oil level off switch
Conforms to HTMA Type 1 and Type 2 tool circuit recommended performance as well as the 5 HP heat rejection capacity recommendation

P95 Hydraulic Power Unit (Gas Engine)
	Imperial	Metric
Output Capacity	5 or 8 GPM	19 or 30 lpm
Pressure	2000 PSI	140 BAR
Circuit Type	Open Center
Fuel Capacity	7 gallons	26 liters
Hydraulic Reservoir	3 gallons	11 liters
Weight (Wet)	330 lbs.	150 kg
Length	35"	89cm
Width	21.5"	54.6 cm
Height	29"	73.7 cm
Engine	Briggs & Stratton 18 HP Vanguard
Hoses	Not included - specify when ordering. 25', 50' and custom lengths available.
