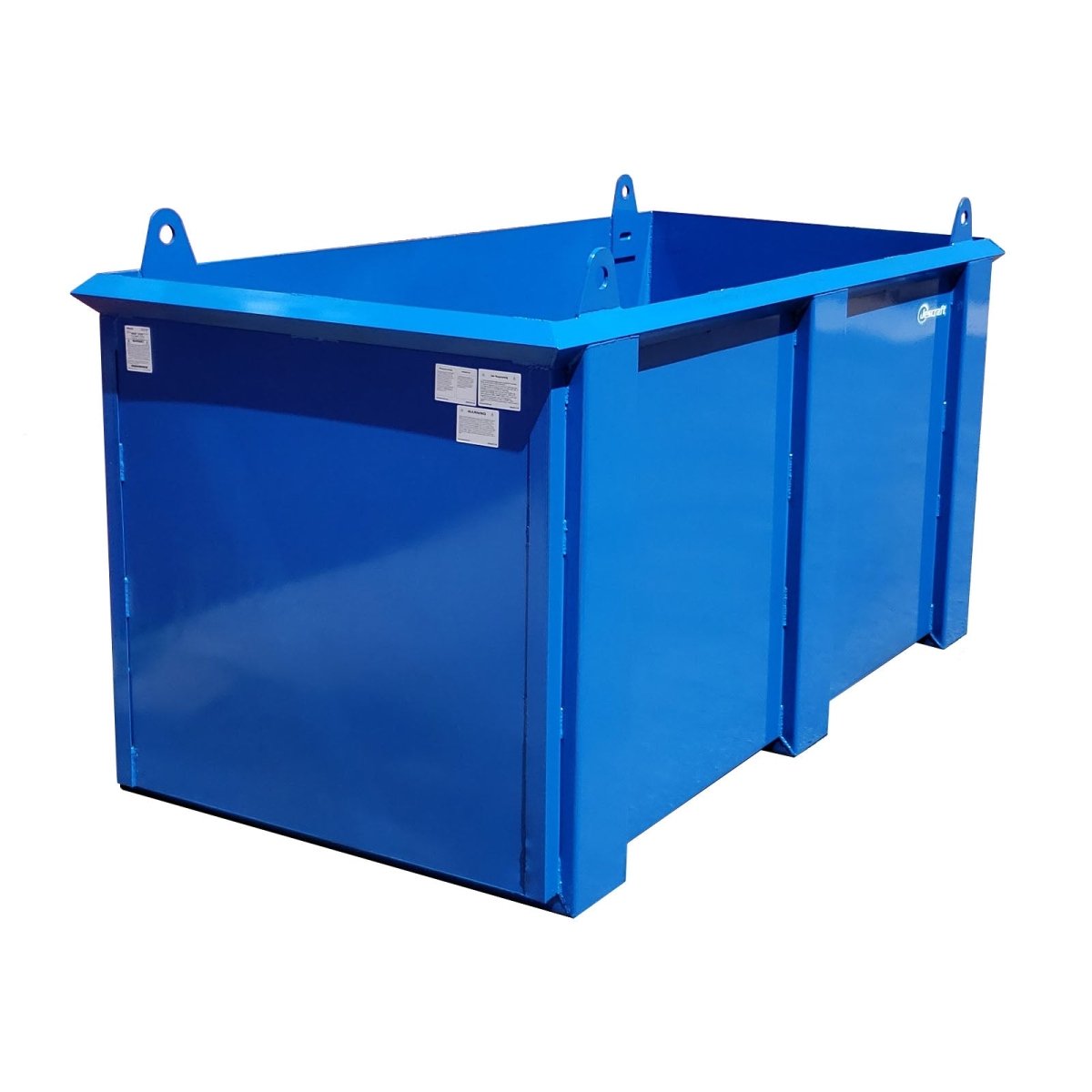

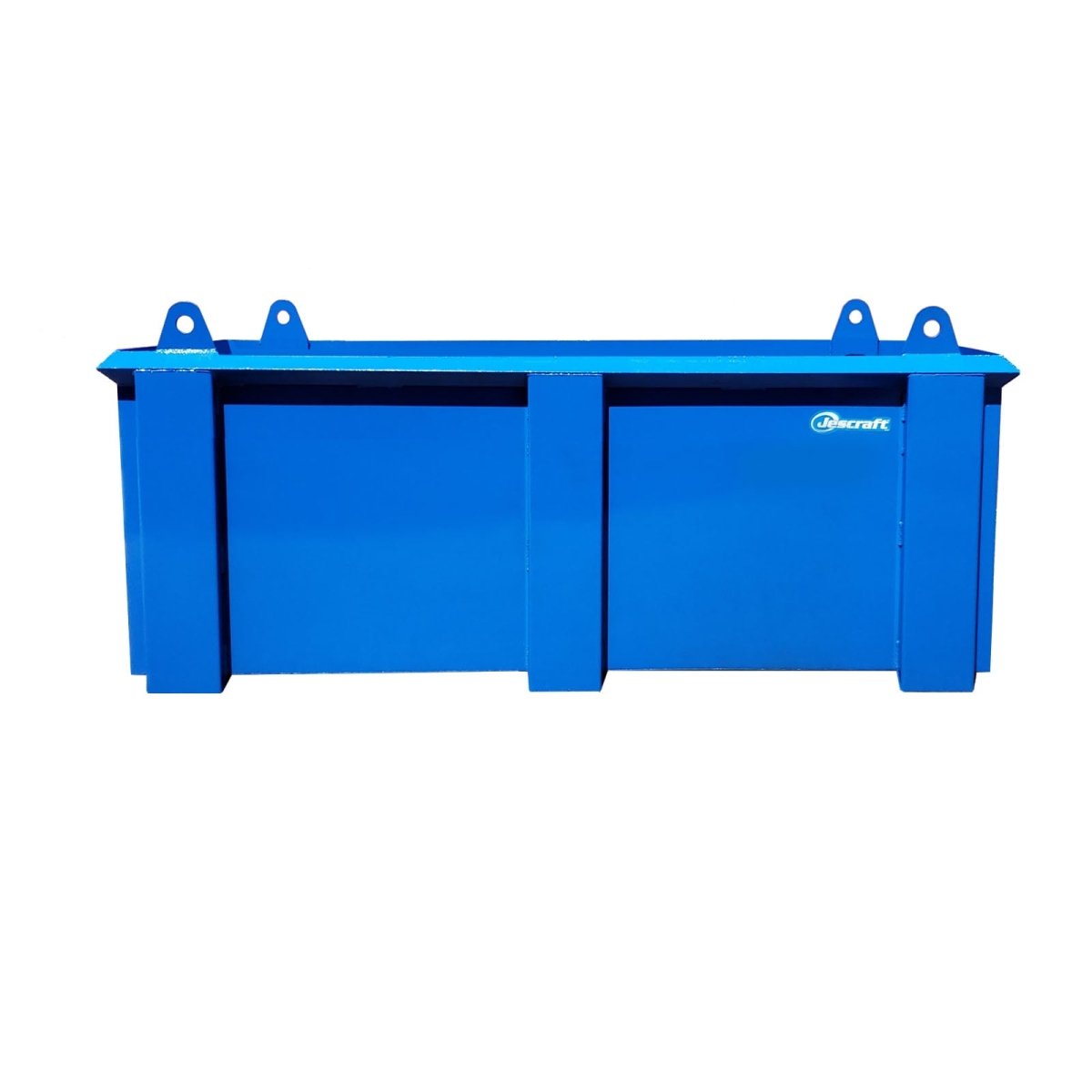

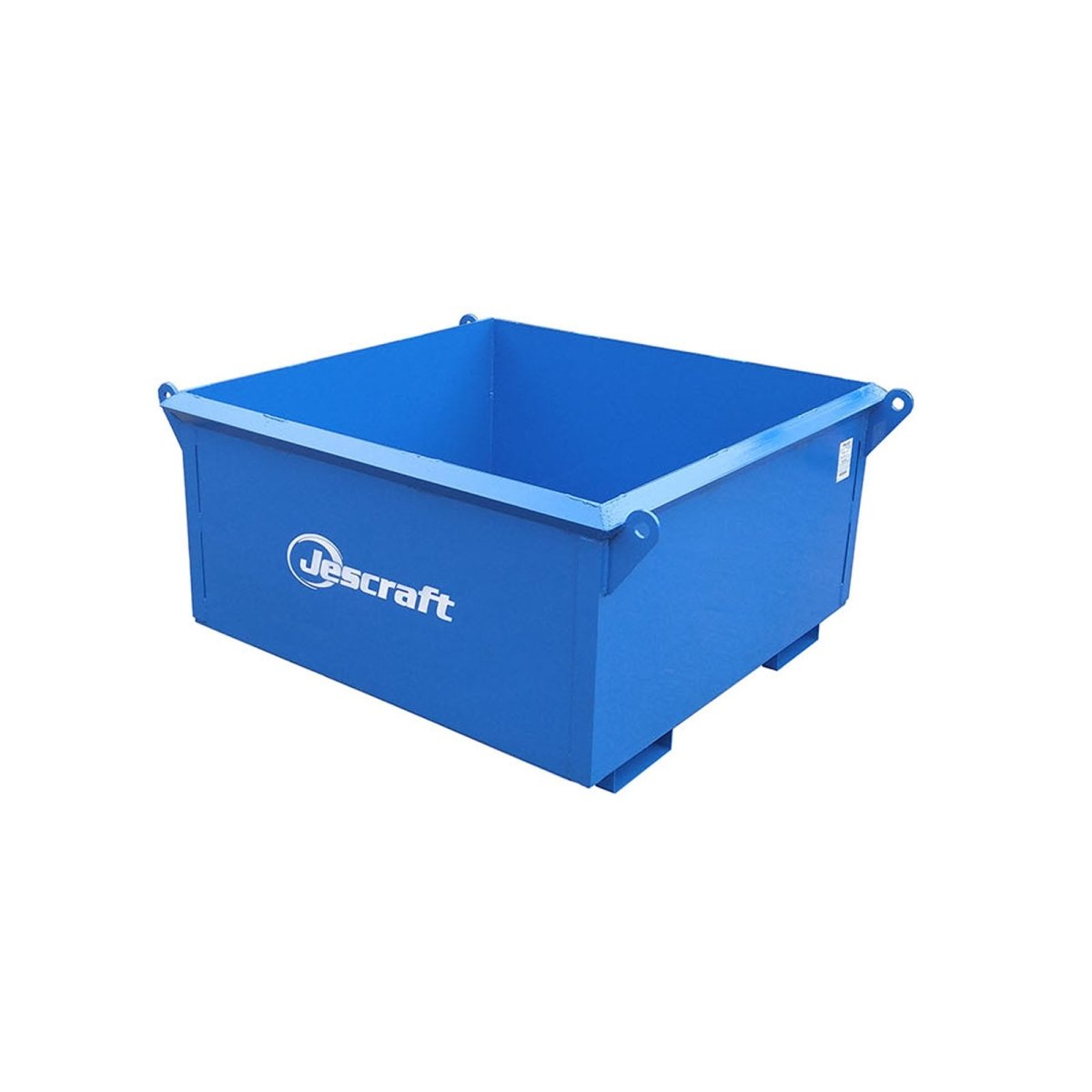

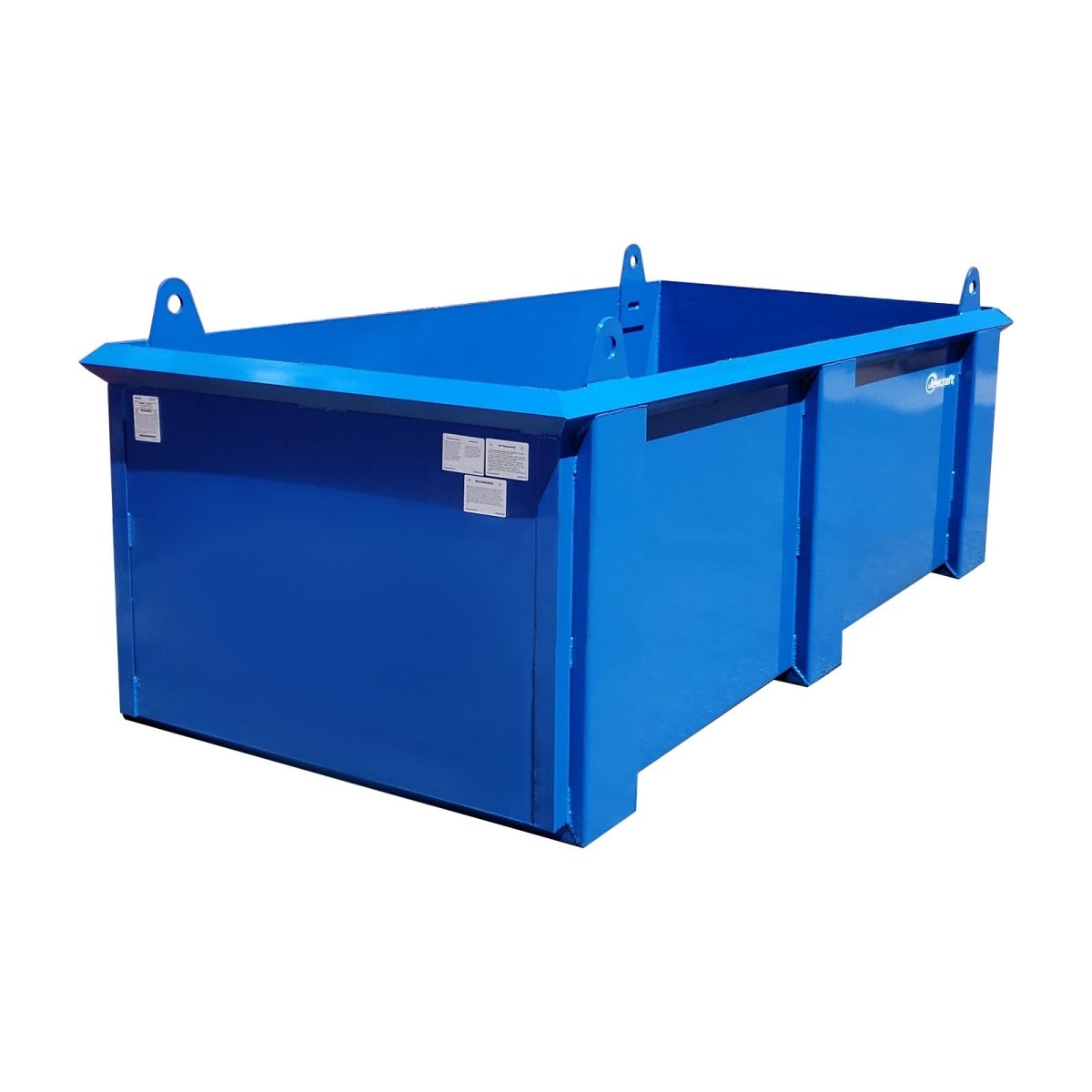

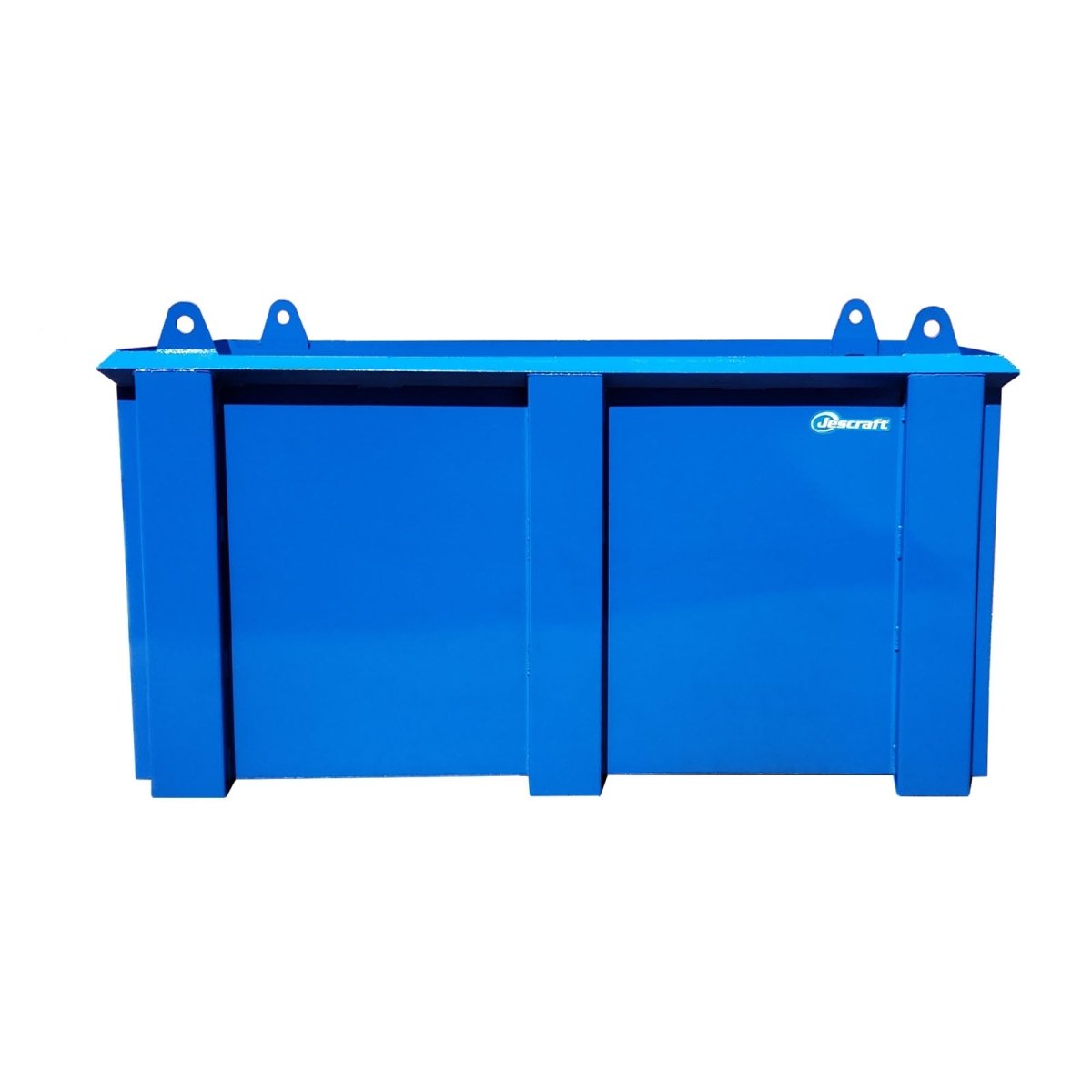

Jescraft Jobsite Lift Box

The Jobsite Lift Box is perfect for every jobsite and ideal for lifting supplies, materials and equipment to elevated decks, roofs, or platforms or to below-grade foundations.

Description:

The Jobsite Lift Box has been rated as a “Below-the-Hook Lifting Device” in accordance with ASME B30.20-2010.

*Note: Always distribute load evenly. When uniform weight capacity is calculated for any product, the capacity is based on the weight being uniformly distributed over the entire usable area.

Features:

• Four hoisting lugs provide a safe 4-point pick up
• All steel construction for heavy bulky loads
• Forklift pockets offered on Model #JLB-442 only (8″W x 2.75″H)
• Volume capacity from 1.2 to 2.4 cubic yards, depending on model
• 4,000 lb load capacity when evenly distributed
• Rated as a “Below-the-Hook Lifting Device” in accordance with ASME B30.20-2010
• Rigging equipment not included

Model	Volume	Weight	Overall Dimensions L x W x H	Uniform Capacity	Fork Pocket Centers
JLB-442	1.2 Cubic Yards	360 lbs.	51" x 56" x 27.5"	4,000 lbs.	32.5"
JLB-842	2.4 Cubic Yards	720 lbs.	99" x 56" x 27.5"	4,000 lbs.
