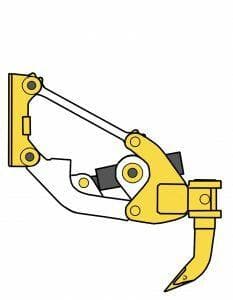

Parallelogram Ripper
- 2 cylinders
- 12 inch maximum digging depth
- 17" maximum ground clearance
- Maximum departures angle: LT/LGP 43" - STD track 35"
- 3 shanks
- 63 inch ripping width
- 850 pounds attachment weight
- penetration force of 8,090 pounds
- 16,953 pounds of pryout force
- 5 pockets

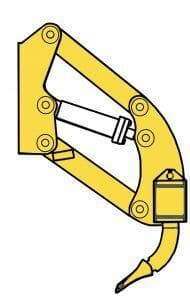

Heavy Duty Parallelogram Ripper
- 1 cylinder
- 13.9 inch maximum digging depth
- 21" maximum ground clearance
- Maximum departures angle: 43"
- 3 shanks
- 63 inches ripping width
- 1,350 pounds attachment weight
- penetration force of 10,508 pounds
- 14,012 pounds of pryout force
- 5 pockets
| Ripper Style | Cylinders | Maximum digging depth |
Maximum ground clearance |
Maximum Departure Angle |
# Shanks | Ripping Width |
Weight | Penetration Force |
Pryout Force |
# Pockets |
|
Parallelogram Ripper |
2 | 12 inches | 17 inches |
LT/LGP 43" STD 35" |
3 | 63 inches | 850 pounds | 8,090 LBS | 16,953 LBS | 5 |
|
Heavy Duty Parallelogram Ripper |
1 | 13.9 inches | 21 inches | 43 inches | 3 | 63 inches | 1,350 pounds | 10,508 LBS | 14,012 LBS | 5 |
