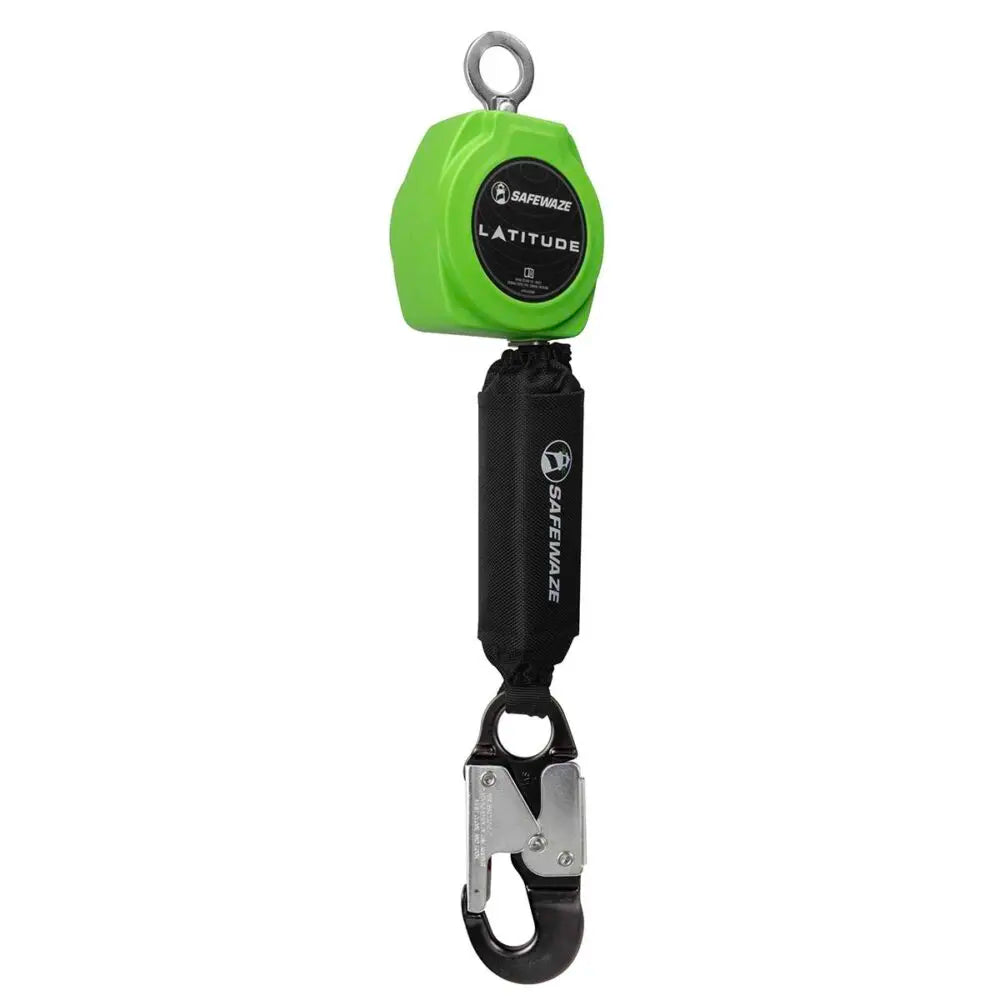

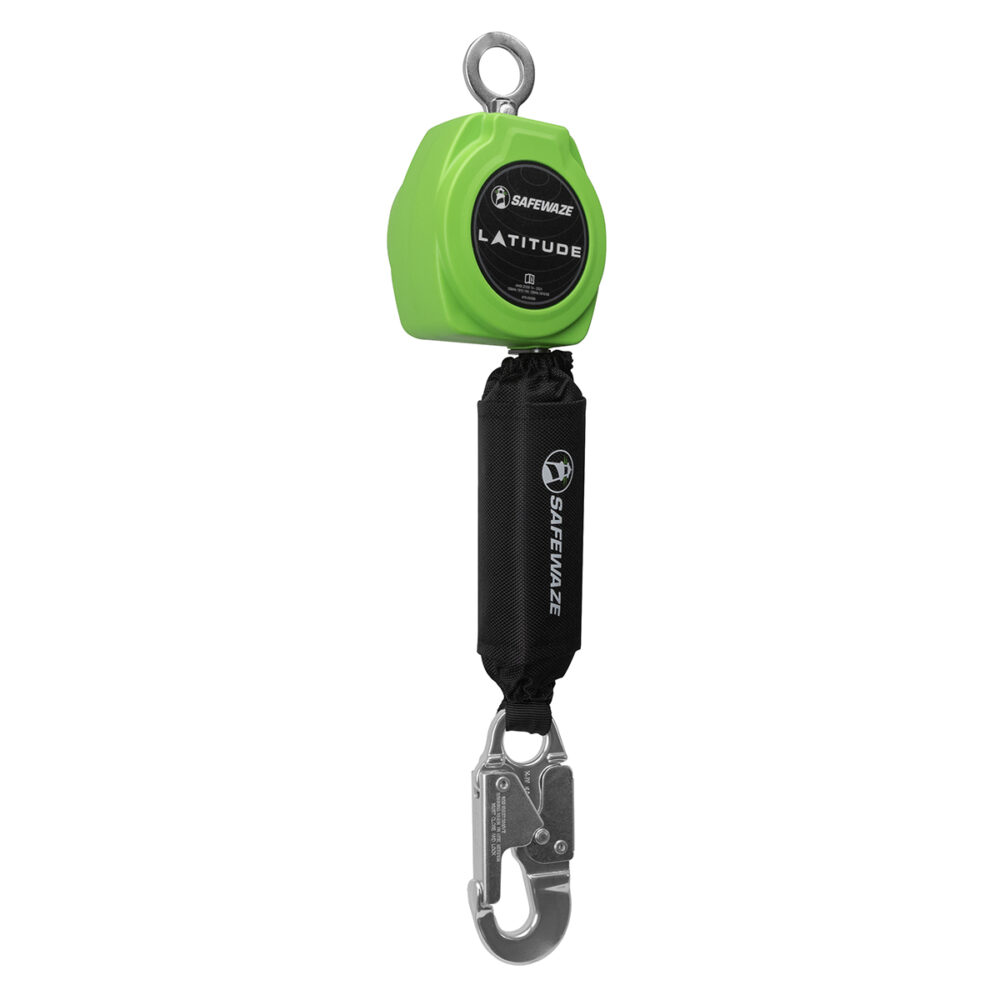

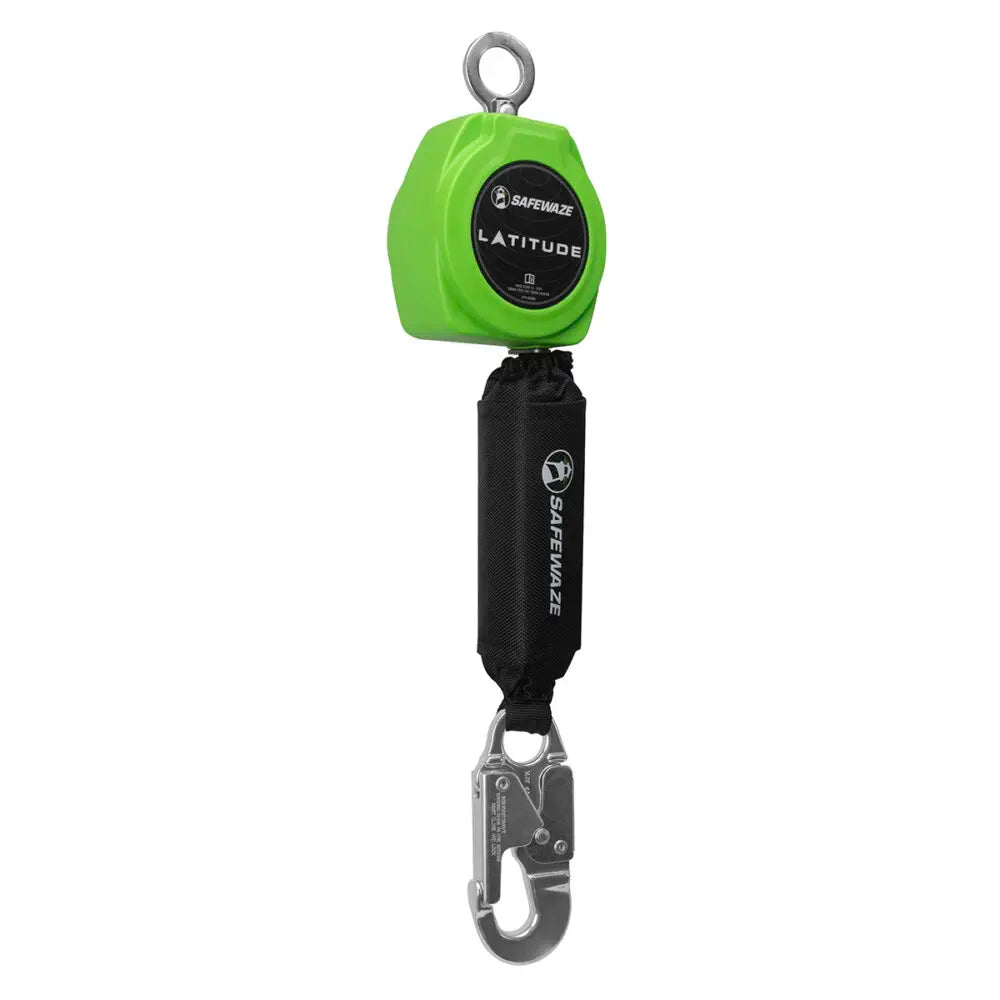

Latitude 11' Single Web SRL: No Attachment, Snap Hook

Latitude 11' Single Web SRL – Extended Reach Fall Protection for Elevated Jobsite Mobility

The Latitude 11' Single Web Self-Retracting Lifeline (SRL) is a Class 1 personal fall arrest device engineered for contractors and trades professionals who require greater range of motion at height. Constructed with UHMPE webbing, a nylon housing, steel hardware, and a polyester energy absorber, it delivers a durable yet lightweight solution for everyday jobsite demands. At 3.0 lbs. and 11 feet of retractable reach, it is well-suited for applications where standard-length SRLs restrict worker movement. The unit ships with a snap hook attachment point and meets ANSI Z359.14-2021 as well as OSHA 1910.140 and 1910.66 requirements.

Technical Specifications

Performance Data

Declaration of Conformity

The Latitude 11' Web SRL distinguishes itself from shorter-reach alternatives by providing an 11-foot retractable lifeline that extends worker mobility without adding significant weight—at just 3.0 lbs. The external shock pack with energy absorber and protective label cover is an integrated design feature that keeps critical safety information visible and the absorber protected throughout the service life of the unit. Its UHMPE webbing construction offers high strength at low weight compared to cable-based SRLs of comparable length.

Key Features & Benefits

Extended 11-Foot Reach

The 11 ft. (3.4 m) retractable web gives workers a greater range of motion compared to standard 6-foot SRLs, reducing the need to reposition the anchor point as frequently. This added reach is particularly valuable on large horizontal work surfaces or when working around equipment.

Quick-Activating Locking System

The locking mechanism engages rapidly upon a fall event, minimizing free fall distance and arrest forces transmitted to the worker. Fast lock engagement is a critical performance characteristic for Class 1 SRLs used in close-proximity-to-surface applications.

360/180° Attachment Point

The full-range attachment point allows the lifeline to track worker movement in multiple directions without binding or creating awkward pull angles. This reduces fatigue and keeps the SRL properly oriented regardless of how the worker is positioned relative to the anchor.

Durable Nylon Housing

The nylon housing is designed to increase strength and longevity under the abrasive conditions typical of construction jobsites. A robust housing protects the internal retraction mechanism from dust, debris, and impact damage that could compromise performance over time.

External Shock Pack with Protective Label Cover

The external energy absorber is housed in a shock pack with a protective label cover, keeping the absorber shielded from environmental exposure while keeping inspection labels legible. Contractors can quickly verify the unit has not been deployed without removing any covers or disassembling the device.

High-Strength, Lightweight UHMPE Webbing

Ultra-High Molecular Weight Polyethylene (UHMPE) webbing delivers a high strength-to-weight ratio, keeping the overall unit weight at 3.0 lbs. (1.4 kg). Lighter equipment reduces worker fatigue over long shifts and encourages consistent use throughout the workday.

Common Applications

Elevated Structural Work

Ideal for ironworkers, carpenters, and general contractors working on elevated structural members where freedom of movement across a work area is required.

Roofing Operations

The 11-foot reach accommodates workers moving along roof surfaces, reducing anchor repositioning and maintaining continuous fall protection coverage.

Industrial Maintenance at Height

Suited for maintenance technicians working on elevated platforms or equipment where OSHA 1910.66 and 1910.140 compliance is required.

Mobile Elevated Work Platforms (MEWPs)

Can be used in conjunction with MEWPs; refer to the SRL use on MEWP Technical Bulletin for specific guidance on proper configuration and limitations.

Compatible Materials

• Steel structures and beams
• Concrete surfaces and edges
• Wood framing and structural members
• Elevated platforms and scaffolding
• Mobile elevated work platforms (MEWPs) — see Technical Bulletin for MEWP-specific guidance

Product Documents

• User Manual – Latitude SRL
• Declaration of Conformity (SW24DC067)
• Technical Data Sheet – Latitude 11 ft. Class 1 SRL
• Sell Sheet – Latitude Web SRL Line
• Technical Bulletin – SRL Use on MEWPs
• Technical Bulletin – OSHA Capacity Range
• Technical Bulletin – OSHA PFA Below D-Ring Anchorage
• Technical Bulletin – Compatibility of Products

Frequently Asked Questions

Q: What is the ANSI weight capacity for this SRL?
A: The ANSI weight capacity is 130–310 lbs. (59–141 kg). For OSHA applications, the unit is rated for users up to 420 lbs. (191 kg), inclusive of tools and equipment.

Q: Can this SRL be used below the D-ring anchorage point?
A: Under ANSI Class 1 use, below D-ring use is not permitted. Under OSHA standards, below D-ring use is allowed with a minimum 5 ft. (1.5 m) clearance. Refer to the OSHA PFA Below D-Ring Technical Bulletin for full guidance.

Q: What standards does the Latitude 11' Web SRL comply with?
A: It is compliant with ANSI Z359.14-2021 and OSHA 1910.140 and 1910.66. All components are also Z359.12 compliant. Conformity was verified by independent third-party labs Intertek and Giga, accredited to ISO 17025:2005.

Q: What is the maximum free fall distance allowed with this unit?
A: Above D-ring use allows a maximum free fall distance of 24 in. (60.96 cm). For OSHA below D-ring use, the maximum free fall distance is 60 in. (152.4 cm).

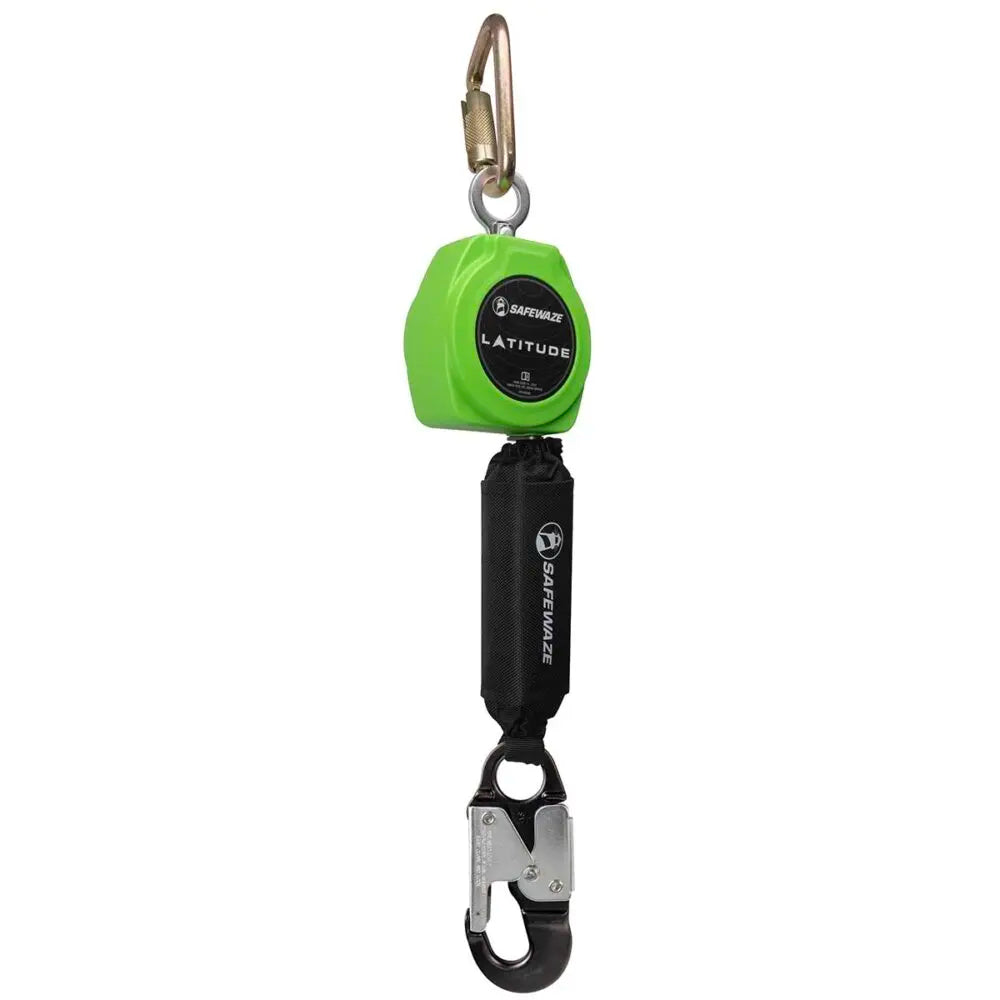

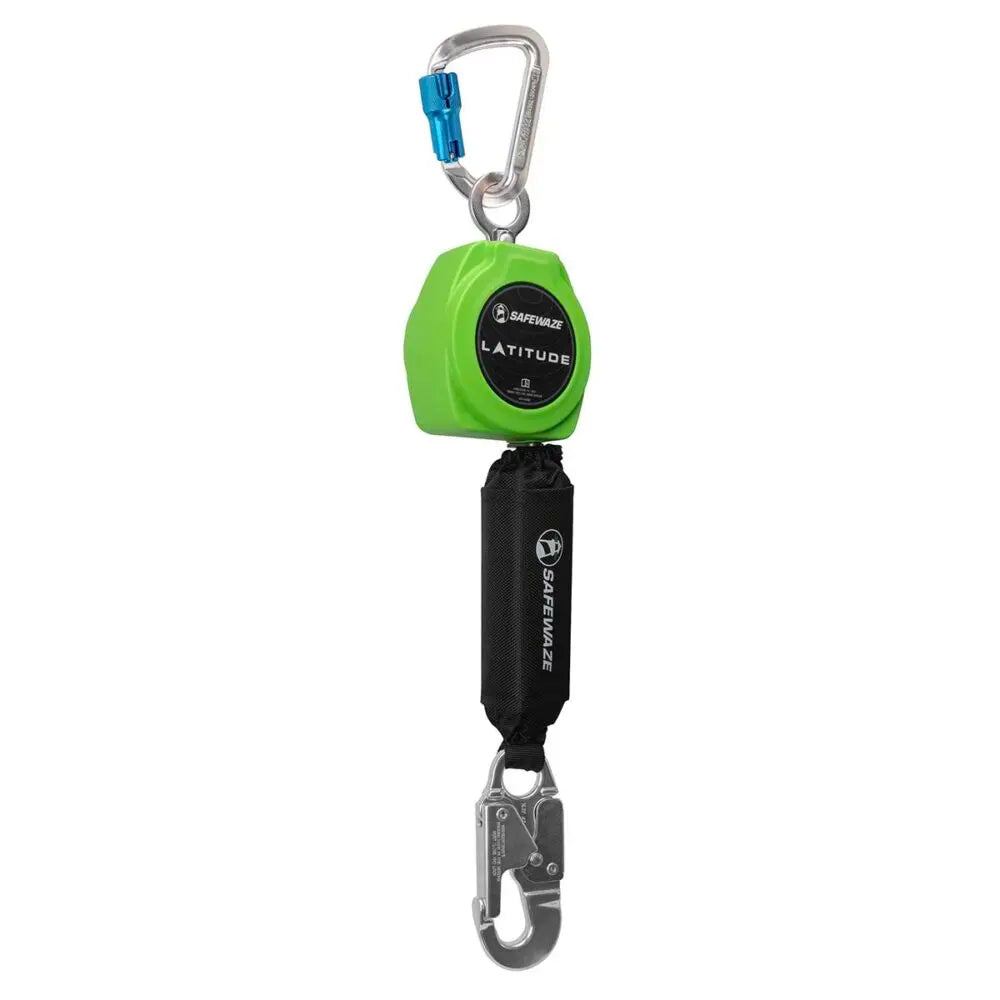

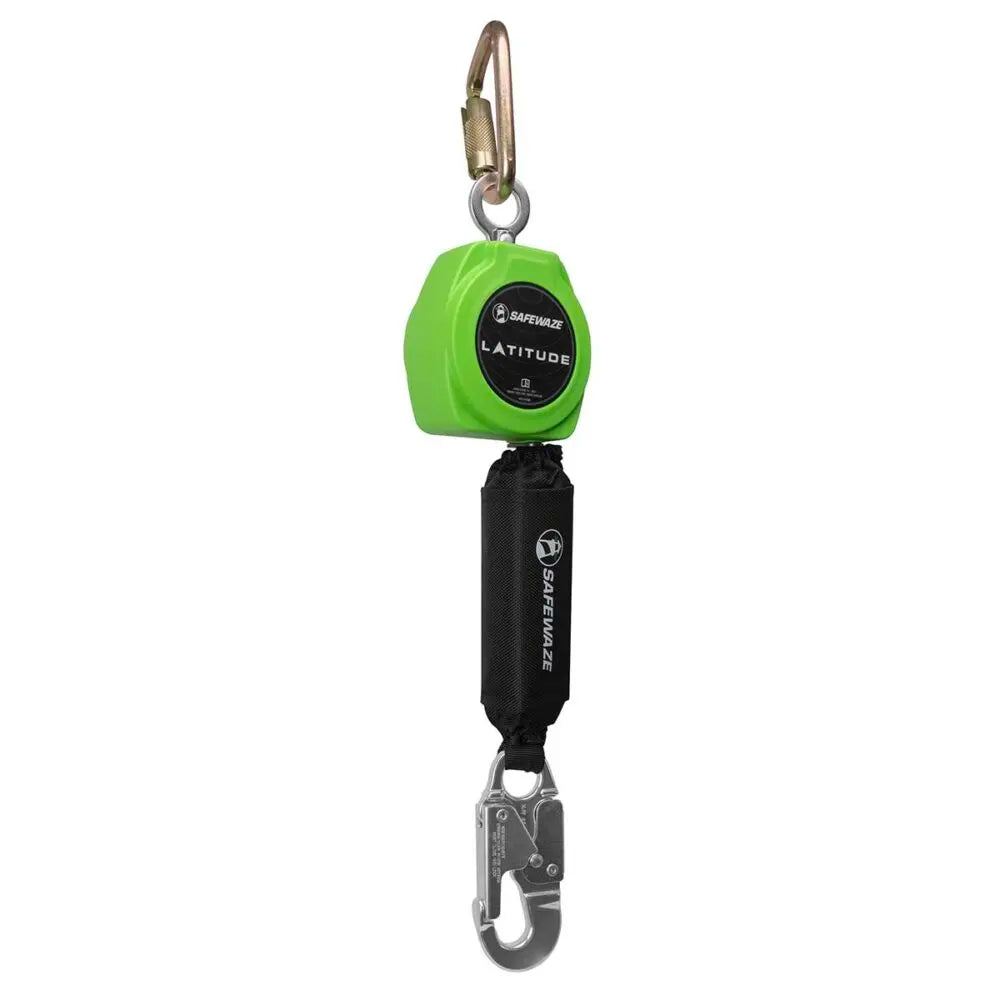

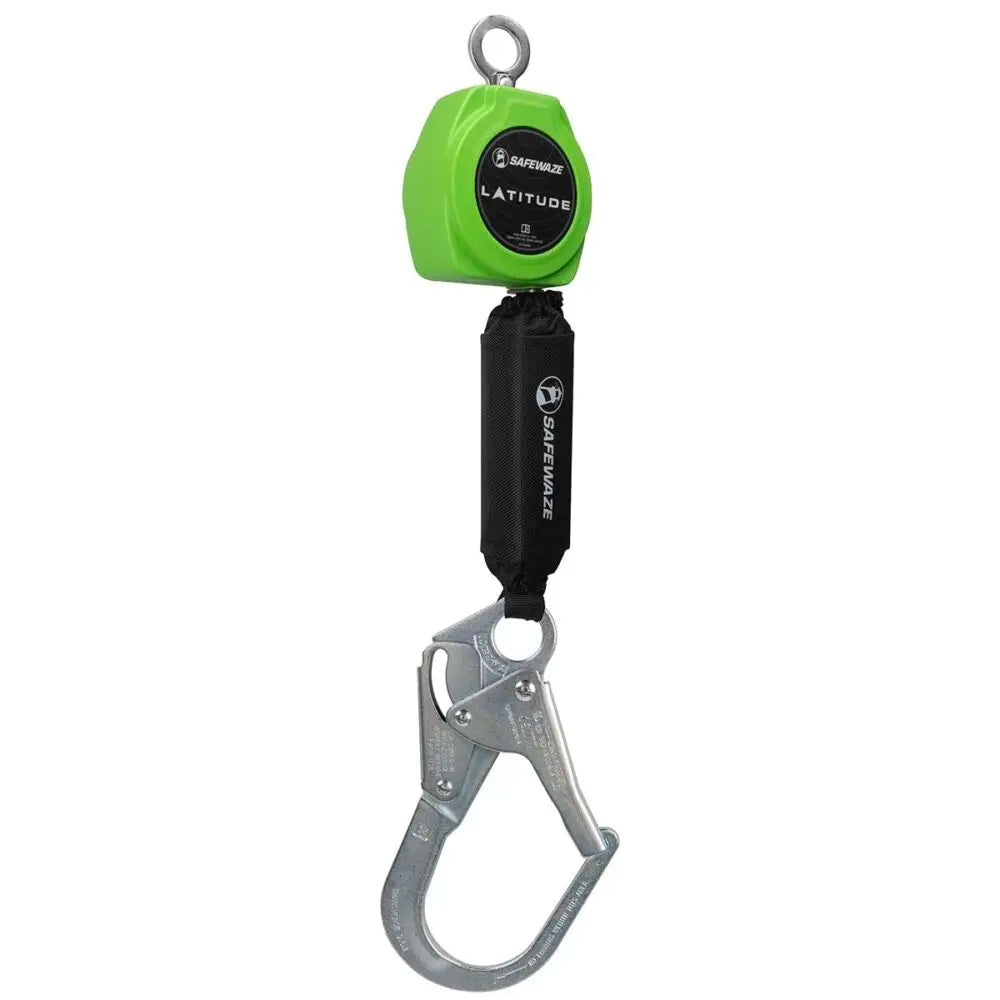

Q: What connector options are available for this SRL?

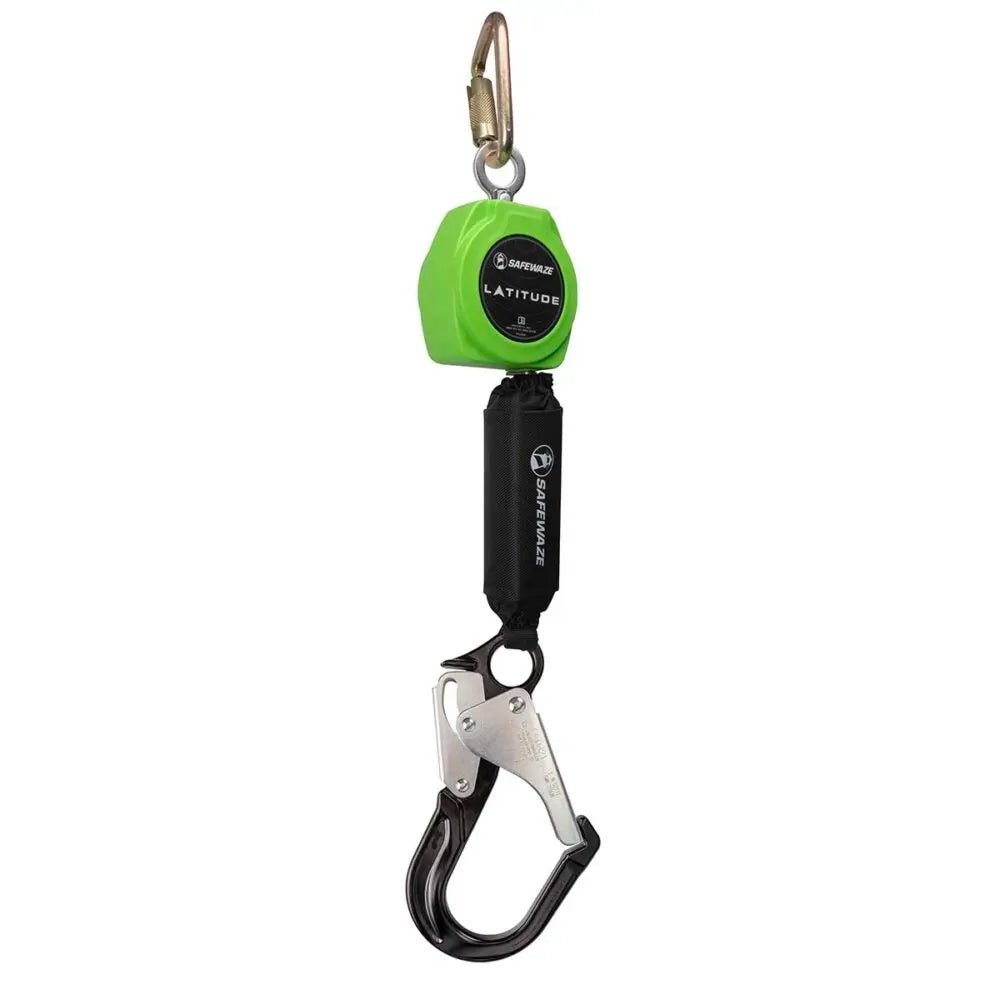

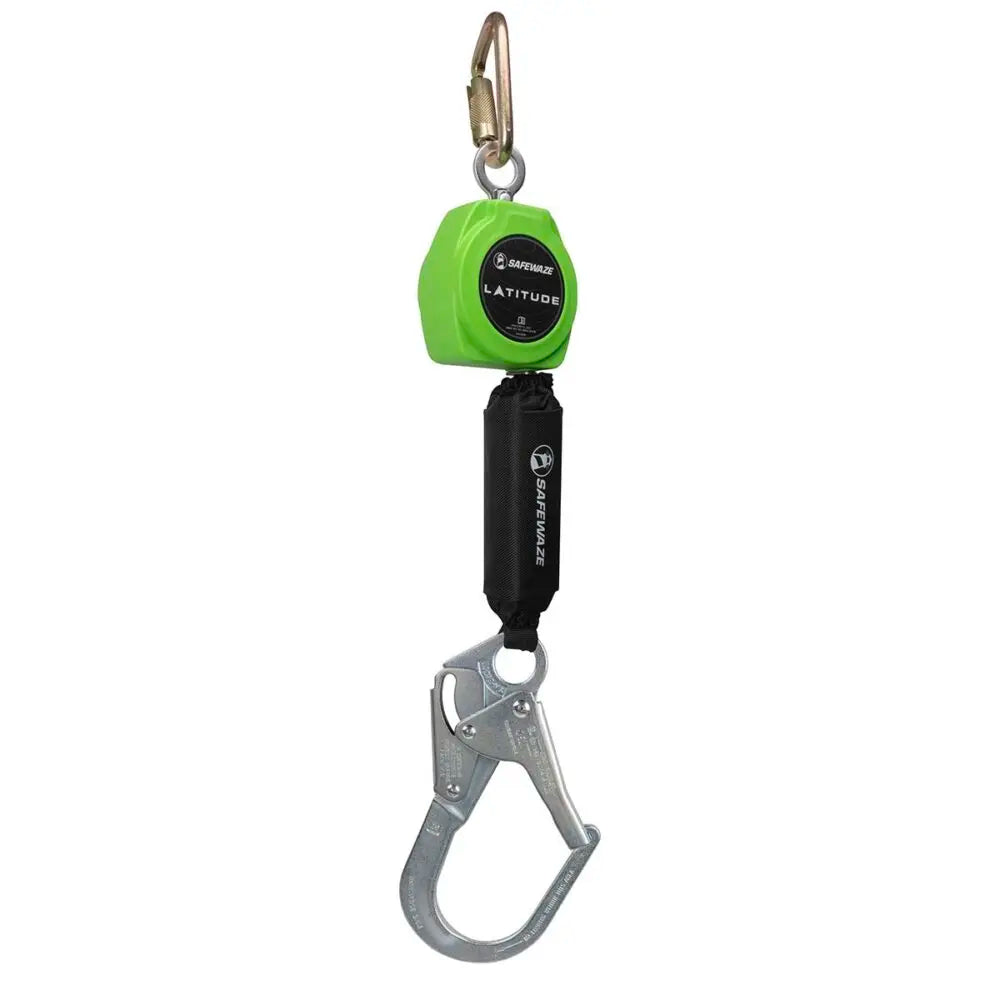

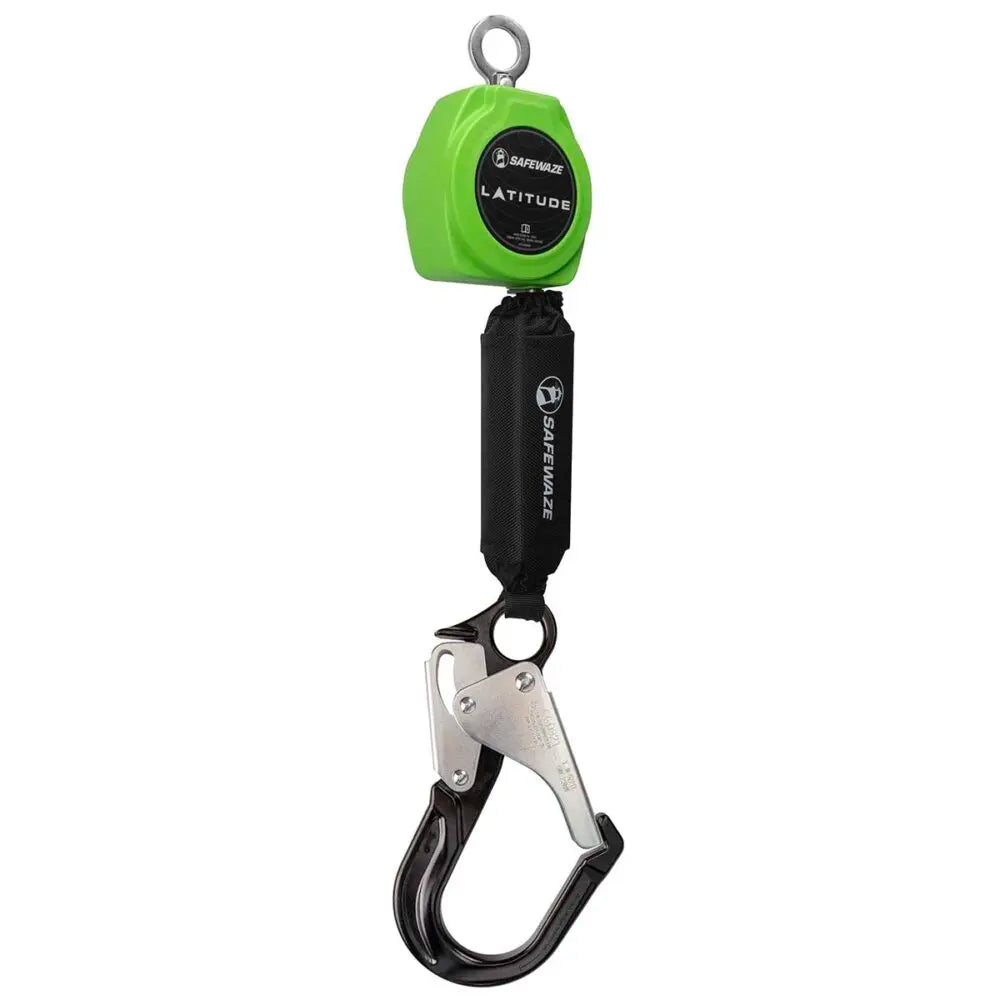

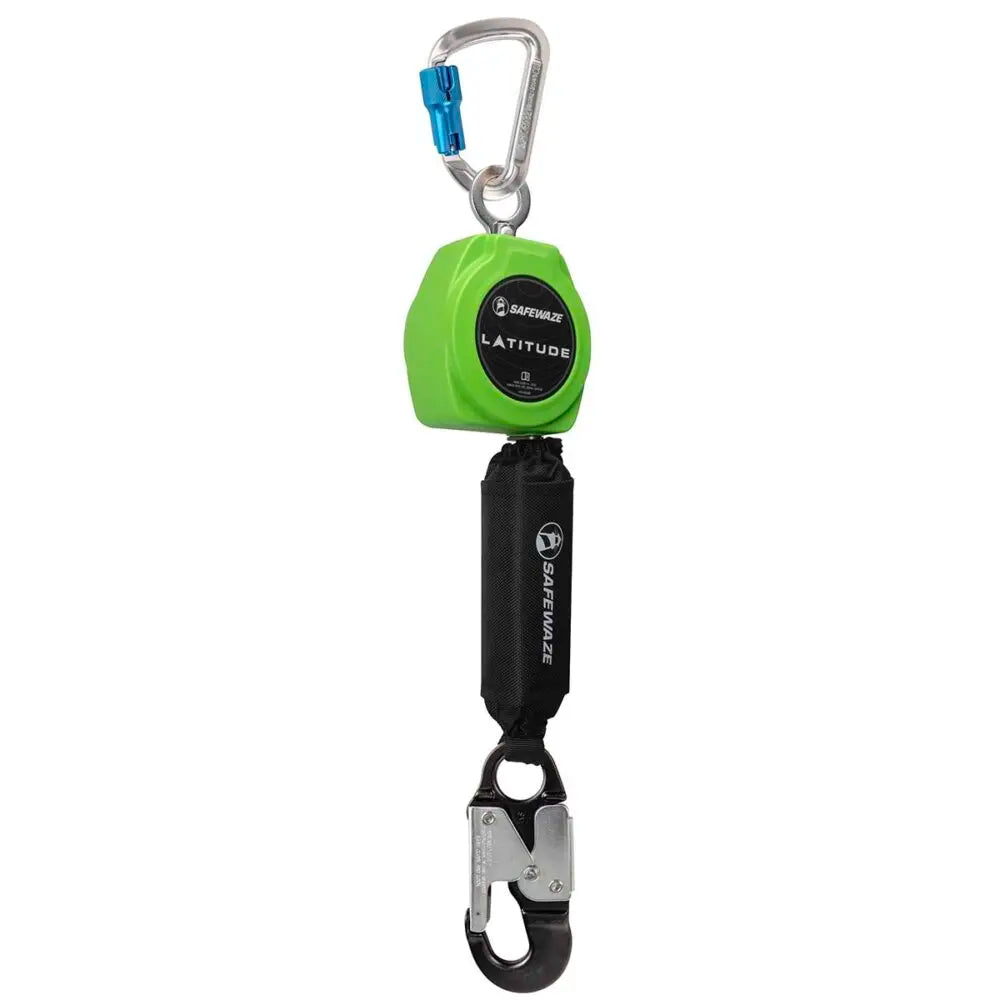

A: The Latitude 11' Web SRL is available with Aluminum Rebar, Aluminum Snap, Steel Rebar, or Steel Snap hook connectors. SKU 024-5414 ships with a Snap Hook; additional connector variants are covered under the same Declaration of Conformity (SKUs 024-5415 through 024-5425).
