Latitude 11' Single Web SRL-P: 9013 BWB, Snap Hooks

Latitude 11' Single Web SRL-P (9013 BWB, Snap Hooks) — Extended Reach Fall Protection for Active Jobsite Use

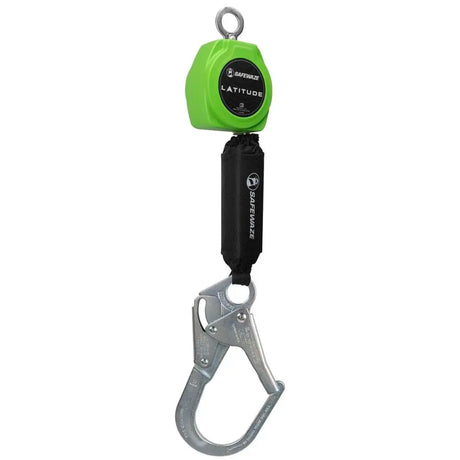

The Latitude 11' Single Web Self-Retracting Lifeline (SRL-P) is a Class 1 personal fall arrest device engineered for workers who require greater range of motion at height without compromising protection. Constructed with UHMPE webbing, a nylon housing, steel/aluminum hardware, and a polyester energy absorber, it delivers a lightweight yet durable solution for everyday jobsite demands. Dual snap hook attachment points and a 360/180° attachment interface provide full positional flexibility, making this SRL-P well suited for contractors and trades professionals working on elevated structures, scaffolding, or mobile elevated work platforms. It meets ANSI Z359.14-2021 and OSHA 1910.140/1910.66 standards, covering a weight capacity range of 130–310 lbs. (ANSI) and up to 420 lbs. (OSHA).

Technical Specifications

Performance Data

Compliance & Certifications

The Latitude SRL-P differentiates itself through its external shock pack with energy absorber and protective label cover, combined with a 360/180° attachment point that allows unrestricted positioning — a combination that reduces fatigue and repositioning time compared to fixed-orientation devices. The UHMPE webbing delivers high tensile strength at a lower weight than steel cable alternatives, keeping the total unit weight at 6.3 lbs. for all-day wearability.

Key Features & Benefits

Extended 11 ft. Reach

The 11-foot web length provides greater range of motion than standard 6-foot SRLs, allowing workers to move more freely across a work area without repeatedly repositioning their anchor. This reduces downtime and improves productivity on large elevated surfaces.

Quick-Activating Locking System

The locking mechanism engages rapidly upon a fall event, minimizing free fall distance and arrest forces transmitted to the worker. Fast engagement is critical in dynamic work environments where sudden slips or trips can occur without warning.

360/180° Attachment Point

The multi-directional attachment point accommodates a full range of body positions and movement directions, eliminating the need to reorient the device as the worker changes direction. This is especially valuable on tasks requiring frequent lateral movement or overhead work.

Durable Nylon Housing

The nylon housing is engineered to withstand the impacts, abrasion, and environmental exposure typical of active construction sites. Increased housing strength directly extends the service life of the unit, reducing replacement frequency and total cost of ownership.

External Shock Pack with Energy Absorber

The external polyester energy absorber is housed in a protective label cover, keeping it visible for inspection and shielded from jobsite debris. The shock pack limits peak arrest forces to ≤ 1,800 lbs., protecting the worker's body during a fall event.

High-Strength, Lightweight UHMPE Webbing

Ultra-High Molecular Weight Polyethylene webbing delivers exceptional tensile strength while keeping the overall unit weight at 6.3 lbs. (2.9 kg), reducing harness fatigue during extended shifts at height.

Common Applications

Structural Steel and Ironwork

The 11 ft. reach and dual snap hook configuration allow ironworkers to maintain continuous fall protection while moving between connection points on structural steel frameworks.

Roofing and Elevated Decking

The extended length and 360° attachment point support lateral movement across roof decks and elevated floor systems where workers frequently change direction.

Scaffolding Operations

The lightweight web construction and quick-locking system make this SRL-P practical for scaffold-based work where compact, responsive fall arrest is required.

Mobile Elevated Work Platforms (MEWPs)

The SRL-P is suitable for use on MEWPs; refer to the SRL use on MEWP Technical Bulletin for specific guidance on anchor configuration and below D-ring use limitations.

General Construction at Height

With OSHA capacity coverage up to 420 lbs. and ANSI Class 1 certification, this unit covers a broad range of worker weights and jobsite scenarios requiring personal fall arrest protection.

Compatible Materials

• Structural steel
• Concrete and masonry surfaces (with appropriate anchor)
• Wood framing and decking
• Scaffolding systems
• Mobile elevated work platforms (MEWPs)
• Elevated metal decking and grating

Product Documents

• User Manual — Latitude SRL
• Declaration of Conformity (SW24DC067)
• Technical Data Sheet — Class 1 SRL-P Latitude 11 ft.
• Sell Sheet — Latitude Web SRL-P Line
• Technical Bulletin: SRL Use on MEWPs
• Technical Bulletin: OSHA Capacity Range
• Technical Bulletin: OSHA Personal Fall Arrest Systems Below D-Ring Anchorage
• Technical Bulletin: Compatibility of Products

Frequently Asked Questions

Q: Is this SRL-P approved for use below the D-ring anchorage?
A: Under ANSI Class 1 above D-ring use, below D-ring use is not permitted. Under OSHA standards, below D-ring use is allowed with a minimum 5 ft. (1.5 m) clearance. Refer to the OSHA PFA Below D-Ring Technical Bulletin for full guidance.

Q: What is the maximum free fall distance allowed?
A: For above D-ring (ANSI) use, the maximum free fall distance is 24 in. (60.96 cm). For OSHA below D-ring use, the maximum free fall distance is 60 in. (152.4 cm).

Q: What connector options are available for this SRL-P?

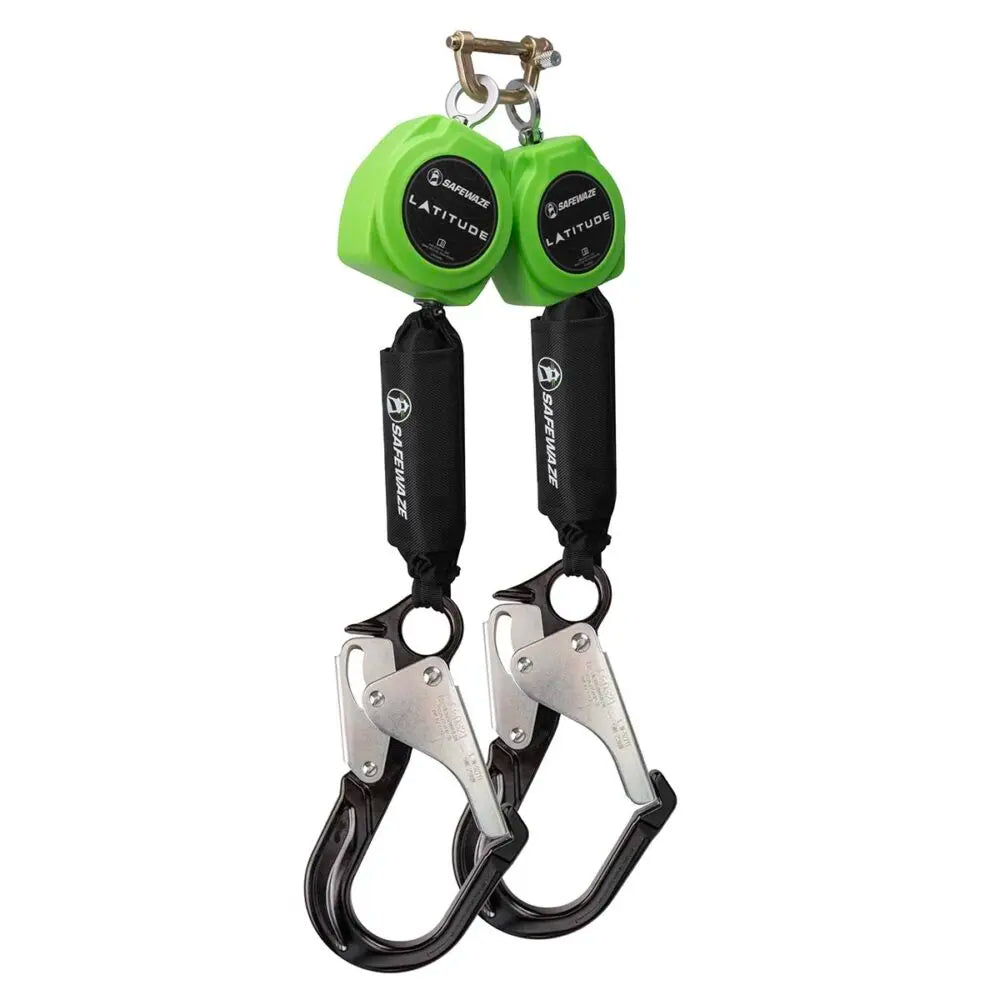

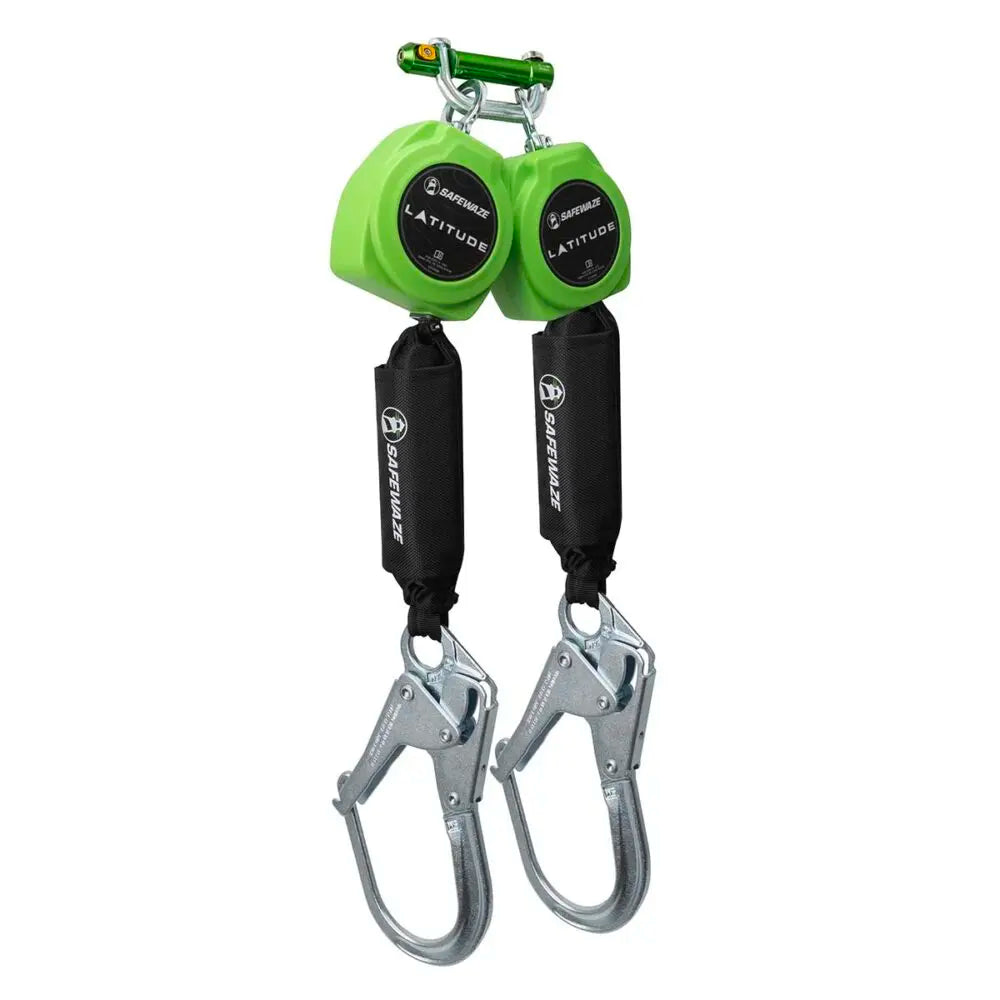

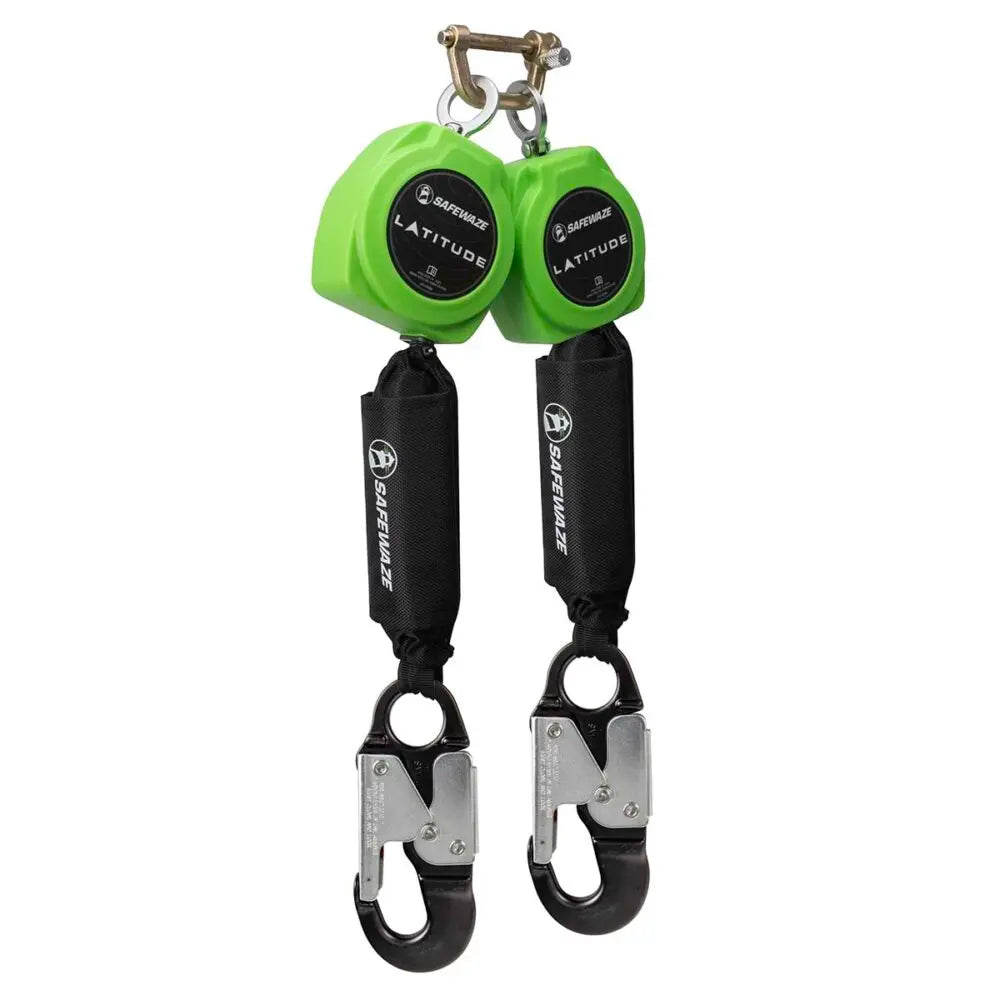

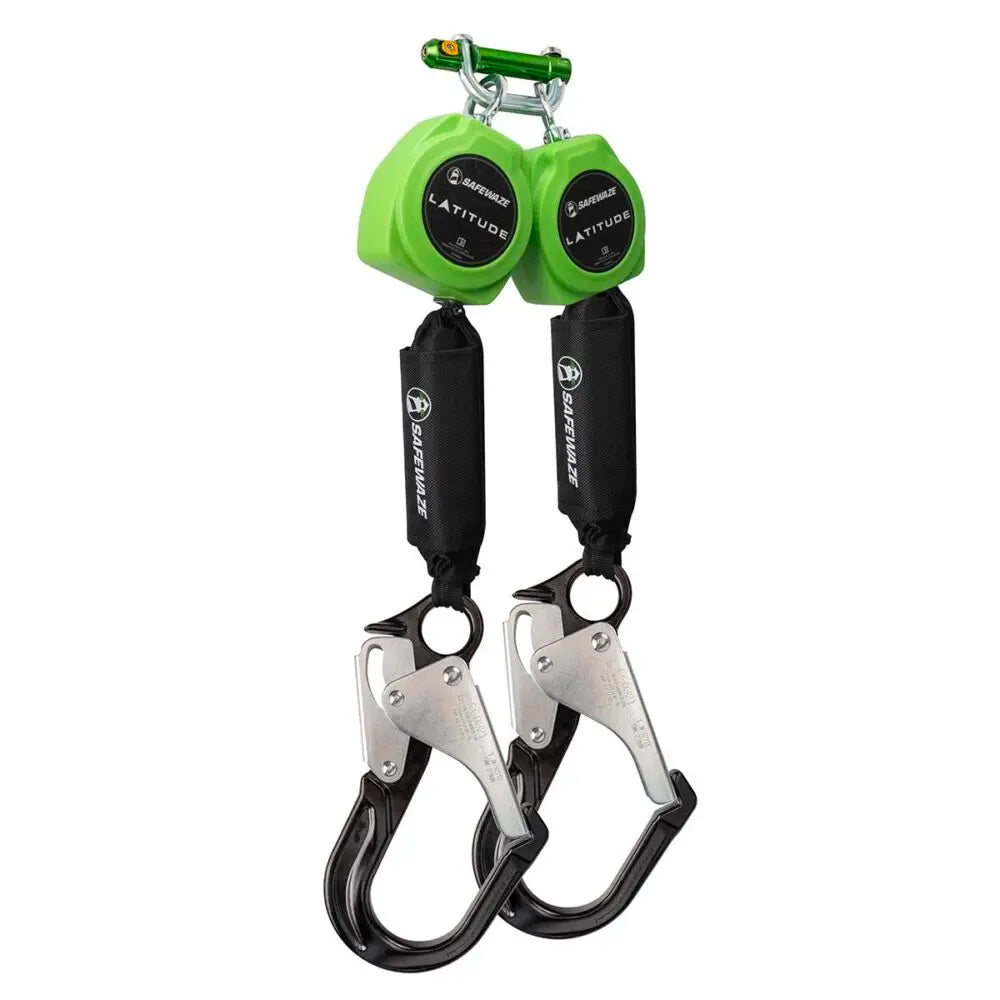

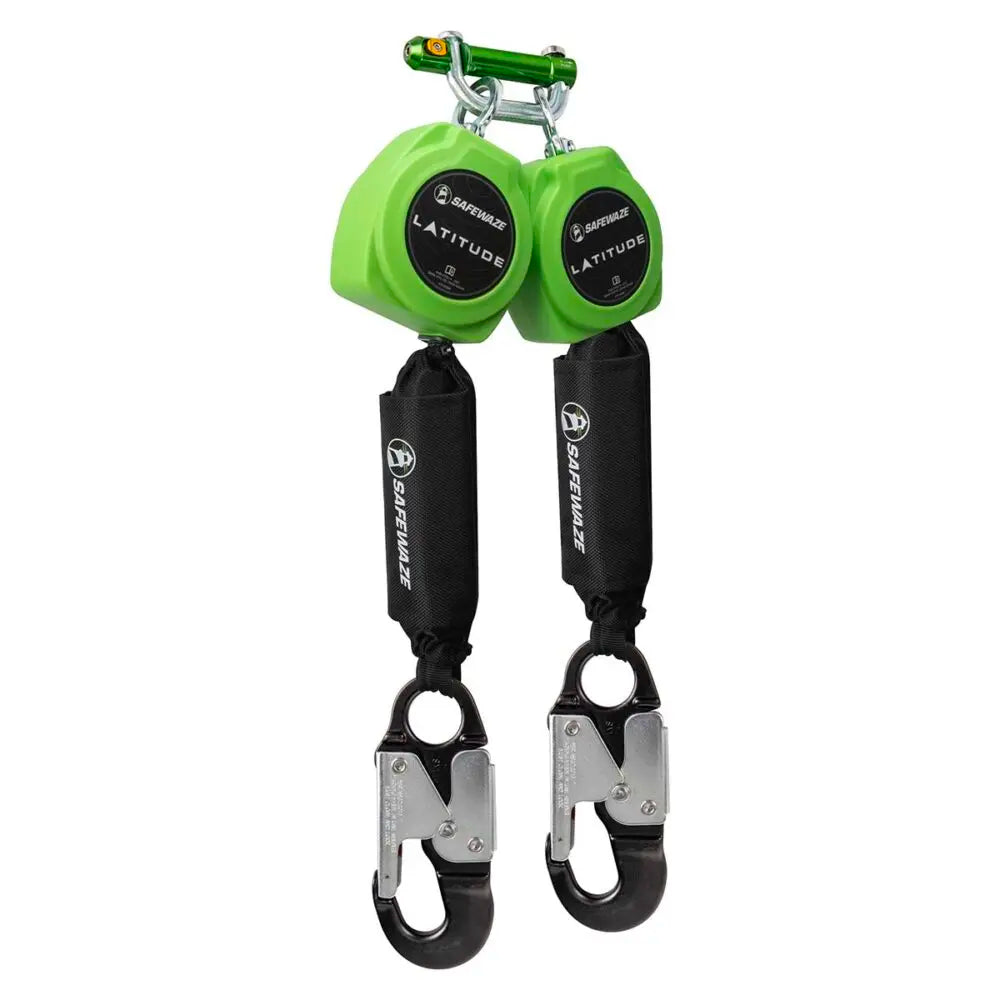

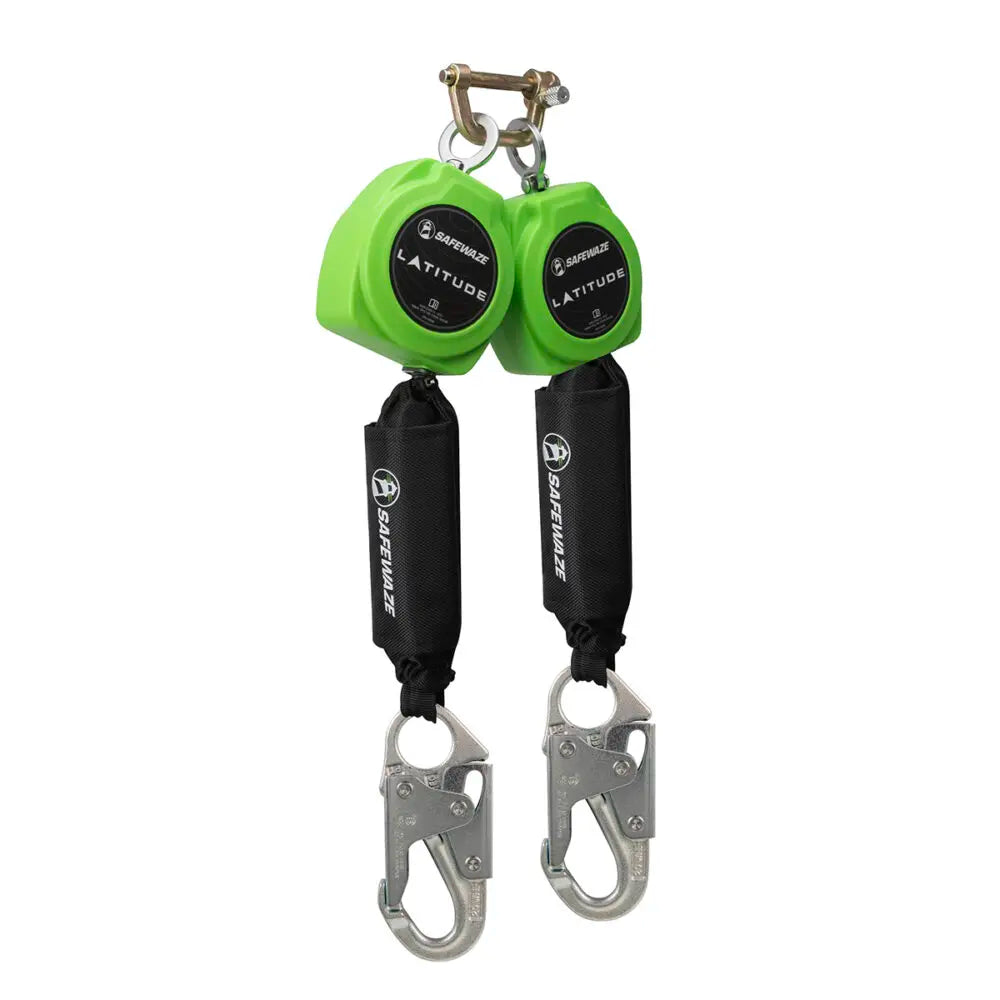

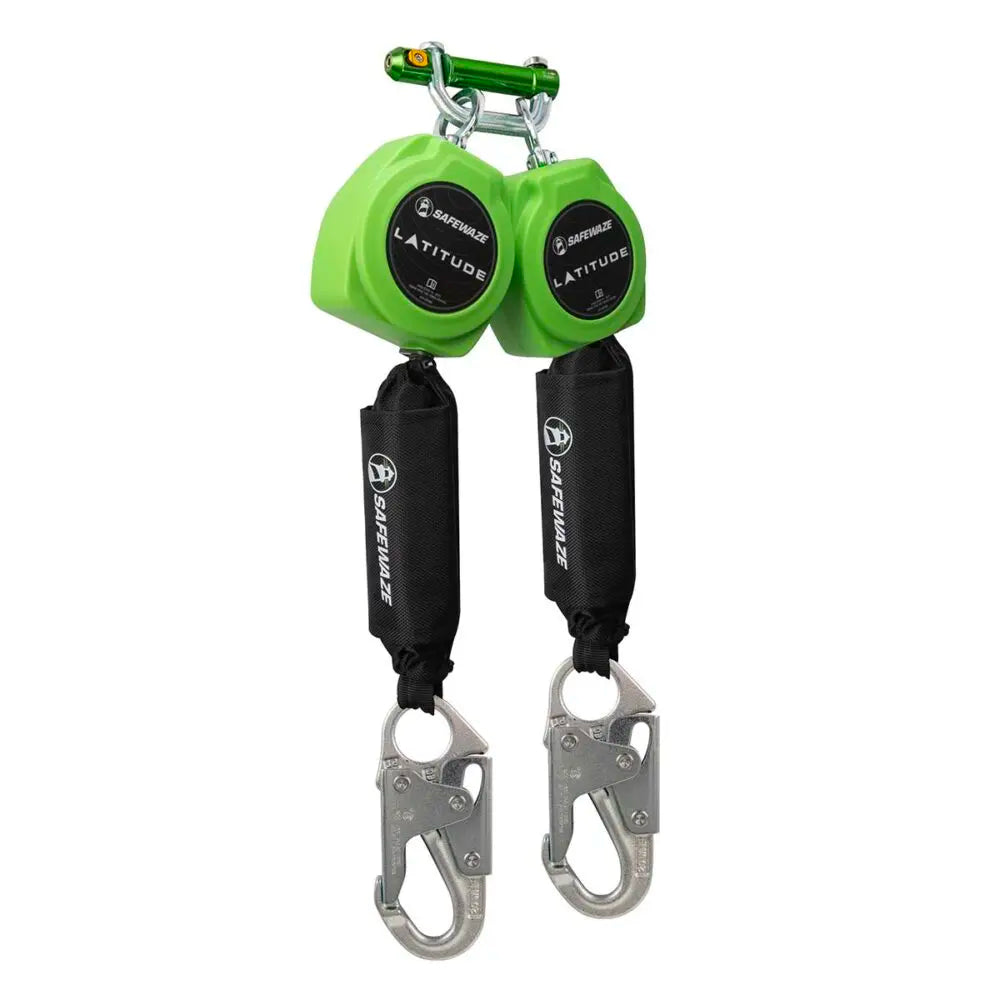

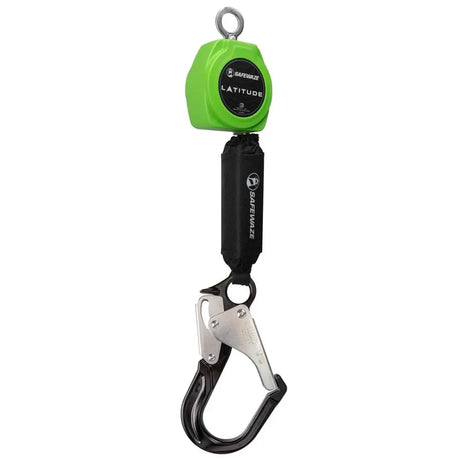

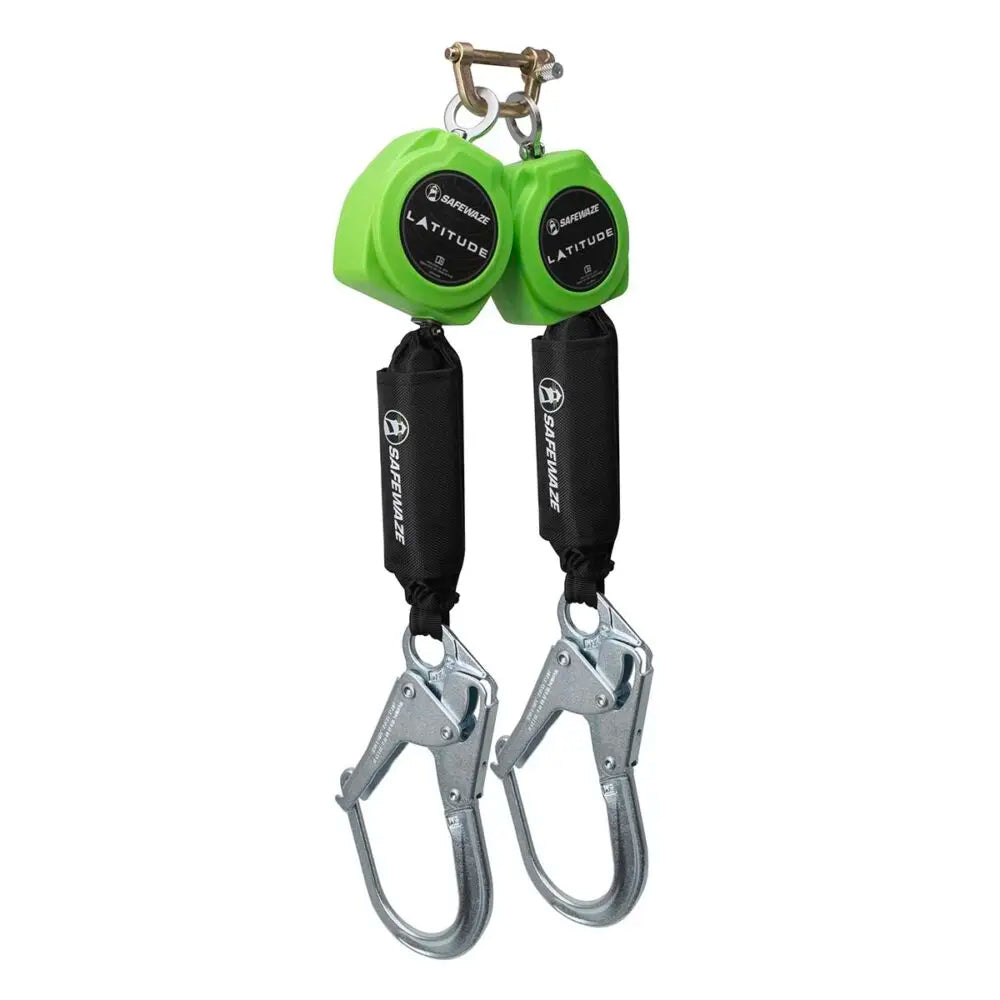

A: The unit is available with four connector options: Aluminum Rebar, Aluminum Snap, Steel Rebar, and Steel Snap hooks, allowing selection based on anchor compatibility and weight requirements.

Q: What is the weight capacity range for this device?
A: Under ANSI Z359.14-2021, the capacity range is 130–310 lbs. (59–141 kg). Under OSHA 1910.140/1910.66, the device is rated for workers up to 420 lbs. (191 kg) including tools and equipment.

Q: Are all components individually compliant with a recognized standard?
A: Yes. All components are Z359.12 compliant, and the complete assembly has been independently tested and certified to ANSI Z359.14-2021 and OSHA 1910.140/1910.66 by Intertek and Giga laboratories.
