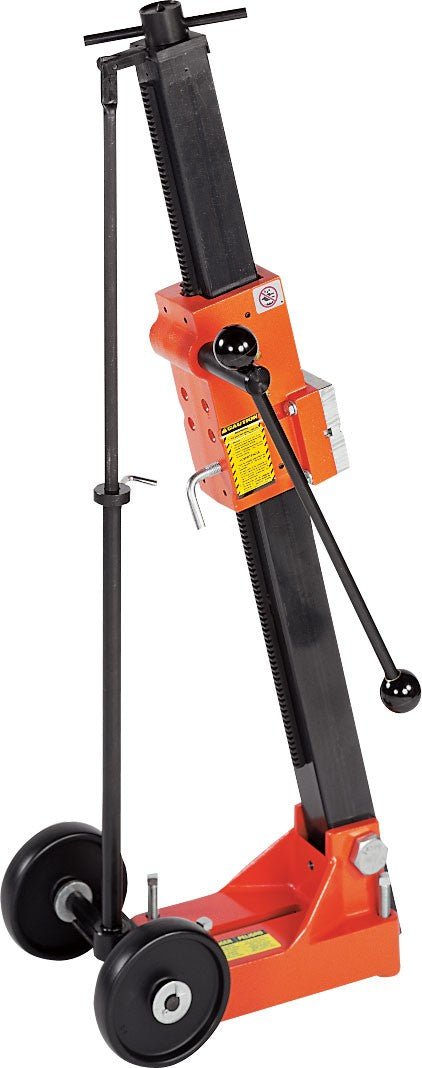

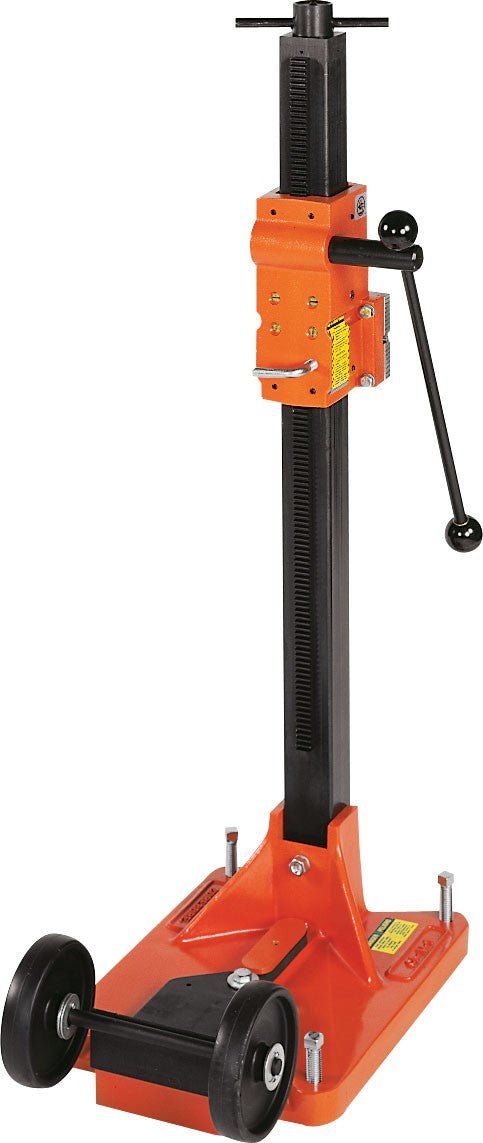

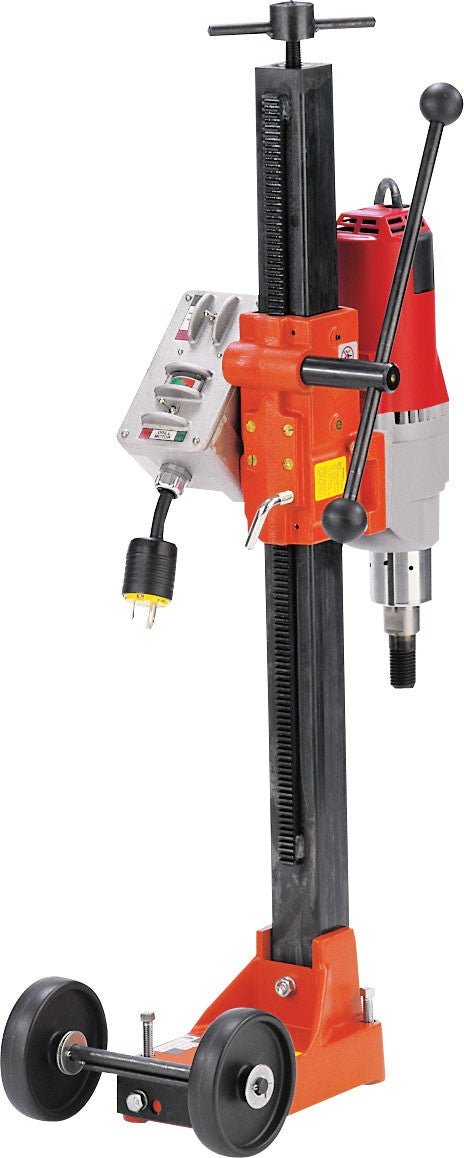

M-1 Complete Core Rigs

Great for the General Contractor

#1 Selling Rig in the U.S.A.

10” Standard Bit Capacity, 14” w/Spacers (Weka)

14" Standard Bit Capacity (CB733, CB744)

10” Standard Bit Capacity, 14” w/Spacers (Weka)

14" Standard Bit Capacity (CB733, CB744)

Features & Benefits:

  • 2-1/2” square column (mast) with black oxidized finish
  • 6” wheels for easy mobility
  • Dual switch/outlet control panel with amp meter (except for CB700 models with LED amp meter)

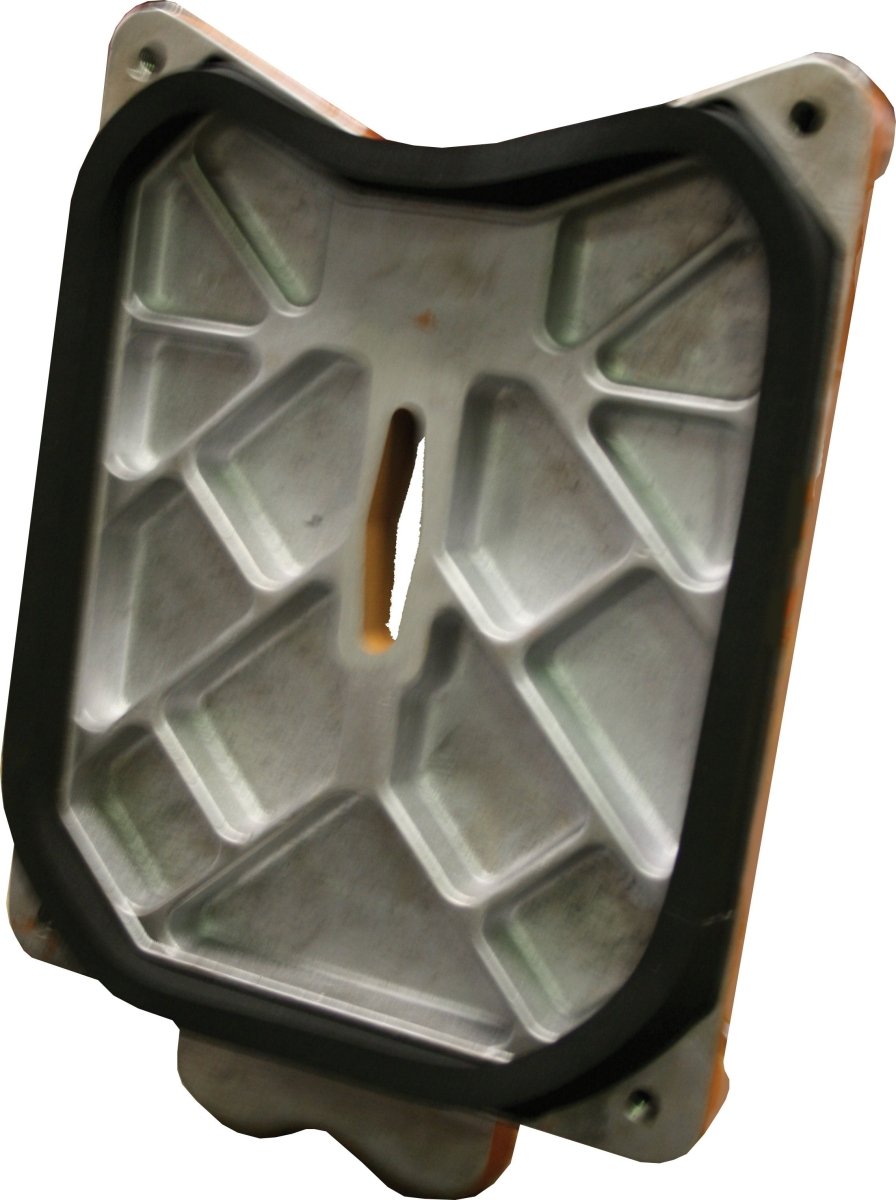

  • Vacuum pump for quick mounting to flat surface without drilling an anchor hole (included with combination rig)
  • 4 leveling screws on the base
  • Up to 14” bit capacity with one spacer block
  • Slide handle allows for drilling in tight areas
  • Combination base is a quick change over from vacuum to anchor base
  • Ceiling jack helps keep the rig in place as a backup for anchoring or vacuuming the base down (used with a brace piece-2 x 4 or other material)]



Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Rig Type Part Number Catalog Number

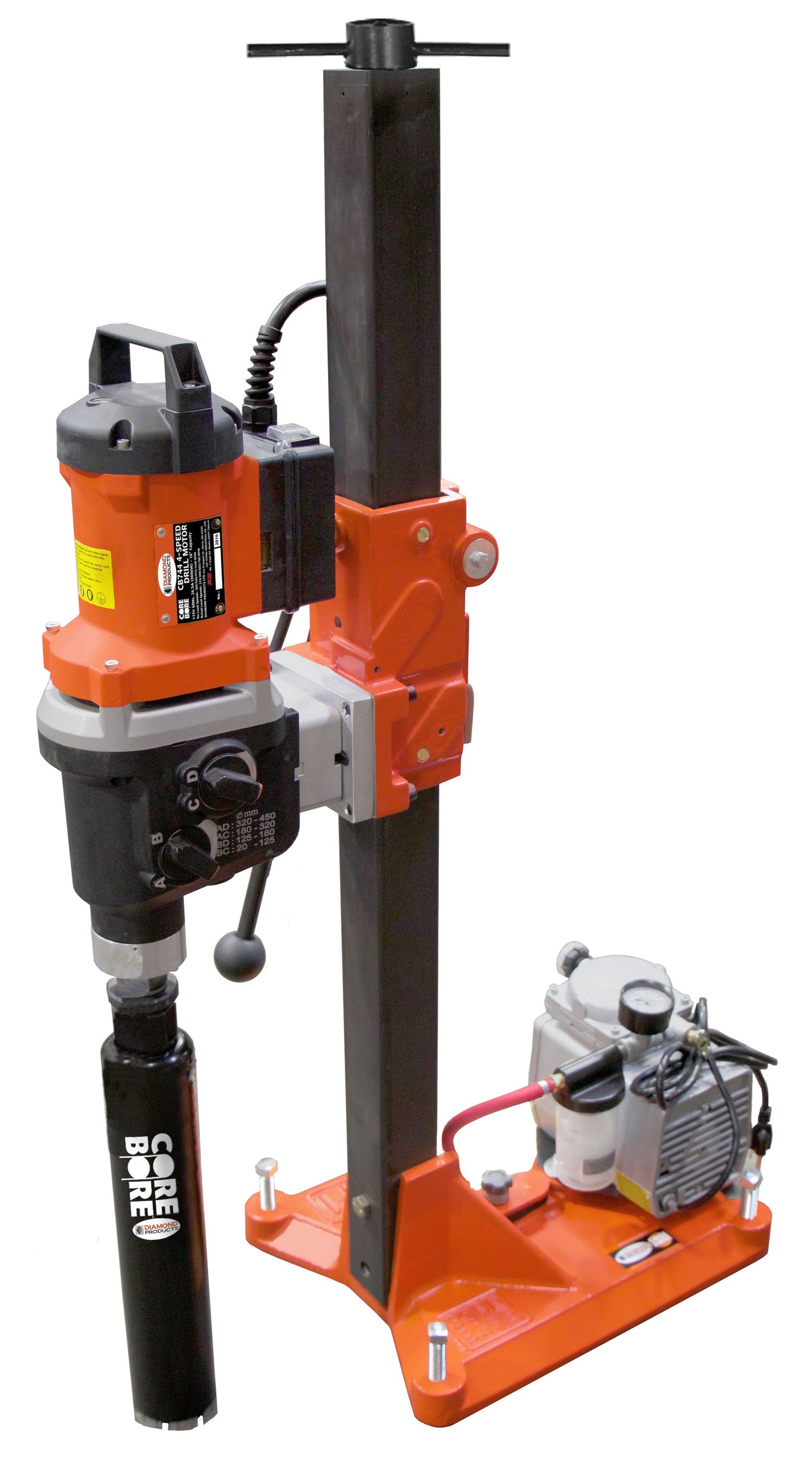

CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig with add-on vacuum base and vacuum pump 4245104 81050
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4245053 47173
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig with add-on vacuum base and vacuum pump 4245046 50138
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig without vacuum pump 4245111 81053
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig without vacuum pump 4245077 71962
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig without vacuum pump 4245078 72583
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Anchor rig 4245103 81054
DK22 23 amp, 110 volt Weka 300/640/960 Anchor rig 4245008 52339
DK22S 23 amp, 110 volt Weka 420/880/1300 Anchor rig 4245011 66795
CB733 20 amp, 115 volt Core Bore 550/1000/1600 Complete rig with add-on vacuum base and vacuum pump 4245112 85327
CB733 20 amp, 115 volt Core Bore 550/1000/1600 Anchor rig 4245114 39195
