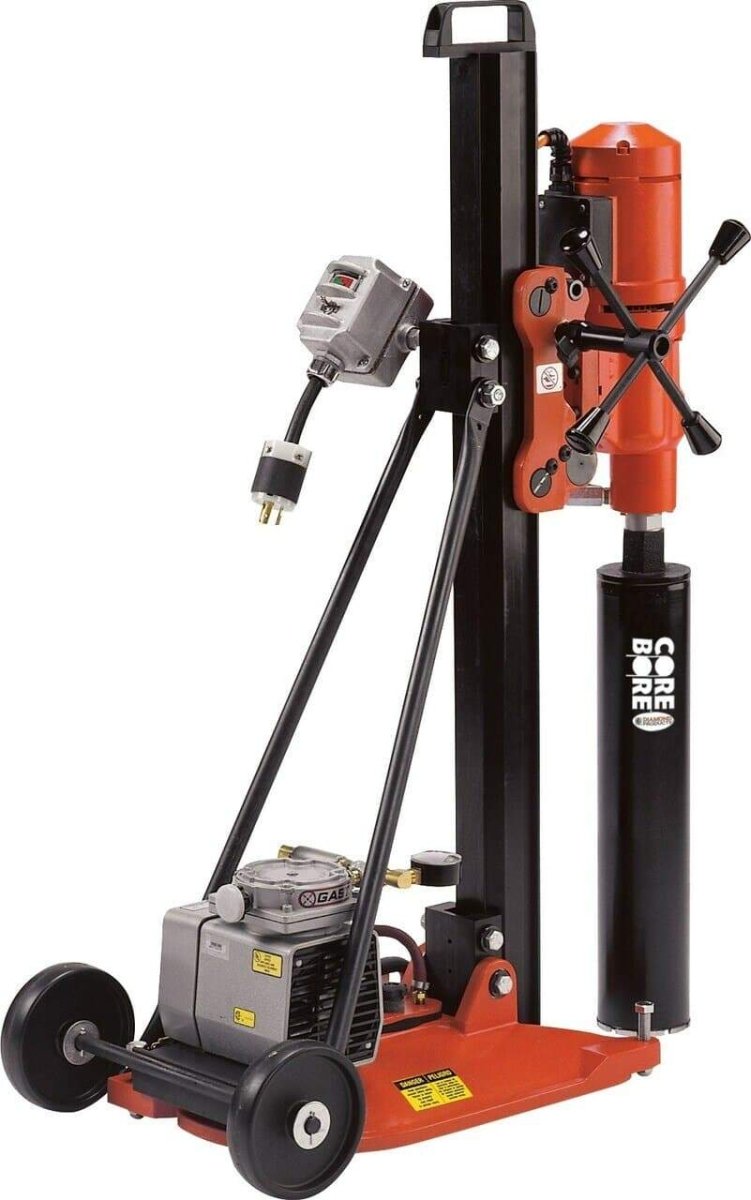

M-5 Heavy Duty Quick Disconnect Core Rigs

Diamond Products

SKU: 47175

$6,787.00

Motor Options
Rig Options
Quantity

M-5 Heavy Duty Quick Disconnect Core Rigs is easily adjustable and has a quick release motor mount

12" Standard Bit Capacity, 20" w/Spacers. The Lightest Big Rig On The Market!

Features & Benefits:

  • Quick release motor mount
  • 4-spoke sliding handle (can be used on right or left)
  • Positive carriage lock
  • 2-1/2" x 3" extruded aluminum light weight column (mast) that is hard anodized to prevent wear
  • Quick release vacuum button
  • Top carrying handle (ceiling jack available)
  • Large bit capacity in a smaller rig system
  • Allows for mounting hydraulic motors
  • Angle stand to drill up to 45°
  • Double column support for increased stability
  • Easily adjustable slide bearings



Engine/Motor Model Motor/Engine Power Engine/Motor Make Motor RPM Rig Type Part Number Catalog Number
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4220001 47175
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig with add-on vacuum base and vacuum pump 4220002 49581
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig with add-on vacuum base and vacuum pump 4245110 81063
DK22 11 Amp Weka DK22 (230V) Weka 300/640/960 Complete rig with add-on vacuum base and vacuum pump 4220010 62089
DK22S 11 Amp Weka DK22S (230V) Weka 420/880/1300 Complete rig with add-on vacuum base and vacuum pump 4220011 49825
DK22 23 amp, 110 volt Weka 300/640/960 Complete rig without vacuum pump 4220017 70410
DK22S 23 amp, 110 volt Weka 420/880/1300 Complete rig without vacuum pump 4220018 70564
CB744 25 amp, 110 volt Core Bore 385/530/975/1340 Complete rig without vacuum pump 4245108 81064
DK22 11 Amp Weka DK22 (230V) Weka 300/640/960 Complete rig without vacuum pump 4220025 10187
DK22S 11 Amp Weka DK22S (230V) Weka 420/880/1300 Complete rig without vacuum pump 4220026 84682
