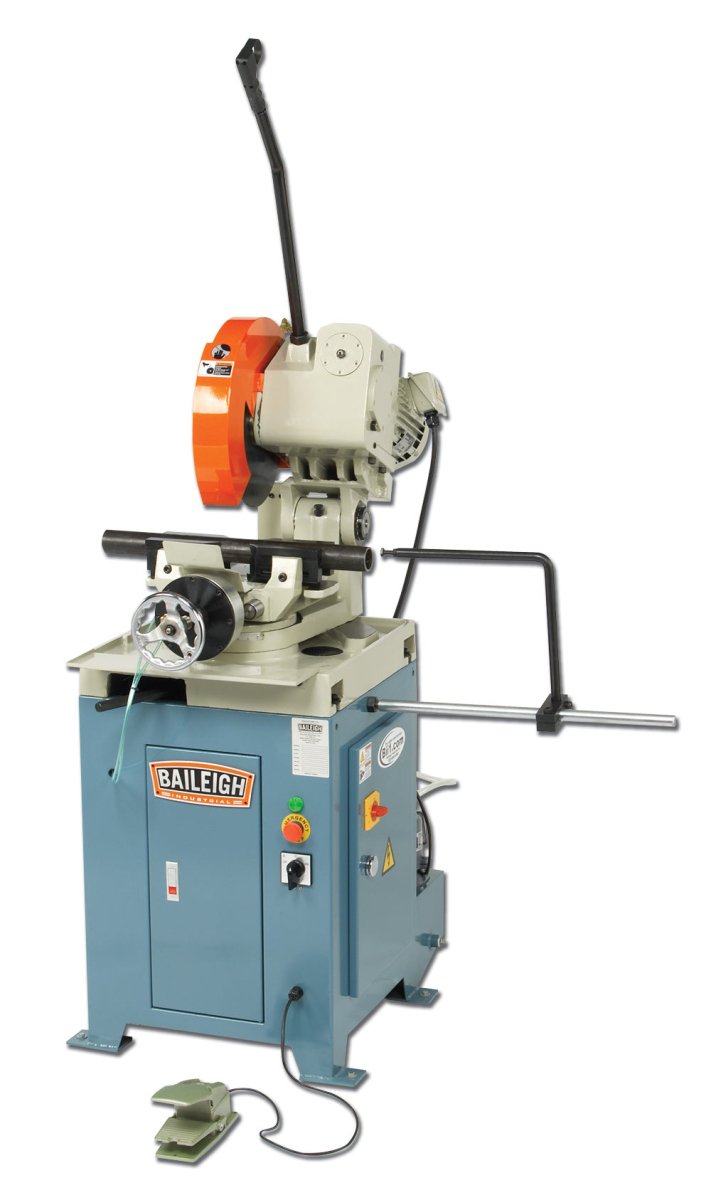

Ever wish you had an extra hand to help clamp material in a vise? This metal cutting cold saw offers a foot pedal-controlled pneumatic vise to solve that problem and speed up production.

• Manual cold saw accepts a 14” blade.
• Maximum capacity of 4.25” round tube at 90°.
• 2 blade speeds: 26 or 52 rpm.
• Choice of rpm lets you switch speeds to fit your material and get a better cut.
• Miters 45° left and 90° right, a total of 135°, great for jobs that involve slotting.
• 4 hp motor runs on 220-volt 3-phase power.

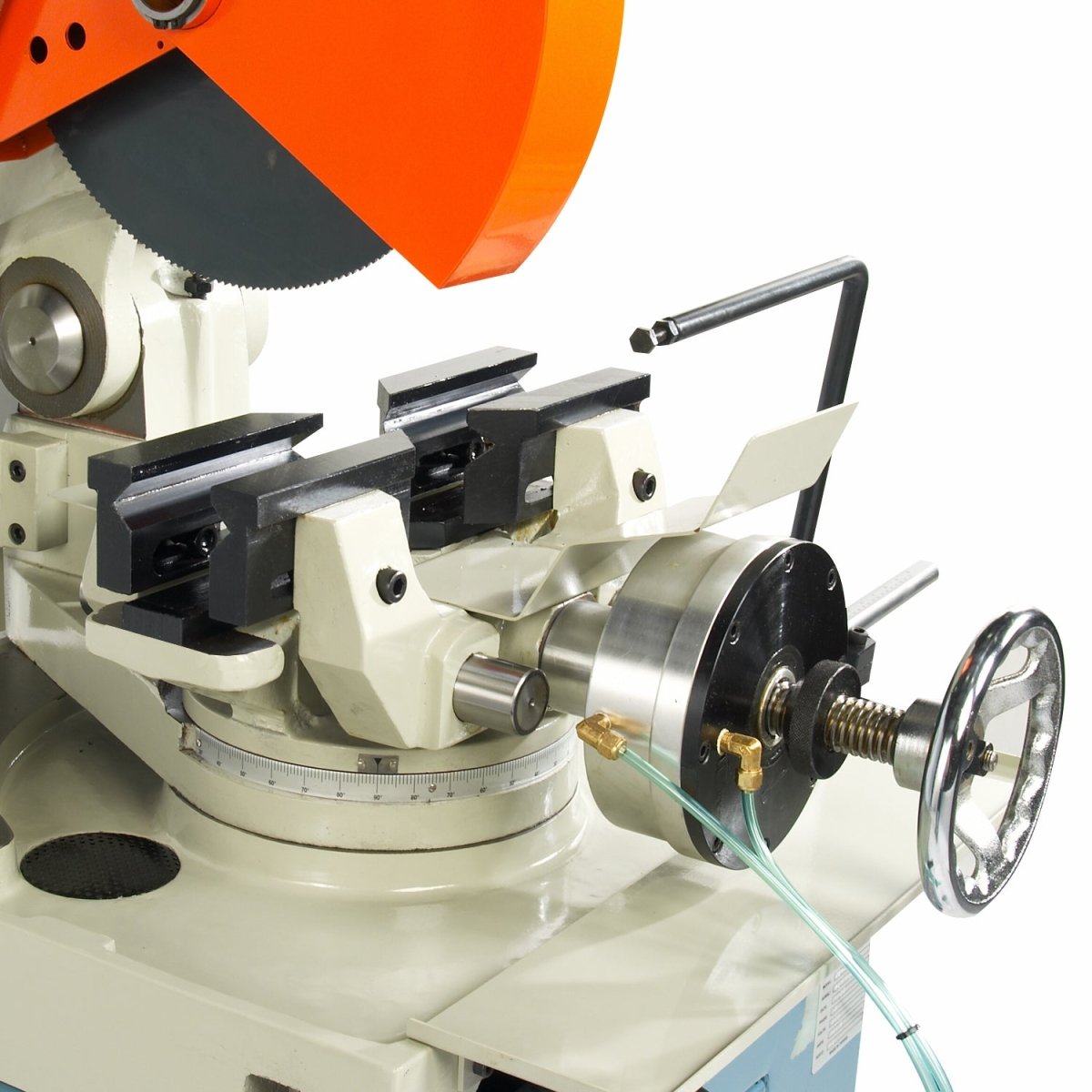

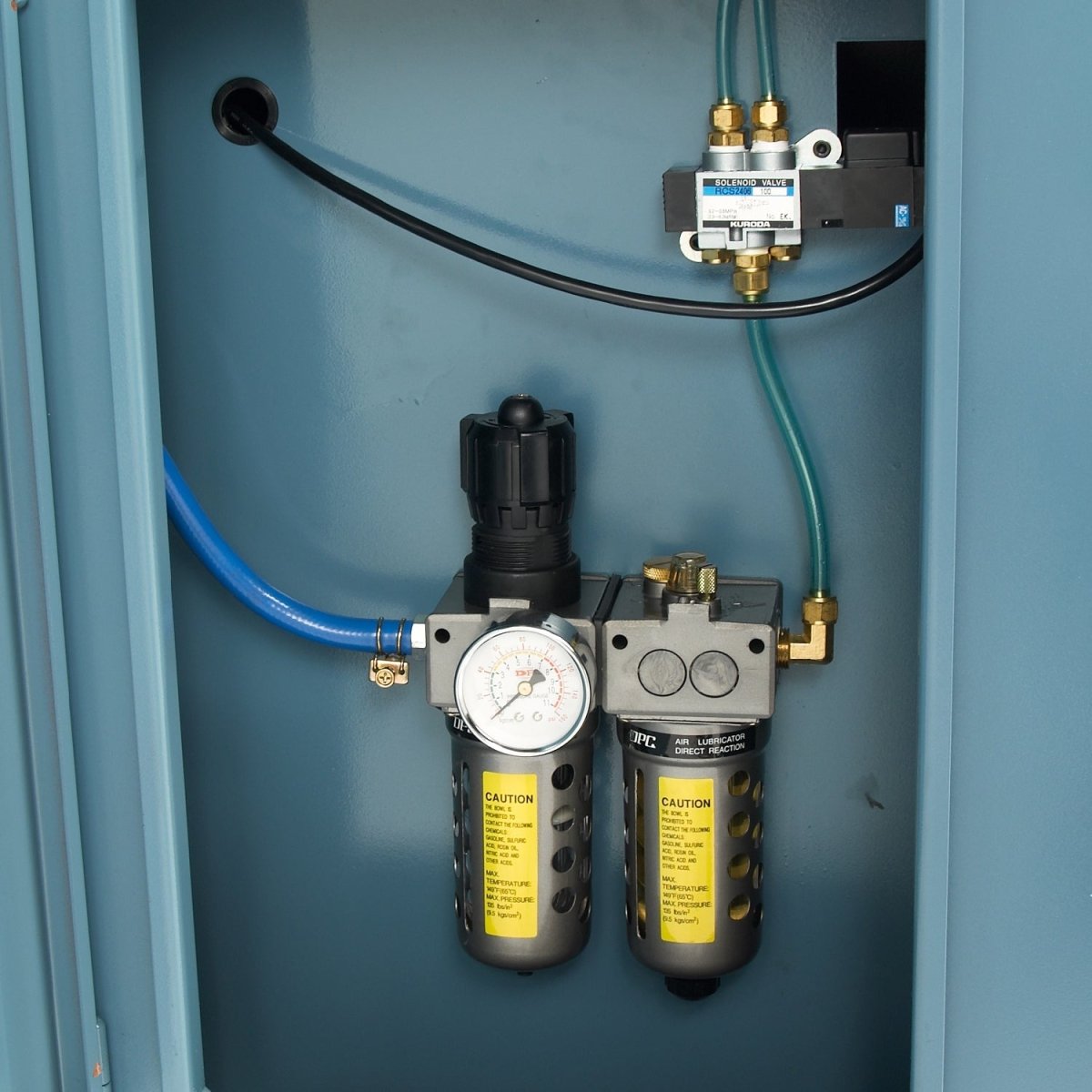

• Air-powered vise lets you clamp the material by tapping the included foot pedal.
• Vise stays under pressure until you tap the foot pedal again. No need to worry whether the material is clamped tight enough!
• Stop rod ensures that you’re cutting a repeatable length each time, perfect for production runs.
• Movable safety guard comes standard.
• Cast iron saw base resists vibrations, so that the saw gives you clean, accurate cuts for many years.
• Robust folded steel stand stabilizes the machine and keeps the saw at a comfortable cutting height.

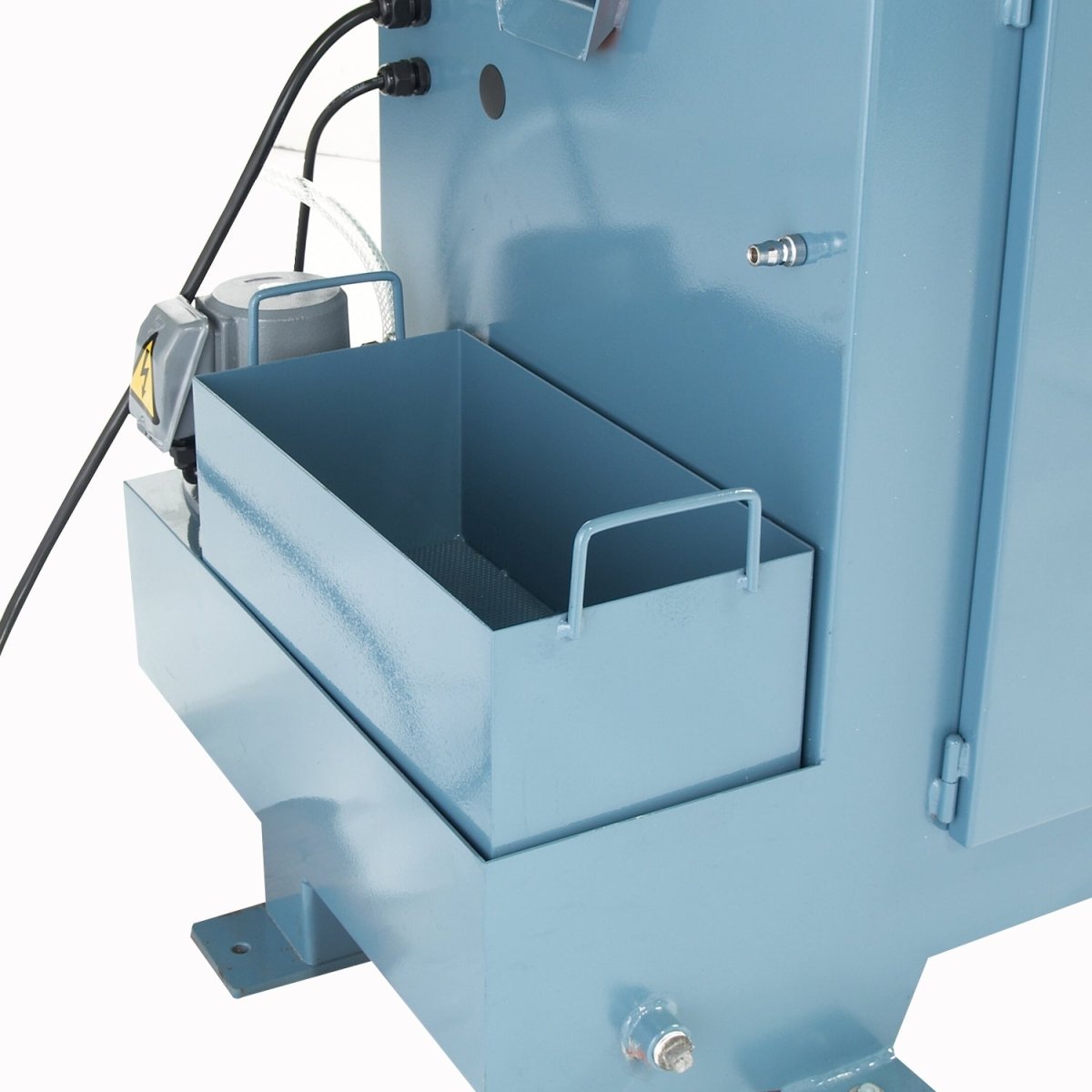

• Flood coolant system helps blades last longer, makes the machine easier to operate, and gives you smooth, burr-free cuts.
• We keep replacement parts in stock for fast shipping.
• Covered by a 1-year parts warranty.
• Our team of reps—all with hands-on machine experience—are here to provide lifetime technical support by phone.



Recommended for:

• Marine rails
• Playground equipment
• Hand railing
• Chassis applications
• Many more fabrication cutting jobs

Item Number	CS-350P
Max. Blade Diameter	14"
Operation	Manual with Pneumatic Vice
Head Miter	45° Left / 45° Right
Round Solid at 45°	1.575"
Square Tube at 45°	2.953" x 2.953"
Round Tube at 45°	2.953"
Rectangle Tube at 45°	2.953" x 2.362"
Round Solid at 90°	2.362"
Rectangle Tube at 90°	4.25" x 3.5"
Square Tube at 90°	4.25" x 4.25"
Round Tube at 90°	4.331"
Coolant System	Yes
Slotting Capable	Yes, Left and Right
Vice Style	Dual Action, Self Centering
Max. Vice Opening	6.5"
Head Style	Pivot
Arbor Size	1.26"
Motor	4.0 / 3.0 hp
Power	220V / 3-phase
Shipping Weight	850lbs
Shipping Dimensions (Inches)	60x44x77

* specifications subject to change without notice.
