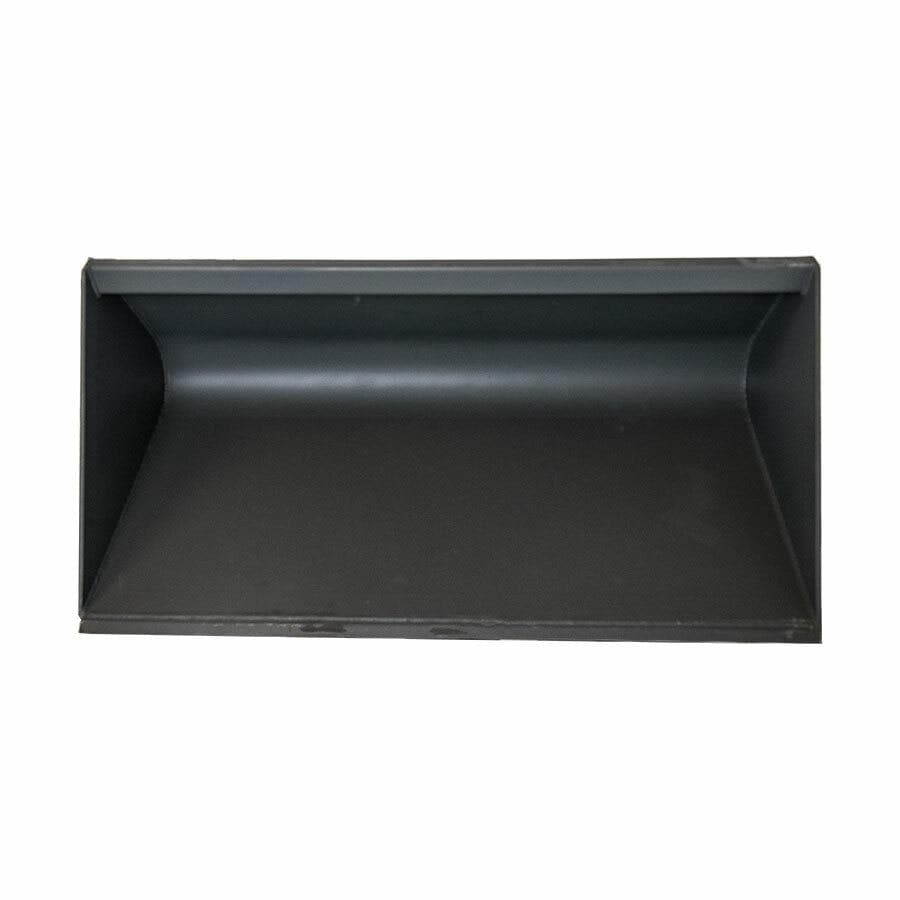

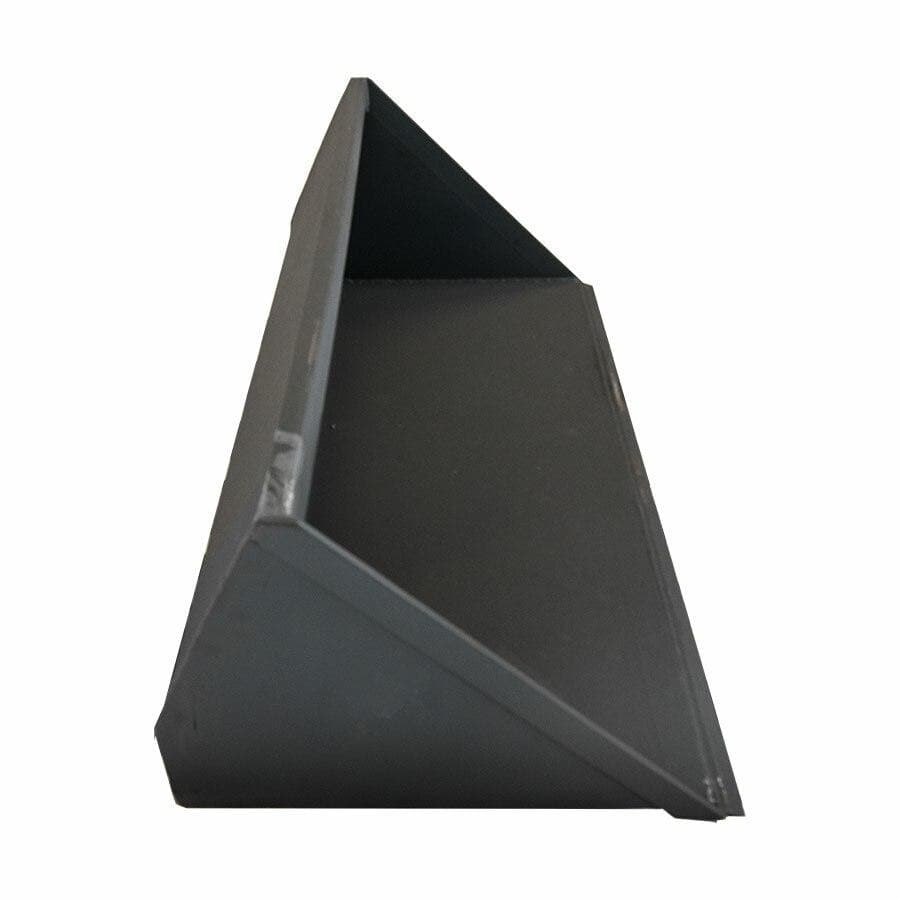

Mini Skid Steer Buckets manufactured by Arrow Material Solutions and brought to you by Diamond Tool Store!

Mini Skid Steer Buckets are designed to bring the same high-quality performance of a full-size bucket to walk behind skid steers. Small Machine Buckets feature a reinforced construction with added strength at the bucket radius and added support at the bucket heel. Four additional skid plates are located on the bottom of the bucket, as well as two on the side, to protect against hard materials.

Features

  • Reinforced bucket radius adds strength and makes clean out simple
  • Square reinforced heel Provides additional support. Great for back dragging.
  • Four bottom plates and two side plates protect against hard materials
  • A low-profile design allows for increased visibility
Product # Type Cu. Ft. Heaped Cu. Ft. Struck Outside Width Depth Height Weight # Teeth

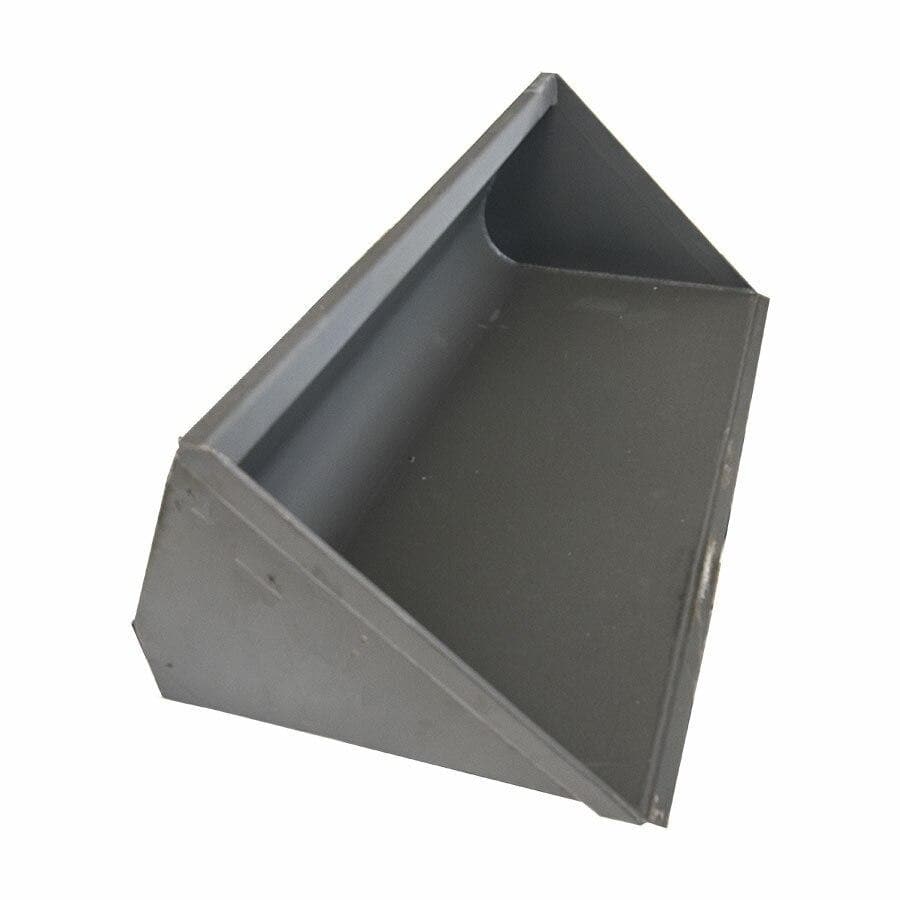

1303643W_ _ _* Utility 4.3 3.7 35.5 24 16 75 x
1303643W_ _ _T* Digging 4.3 3.7 35.4 24 16 100 4
1304252W_ _ _* Utility 5.2 4.0 41.5 24 16 100 x
1304252W_ _ _T* Digging 5.2 4.0 41.5 24 16 100 5
1304880W_ _ _* Utility 6.0 4.5 47.5 24 16 125 x
1304880W_ _ _T* Digging 6.0 4.5 47.5 24 16 125 5
