Omni Cubed | SKU: MTR-153-V2

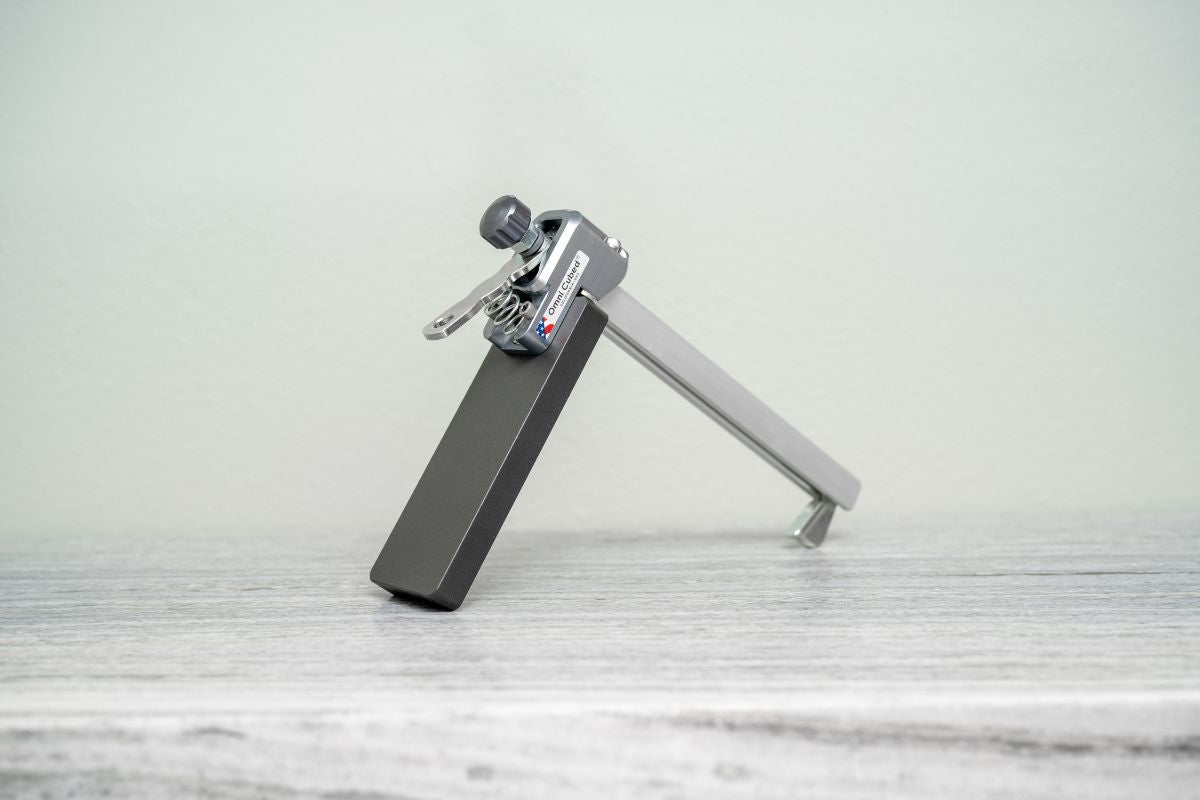

Miter-It v2

Name: Miter-It v2
Brand: Omni Cubed
SKU: MTR-153-V2
Price: 391.50 USD
Availability: InStock

$391⁵⁰ ~~$435⁰⁰~~

Shipping calculated at checkout.

Safe & Secure Payments.

Wherever you would need a hand to hold the material, put a Miter-It™ there instead!

The Miter-It™ is an easy-to-use jig that allows finished-side-up miter laminations. Not flipping the material offers numerous benefits including increased safety for workers, reduced risk of damage to the material, and keeping the seam in view during lamination. The Miter-It™ securely holds drop-down edges at 90°, eliminating the need for a helper to position the material. The jig's weight and non-marking, non-skid contact surface hold the product and miter piece in place—no suction cups needed. This simple, yet innovative tool greatly reduces the numerous awkward adjustments required with other miter clamps, and offers better results than taping methods alone. Sold in pairs with a free 25 yard sample roll of Kung Fu Tape™.

The upgraded Miter-It™ v2 boasts a sturdier base and enhanced grip, resulting in stronger clamping force and ultimately delivering greater precision for achieving perfect 90 degree angles.

HIGHLIGHTS

Miter finished side up; keep the seam in view
No flipping for gluing; protect your back and the material
Squares the miter with fast, easy adjustments, eliminating the need for a helper
Coarse and fine adjustments for exact seams
More efficient than taping methods alone
Jig's weight and non-skid contact points hold it in place
Accommodates mitered edges from 1” - 5” tall, depending on material thickness

Product Name	Miter-It™ v2
Patents	Applicable Patents
Part #	MTR-153-V2 (2 pack)

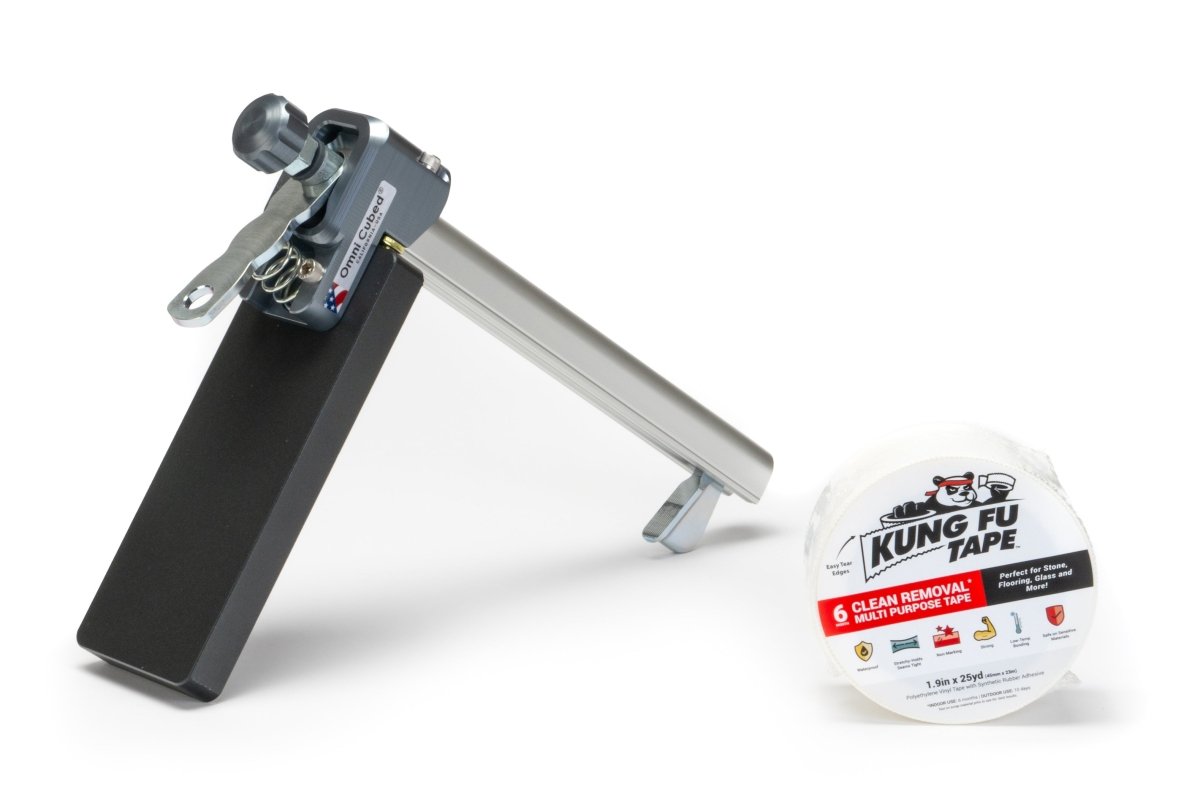

Includes	Two Miter-It™ v2 units and one free 25 yd. sample roll of Kung Fu Tape™
Product Dimensions	10” x 9.5” x 3”
Product Weight	6.5 lb per unit
Package Dimensions	14” x 10” x 5”
Shipping Weight	15 lb
Load Capacity	N/A
Clamping Range	25 mm to 127 mm (1 in. to 5 in.) depending on material thickness
Materials	Steel, zinc plated steel, galvanized steel, powder coated steel, pvc, anodized aluminum
