Model ROB Reach Over Fork Lift Boom

Model ROB Reach Over Fork Lift Boom — Telescoping Extension Boom for Clearance-Restricted Lifts

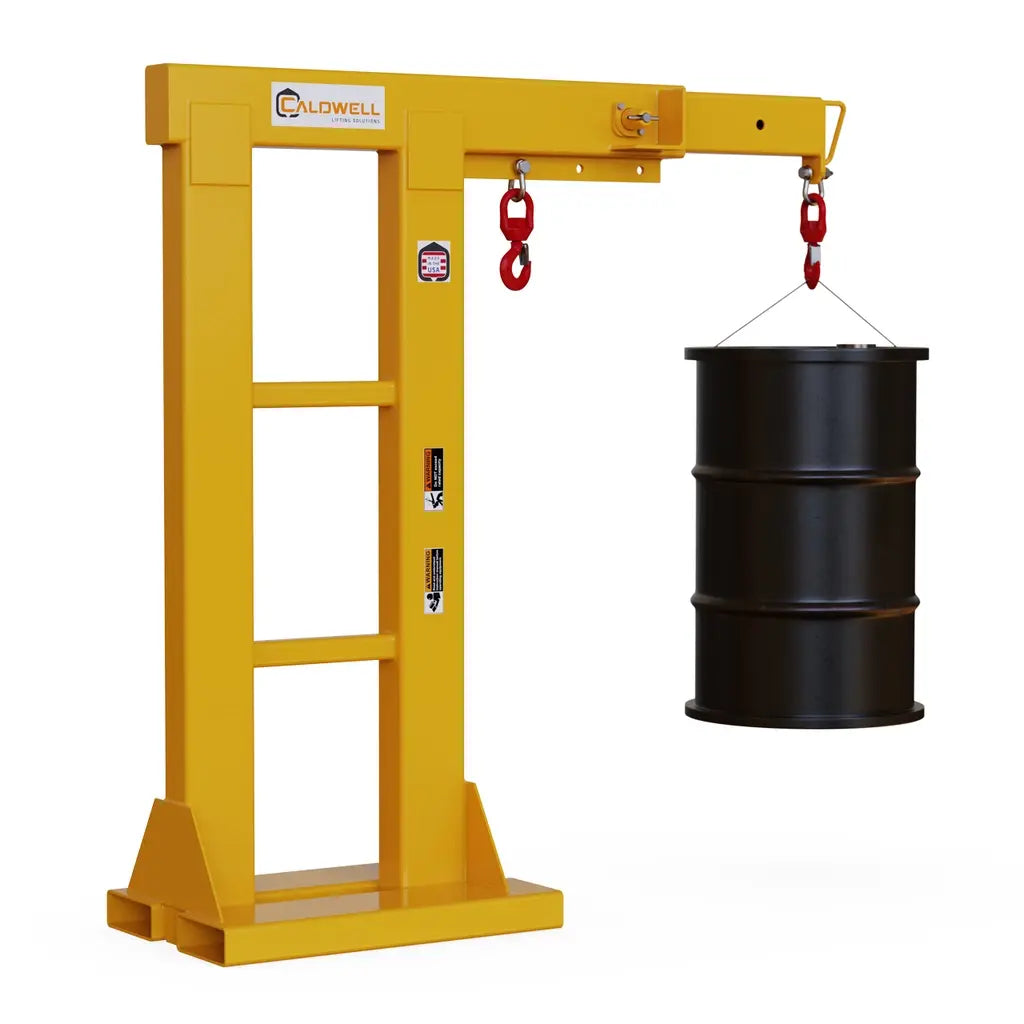

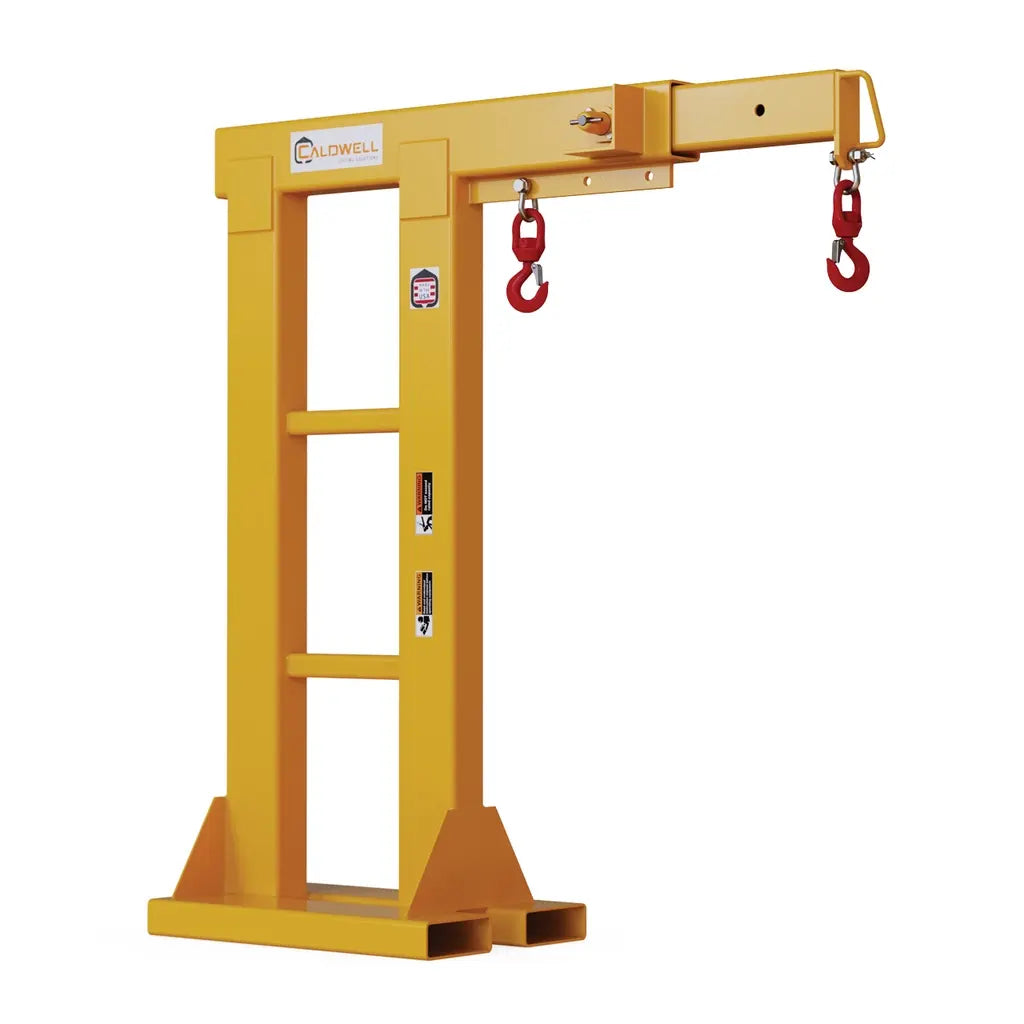

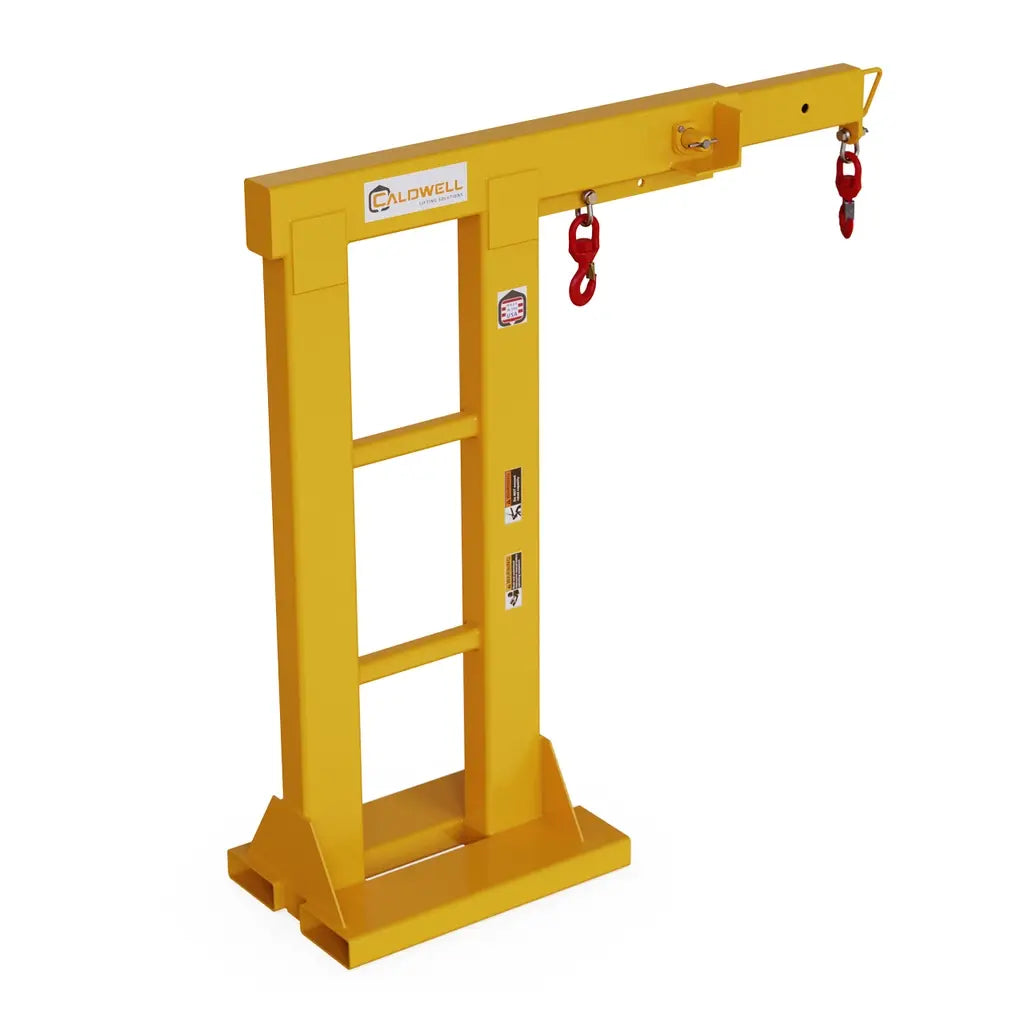

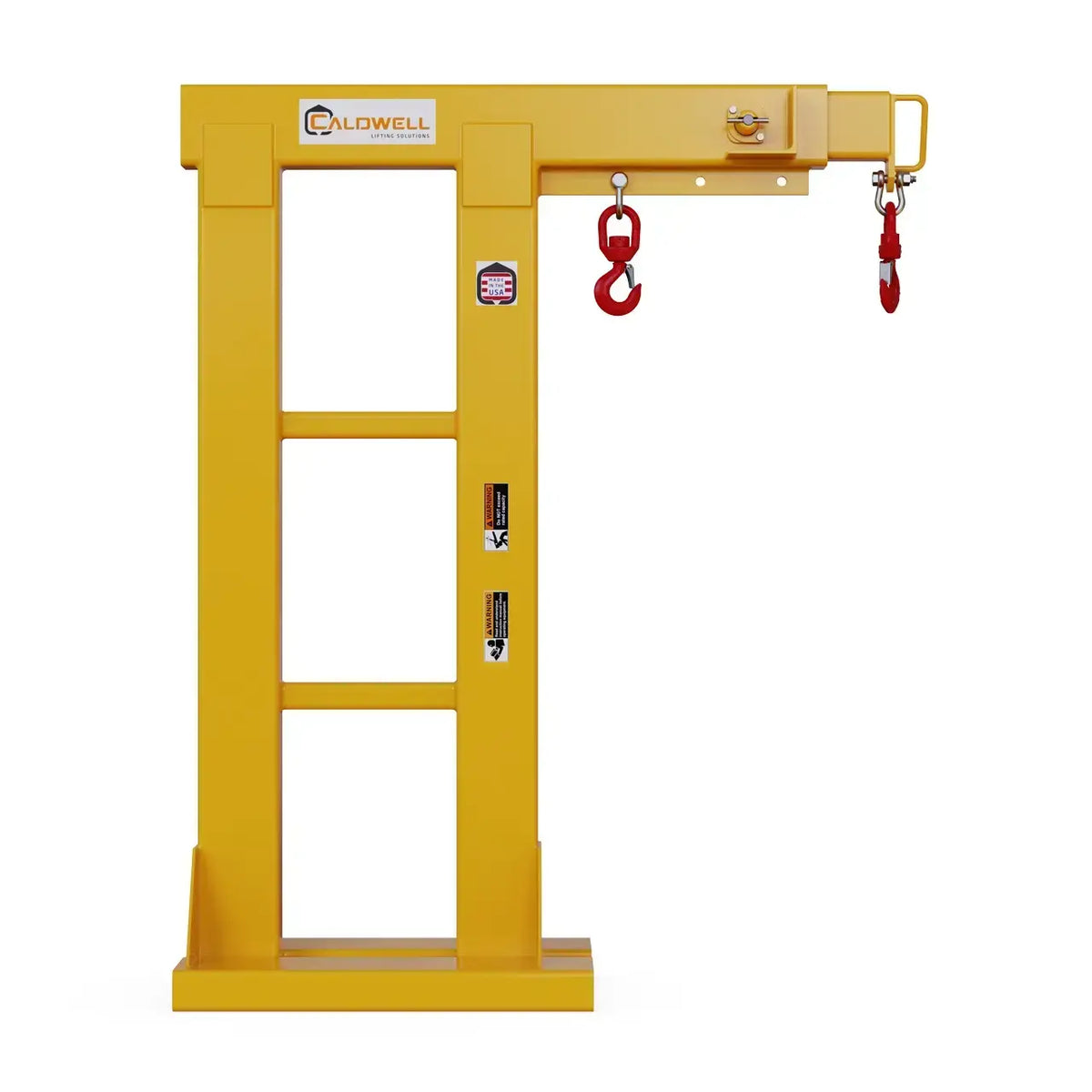

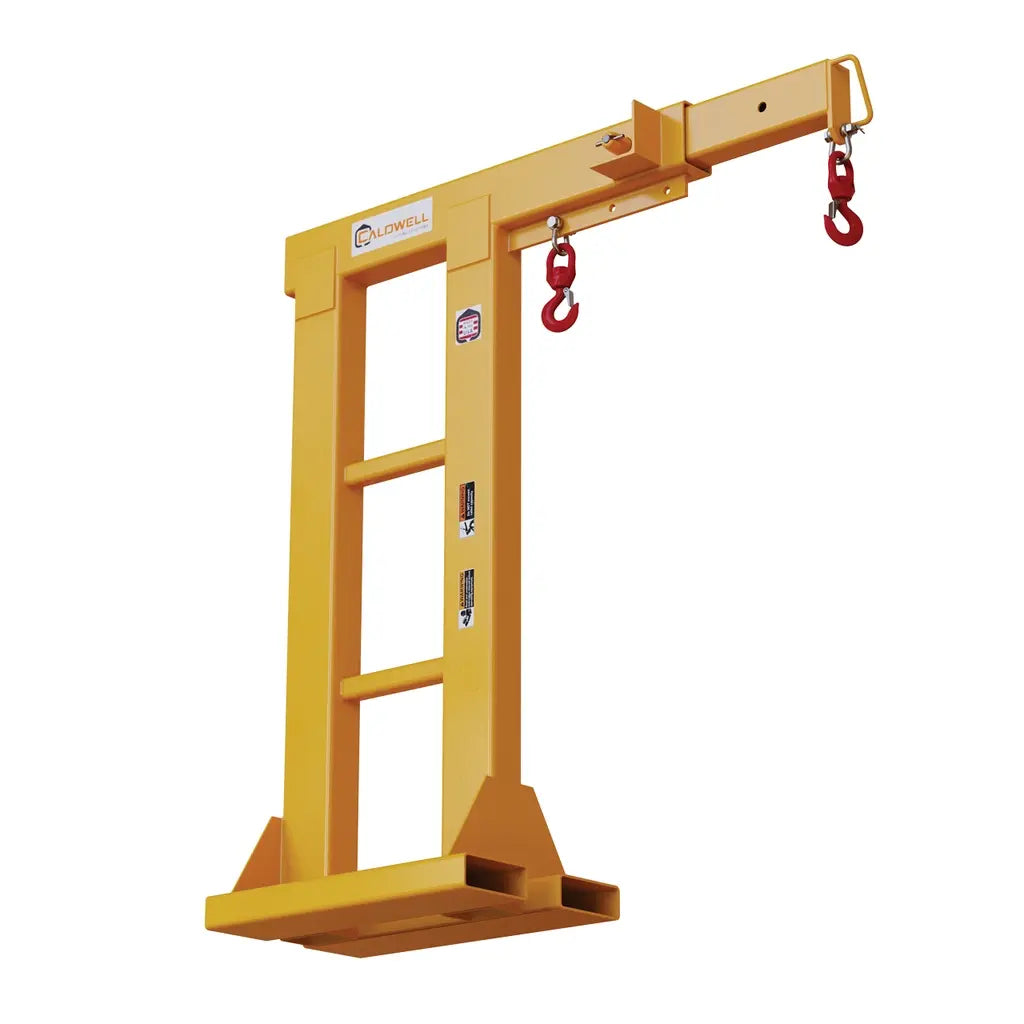

The Caldwell Model ROB-40 Reach-Over Fork Lift Boom is a heavy-duty telescoping boom attachment designed for use with standard lift trucks when an extension boom is required and overhead or structural clearance is a limiting factor. Rated at a maximum capacity of 2 tons, it is engineered for contractors and trades professionals who need to position loads beyond the reach of standard forks without sacrificing control or safety. The telescoping boom design provides multiple hook positions, allowing operators to adjust lift points to suit varying load geometries and job site conditions. This attachment is built for demanding industrial and construction environments where precise load placement is critical.

Technical Specifications

Unlike a standard fixed-length fork boom, the ROB-40's telescoping design allows the operator to select from multiple hook positions, directly trading reach for rated capacity as the boom extends — giving job site crews the flexibility to match the tool to the load rather than the other way around. The integrated restraining chain with grab hook and swivel hooks with latches add a level of load security that fixed-hook alternatives typically do not provide.

Key Features & Benefits

Telescoping Boom

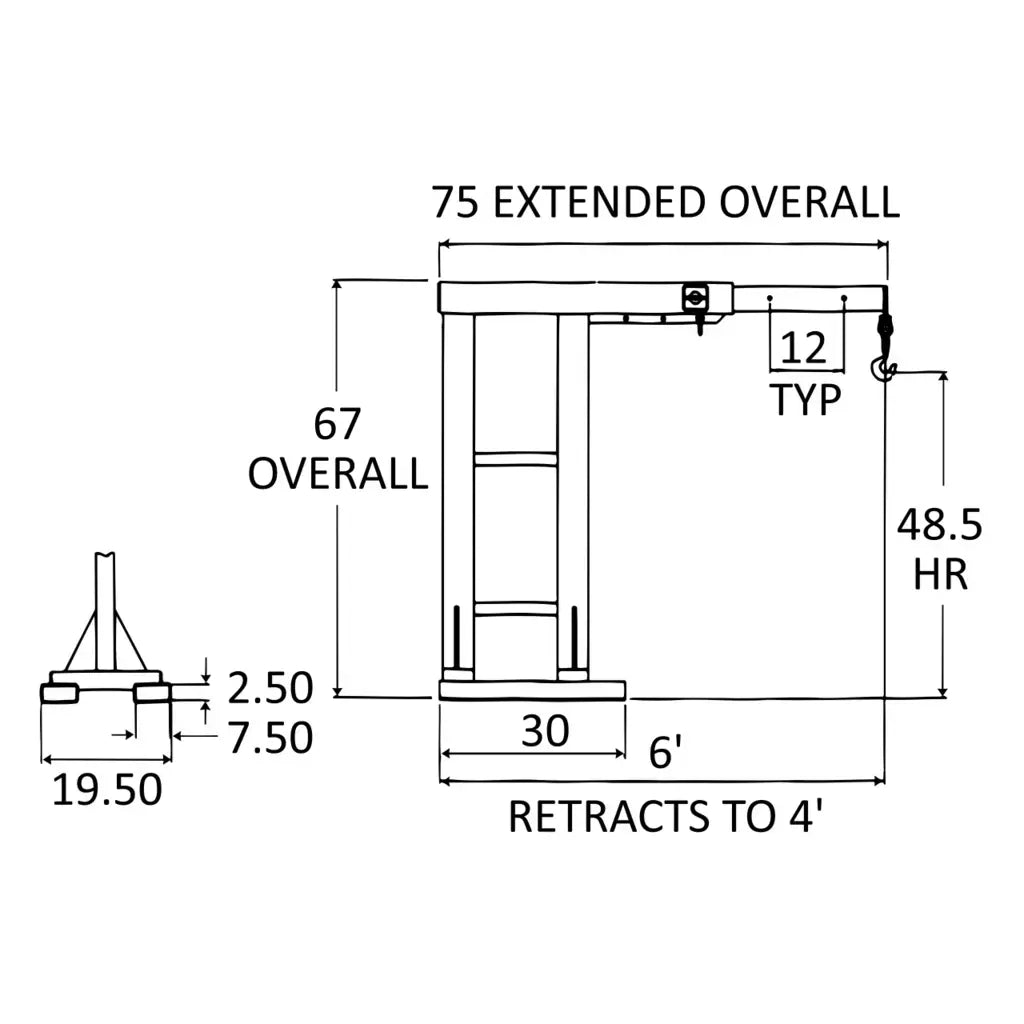

The telescoping boom allows operators to extend reach incrementally, with rated capacities defined at 4 ft., 5 ft., and 6 ft. positions. This lets crews adapt to varying load sizes and placement requirements without changing attachments.

Multiple Hook Positions

Multiple hook positions along the boom give operators the ability to fine-tune the lift point relative to the load's center of gravity. This is especially valuable when handling irregularly shaped or off-center loads on a job site.

Swivel Hooks with Hook Latches

Swivel hooks allow the load to orient naturally during the lift, reducing side-loading stress on the rigging. The integrated hook latches prevent accidental disengagement, a critical safety feature when working at height or in congested areas.

Restraining Chain with Grab Hook

The restraining chain with grab hook provides a secondary retention point to secure the attachment to the lift truck forks. This helps prevent the boom from shifting or becoming dislodged during travel or lift operations.

Clearance-Optimized Design

The reach-over geometry is specifically engineered for situations where standard boom attachments cannot be used due to overhead obstructions or structural clearance limitations. This makes the ROB-40 suitable for confined or partially enclosed work areas where a conventional boom would contact overhead structure.

Common Applications

Load Placement Beyond Fork Reach

Use the ROB-40 when materials or equipment must be set down at a horizontal distance that exceeds the reach of the lift truck's standard forks, such as placing loads over barriers, walls, or machinery.

Clearance-Restricted Environments

Ideal for indoor construction sites, warehouses, or industrial facilities where overhead beams, ductwork, or other obstructions prevent the use of a standard upright boom attachment.

Rigging and Hoisting with Lift Trucks

Converts a standard lift truck into a mobile hoisting platform, allowing contractors to suspend and position loads using the swivel hook without requiring a dedicated crane or hoist.

Compatible Materials

• Structural steel members and beams
• Precast concrete panels and elements
• Mechanical and HVAC equipment
• Palletized or rigged construction materials
• Industrial machinery and components

Product Documents

• Download Catalog — Caldwell Master Catalog Page 232

Safety Data Summary

Hazard Information

• Capacity of the lift truck and attachment combination may be less than the capacity shown on the attachment. Always consult the lift truck manufacturer for guidance on combined rated capacity before use.

Safe Handling

• Consult the lift truck manufacturer to determine the combined capacity of the lift truck and ROB attachment before lifting any load.
• Do not exceed the rated capacity for the selected hook position (4 ft., 5 ft., or 6 ft.).
• Ensure the restraining chain with grab hook is properly secured to the lift truck forks before each lift.
• Verify hook latches are fully engaged before lifting any load.

Frequently Asked Questions

Q: Why does the rated capacity decrease as the boom is extended?
A: Capacity is rated at specific boom extension positions — 4,000 lbs. at 4 ft., 3,500 lbs. at 5 ft., and 1,800 lbs. at 6 ft. As the boom extends further from the lift truck mast, the moment arm increases, reducing the safe working load the attachment and lift truck combination can handle.

Q: Can I use the ROB-40 on any lift truck?
A: The ROB-40 is designed as a fork-mounted attachment compatible with standard lift trucks; however, the combined capacity of the lift truck and attachment may be less than the capacity shown on the attachment. You must consult your lift truck manufacturer to confirm the rated combined capacity before use.

Q: What is the purpose of the restraining chain with grab hook?
A: The restraining chain with grab hook secures the boom attachment to the lift truck forks, preventing the boom from shifting or becoming dislodged during lift and travel operations.

Q: When should I use the Reach-Over Boom instead of a standard fork boom?
A: The ROB-40 is specifically designed for situations where an extension boom is required but clearance — such as overhead obstructions or structural elements — prevents the use of a conventional boom attachment.
