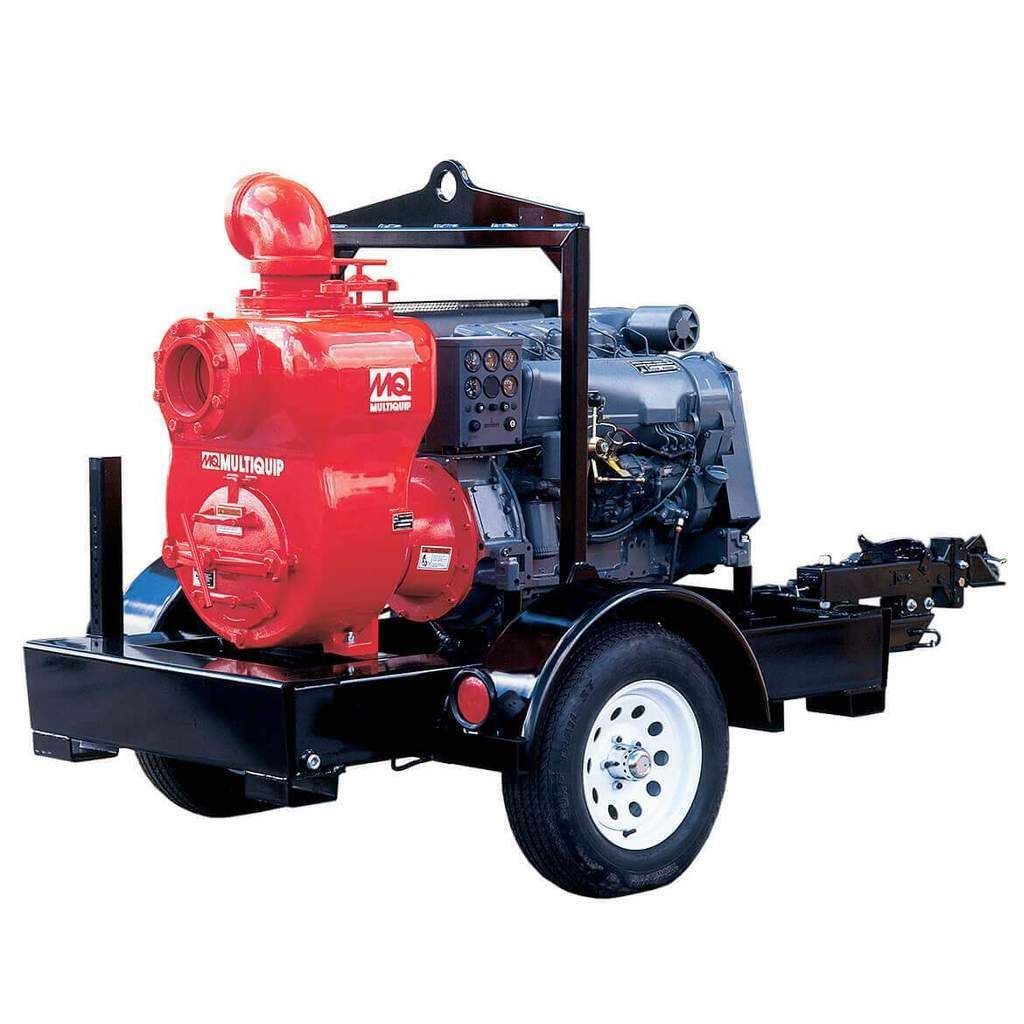

MQ600HTP Trash Pump
MQ600HTP Trash Pump is designed to take on your toughest de-watering applications and pumps up to 1,600 gallons (6,055 liters) a minute
Industrial 6" wet priming de-watering trash pump provides the proven performance you have come to expect from Multiquip. The pump is now outfitted with a compact, powerful, and efficient HATZ Tier IV FINAL turbo charged diesel engine. This pump is designed to take on your toughest de-watering applications.
- Pumps up to 1,600 gallons (6,055 liters) a minute.
- Maximum head 150 feet (45.7 meters).
- Powered by HATZ Tier IV FINAL 4-cylinder, Turbo Charged diesel engine.
- Supported by BOSCH common rail fuel injection system - w/triple fuel filtration.
- Full featured shock mounted LOFA 620 Control Panel.
- DOT Certified Trailer w/ integral 40-gallon (151 liters) fuel cell.
- Large cleanout cover and wear-resistant ductile cast iron impeller.
- Stainless steel wear plate.
- Abrasion-resistant oil lubricated tungsten/carbide seal.
- Pumps solids up to 3 inches (75 mm) in diameter.
- Approximate running time of 22 hours.
- 3" Pintle Hitch
|Suction x Discharge||
6 x 6 in
152 x 152 mm
|Max. Water Capacity||1600 gpm||6055 lpm|
|Max. Lift||25 ft||7.6 m|
|Max. Head||150 ft||46 m|
|Max. Pressure||64.9 psi||447 kPA|
|Max. Solid Intake||3 in||76 mm|
|Fuel Tank Capacity||40 Gal||151 L|
|Notes: DOT Certified Trailer, 40 GAL Fuel Tank and 3" Pintle Hitch|
|Overall Length||125 in||3175 mm|
|Overall Width||64 in||1626 mm|
|Overall Height||70 in||1778 mm|
|Operating Weight||2850 lb||1293 kg|
