Multi-Person Work Platforms

Multi-Person Work Platforms quickly and safely raise maintenance personal where they are needed giving you a larger size platform to accommodate your application.

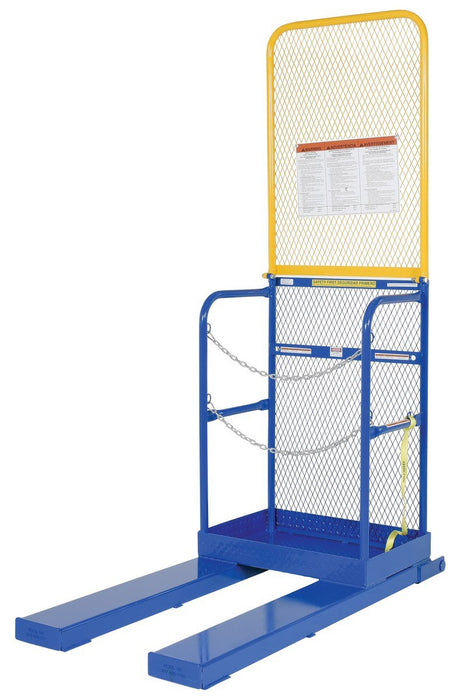

The work platform attaches to fork truck by inserting forks into fork pockets and securing platform to fork truck. Unit is made of 2" square tube construction, and base and 4" side curbs are formed from one piece of heavy gauge sheet for extra strength. Deck has slip resistant surface, and fork pocket openings of 7" x 2-3/4". Safety pins behind each fork and heavy duty chains welded to back frame of platform which secure around the fork carriage. Hinged gate on the front of the unit, with pin safety lock built in. Painted safety yellow.

Disclaimer:

Per ANSI B56-1-2005 section 7.37.3, the floor dimensions of the platform attachment can not exceed 2X the load center distance listed on the truck data plate nor have a width greater than the overall width of the truck (measured across the load bearing wheels) plus 250mm on either side. The backs on all work platforms backs have 1/2"-13 FEM to meet CAOSHA standards for the industrial trucks.

As long as the customers truck meets these requirements, they should meet the requirements set forth by OSHA to have a new data plate created for their fork truck. Vestil makes no guarantees as to the fork truck manufacturer generating a new date plate as required by OSHA.

Multi-Person Work Platforms
Model	Image	PDF's	Platform Size (LxW)	Fork Pocket Centers	Capacity (lbs)	Expanded Metal Back	Wt. (lbs)
WP-4072			40"x72"	29"	1200	63-1/8"	406
WP-4096			40"x96"	29"	1500	63-1/8"	470
WP-40120			40" x 120"	29"	1800	63-1/8"	800

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
