Vestil | SKU: PI-S-4400-3761

Pallet Inverters

Name: Pallet Inverters
Brand: Vestil
SKU: PI-S-4400-3761
Availability: InStock

Call for Pricing

Shipping calculated at checkout.

Safe & Secure Payments.

Pallet Inverters help reduce your costs in production, storage, retrieval and distribution

The 180 degree rotation makes pallet exchange quick and simple while reducing product damage. Easily load and transfer from wood pallet to plastic pallet, slip sheet or rental pallet. Units can be loaded and unloaded easily with a fork truck. Uniform capacity is 4,400 lbs. Steel hand rail guarding standard. Special sizes, mesh guarding and CSA versions available, please contact factory. Units ship flatbed truck.

Features:

Steel hand rail guarding standard.
460V 3-PHASE STANDARD
Control options range from standard pendant controls to lever systems
Easy load transfer from wood pallet to plastic pallet, slip sheet or rental pallet.
Quick, efficient removal of broken or damaged product.
Significant reduction in back injuries.

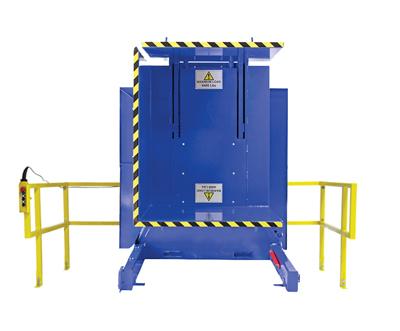

Pendant control is easily accessible to lift truck operator (Pendant Control is pictured above).
Free standing 180 degree Inverter with single clamping plate.
Can be transported and loaded by forklift with built in fork pockets.

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

Pallet Inverter
Model	Image	PDFs	Max. Load Size (WxL)	Min. Jaw Opening Height	Max. Jaw Opening Height	Control	Wt. (lbs)
PI-S-4400-3761			50"x50"	36"	63"	Pendant	4048
PI-S-4400-3761-L			50"x50"	36"	63"	Lever	4048
PI-S-4400-4373			50"x50"	42"	75"	Pendant	4268
PI-S-4400-4373-L			50"x50"	42"	75"	Lever	5000
Hand Pendant Control Standard/ NEMA 12 Rating Standard
These models need to ship flatbed LTL.
