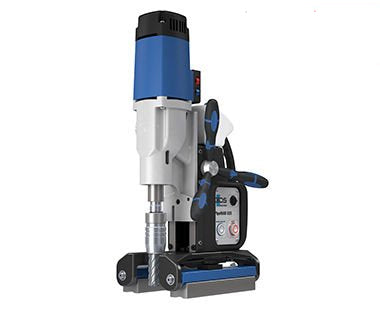

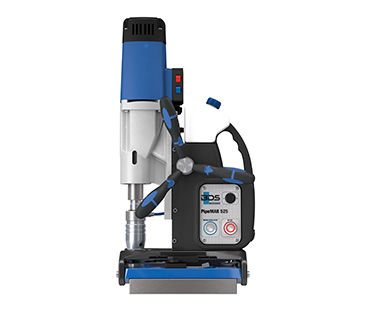

PipeMAB 525 | Magnetic Pipe & Tube Drilling Machine

MAGNETIC DRILL FOR PIPE | DRILL HOLES UP TO 2-1/2" DIA.

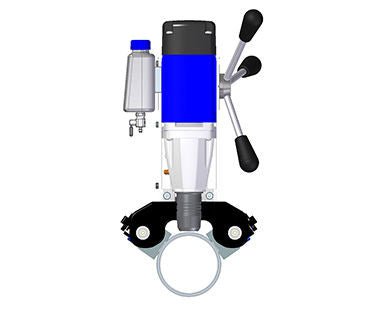

The NEW PipeMAB 525 magnetic drill dramatically reduces the time and effort required to drill, tap, ream and countersink in pipe. Equipped with a patented swivel magnetic clamping system, PipeMAB models can drill on pipe 3” (85mm) OD and larger, inner pipe wall (ID) as well as flat and curved surfaces. The 2 permanent magnets strong clamping force allows for great flexibility with adhesion on ferrous materials as thin as 9/64”.

This pipe system combined with the features of the PipeMAB 525 makes for the most versatile pipe drilling machine on the market.

Features & Benefits:

• Flexibility: Ideal for drilling, tapping, reaming and countersinking on pipe, flat & curved surfaces
• Increased Safety: Highly stable, permament magnet stays active independent of electricity
• Increase Cutting Tool Life: Variable speed control, adjustable torque and automatic lubrication for reduced cutting tool costs and increased life
• Strong Magnets: Adhere to material as thin as 9/64" (3 mm)
• Elongated Tool Holder: For maximum utilization of pipe drilling machine stroke
• Accuracy: 2 magnet system allows the magnetic drill to swing away for clearing debris and hole inspection
• Maneuverability: At only 43lbs and with a patented swing arm system the Pipemab 525 can be moved and adjusted with ease

Specifics

Motor Power	14.5 Amp / 110 Volt
Weight	43 lbs.
Hole Capacity	2-1/2" dia.
Twist Drill Capacity	1" dia.
Tapping Capacity	15/16" dia.
Speeds	70-280 & 180-580 RPM
Stroke	6-1/3"
Magnet Base Size	10.5" L x 7.5" W x 3.5" H
Dimensions	20.7" H x 10.5" L x 7.5" W
Magnetic Force (3/4" plate)	2250 lbs
Arbor Bore	3/4" Weldon Shank
Spindle Taper	MT3
Pipe Magnet System Equipped	Yes
Automatic Lubrication	Included
