Power Rotator - PRT Production Lifter Series

SKU
Original price $14,566.26 - Original price $31,203.87
Original price
$14,566.26
$14,566.26 - $31,203.87
Current price $14,566.26
Choose a Capacity
Please note: Wood's Powr-Grip products are made to order and have an expected lead time of 5-6 weeks. Please contact us at +1 (800) 342-3876 for additional information.

Power Rotator 1000 (AC)/Tilter 1000 (AC) produced for easy lifting of heavy materials.  DC power is available but only for special order

Made when ordered - Typical lead time is 5-6 weeks

This lifter combines powered 360° rotation, adjustable rotation speed and fast attach/release times, making it ideal for high-output production lines.

Rotator

Full Specifications

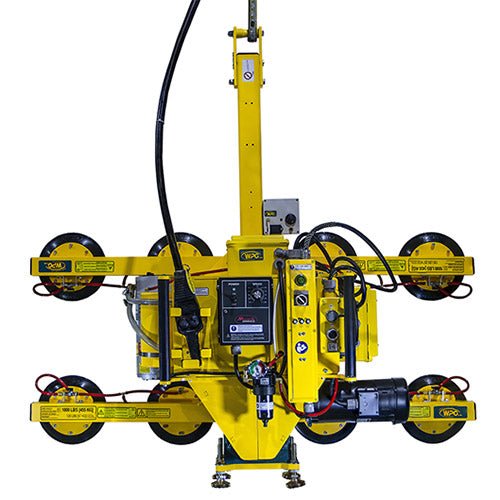

Vacuum lifter shown with optional High-Duty Tilt, Vacuum Loss Warning Buzzer and DC Back-Up System.

Standard Pad Spread:
29-1/4" x 59-1/4" [740 x 1502 mm]

Number / Size of Vacuum Pads:
8 / 9" [23 cm] diameter pads

Maximum Load Capacity:
1000 lbs [455 kg]

Weight of Lifter:
600 lbs [273 kg]

Standard Operating Power:
120 volts AC, 60 hertz, 16 amps

Apply / Release Times:
4 seconds / 3 seconds (approx)

Load Movement:
Power rotation, 360° edgewise, with adjustable speed control
Power tilt, 90° between upright and flat

Maximum / Minimum Rotation Speed:
Full turn, 7 seconds / 30 seconds (approx)

Time for 90° Tilt:
13 seconds (approx)

Tilt Duty:
41 tilts per hour

Standard Features:
Green lift light
Movable control pendant
Vacuum gauge
Vacuum reserve tank
Vacuum line filter
Spring-mounted vacuum pads
Twist-lock electrical plug
Blow-off for quick release
