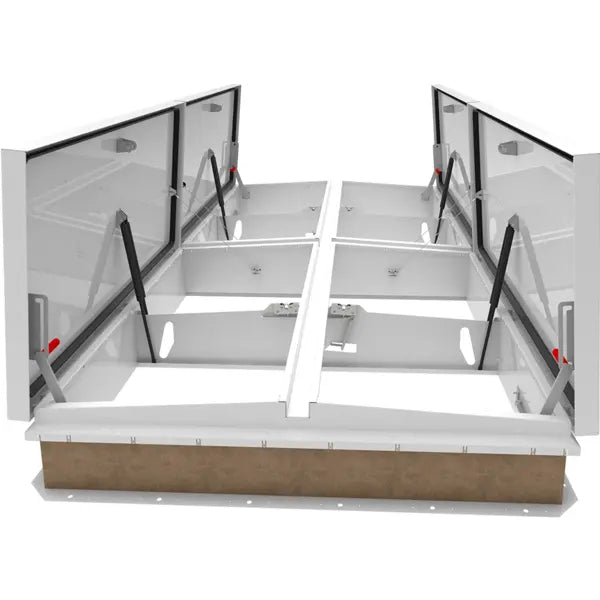

The Quad Door SafeMAX Smoke Vent provides UL793 listed performance and is engineered with metal covers providing an emphasis on reliability and affordability.

SafeMAX Smoke Vents are ideal for factory and storage/warehouse occupancies.

Design considerations include: total vent area required by code and application, effective vent area, and the roof structural support system.

Features

  • Quad Leaf Design
  • Optional Winch or Linear Actuator
  • UL Listed
Sweets ProductTAG Sweets ProductTAG

Specifications

Model BSVS
Door Quad Leaf
Material Aluminum: 11 gauge
Steel: 14 gauge galvanneal
Finish Aluminum: Mill
Steel: Powder Coat, High Reflectance White
Cover Formed metal cover with liner internally stiffened to withstand a live load of 40psf
Curb Single wall curb with EZ tab counterflash and mounting flange
Insulation 1 inch polyiso R-6 in cover and around curb
Gasket Extruded EPDM adhesive backed gasket seal, continuous around cover
Hinge Heavy-duty pintle hinge with stainless steel hinge pins
Springs Gas spring with damper opens cover against 10psf snow load in not less than 2 seconds
Hold Open Arm Zinc plated steel automatic hold open arm locks cover in open position
Latch Zinc plated steel rotary latch designed to hold covers closed against 90psf for quad doors. Opens manually by external and internal pull cables. Opens automatically with a fusible link at standard temperature 165°F.
Certification UL 793 listed
Minimum Size 48 inches by 96 inches
Maximum Size 60 inches by 240 inches | 72 inches by 192 inches
Warranty 5 years

Order Guide

Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

MODEL MATERIAL WIDTH X LENGTH DOOR CURB OPENING LINK TEMP CLOSING   OPTIONS

BSVS





X



Q



R



  A - Aluminum Curb & Cover
B - Steel Curb & Aluminum Cover
W - Steel Curb & Cover
48" x 48"
48" x 72"
48" x 96"
60" x 60"
60" x 96"
60" x 120"
72" x 72"
72" x 96"

Additional size options also available.
Q - Quad Door 1 - Single Wall
2 - Double Wall
3 - Curb Mount
N - No Electrical
L - 24VDC/24VAC
H - 110VAC / 240VAC
A - Linear Actuator
165
212
280
350
360
450
R - Rooftop Close
W - Manual Winch
L - Linear Actuator
  SFM - FM Labeled
OP1 - Door Position Sensor
B__ - Burglar Bars
Description Model Shop Drawing CAD Revit/BIM Data Sheet 3-Part Specs LEED Installation Warranty
Aluminum, Rooftop Close BSVSA_Q1N_R PDF DWG LINK PDF WORD PDF PDF PDF
Aluminum, Rooftop Close & Electrical BSVSA_Q1_R PDF   LINK PDF WORD PDF PDF PDF
Aluminum Cover & Steel Curb, Rooftop Close BSVSB_Q1N_R PDF DWG LINK PDF WORD PDF PDF PDF
Aluminum Cover & Steel Curb, Rooftop Close & Electrical BSVSB_Q1_R PDF   LINK PDF WORD PDF PDF PDF
Steel, Rooftop Close BSVSW_Q1N_R PDF DWG LINK PDF WORD PDF PDF PDF
Steel, Rooftop Close & Electrical BSVSW_Q1_R PDF   LINK PDF WORD PDF PDF PDF
