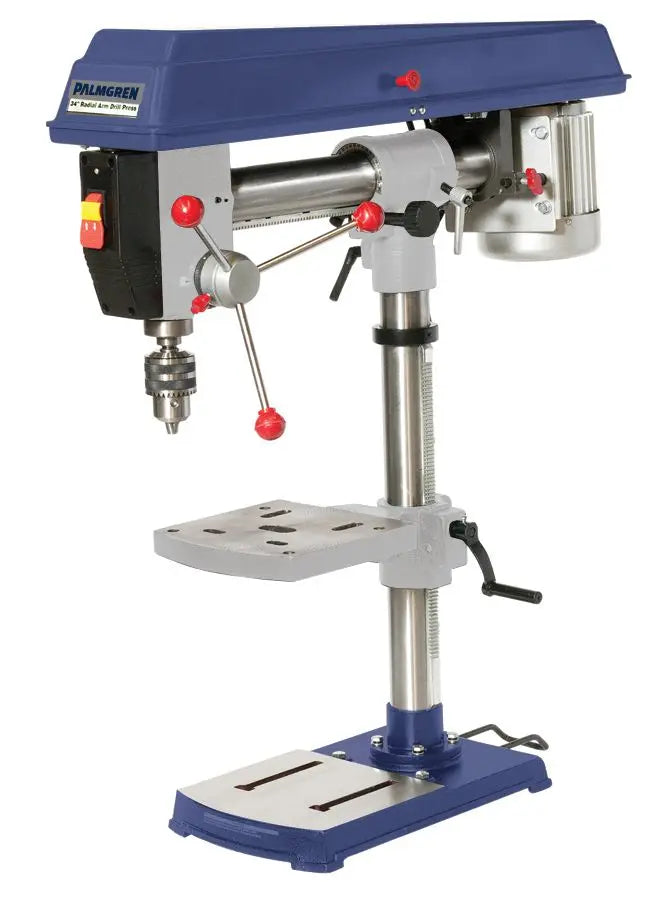

Radial Arm - 5 Speed Step Pulley Benchtop Drill Press
SKU# 9680341
$67400
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Radial Arm - 5 Speed Step Pulley Benchtop Drill Press
$67400
Unit price
/
Make a Selection
An extended reach, tilting drill head is ideal for large or odd-shaped work pieces.
The table tilts 45° left or right allowing easy machining of holes at almost any angle.
- Durable cast iron head, table & base
- Spindle supported by high quality ball bearings
- Rack and pinion table raiser
- Table tilts 45° right & left and swivels 360° around the column
- 1/2" through table & base slots for easy mounting and clamping of workpiece
- Front mounted safety, paddle on/off switch
- Drill chuck & key

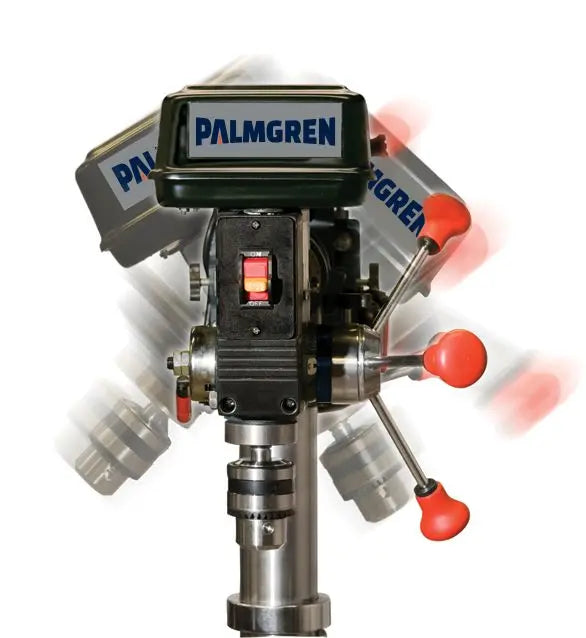

- The head tilts 90° left and 45° right

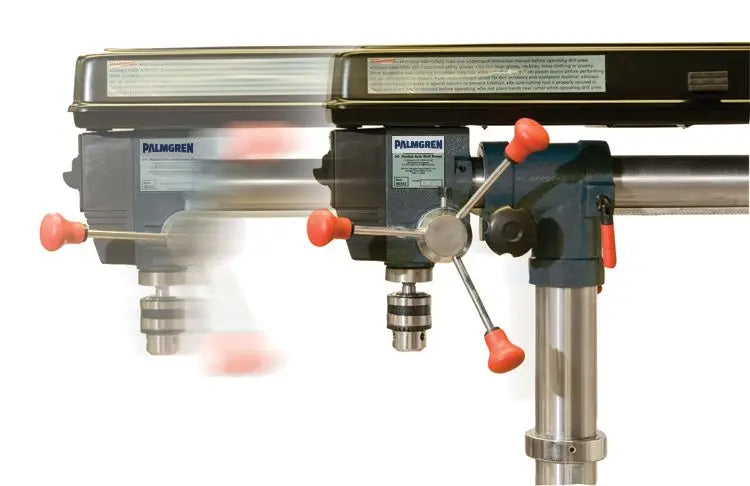

- The head of the drill press moves 12-1/2" forward or backward
| More Information | Details |
|---|---|
| AMPS | 5.5 |
| Capacity Cast Iron | 5/8" |
| Country of Origin | CN |
| Drill Press Model | Bench Model |
| Model Number | 80341 |
| Motor HP | 1/2 |
| RPM | 600–2592 |
| Spindle Taper | MT2/JT33 |
| Spindle Travel | 3-5/32" |
| Swing | 9" to 33" |
| Table Dimensions | 8-7/8" x 9" |
| Table Slots | 1/2" |
| Voltage | 115 |
| Warranty | 3 Year |
| UPC | 726896803418 |
| Unit of Measure | Each |
| Product Height (in) | 13 |
| Product Length (in) | 37 |
| Product Width (in) | 16.5 |
| Product Weight (lbs) | 100 |
9680341B Product Manual
9680341C Product Manual
