10hp Two-Stage Industrial Air Compressor
SKU: H10160K50
Stationary Electric Air Compressors

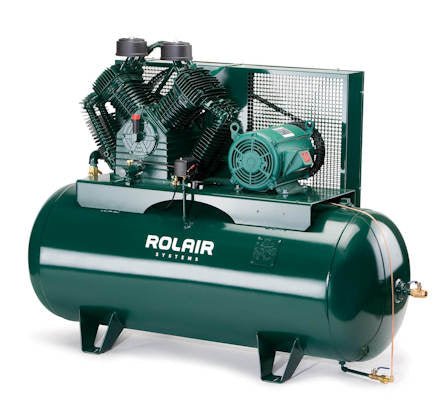

10 HP, two-stage electric stationary air compressors on a variety of tank configurations. Model H10312K60 shown. Optional Equipment: Magnetic Starter, Automatic Tank Drain, Low Oil Shut Down, Level-Rite Mounts, Vibration Pads, Dual Controls, Head Unloader, Refrigerant Air Dryer.
ABOUT THE PUMP
- Two-Stage
- Cast-Iron Cylinders
- Aluminum Head and Crankcase for Faster Heat Dissipation
- Ball Bearings
- Splash Lubricated
- Bearing Inserts on Connecting Rods
- Swedish Lamellar Reed Valves
- Oil Sight Gauge
- Low RPMs to Ensure Long Life and Trouble-Free Performance
ABOUT THE MOTOR
- 1740 RPM
- 60 Hz
- Open Drip-Proof Motor
- Single Phase Models Available in 208 and 230 Volt
- Three Phase Models Available in 208, 230, and 460 Volt
STANDARD EQUIPMENT
- Pressure Switch - Start/Stop Operation,145-175 PSI Settings, On/Off Switch
- Automatic Unloading Device for Loadless Starts
- Heavy-Duty Brass Shut-Off Valve
- Pressure Gauge, 0-300 PSI in 5 lb. Graduations
- Safety Relief Valve - ASME Approved
- Multiple V-Belt Drive
- Intake Filter/Silencer with Replaceable Element
- Totally Enclosed Steel Belt Guard
SPECIFICATIONS
| HORSE POWER | 10 HP |
| CFM DISPLACED | 40.2 - 41.1 CFM @ 175 PSI |
| CFM DELIVERED | 32.4 - 33.7 CFM @ 175 PSI |
| LUBRICATION TYPE | Splash Lubrication |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 2 |
| COUNTRY OF ORIGIN | Compressor Origin.pdf |
ADDITIONAL MODELS
| MODEL # | HP | PHASE | TANK SIZE | MOTOR RPM | CFM DISPLACED | CFM DELIVERED | LENGTH | WIDTH | HEIGHT | APPROX. SHIPPING WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| H10160K50 | 10 | Single | 60 Gallons, Horizontal | 1740 | 40.2 @ 175 PSI | 32.4 @ 175 PSI | 52" | 23" | 52" | 650 lb. |
| H10112K50 | 10 | Single | 120 Gallons, Horizontal | 1740 | 40.2 @ 175 PSI | 32.4 @ 175 PSI | 72" | 30" | 56" | 830 lb. |
| V10112K50 | 10 | Single | 120 Gallons, Vertical | 1740 | 40.2 @ 175 PSI | 32.4 @ 175 PSI | 40" | 28" | 77" | 820 lb. |
| H10360K50 | 10 | Three | 60 Gallons, Horizontal | 1740 | 40.2 @ 175 PSI | 32.4 @ 175 PSI | 52" | 23" | 52" | 635 lb. |
| H10312K50 | 10 | Three | 120 Gallons, Horizontal | 1740 | 40.2 @ 175 PSI | 32.4 @ 175 PSI | 72" | 30" | 56" | 815 lb. |
| V10312K50 | 10 | Three | 120 Gallons, Vertical | 1740 | 40.2 @ 175 PSI | 32.4 @ 175 PSI | 40" | 28" | 77" | 805 lb. |
| H10160K60 | 10 | Single | 60 Gallons, Horizontal | 1740 | 41.1 @ 175 PSI | 33.7 @ 175 PSI | 52" | 25" | 50" | 680 lb. |
| H10112K60 | 10 | Single | 120 Gallons, Horizontal | 1740 | 41.1 @ 175 PSI | 33.7 @ 175 PSI | 72" | 30" | 54" | 860 lb. |
| V10112K60 | 10 | Single | 120 Gallons, Vertical | 1740 | 41.1 @ 175 PSI | 33.7 @ 175 PSI | 40" | 30" | 75" | 850 lb. |
| H10360K60 | 10 | Three | 60 Gallons, Horizontal | 1740 | 41.1 @ 175 PSI | 33.7 @ 175 PSI | 52" | 25" | 50" | 665 lb. |
| H10312K60 | 10 | Three | 120 Gallons, Horizontal | 1740 | 41.1 @ 175 PSI | 33.7 @ 175 PSI | 72" | 30" | 54" | 895 lb. |
| V10312K60 | 10 | Three | 120 Gallons, Vertical | 1740 | 41.1 @ 175 PSI | 33.7 @ 175 PSI | 40" | 30" | 75" | 830 lb. |
