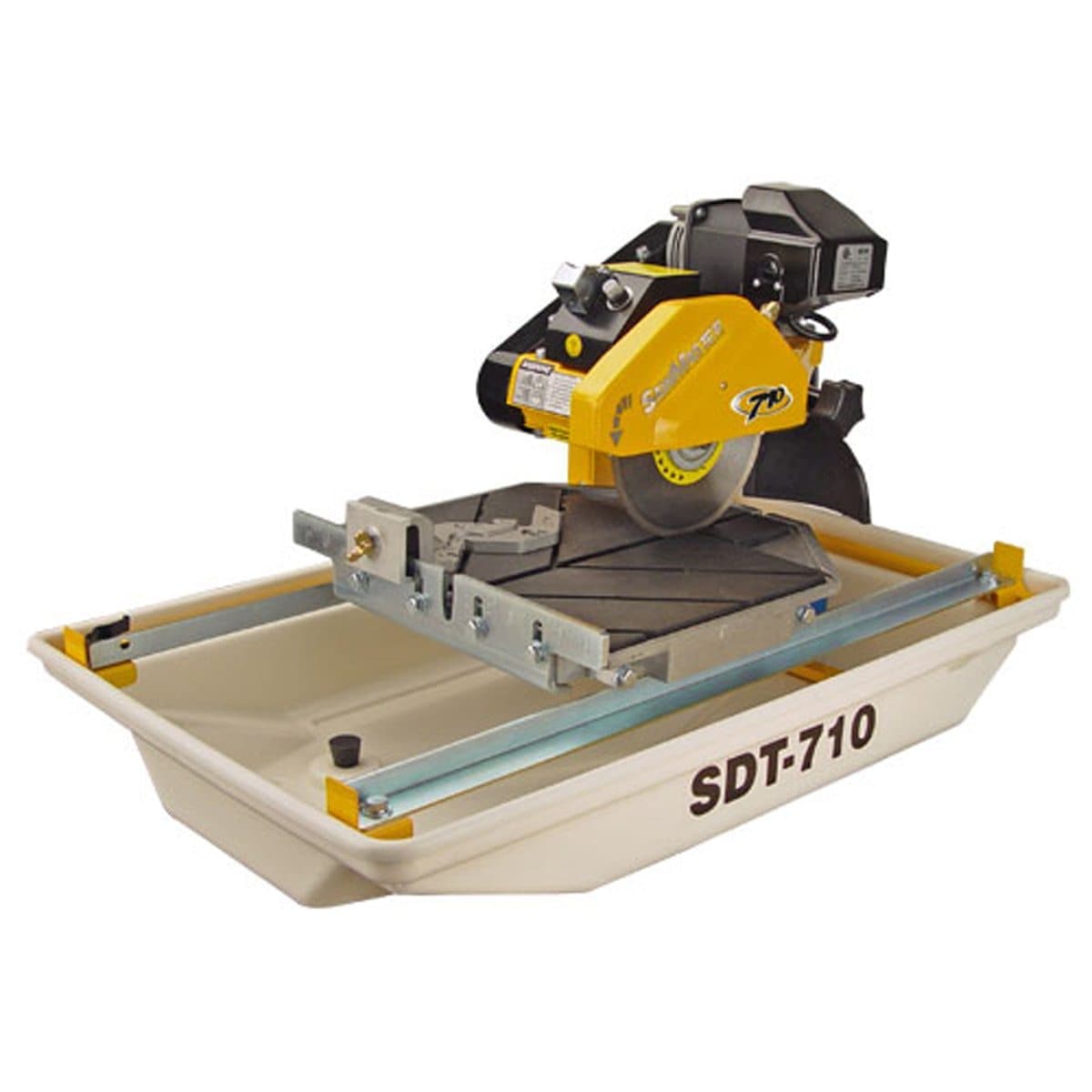

SawMaster SDT-710 Tile Saw

SDT-710 Saw For Cutting Tile by SawMaster

The latest generation of the SDT-710 boasts several improvements over its predecessor. The saw's unique endoframe design yields significant weight savings due to its reliance on the surrounding water tray for support. And with the introduction of more resilient polypropylene trays, the SDT-710 is able to achieve a greater level of durability, which lends additional support for the upgraded 1 HP motor.

---

Features

ABS Water Tray

The provided ABS water tray is durable, yet lightweight, which helps minimize the saw's overall weight.

Adjustable Cutting Height

Cutting depth can be easily adjusted to accommodate 6" to 7" blades and to provide plunge cutting functionality.

Table Retention Device

The cutting table is equipped with a spring lock to secure the cutting table when transporting the saw in between job sites.

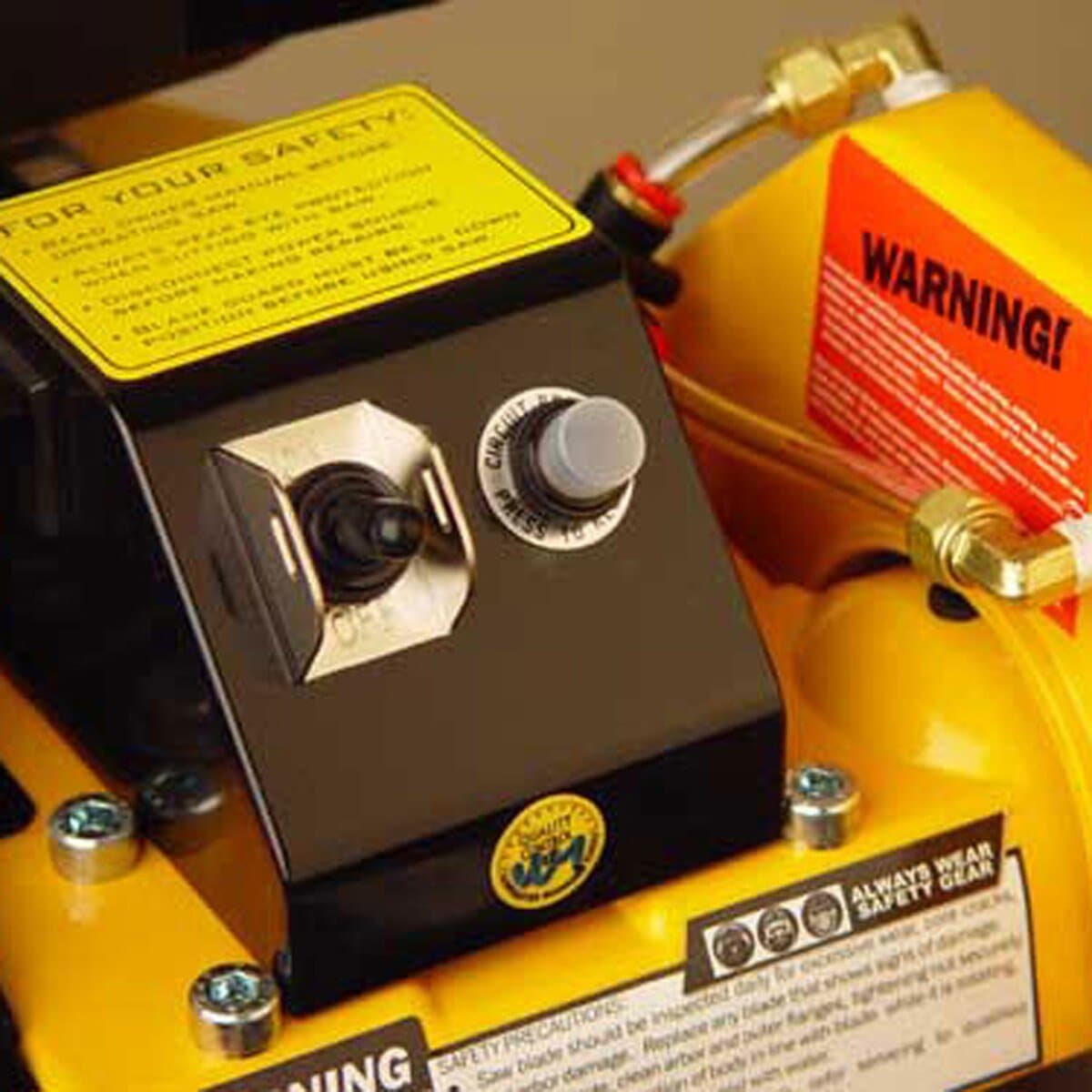

Thermal Overload Protection

Automatic thermal overload protection prevents the motor from overheating and protects the saw from power surges.

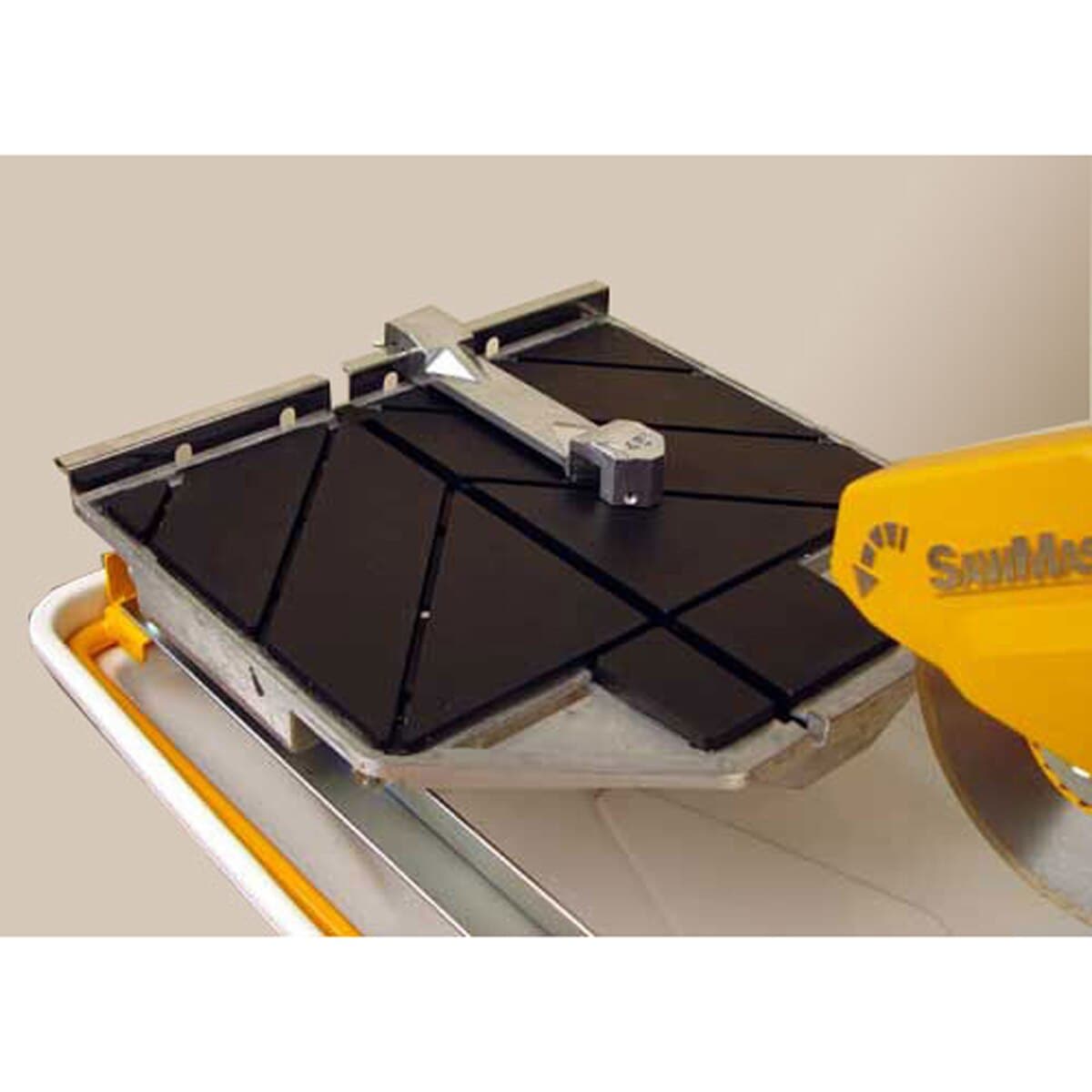

Rubber Matted Cutting Table

The new cast aluminum cutting tables are covered by a rubber mat that is injected directly onto the table and chemically bond for ehanced durability.

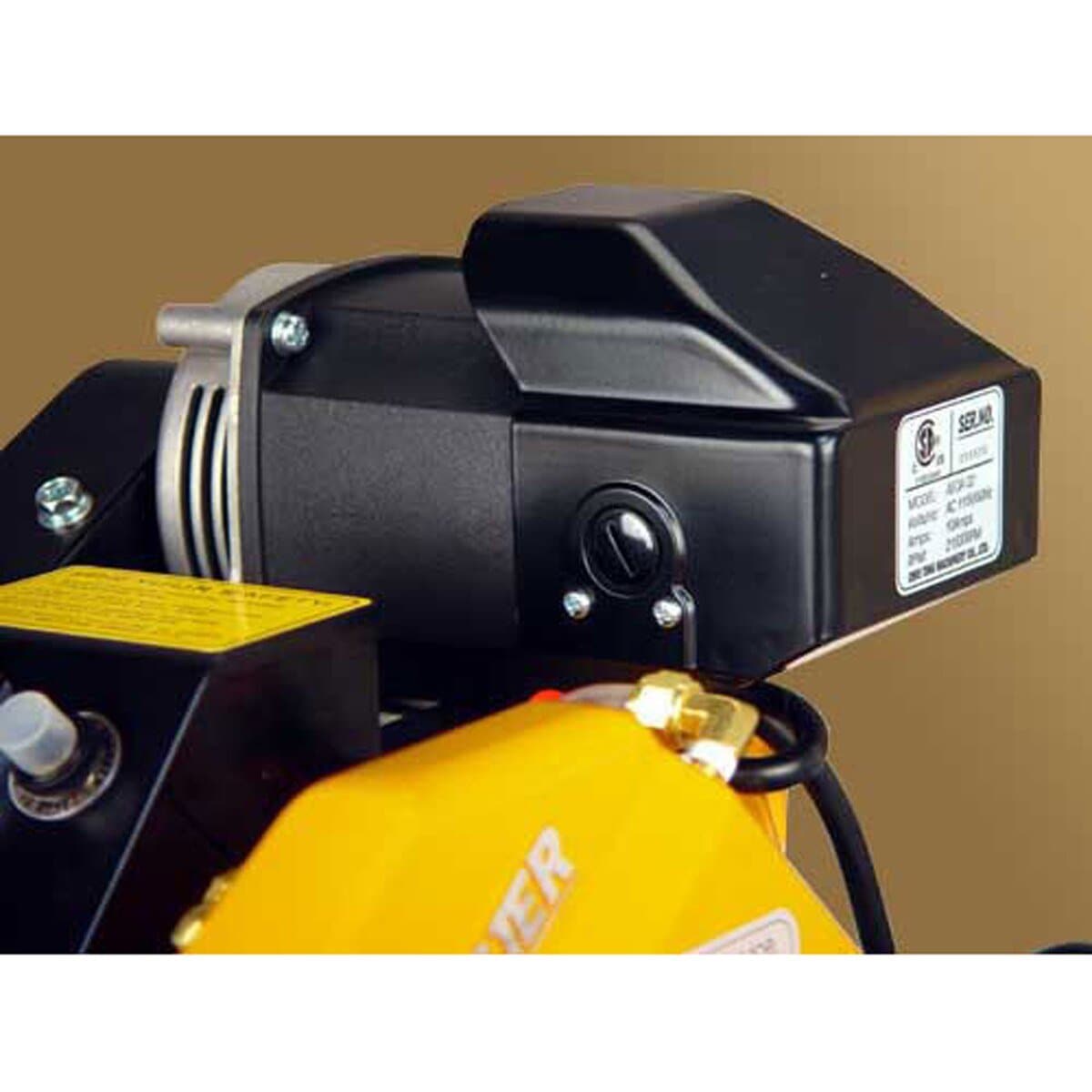

Carbon Brush Motor

The 1 HP carbon brush motor generates a tremendous amount of torque for incredible cutting performance.

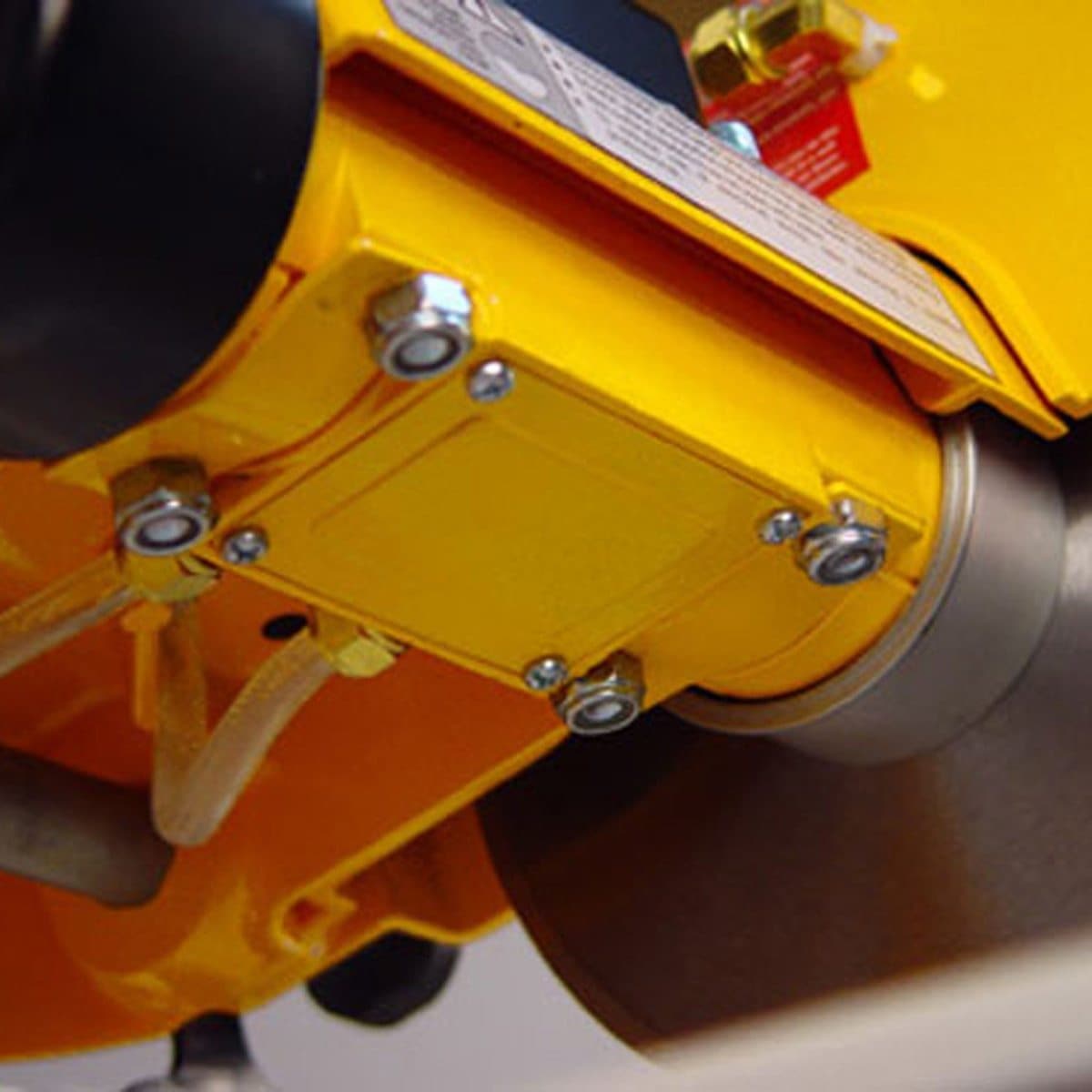

LCBH

The patented LCBH (Liquid Cooled Bearing Housing) works in conjunction with the water pump to cool down the bearing housing during saw operation. This feature increases the service life of the bearing housing even under heavy loads.

---

Specifications

Saw Type	Tile
Motor	115 V/60 Hz
Horsepower	1 HP
Blade Capacity	6" - 7"
RPM	6000
Weight	43 lbs
Cutting Depth	1 3/4"
Rip Cutting	17"
Diagonal Cutting	12" x 12"
Thermal Protection	Equipped
ABS Water Tray	Equipped
LCBH	Equipped

Recommend Using...

• Blade CR0780R(7" General Purpose Wet Tile Blades)
• Stand SDT-700ST
