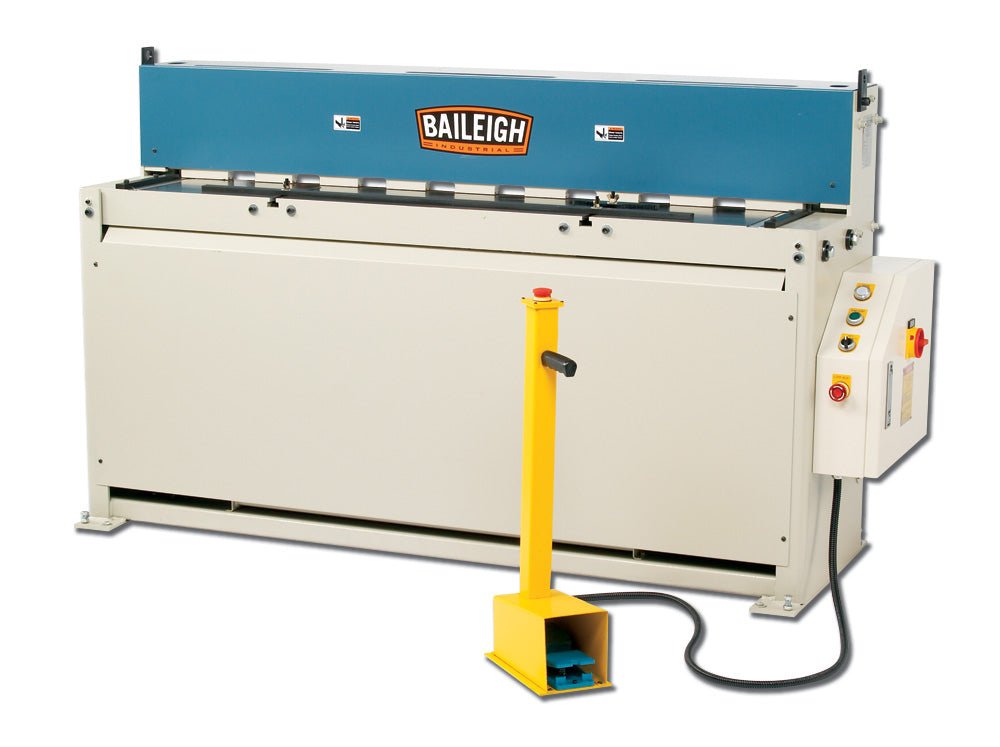

This hydraulic shear was one of the machines that got us started and built Baileigh’s quality reputation. With its welded steel frame, the SH-5210 sheet metal shear makes perfect cuts every time.

• 52” length.
• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 5 hp motor runs on 220-volt single-phase power.
• Up to 28 strokes per minute.

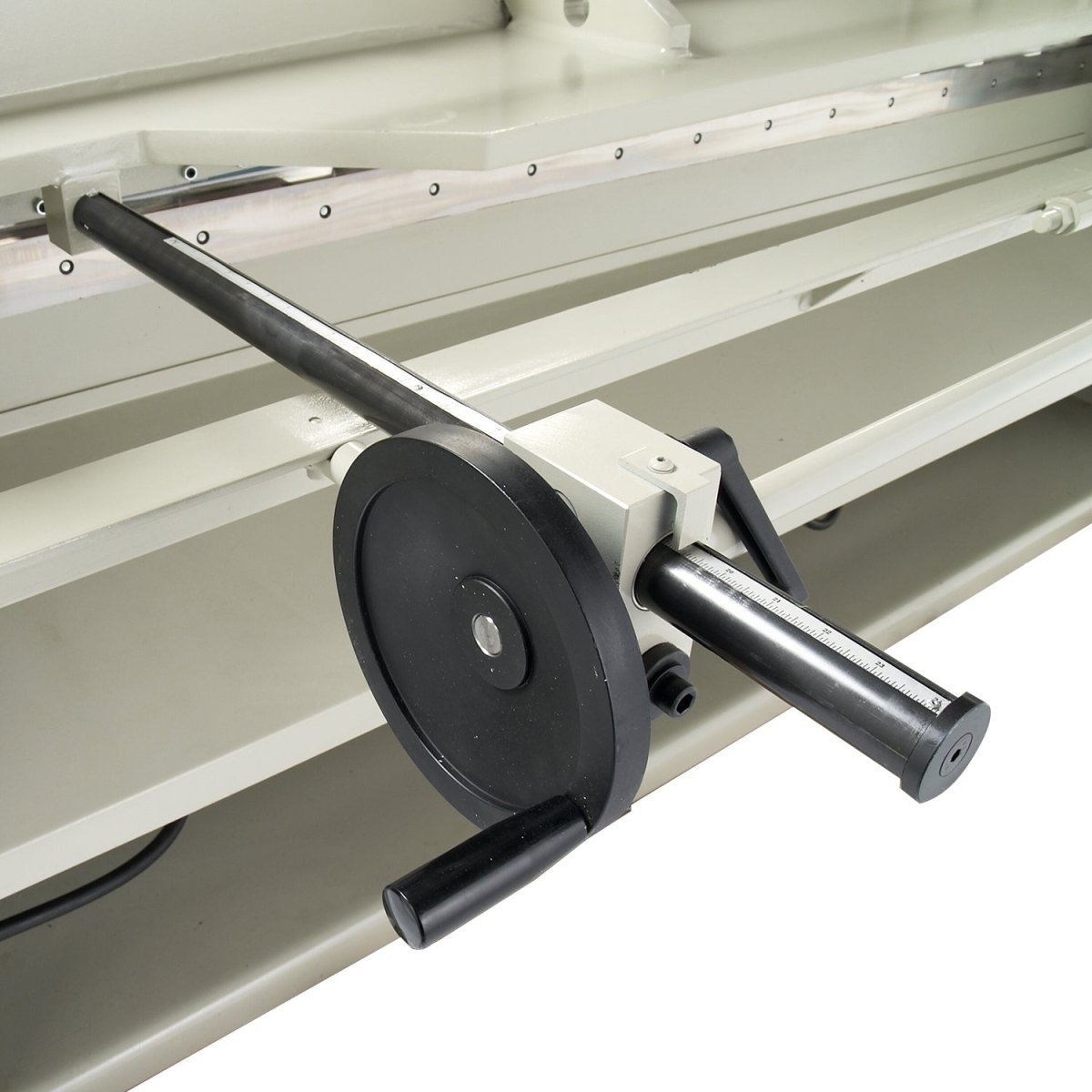

• Adjustable 24” backgauge ensures precise repeatability.

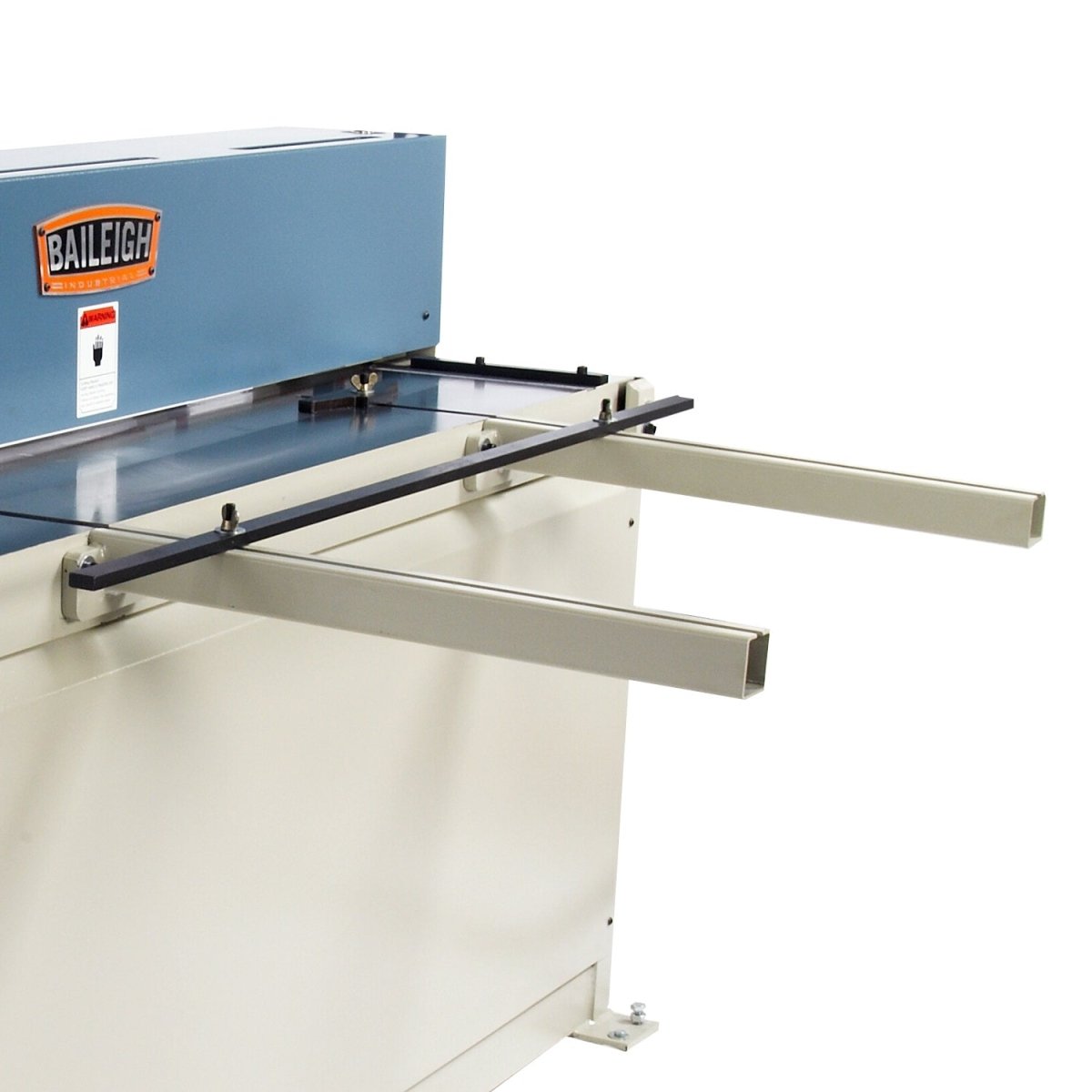

• Front support arms and table guides keep the material square to the blade.

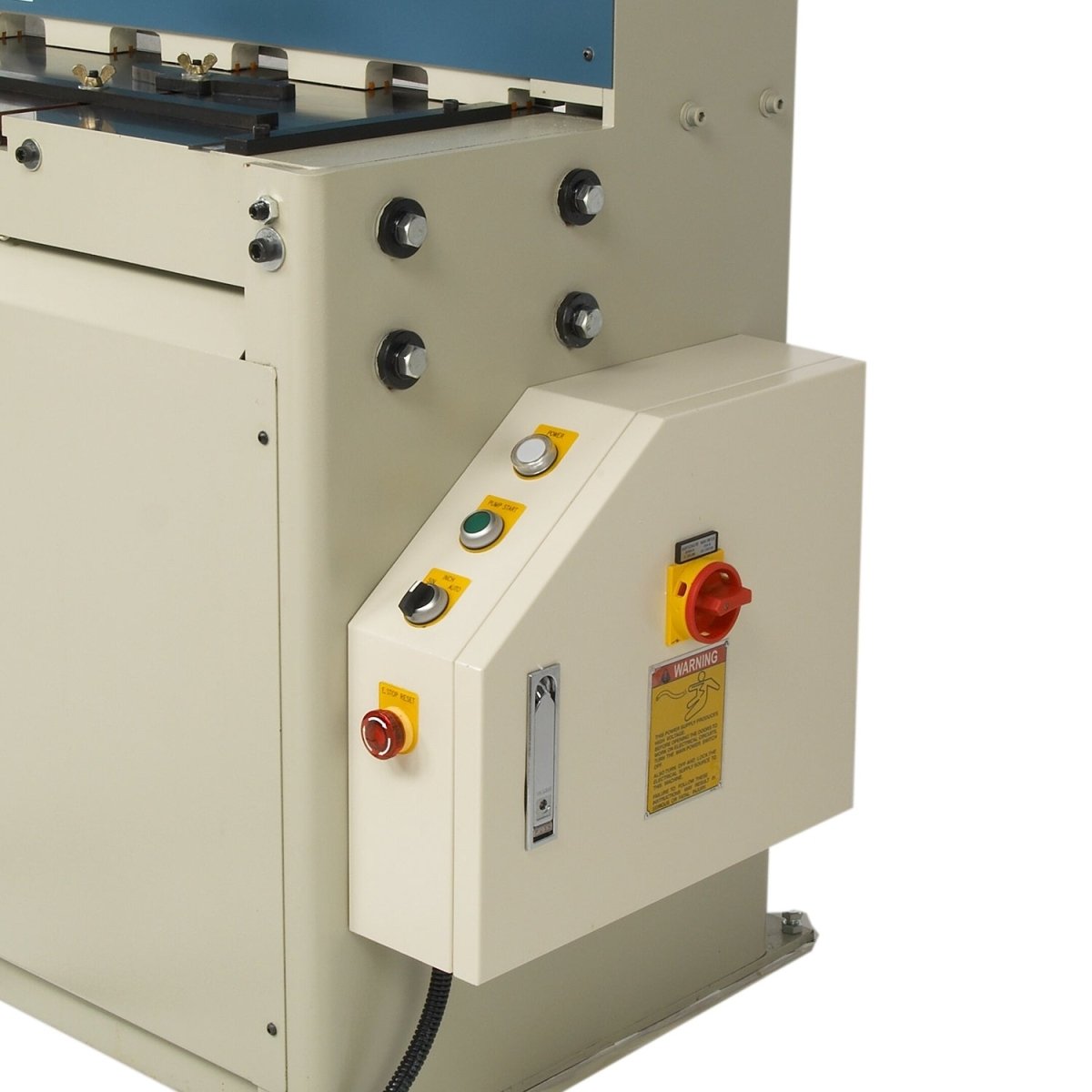

• 3 modes on the operator console:
  • Inch mode: Jog the control and ease the blade down to the material.

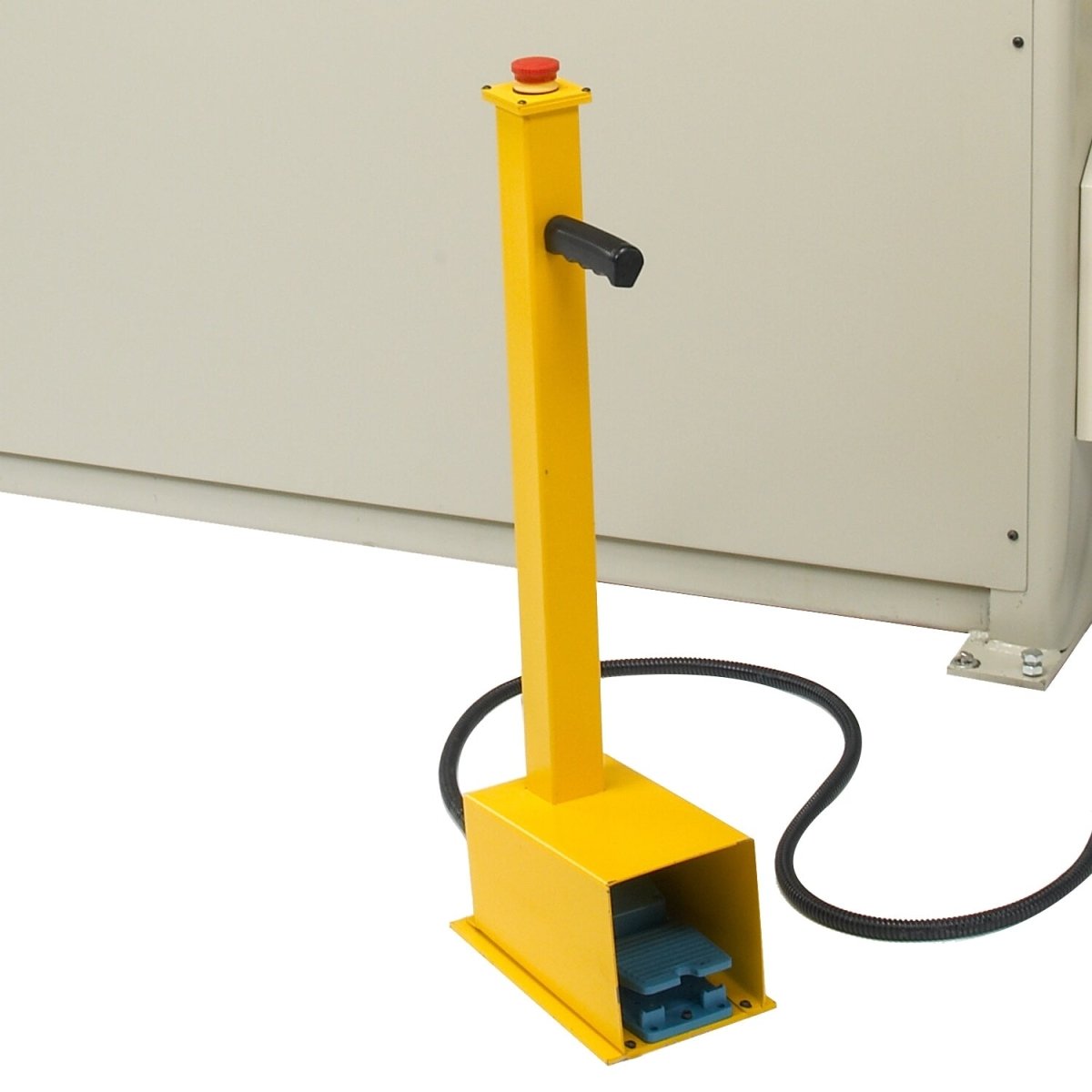

  • Single mode: Make one cut cycle per foot pedal push.
  • Auto mode: Continue cycling as you hold the pedal down.
• This hydraulic shear comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

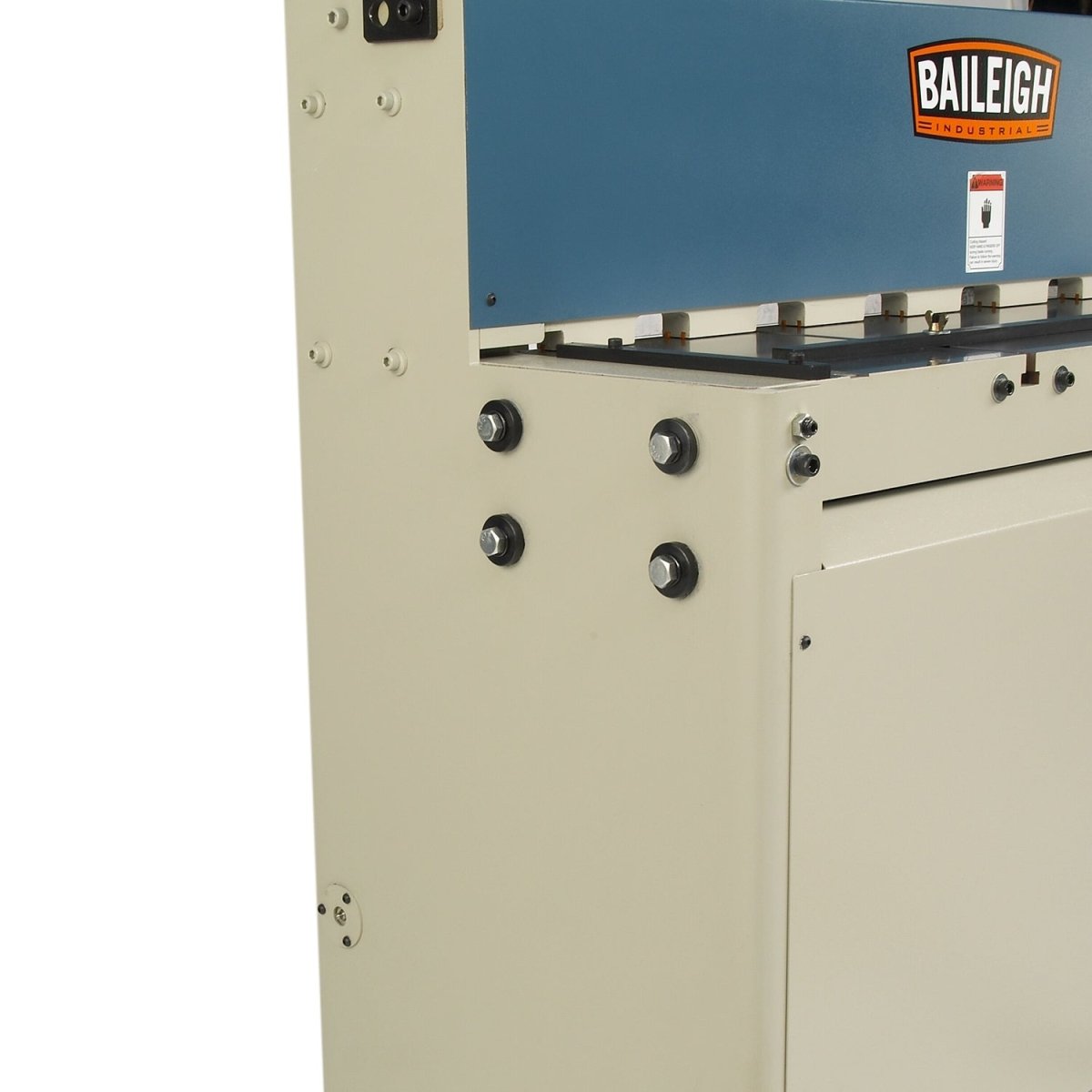

• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
• This 10 gauge sheet metal shear is covered by a 1-year parts warranty.
• We stock replacement parts, including blades, in house for fast shipping.
• Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Item Number	SH-5210
Back Gauge Length	24"
Shear Length	52"
Motor	5 hp
Thickness (SS)	10 ga. (13 ga.)
Strokes Per Minute	28

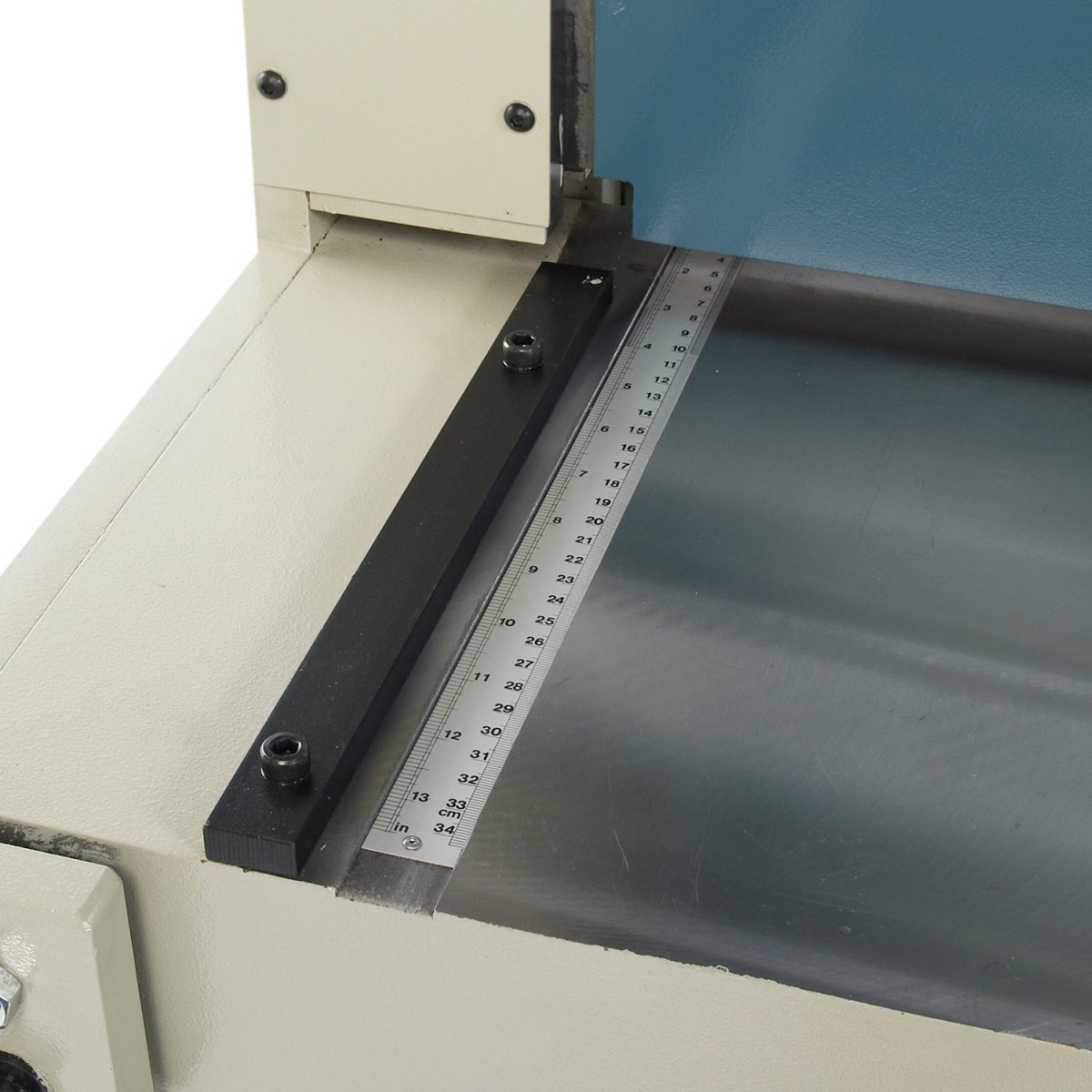

Front Gauge Length	24"
Blade Angle	1°
Power	220V Single Phase
Shipping Weight	3150lbs
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	75x35x59

* specifications subject to change without notice.
