Skid Steer Bucket for General Purpose

SKU# 108090

$1,078⁰⁰ ~~$1,268²⁴~~

Shipping calculated at checkout.

Size

60" 66" 72" 78" 84"

Options

Low Profile - Smooth Low Profile - Tooth Low Profile - Long Bottom Smooth Low Profile - Long Bottom Tooth

Product variants

Safe & Secure Payments.

Finance this today with Centra Funding Logo Apply Here

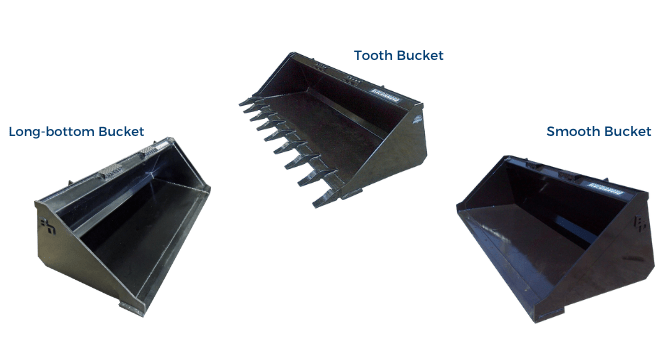

The Blue Diamond® General Purpose Buckets for skid steers are available in a variety of configurations.

We offer weld-on cutting edge, bolt-on cutting edge, teeth, toothbar, or a long-bottom version. These well-engineered, low-profile buckets offer a powerful breakout force and great visibility. Buckets up to 72″ wide use 3/16″ material back and bottom. The 78″ and larger sizes use 1/4″ material. All standard buckets are 20″ tall and use a 3/4″ by 6″ cutting edge. The standard bottom is 30″ front to back, and the long-bottom bucket is 36″.

*Not recommended for track machines.

Features

Low profile: 20″ high, 29″ deep
Low profile, long bottom: 20″ high, 39″ deep
3/16″ wrap
3/4″ cutting edge

PART NUMBER	MODEL	STRUCK CAPACITY	WEIGHT
108090	60" Low Profile-Smooth	10.8 cu ft	334 lbs
108095	60" Low Profile-Tooth	10.8 cu ft	384 lbs
108100	66" Low Profile-Smooth	12.2 cu ft	354 lbs
108105	66" Low Profile-Tooth	12.2 cu ft	409 lbs
108110	72" Low Profile-Smooth	13.2 cu ft	378 lbs
108115	72" Low Profile-Tooth	13.2 cu ft	437 lbs
108120	78" Low Profile-Smooth	14.3 cu ft	408 lbs
108125	78" Low Profile-Tooth	14.3 cu ft	460 lbs
108130	84" Low Profile-Smooth	15.7 cu ft	436 lbs
108135	84" Low Profile-Tooth	15.7 cu ft	515 lbs
108140	60" Low Profile-Long Bottom-Smooth	15.7 cu ft	385 lbs
108145	60" Low Profile-Long Bottom-Tooth	15.7 cu ft	434 lbs
108150	66" Low Profile-Long Bottom-Smooth	17.3 cu ft	426 lbs
108155	66" Low Profile-Long Bottom-Tooth	17.3 cu ft	472 lbs
108160	72" Low Profile-Long Bottom-Smooth	18.6 cu ft	446 lbs
108165	72" Low Profile-Long Bottom-Tooth	18.6 cu ft	505 lbs
108170	78" Low Profile-Long Bottom-Smooth	20 cu ft	441 lbs
108180	84" Low Profile-Long Bottom-Smooth	22 cu ft	505 lbs

GENERAL PURPOSE BUCKET SPEC
