Sliding Beam Anchor 3.5″-15″
SKU# 021-4075
$33.81 off
$19157
$22538
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Sliding Beam Anchor 3.5″-15″
$19157
$22538
Unit price
/
Make a Selection

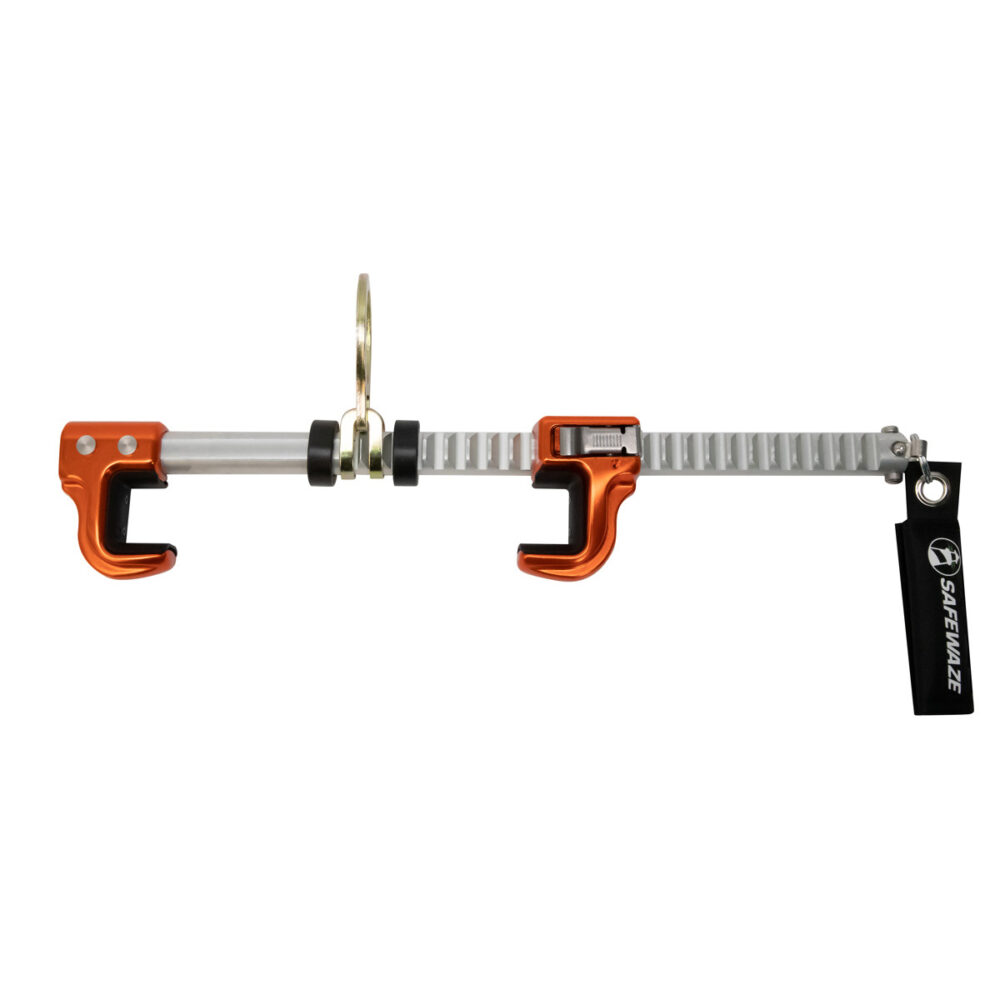

The Sliding Beam Anchor offers a pivot D-ring, replaceable jaw liners and smooth trailing hands-free mobility.
This lightweight compact design can be used on overhead or foot level tie-off with one-handed trigger action and single sided adjustment.
Features:
-
180° rotating connection point
-
Nylon rollers for more effective slide
- Easy trailing for hands-free work
-
Single sided adjustment
-
Easy, one-handed trigger allows for quick lock & release
-
Lightweight aluminum construction
-
Overhead and foot level tie-off
-
Protective label cover to ensure compliance
-
Fits flange up to 1.25"
| Materials: | Aluminum support bar and clamps, nylon rollers and jaws, plated steel D-ring, polyester label cover |
| Weight: | 3.1 lbs. (1.4 kg) |
| Overall Length: | 20.5" |
| Beam Flange Width Range: | 3.5"-15" |
| Beam Flange Thickness: | Up to 1.25" |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (191 kg) |
| ANSI Standards: | Z359.18-2017 Type A |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
