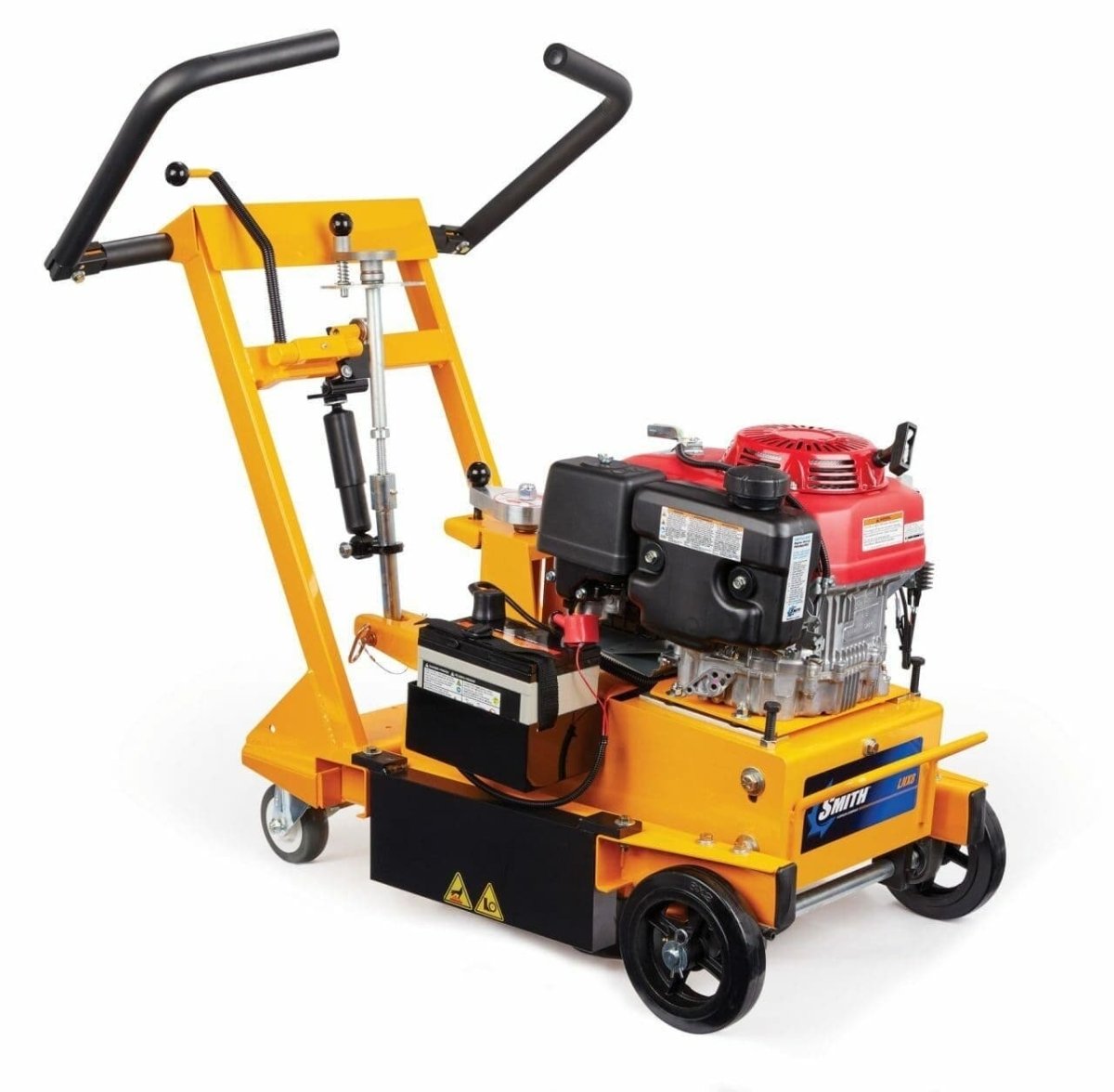

SMITH LNX8 Gasoline Rotary Eraser
The SMITH LNX8 is designed for removing coatings, traffic lines, thermoplastic, epoxy, paint, oil, grease, and high spots without sharp-edged grooves or road damage.
Used by striping contractors, airports, municipalities, and more for removing markings on asphalt and concrete.
Smith LNX8 with Depth Control is also available
Standard Features
- Variable depth adjustment
- Engage cam lever
- Spring pressure control
- Vacuum port
- Dual feathering swivel wheels with brake
- Maintenance-free sealed drive
- Twin removable weight ballasts
- Tilt-up chassis for spindle access
- Spindle pitch leveler
Power Options
LNX8.H13 - 13HP Honda gasoline engine
Removal and Speed
- ≤ 8" wide
- 1/8" depth/pass
- ≤ 800 SF/hr
Cutter Choices
- Coarse erasing spindles (72-pin PM3000)
- Medium erasing spindles (144-pin PM3001)
- Fine erasing spindles (216-pin PM3002)
- Carbide-pick planing disks
- Wire brush spindles
Options
- Ball hitch
- Tach/hour meter
Common Patterns

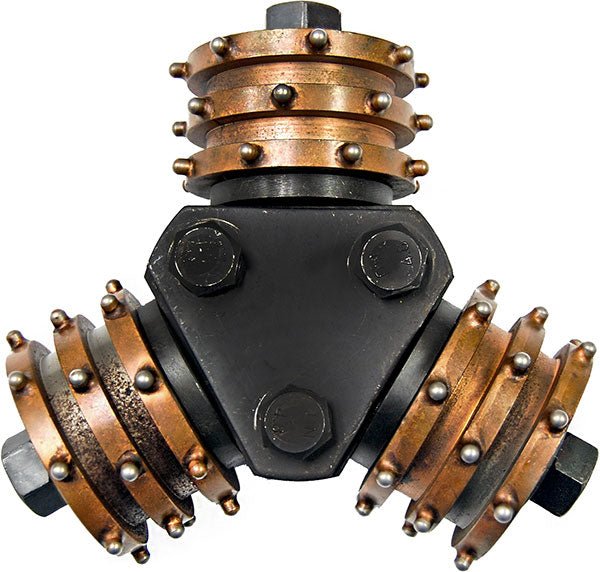

- 8" Erase-it spindle in COARSE pattern.
SURFACE PROFILE: SP5 – SP8 -

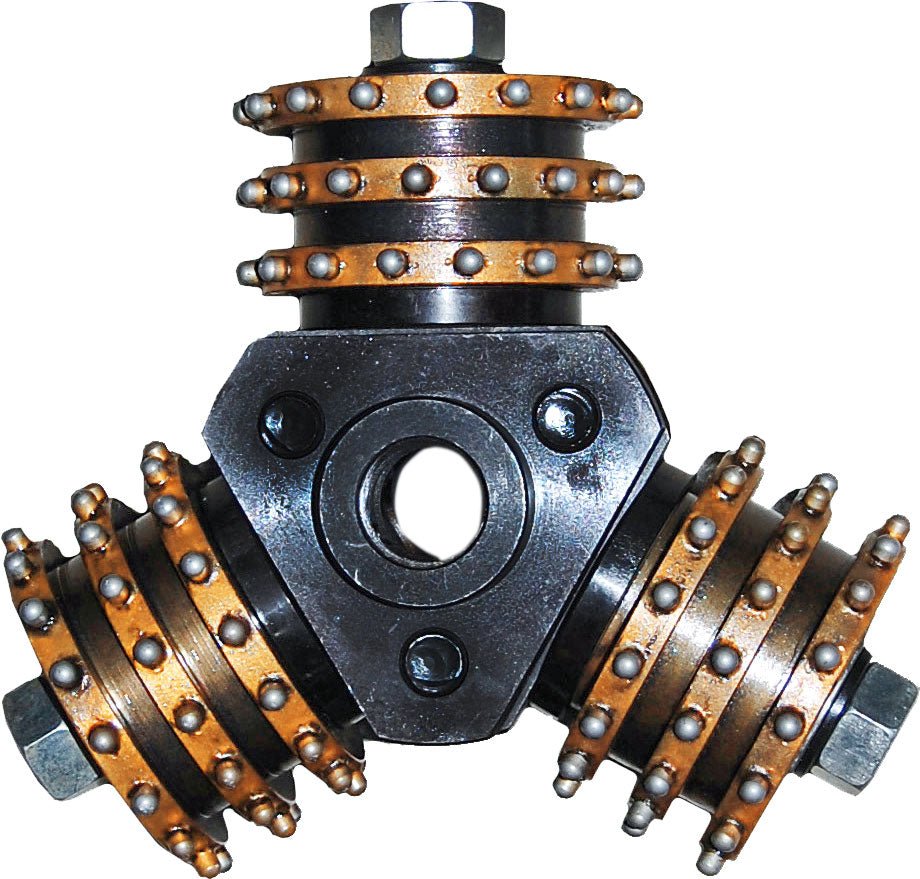

8" Erase-it spindle in MEDIUM pattern.
SURFACE PROFILE: SP4 – SP7 -

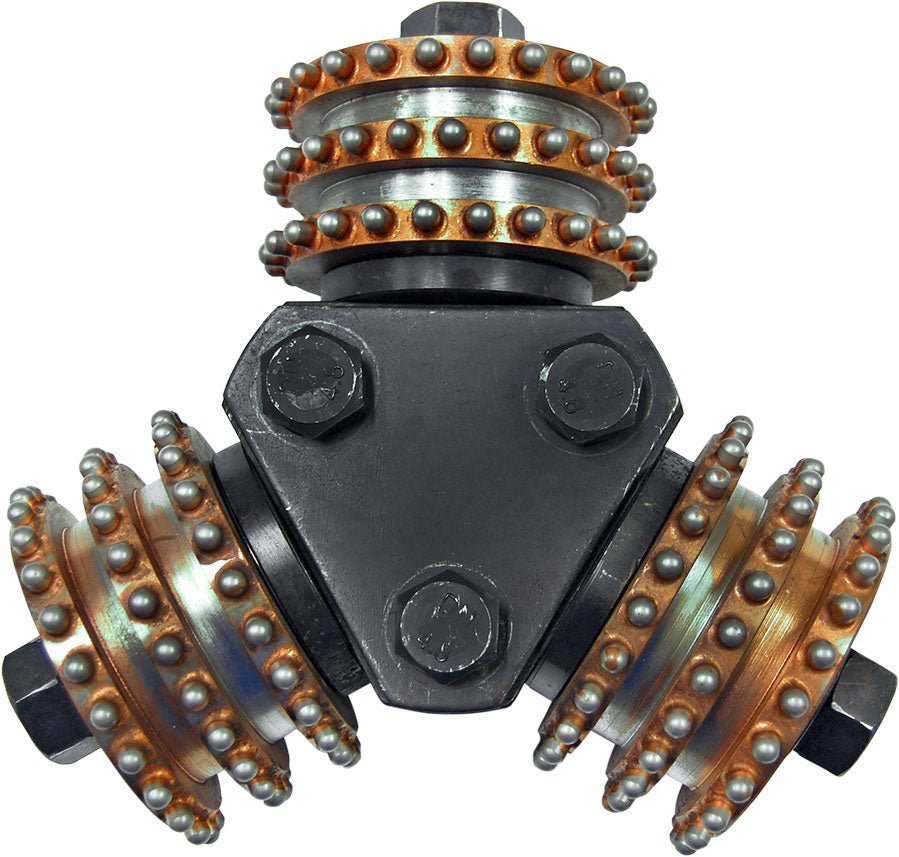

8" Erase-it spindle in FINE pattern.
SURFACE PROFILE: SP3 – SP6
