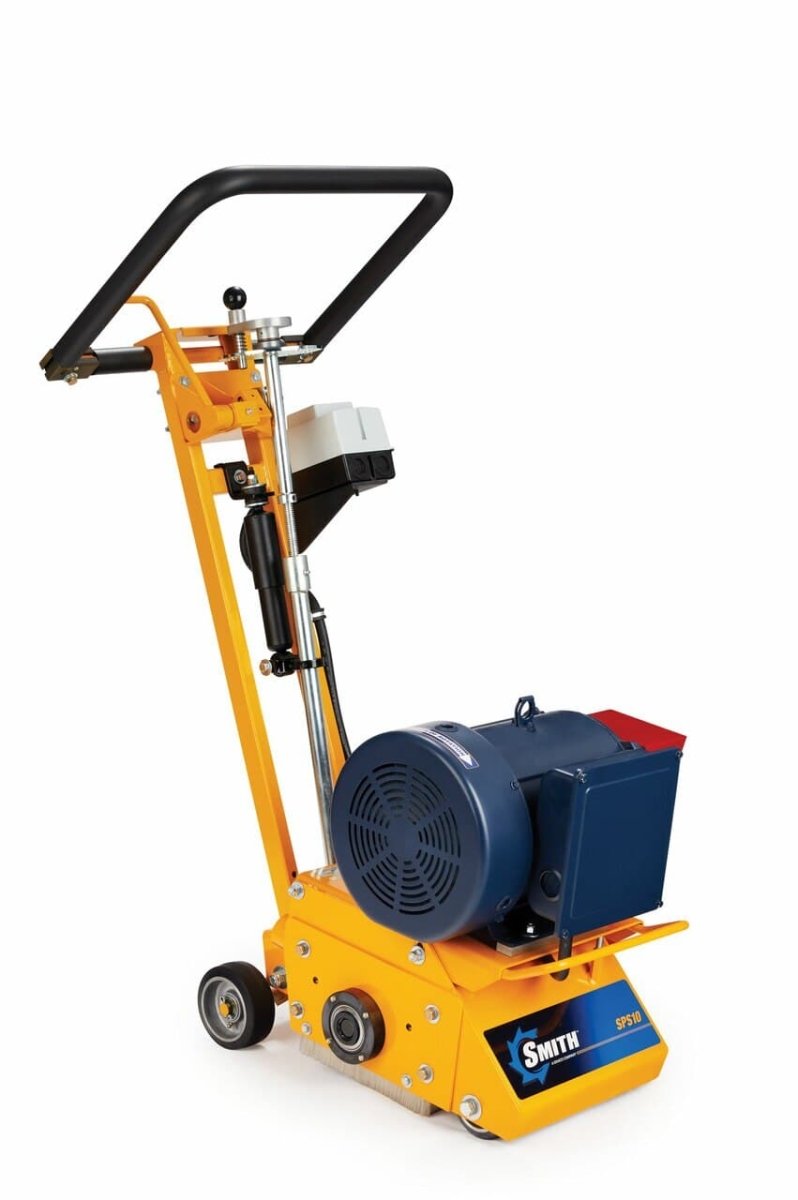

SMITH 10 Inch (SPS10) Electric-Powered All-Purpose Scarifier

SMITH SPS10 Electric-Powered All-Purpose Scarifier

The SMITH SPS10 Electric-Powered All-Purpose Scarifier is one of the industry's most trusted and versatile surface preparation machines. Designed for demanding concrete and asphalt applications, the SPS10 delivers powerful performance for scarifying, grinding, milling, planing, surface removal, and texturing.

With a wide range of compatible cutter drums and accessories, the SPS10 can be configured to handle nearly any surface preparation or removal project. Its user-friendly design makes it easy to operate, maintain, and service. Add the optional high-speed kit for diamond grooving and shaving applications.

Applications

The SMITH SPS10 is ideal for:

• Concrete and asphalt surface preparation

• Coating and paint removal

• Line striping removal

• Sidewalk grinding and trip hazard repair

• Groove inlay preparation

• Milling and planing

• Surface texturing

• Concrete restoration

• Diamond grooving and shaving (with optional high-speed kit)

Standard Features

• Variable depth adjustment

• Quick-engage cam lever

• Integrated vacuum port

• Remote power shutoff

• Ergonomic vibration-dampening handlebar

• Side-loading cutter drum design

• Serviceable bearings for extended equipment life

Power Options

Performance

• Maximum Cutting Width: Up to 10 in.

• Maximum Removal Depth: Up to 1/4 in. per pass

• Production Rate: Up to 700 sq. ft. per hour

Compatible Cutter Drums

• Carbide scrapers

• Carbide milling cutters

• 4N1 carbide stripping cutters

• Carbide flails

• Steel flails (beam and star configurations)

• Carbide planing picks

• Diamond drums (requires optional high-speed kit)

• Wire brush drums

Optional Accessories

• Edger attachment (cuts as close as 1.27 in. / 3.23 cm)

• Water kit

• Ball hitch

• Front feathering wheel

• Line pointer
