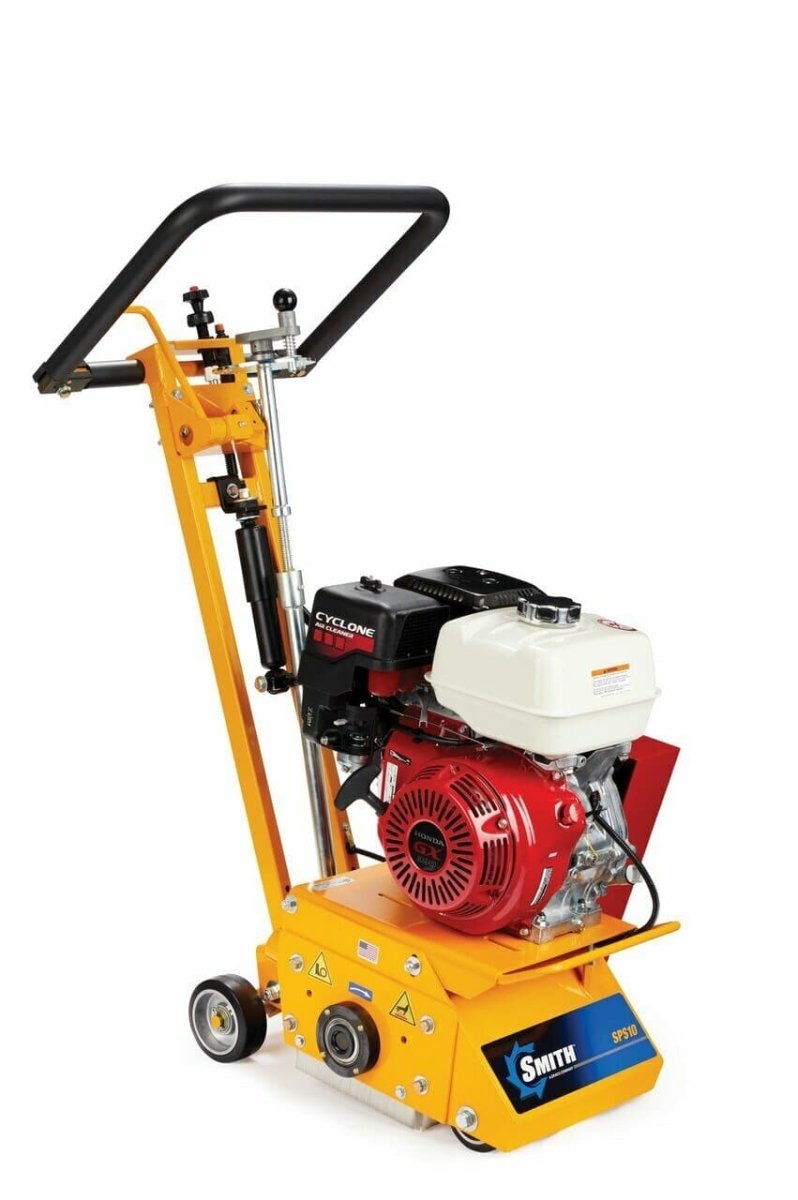

SMITH SPS10 Gasoline-Powered All-Purpose Scarifier with DCS

The SMITH SPS10™ DCS is a high-output, drum-style scarifier featuring SMITH's revolutionary electronic DCS depth control system that raises and lowers your cutter with the push of a button. It is powered by a 13HP Honda engine and has a maximum cut width of 10 inches. The SPS10 DCS is available with the most cutter tools and accessories to tackle any type of surface preparation and removal job on asphalt, concrete, or steel. Get the high-speed kit and use it for diamond and PCD grooving and shaving.

Standard Features
  • Depth Control System (DCS)
  • Vacuum port
  • Remote power shutoff
  • Ergonomic, vibration-dampening handlebar
  • Side-loading drums
  • Serviceable bearings
Power Options

25N986 - 13 HP Honda gasoline engine


SPS10.H13 - 13 HP Honda gasoline engine

SPS10.K14 - 14 HP Kohler gasoline engine

SPS10.E7.230.1 - 7.5 HP Leeson electric motor (230V/1ph/60Hz/35A)

SPS10.E7.230.3 - 7.5 HP Leeson electric motor (230V/3ph/60Hz/18A)

SPS10.E7.380.3.50 - 7.5 HP Leeson electric motor (380V/3ph/60Hz/8A)

SPS10.E7.460.3 - 7.5 HP Leeson electric motor (460V/3ph/60Hz/9A)

Removal and Speed
  • ≤ 10" wide
  • 1/4" depth/pass
  • ≤ 700 SF/hour

Cutter Choices

  • Carbide scrapers
  • Carbide milling cutters
  • 4N1 carbide strippers
  • Carbide flails
  • Steel flails (beams/stars)
  • Carbide planing picks
  • Diamond drums (with high-speed kit)
  • Wire brush
  • Edger - get as close as 1.27" (3.23cm)
  • Water kit
  • Ball hitch
  • Feathering wheel
  • Line pointer
Size / Weight
Weight: 264 lbs / 119.7kg
Dims: 38" L x 19" W x 44" H
