Snow Plow V-Blade
SKU# 120520
$1,464.88 off
$1,801.41 off
$1,508.29 off
$1,844.65 off
$1,551.71 off
$1,887.88 off
$1,594.94 off
$1,931.29 off
$8,79300
$10,34471
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Snow Plow V-Blade
From
$8,30100
$9,76588
Unit price
/
Make a Selection

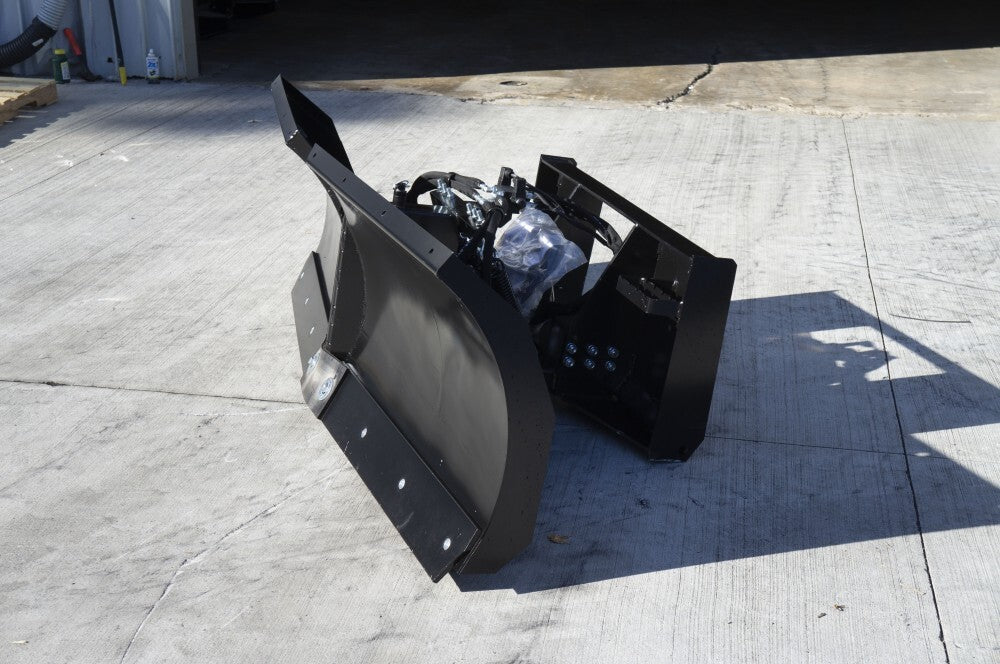

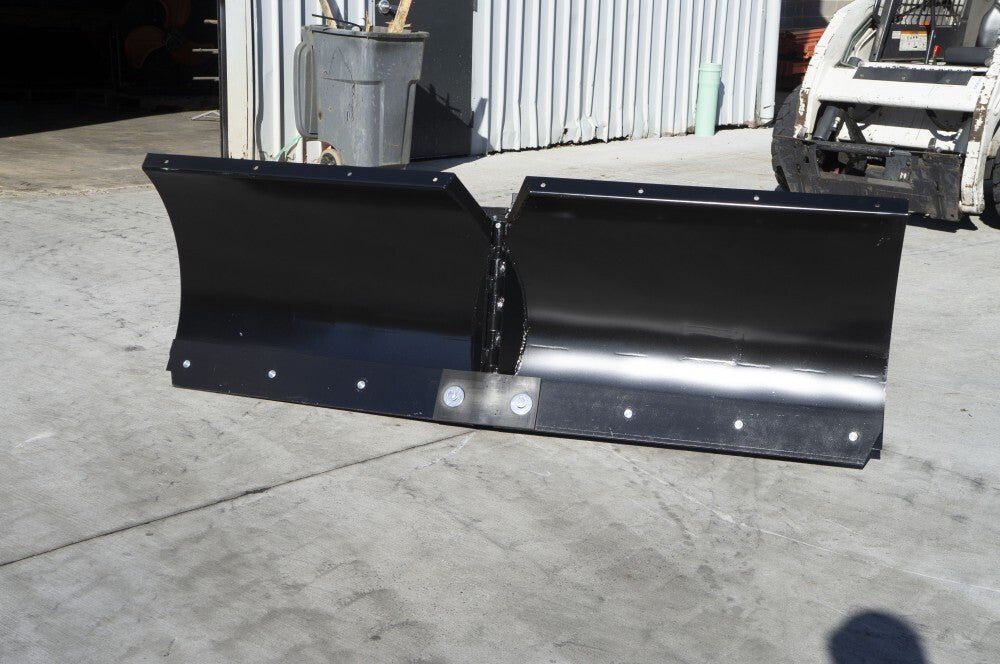

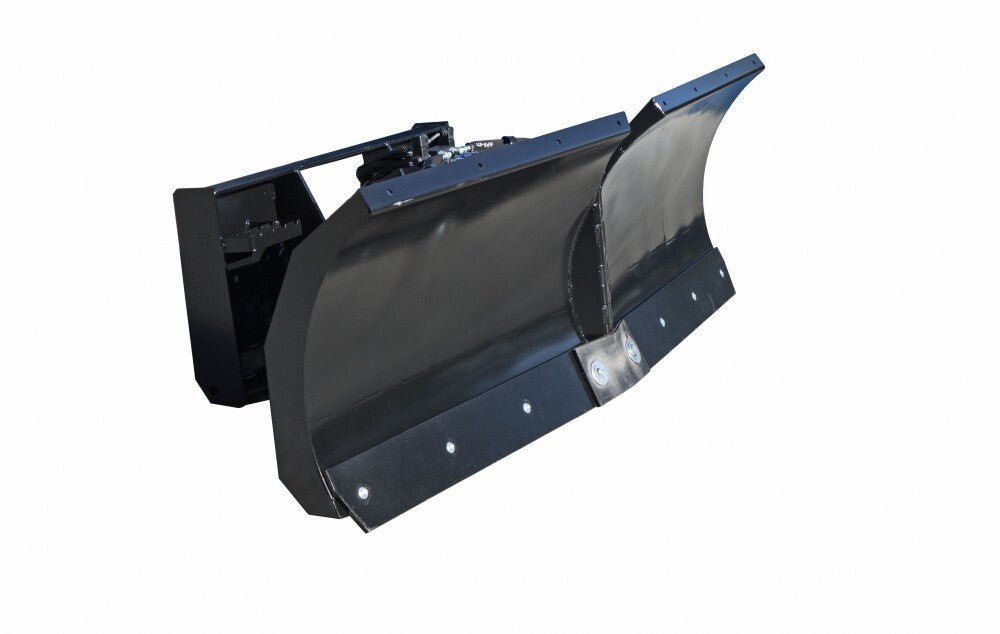

The Blue Diamond® Skid Steer V-Blade is extremely versatile and can be used in many applications.

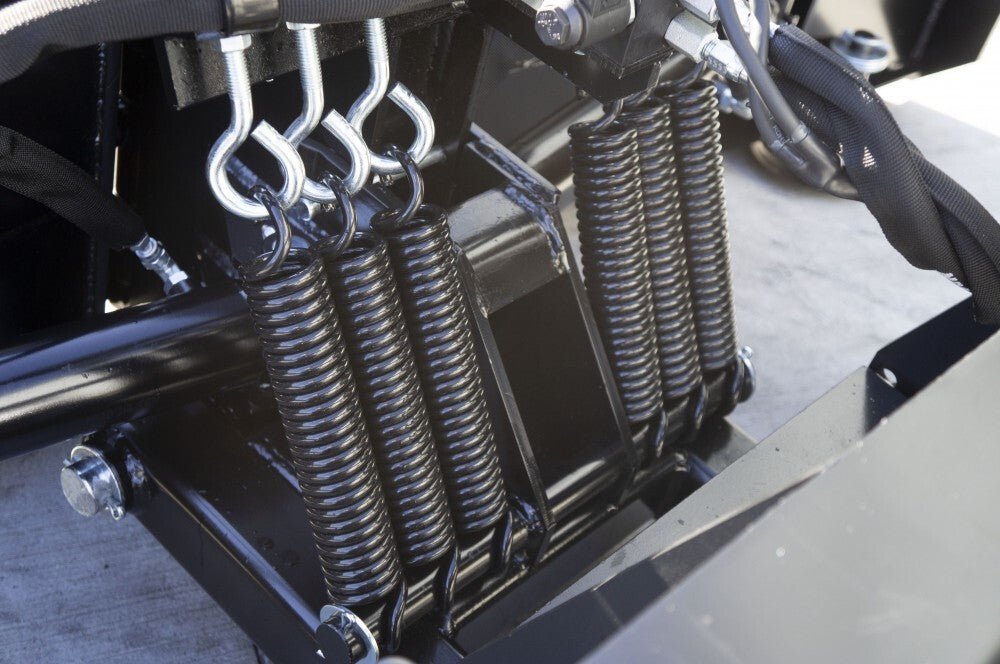

Its two prime functions are snow removal and backfilling dirt into trenches. It can be angled left and right or used straight by easy manual adjustments. The V-feature allows snow to be moved to both sides or use it in scoop mode to carry snow away from the edges. This blade’s trip feature can be locked or unlocked allowing the blade to either trip or be locked in dirt work such as back filling trenches and spreading dirt.
Features

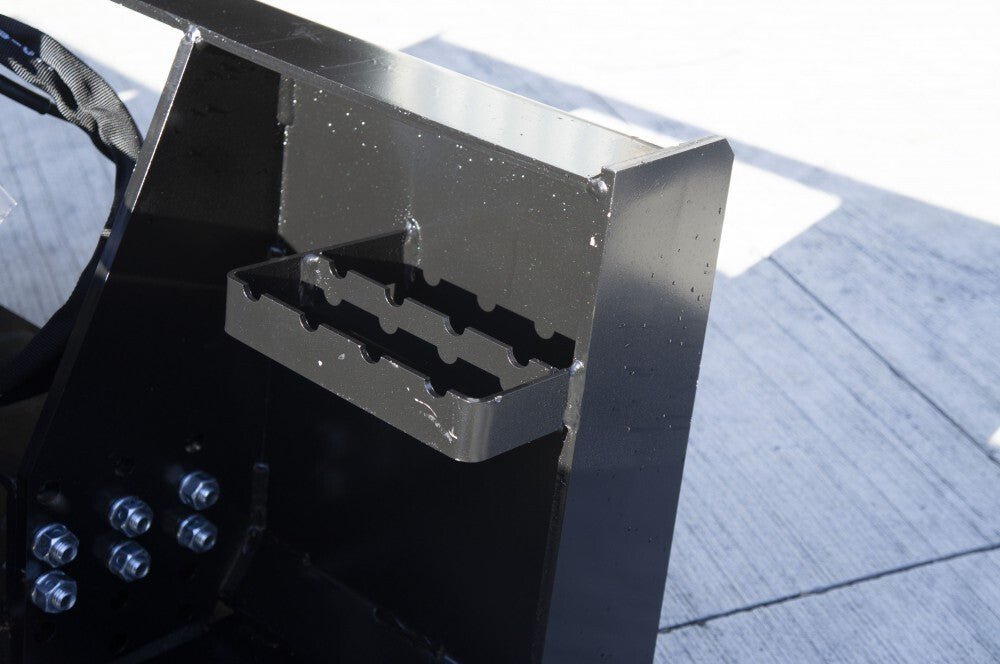

- Universal Mount – allows for one standard attachment for skid steers and mini skid steers, no need for special hook ups or attachments

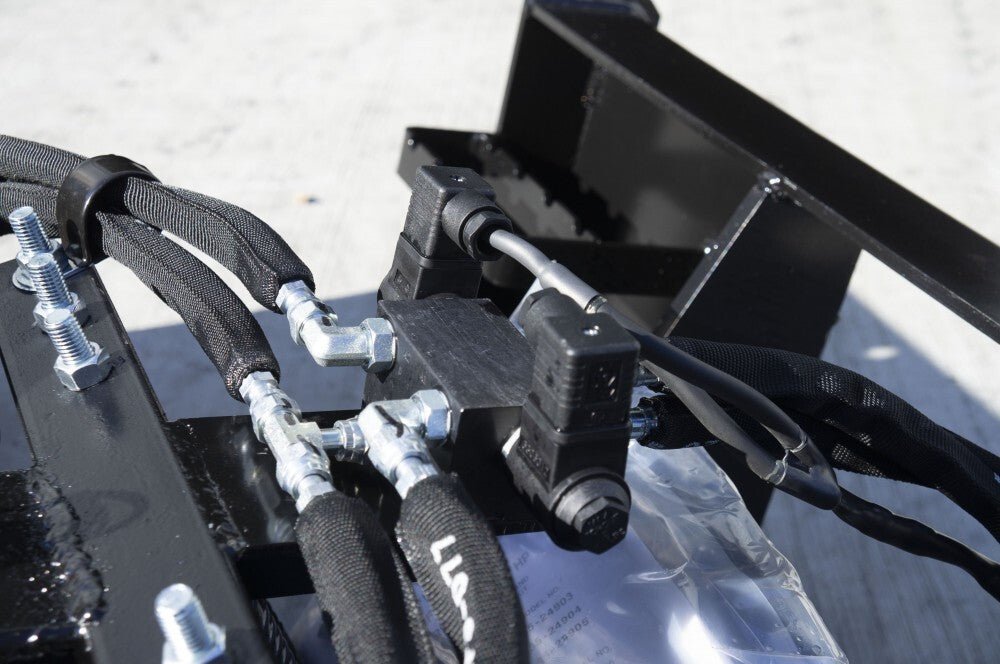

- Electric Hydraulic Controls – electric controls over hydraulics make it easy to position the blade with a different angle or tilt
- Double Hydraulic Cylinders – quick connect couplers allow easy for access to any skid steer or mini skid steer machine with below or above 50 HP

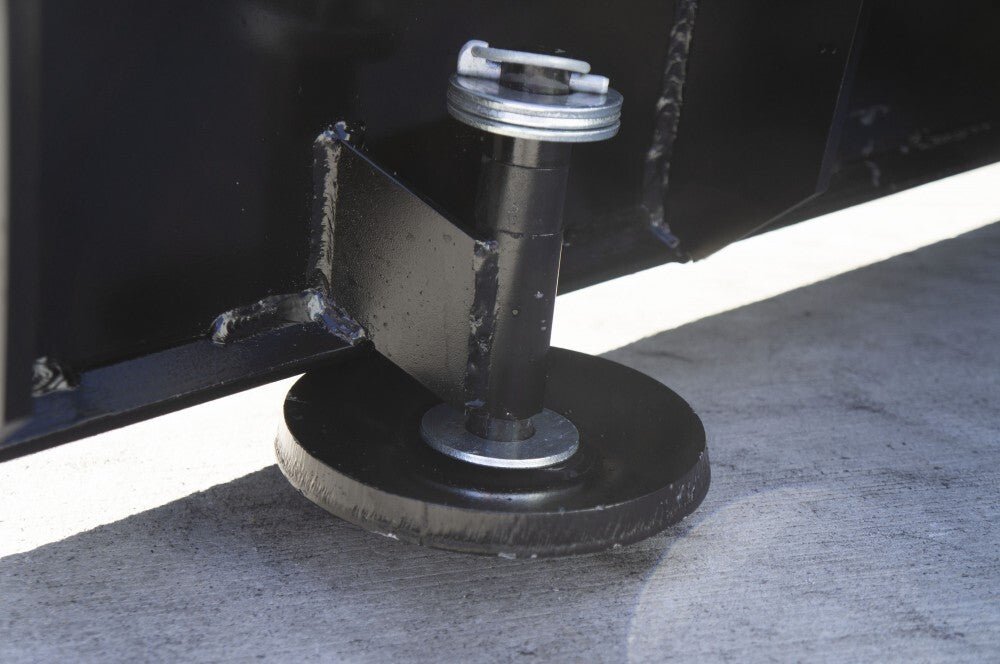

- Adjustable Depth Guides – manually adjust the spacers on the skid shoes to modify the blade height to allow control over blade height and surface contact
Product Specs
| PART NUMBER | MODEL | ANGLED WIDTH | WEIGHT |
|---|---|---|---|
| 120500 | 6’ Without Float | 63.87” | 823 lbs |
| 120505 | 6’ W/Float | 63.87” | 823 lbs |
| 120510 | 7’ Without Float | 78.38” | 863 lbs |
| 120515 | 7’ W/Float | 78.38” | 863 lbs |
| 120520 | 8’ Without Float | 84.87” | 903 lbs |
| 120525 | 8’ W/Float | 84.87” | 903 lbs |
| 120530 | 9’ Without Float | 95.38” | 943 lbs |
| 120535 | 9’ W/Float | 95.38” | 943 lbs |
