Soil Conditioner

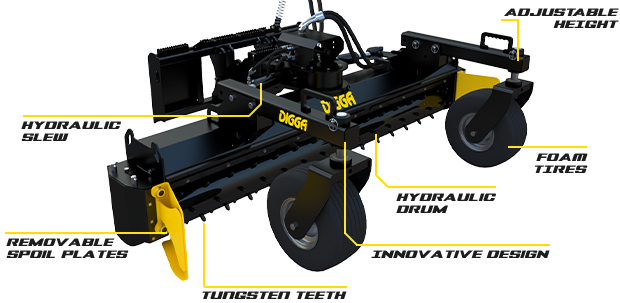

Soil Conditioner for Skid Steer & Small Wheel Loaders

The Digga Soil Conditioner grades, levels, rakes, and removes debris, pulverizing and preparing the ground for new seedbed, turf or to remove old lawn and weeds - all with one tool. Our Soil Conditioner for skid steer & small wheel loaders is ideal for levelling, grading, seedbed preparation, site preparation, lawn care, golf courses, wineries, paving & contractors.

Ingenious Design

The center pivot design from above the drum ensures the drum is always center to the machine.

Minimal Maintenance

Minimal maintenance with 5 grease points and direct drive system.

Flow Rate Capability

The Soil Conditioner is capable of running on standard flow and high flow.

Drum Durability

The Soil Conditioner has welded on tungsten carbide teeth for durability and extra long life of the drum.

Floating Pivot

The Soil Conditioner comes with a floating pivot for better finish on undulating ground conditions.

Multiple Harness Options

Our Soil Conditioner comes with multiple electrical harness options (Cat/ASV 8 Pin, 14pin, Bobcat 7 pin & Plug “N” Play controller).

American made quality

Quality products manufactured in-house by Digga in America. We use only the highest grade materials and strictest quality control.

Warranty

Digga offers warranty on all Soil Conditioners for 12 months after purchase.

72" MODEL
Specs	MANUAL SLEW	HYDRAULIC SLEW	HYDRAULIC SLEW PRO
Recommeded Flow	17 - 30GPM	17 - 24GPM	17 - 30GPM
Motor Type	Eaton 6000 Series
Max Pressure	3500 psi @ 33 gpm	3500 psi @ 24 gpm	3500 psi @ 33 gpm
Max Flow - Do Not Exceed	40 gpm @ 2900 psi	24 gpm @ 3500 psi	40 gpm @ 2900 psi
Slew Angle	25°
Max Horsepower	67 hp
Drum Width	72"
Overall Width	84"
Length - Wheels Down	69.5"
Length - No Wheels	49"
Weight (Varies depending on mount)	TBC



90" MODEL
Specs	MANUAL SLEW	HYDRAULIC SLEW	HYDRAULIC SLEW PRO
Recommeded Flow	17 - 30GPM	17 - 24GPM	17 - 30GPM
Motor Type	Eaton 6000 Series
Max Pressure	3500 psi @ 33 gpm	3500 psi @ 24 gpm	3500 psi @ 33 gpm
Max Flow - Do Not Exceed	40 gpm @ 2900 psi	24 gpm @ 3500 psi	40 gpm @ 2900 psi
Slew Angle	25°
Max Horsepower	67 hp
Drum Width	90"
Overall Width	102"
Length - Wheels Down	69.5"
Length - No Wheels	49"
Weight (Varies depending on mount)	1270lbs	1350lbs	1350lbs
