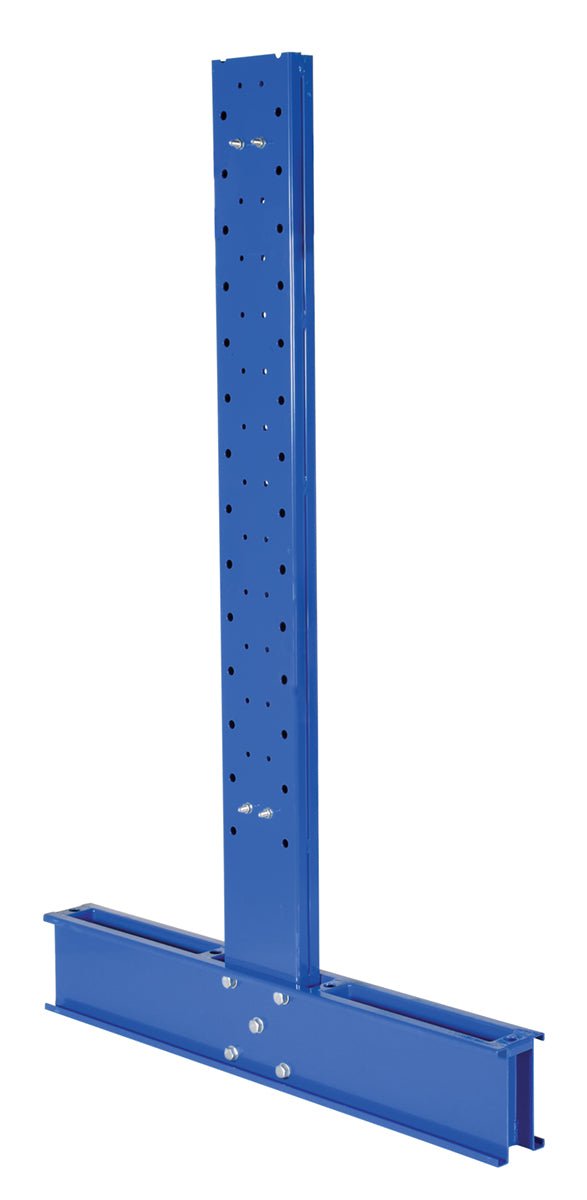

Standard-Duty Cantilever Racking
SKU: SU-C-6-12

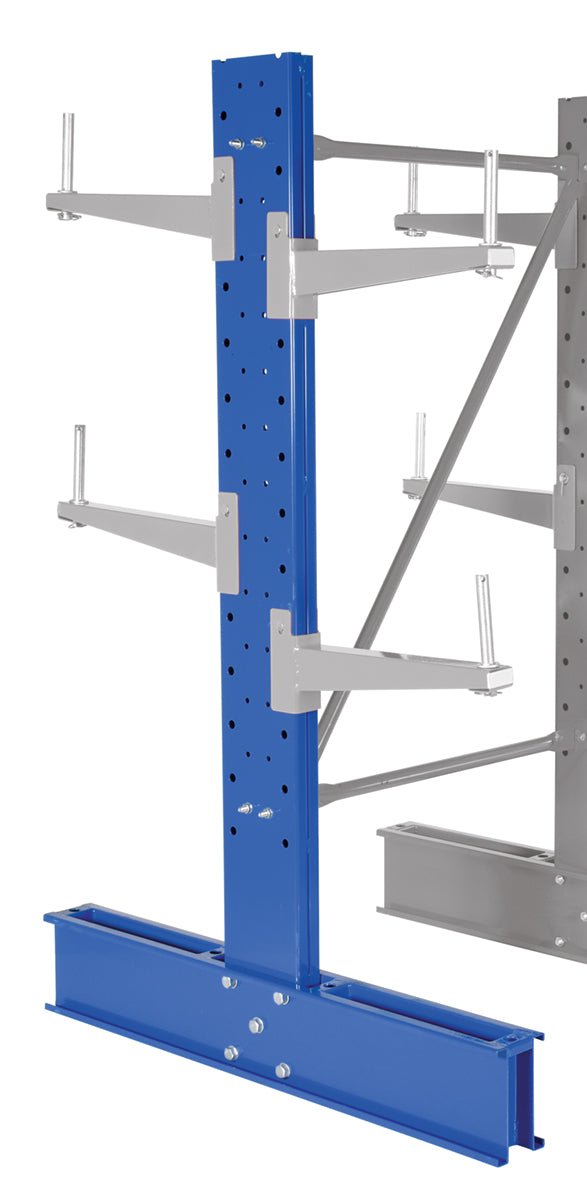

Standard Duty Cantilever Rack Systems are great for manufacturing and distributing facilities.
The steel construction provides strength and durability, which allows the unit to withstand the harshest of environments. The adjustable arms allow the unit to be customized to fit the needs of individual circumstances. Individual components are sold separately to accommodate your requirements. Capacity listed is per upright.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Standard Duty Cantilever Racking | ||||||
| Model | Image | Height | Base | Arms To Use |
Capacity (lbs) |
Wt. (lbs) |
| Single Sided Uprights | ||||||
| SU-C-6-12 |  |
72" | 21-3/4" | 12" | 5,500 | 172 |
| SU-C-6-18 |  |
72" | 27.875" | 18" | 4,300 | 182 |
| SU-C-6-24 |  |
72" | 33.8125" | 24" | 3,800 | 195 |
| SU-C-6-36 |  |
72" | 45.875" | 30"/ 36" |
3,000 / 2,600 |
198 |
| SU-C-8-12 |  |
96" | 21-3/4" | 12" | 5,000 | 186 |
| SU-C-8-18 |  |
96" | 27.875" | 18" | 4,000 | 191 |
| SU-C-8-24 |  |
96" | 33.8125" | 24" | 3,500 | 197 |
| SU-C-8-36 |  |
96" | 45.875" | 30"/ 36" |
2,700 / 2,400 |
208 |
| SU-C-10-12 |  |
120" | 21-3/4" | 12" | 4,600 | 214 |
| SU-C-10-18 |  |
120" | 27.875" | 18" | 3,600 | 219 |
| SU-C-10-24 |  |
120" | 33.8125" | 24" | 3,200 | 225 |
| SU-C-10-36 |  |
120" | 45.875" | 30"/ 36" |
2,500 / 2,100 |
237 |
| Model | Image | Height | Base | Arms To Use |
Capacity (lbs) |
Wt. (lbs) |
| Double Sided Uprights | ||||||
| SDU-C-6-12 |  |
72" | 34" | 12" | 11,000 | 183 |
| SDU-C-6-18 |  |
72" | 46" | 18" | 8,600 | 183 |
| SDU-C-6-24 |  |
72" | 58" | 24" | 7,700 | 195 |
| SDU-C-6-36 |  |
72" | 82" | 30"/ 36" |
6,000 / 5,200 |
215 |
| SDU-C-8-12 |  |
96" | 34" | 12" | 10,100 | 197 |
| SDU-C-8-18 |  |
96" | 46" | 18" | 8,000 | 208 |
| SDU-C-8-24 |  |
96" | 58" | 24" | 7,100 | 219 |
| SDU-C-8-36 |  |
96" | 82" | 30"/ 36" |
5,500 / 4,800 |
242 |
| SDU-C-10-12 |  |
120" | 34" | 12" | 9,300 | 225 |
| SDU-C-10-18 |  |
120" | 46" | 18" | 7,300 | 236 |
| SDU-C-10-24 |  |
120" | 58" | 24" | 6,500 | 249 |
| SDU-C-10-36 |  |
120" | 82" | 30"/ 36" |
5,000 / 4,300 |
270 |
| Straight Arms | ||||
| Model | Image | Uniform Capacity Per Arm |
Arm Length |
Wt. (lbs) |
| SSA-C-12 |  |
800 lbs. | 12" | 10 |
| SSA-C-18 |  |
600 lbs. | 18" | 12 |
| SSA-C-24 |  |
400 lbs. | 24" | 15 |
| SSA-C-30 |  |
300 lbs. | 30" | 17 |
| SSA-C-36 |  |
200 lbs. | 36" | 21 |
| 10 Degree Inclined Arms | ||||
| Model | Image | Uniform Capacity Per Arm |
Arm Length |
Wt. (lbs) |
| SIA-C-12 |  |
800 lbs. | 12" | 10 |
| SIA-C-18 |  |
600 lbs. | 18" | 12 |
| SIA-C-24 |  |
400 lbs. | 24" | 15 |
| SIA-C-30 |  |
300 lbs. | 30" | 17 |
| SIA-C-36 |  |
200 lbs. | 36" | 21 |
| Brace Sets For 6 Foot Uprights | ||||
| Model | Image | Length | Wt. (lbs) |
|
| SB-C-6-36 |  |
36" | 26 | |
| SB-C-6-48 |  |
48" | 38 | |
| SB-C-6-60 |  |
60" | 44 | |
| SB-C-6-72 |  |
72" | 50 | |
| SB-C-6-96 |  |
96" | 64 | |
| Brace Sets For 8 Foot Uprights | ||||
| Model | Image | Length | Wt. (lbs) |
|
| SB-C-8-36 |  |
36" | 28 | |
| SB-C-8-48 |  |
48" | 42 | |
| SB-C-8-60 |  |
60" | 48 | |
| SB-C-8-72 |  |
72" | 52 | |
| SB-C-8-96 |  |
96" | 66 | |
| Brace Sets For 10 Foot Uprights | ||||
| Model | Image | Length | Wt. (lbs) |
|
| SB-C-10-36 |  |
36" | 30 | |
| SB-C-10-48 |  |
48" | 44 | |
| SB-C-10-60 |  |
60" | 50 | |
| SB-C-10-72 |  |
72" | 54 | |
| SB-C-10-96 |  |
96" | 90 | |
