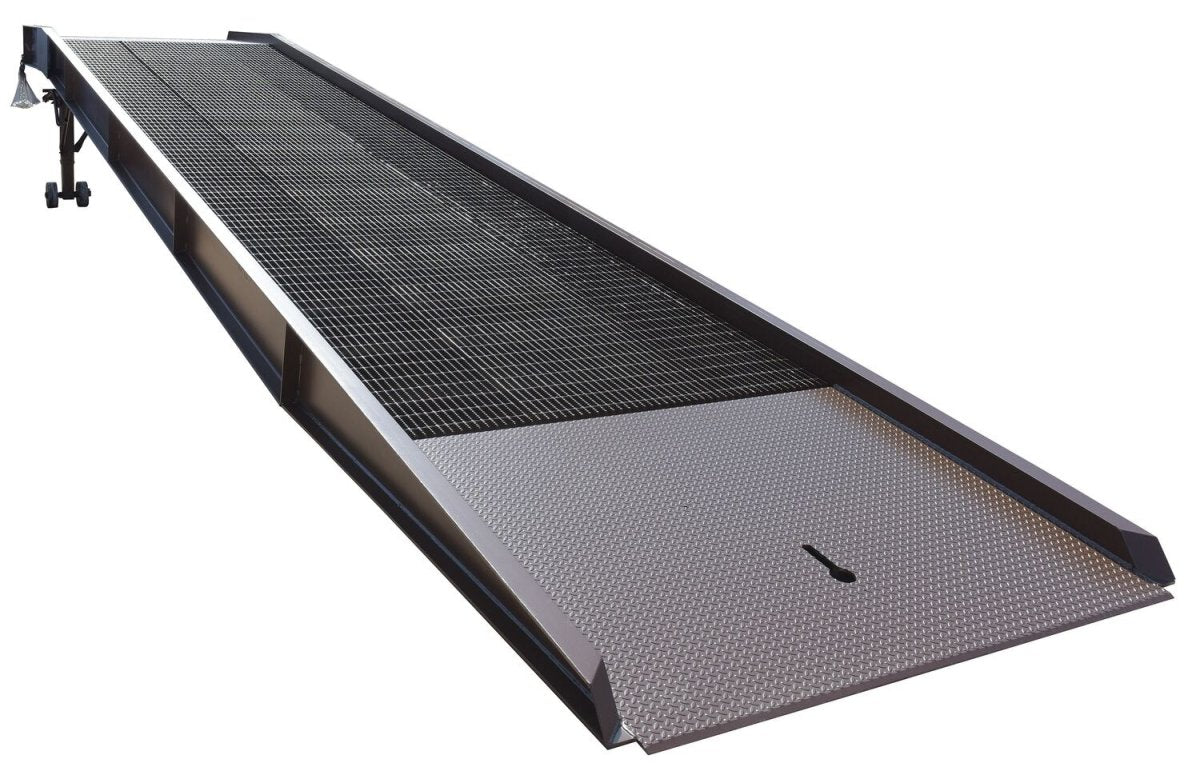

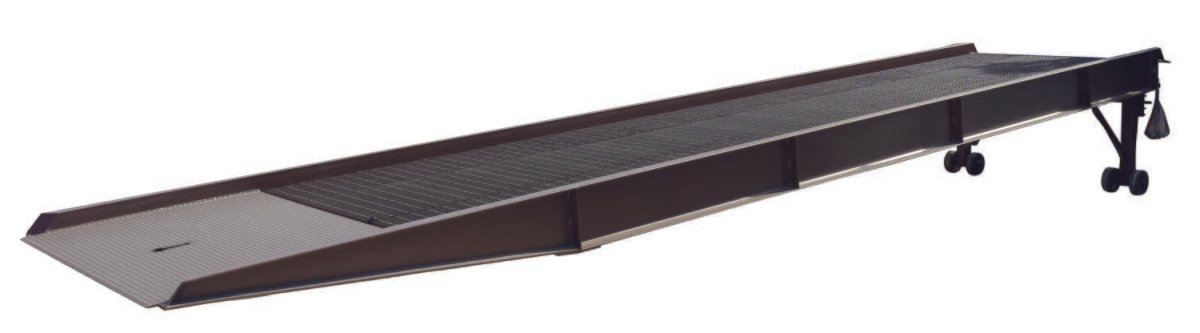

Steel Yard Ramps

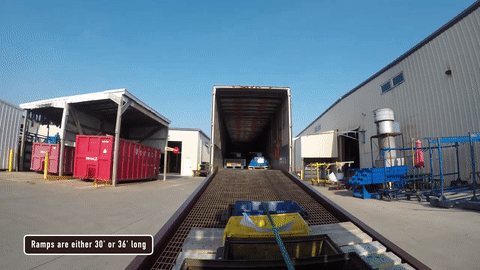

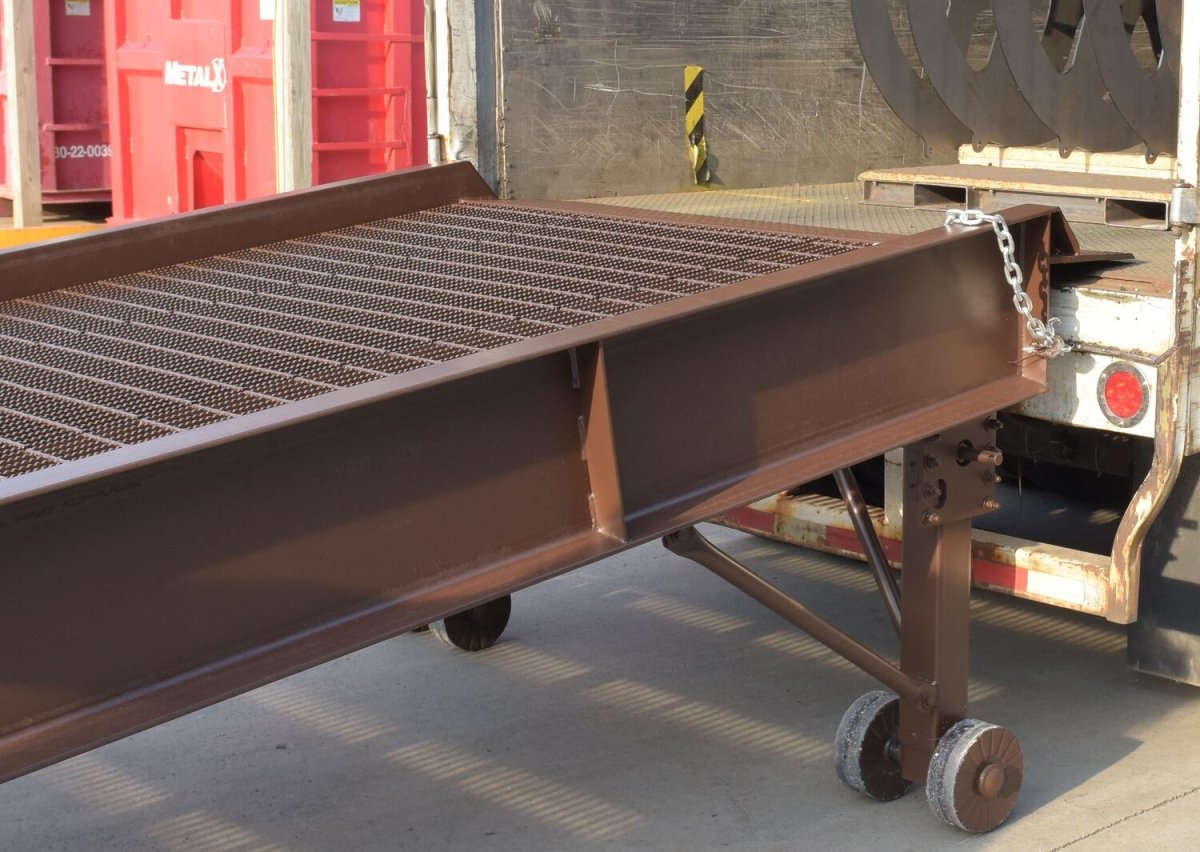

Using Steel Yard Ramps quickly load and unload trucks, trailers and rail cars from ground level when no freight dock exists

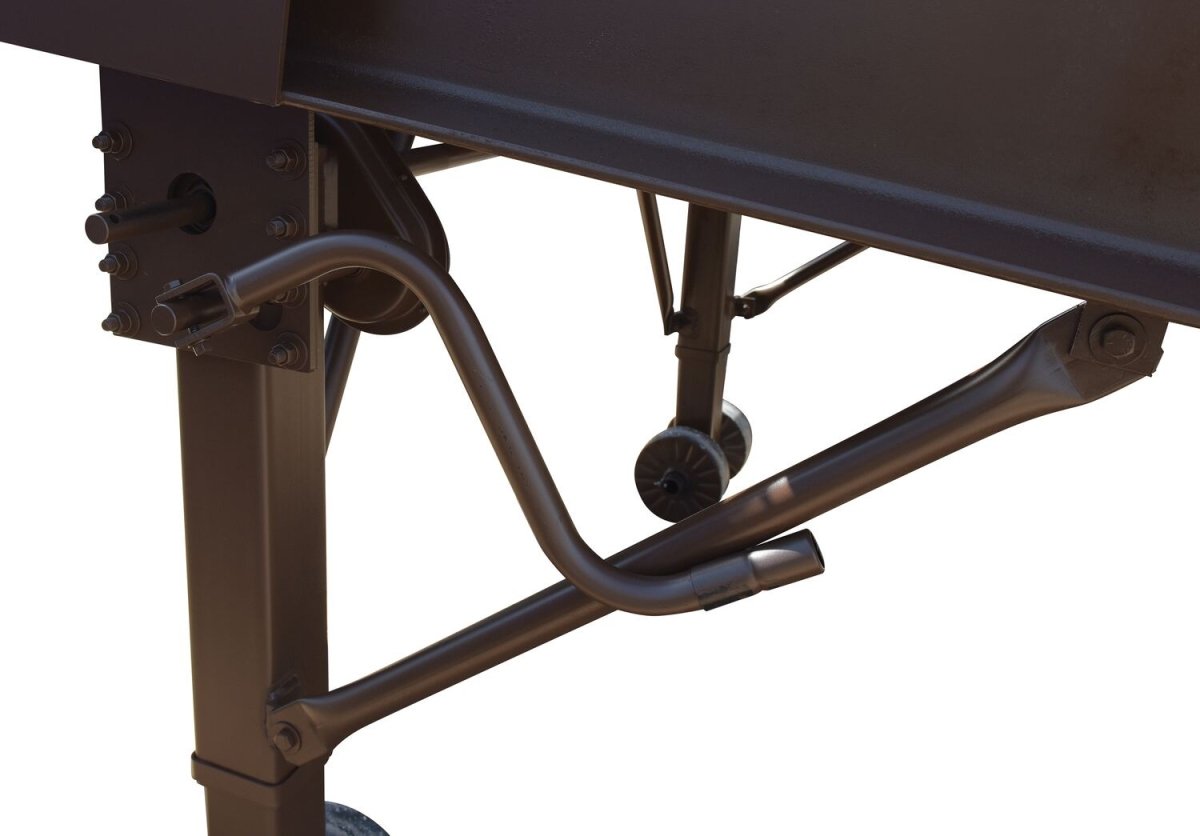

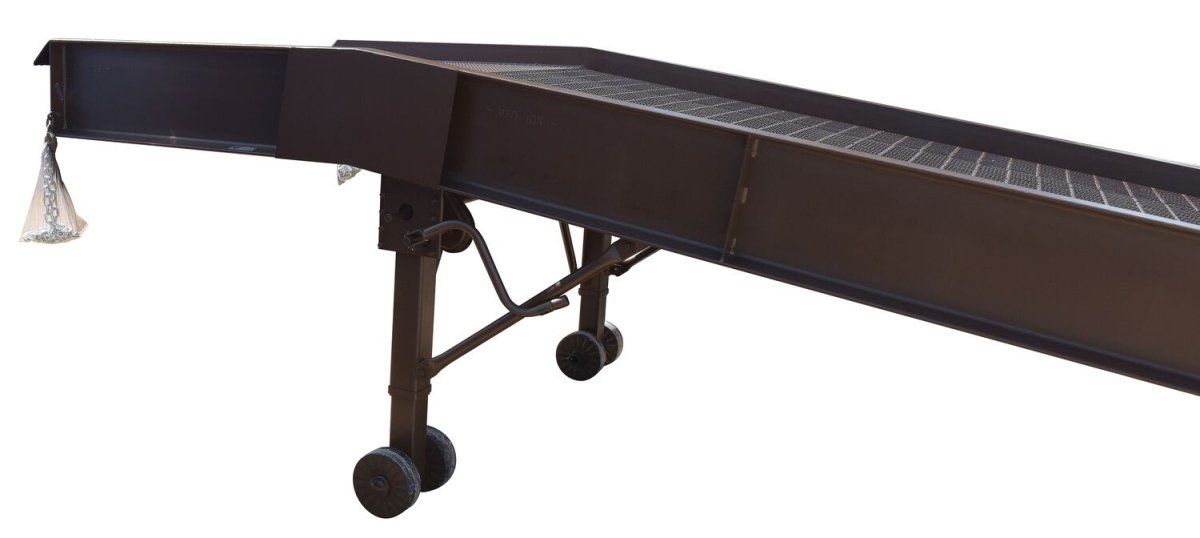

Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one person height adjustment offers a service range of 45" to 62". Available in 30 foot of straight ramp or 36-foot overall length; 30 foot of straight ramp and 6-foot level off. Standard features include: 8-5/8" steel wheels, positive traction open steel grating, safety locking chains, 4" high steel safety curbs, rubber bumpers, 13 7/8" usable lip support edge, tow bar pocket and welded steel construction. Painted neutral earth-tone brown.
|
Portable Steel Yard Ramps |
|||||
|
Model Number |
Capacity |
Overall |
Usable |
Length |
Wt. |
| 16,000 | 72" | 66" | 30' | 4625 | |
|
YR-16-8430 |
16,000 | 84" | 78" | 30' | 5375 |
| YR-16-7236 | 16,000 | 72" | 66" | 36' | 5925 |
| YR-16-8436 | 16,000 | 84" | 78" | 36' | 6250 |
| YR-20-7330 | 20,000 | 73" | 66" | 30' | 5275 |
| YR-20-8530 | 20,000 | 85" | 78" | 30' | 5852 |
| YR-20-7336 | 20,000 | 73" | 66" | 36' | 6275 |
| YR-20-8536 | 20,000 | 85" | 78" | 36' | 6975 |
| YR-25-7330 | 25,000 | 73" | 66" | 30' | 5450 |
| YR-25-8530 | 25,000 | 85" | 78" | 30' | 6000 |
| YR-25-7336 | 25,000 | 73" | 66" | 36' | 6475 |
| YR-25-8536 | 25,000 | 85" | 78" | 36' | 7175 |
| YR-30-7330 | 30,000 | 73" | 66" | 30' | 5600 |
| YR-30-8530 | 30,000 | 85" | 78" | 30' | 6175 |
| YR-30-7336 | 30,000 | 73" | 66" | 36' | 6650 |
| YR-30-8536 | 30,000 | 85" | 78" | 36' | 7350 |
| Portable Steel Yard Ramp w/ Hydraulic Edge-O-Dock* | |||||
| YRD-16-7236-H | 16,000 | 72" | 66" | 36' | 5670 |
| YRD-16-8436-H | 16,000 | 84" | 78" | 36' | 6090 |
| YRD-20-7336-H | 20,000 | 73" | 66" | 36' | 6880 |
| YRD-20-8536-H | 20,000 | 85" | 78" | 36' | 6300 |
| YRD-25-7336-H | 25,000 | 73" | 66" | 36' | 6090 |
| YRD-25-8536-H | 25,000 | 85" | 78" | 36' | 6510 |
| YRD-30-7336-H | 30,000 | 73" | 66" | 36' | 6300 |
| YRD-30-8536-H | 30,000 | 85" | 78" | 36' | 6720 |
| Portable Steel Yard Ramp w/ Mechanical Edge-O-Dock* | |||||
| YRD-16-7236-M | 16,000 | 72" | 66" | 36' | 5670 |
| YRD-16-8436-M | 16,000 | 84" | 78" | 36' | 6090 |
| YRD-20-7336-M | 20,000 | 73" | 66" | 36' | 6800 |
| YRD-20-8536-M | 20,000 | 85" | 78" | 36' | 6300 |
| YRD-25-7336-M | 25,000 | 73" | 66" | 36' | 6090 |
| YRD-25-8536-M | 25,000 | 85" | 78" | 36' | 6510 |
| YRD-30-7336-M | 30,000 | 73" | 66" | 36' | 6300 |
| YRD-30-8536-M | 30,000 | 85" | 78" | 36' | 6720 |
|

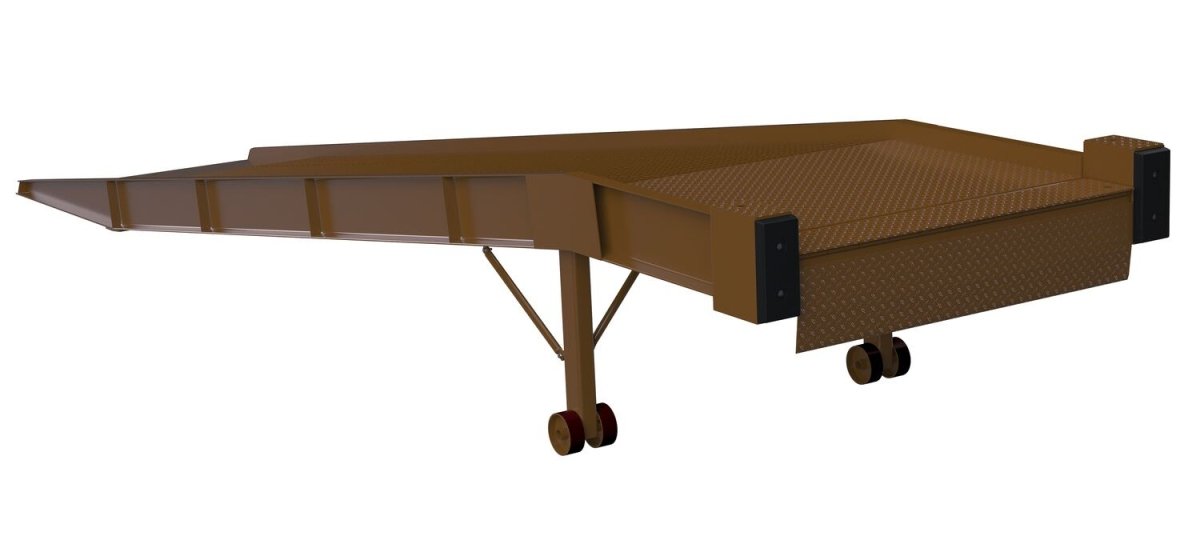

Stationary Steel Yard Ramps With Edge-O-Dock |
|||||
|
Model Number |
Capacity |
Overall |
Usable |
Length |
Wt. |
| Mechanical Edge-O-Dock at Truck End | |||||
| YRDS-16-7236-M | 16,000 | 72" | 66" | 36' | 6275 |
|
YRDS-16-8536-M |
16,000 | 85" | 78" | 36' | 6600 |
| YRDS-20-8536-M | 20,000 | 85" | 78" | 36' | 7325 |
| -Leveler is 64" wide on 72 & 73" Models. Leveler is 75" wide on 84" & 85" Models | |||||
| Hand Pump Hydraulic Edge-O-Dock at Truck End | |||||
| YRDS-16-7236-H | 16,000 | 72" | 66" | 36' | 6275 |
|
YRDS-16-8536-H |
16,000 | 85" | 78" | 36' | 6600 |
| YRDS-20-8536-H | 20,000 | 85" | 78" | 36' | 7325 |
| -Leveler is 66" wide on 72" Models & 74" wide on 84" & 85" Models | |||||
