Sunray Vertical Lift Arrow Board - Winch

SKU# 2171200

$6,197.00

Shipping calculated at checkout.

Lamps

15 Lamps 25 Lamps

Safe & Secure Payments

Flexible financing available

Discover your options →

PEAC Solutions

Orders $3,000+

Apply Now

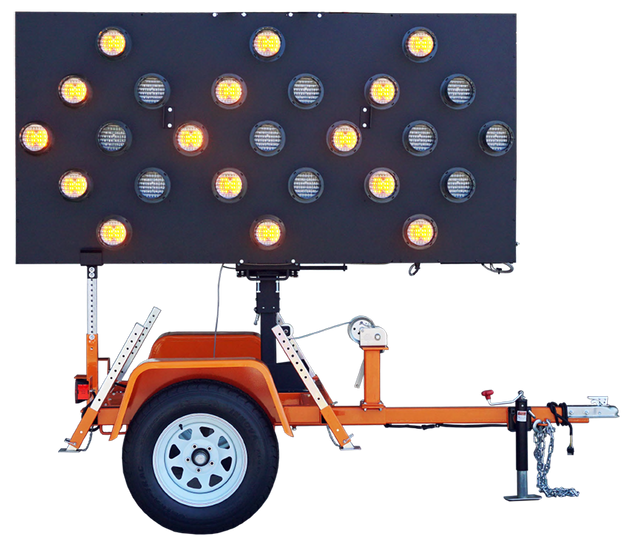

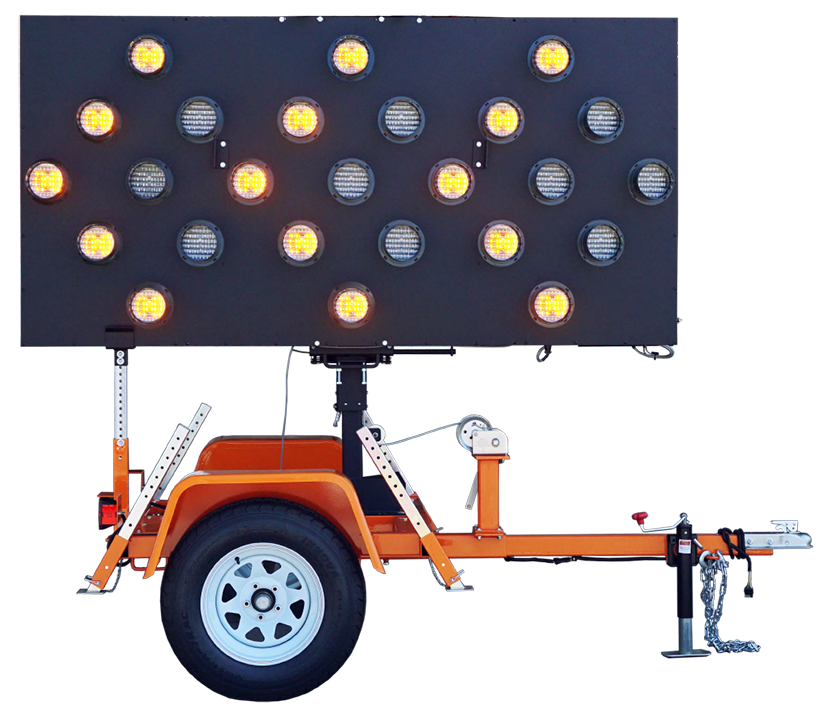

The Sunray™ Vertical Lift Arrow Board combines advanced solar power technology with high-efficiency LED performance for reliable traffic control.

The Sunray™ VL Arrow Board incorporates advanced solar power technology, high-efficiency LED lights, sealed maintenance-free batteries, and touch-sensitive controls to enhance performance, reduce energy consumption, and extend operational runtime.

Its rotating display panel allows the arrow board to face traffic from any direction, improving ease of use while enhancing operator safety during setup and operation.

View Spec Sheet

Features

Solar-powered operation with sealed, maintenance-free batteries
Arrow board display panel rotates 360 degrees to face traffic
Touch-sensitive controls with LED display use up to 50 percent less energy for extended run times
Curb-side winch and battery box design improves operator safety
Available configurations with 15 or 25 LED lamps
High-efficiency LED lighting for maximum visibility

Specifications

Trailer Deck Area	43 inches deep × 50 inches wide
Drawbar	3 × 3 × 3/16 inch wall steel tube, removable
Chassis	2 × 3 × 1/8 inch steel tubing, MIG welded
Fenders	Formed steel, bolt-on, easily replaceable
Overall Length (With Drawbar)	117 inches
Height (Sign Up)	139 inches
Height (Sign Down)	99 inches
Hitch	2 inch ball, Class II, 3,500 lb capacity, removable
Jacks	(4) slide-type plated jacks, (1) swing-type jack
Tire Size	ST205/75-D15 Load C
Trailer Weight	1,200 lbs
Winch	1,000 lb capacity with double disc brake and 1/4 inch galvanized steel cable, curb-side mounted
Control System	Automotive-style blade fuses Manual or automatic dimming LED display showing operating mode Built-in voltage meter with low-voltage warning and shutdown
Functions	7 functions (15-lamp configuration), 12 functions (25-lamp configuration)
Display Dimensions	48 × 96 inches
Front Lamps	15 or 25 PAR 46 LED lamps, 590 nm
Rear Lamps	3 LED indicator lamps
Display Construction	Aluminum housing with internal supports and molded ABS lamp covers
Photo Sensor	Shielded from extraneous light
Batteries	(4) 18Ah 12V sealed AGM batteries
Battery Enclosure	Hidden on top of mast
Solar Collector	Single crystalline silicon panel
Solar Collector Frame	Formed steel, powder-coated black
