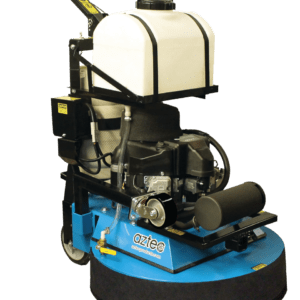

The Refresher Concrete Grinder

The REFRESHER is a propane-powered, planetary driven, complete system for stripping, honing, polishing and burnishing polished concrete and terrazzo floors made by Aztec and distributed by Diamond Tool Store

The Refresher is designed for previously polished concrete and terrazzo floors; hone, polish and burnish concrete and terrazzo floors with diamonds and pads. Strip and scrub VCT floors with strip brushes or pads. The Refresher features a gimbaled, synchronous planetary drive, integral water tank and quick change driver heads.

The Aztec Refresher Work Smart TM System is engineered with the operator in mind. The Refresher is heavy and rugged enough to handle the aggressive demands of honing and polishing concrete floors, yet light and mobile enough to be highly maneuverable and smooth running for hours of continuous use.

The Refresher, with its dust control capability and sealed planetary drive and positive drive synchronous belt, comes with 3 sets of driver heads/brushes: one set of 3 strip brushes for removing old floor finish; one set of 3 Velcro drivers for resin bond, hybrid and ceramic diamonds; and one set of 3 Mighty-Lok drivers for 10" burnishing or diamond pads. Each set of driver heads/brushes is designed with a lug system for "quick-change" mounting and dismounting on the job.

Looking to make sure you are getting the best Concrete Grinder check out all our Concrete Grinding Machines

FEATURES:

• Rugged all steel construction
• Planetary drive to eliminate shadowing and side torque
• Sealed planetary drive with synchronous belt to eliminate slip and increase durability
• Premium bearings and bearing seals throughout for durability
• Standard dust control functionality.
• Standard 8 gallon water tank
• Premium German centrifugal clutch
• Adapter port for active vacuum
• Locking easy spin-on spin-off heads for quick application change.
• 330 lbs. head pressure (150 kg)
• Includes 3 sets quick change heads for stripping, polishing, and burnishing concrete
• Compatible for use with 4" ceramic or resin diamond pucks and diamond impregnated pads
• Transport wheel for easy loading and maneuvering
• Low profile - fits under 8" shelf (21 cm)

INCLUDES:

• 3" x 10" Mal Grit Strip Brush
• 3" x 10" Mighty Lok
• 3" x 10" Velcro Hook & Loop

SAFETY SPECIFICATIONS:

• Meets US Green Building Council LEED IAQ Credit 3.4 Requirement
• CE, CARB, EPA & GS-42 Compliant
• Low Oil Shut Down
• Safety Regulator Fuel System

AVAILABLE OPTIONS:

• Safety Emissions Auto Shutdown
• Blue Sky Certified Engine
• Kill Switch Lanyard

The Refresher machine has three (3) heads; each head holds four (4) diamonds; a complete set requires a set of twelve (12) diamond pucks.

Diamonds are sold individually. Recommended 3" diamond pucks for the Refresher:

Resin Bond Diamonds: 50-, 100-, 200-, 400-, 800-, 1500-, and 3000-grit

Hybrid Diamonds: 16-, 30- and 50-grit (Metal Bond Resin Hybrid 3" Diamonds)
