Tilting Drum Rings
SKU: TDR-30-G

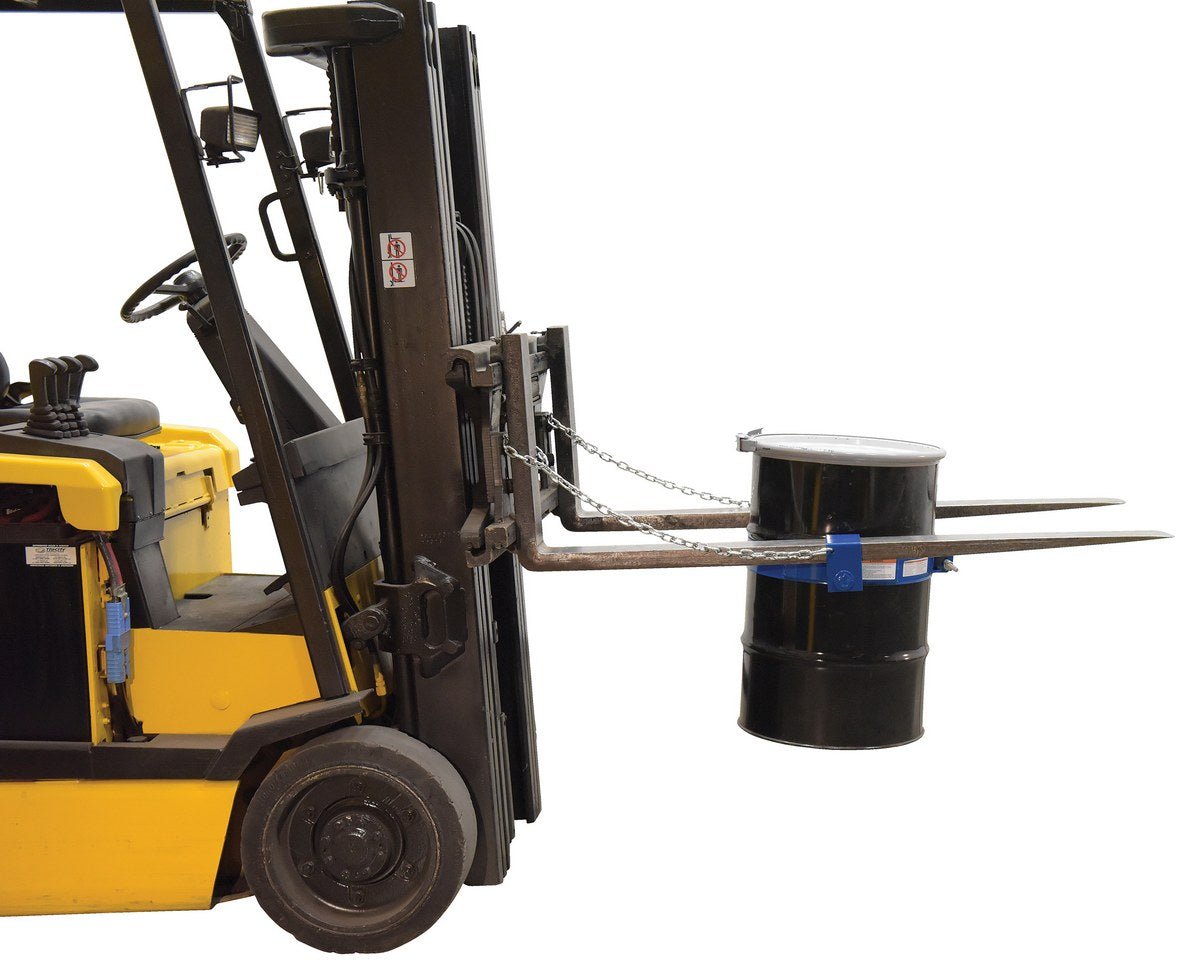

Easily transport steel drums with your fork truck and the Tilting Drum Ring.
30 Gallon, Carbon Galvanized Steel out of stock until approx. 11/17/2023

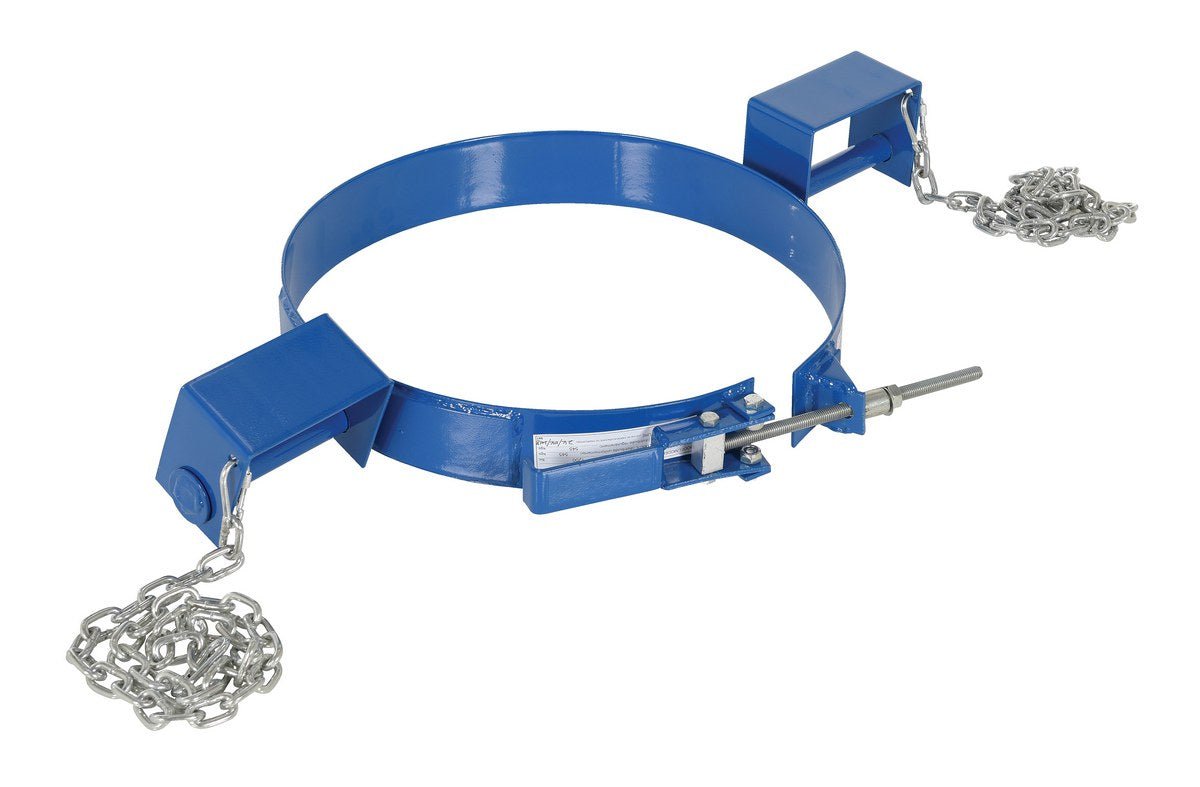

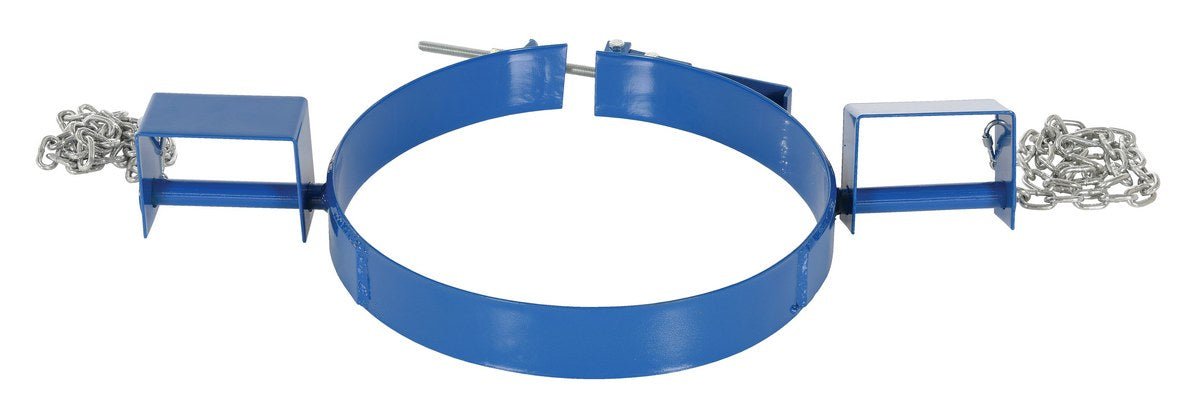

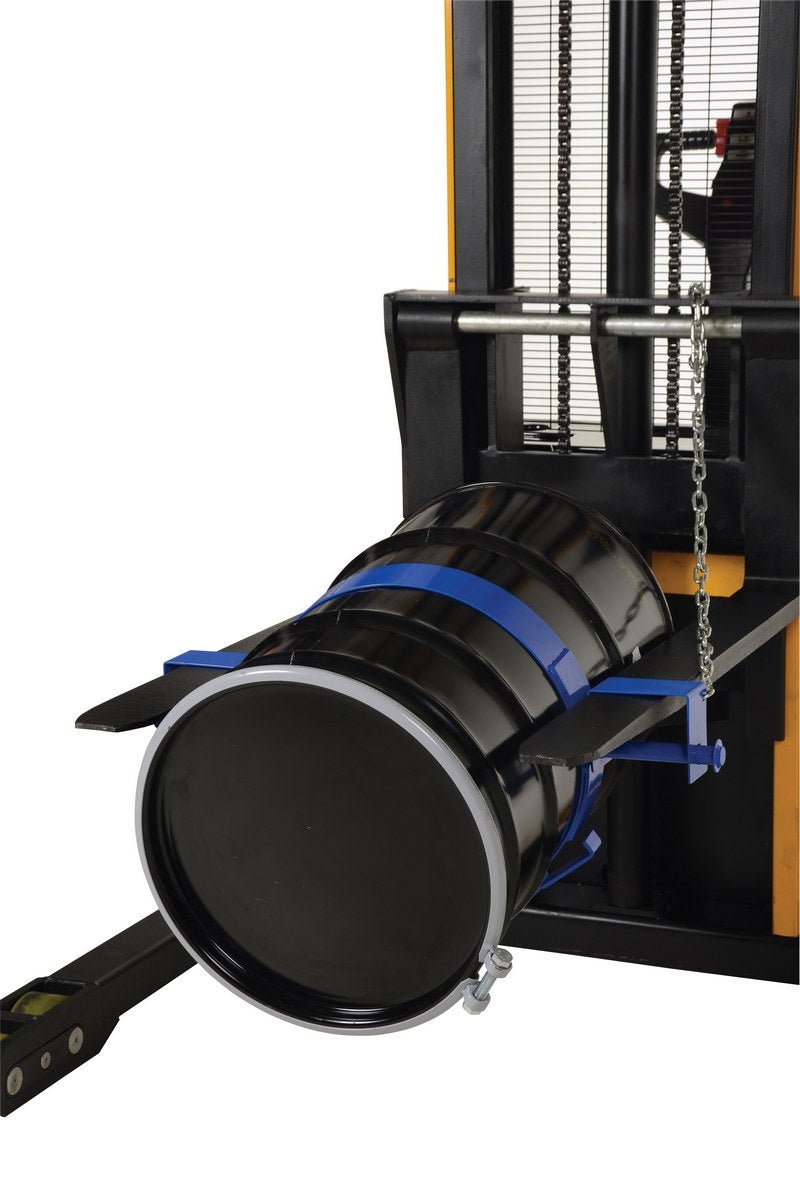

Pivoting fork pockets allow you to manually rotate drum to dispense light materials. To use, slip the band over the belly of the steel drum and tighten the lock to secure the band around the belly of the drum. Usable fork openings are 5-1/4"W x 2-7/8"H each. Welded steel construction.
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
| Tilting Drum Rings | ||||||
| Model | Image | Acceptable Drum Types |
Material & Finish |
Capacity (lbs) |
Weight (lbs) |
|
| TDR-30 |  |

|
30 Gallon Steel | Powder Coat Steel | 1,200 | 22 |
| TDR-55 |  |
|
55 Gallon Steel | Powder Coat Steel | 1,200 | 24 |
| TDR-30-G |  |
|
30 Gallon Steel | Galvanized Carbon Steel | 1,200 | 23 |
| TDR-55-G |  |
|
55 Gallon Steel | Galvanized Carbon Steel | 1,200 | 24 |
| TDR-30-SS |  |
|
30 Gallon Steel | Grade 304 Stainless Steel | 1,200 | 24 |
| TDR-55-SS |  |
|
55 Gallon Steel | Grade 304 Stainless Steel | 1,200 | 25 |
| * Capacity is based on full drums | Half-full drums are rated at 600 lbs. | ||||||
KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
