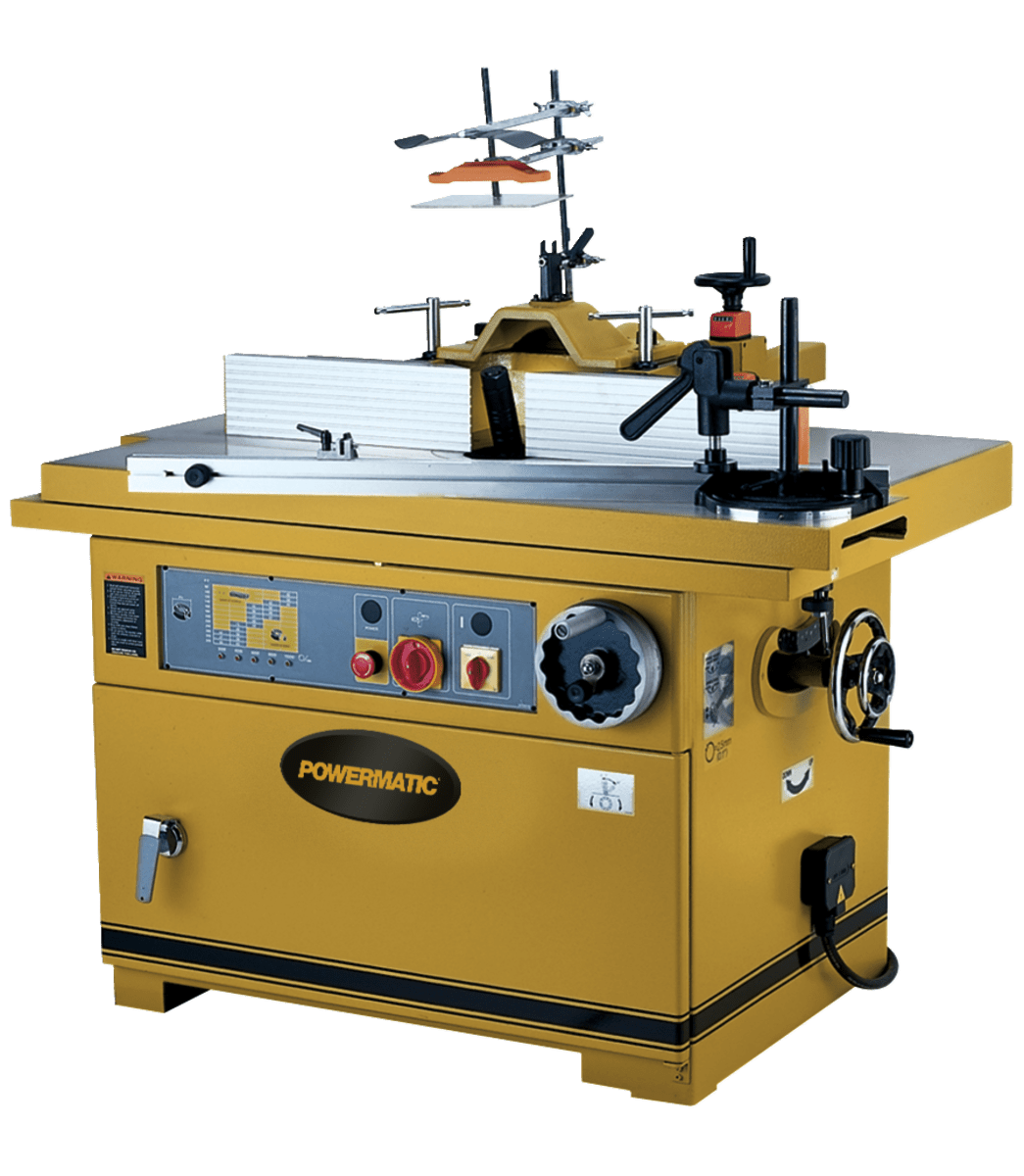

The new TS29 Tilt/Slide Shaper is ready to tackle any job. A new fence design includes dual digital readouts, micrometer adjustments and independently adjustable fence halves for fast, accurate set-ups.

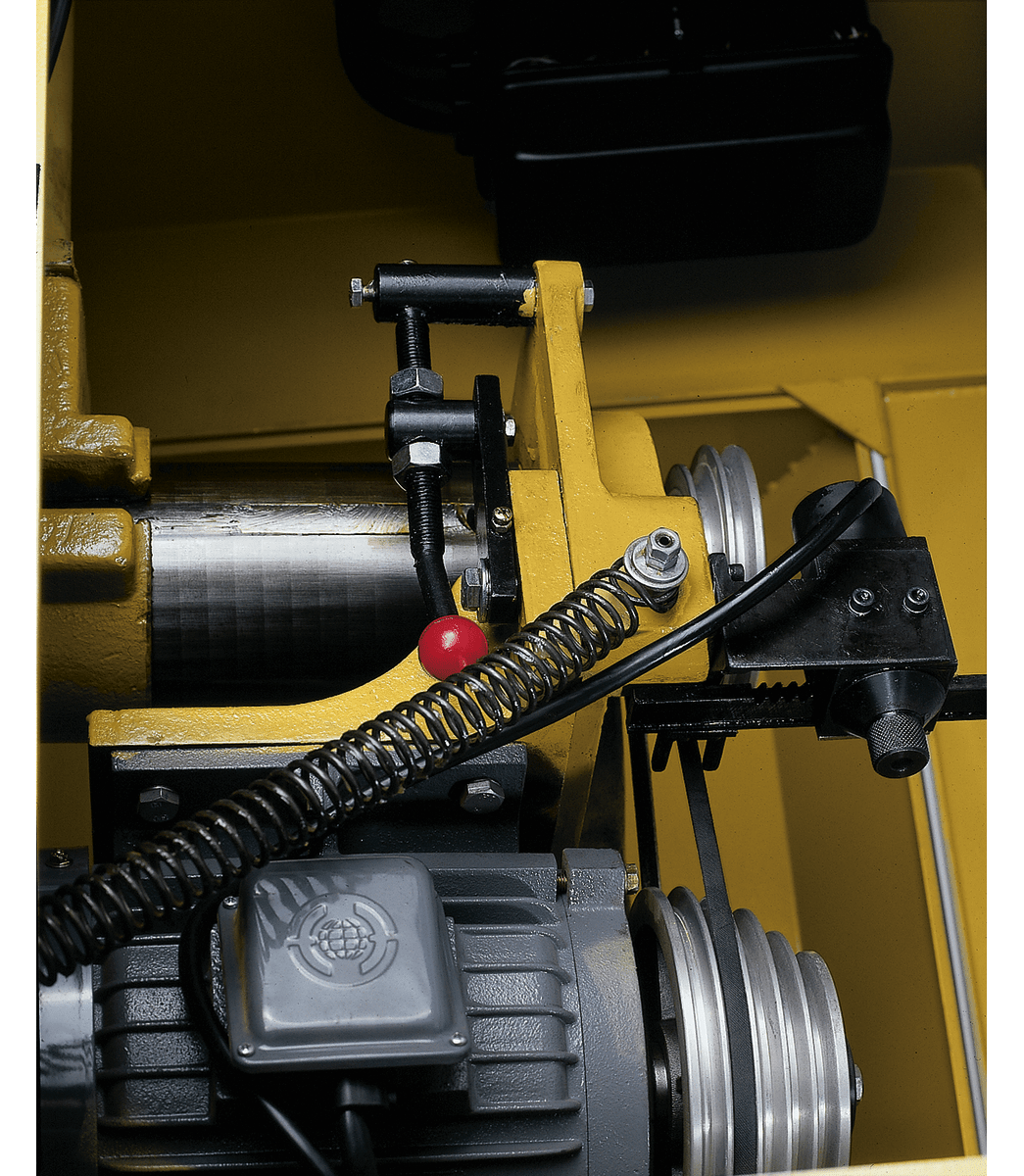

The full guard includes two stock hold-downs and a see-through cover that flips up for quick tool changes. Dual dust collection ports, in the guard and under the table insure a clear work area and improved finish. An extra large quill assembly with a full seven inch stroke has three oversize bearings and the ability to tilt, adding versatility and insuring long, trouble-free performance. Powered by a big 7-1/2HP motor that drives the spindle forward and reverse with five speeds. The massive sliding table is fully supported by six tapered precision bearings through a full four-foot stroke. In addition, on board the table is a large miter head complete with stock hold-down clamp and a 56" miter fence with flip stop. The large table can easily accommodate a stock feeder for longer production runs.

  • Five spindle speeds in forward and reverse with lighted indicator
  • Full coverage guard with workpiece hold downs

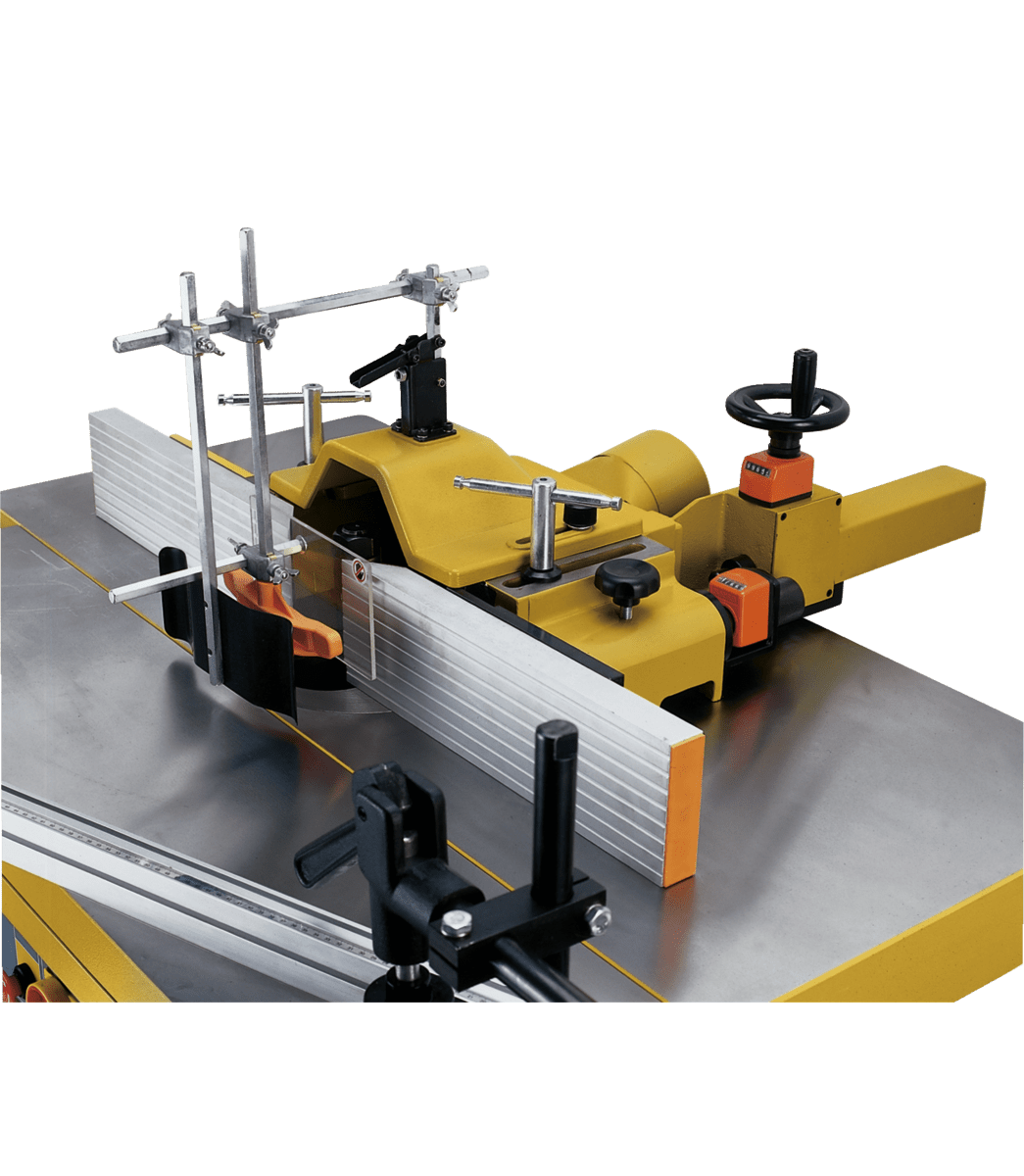

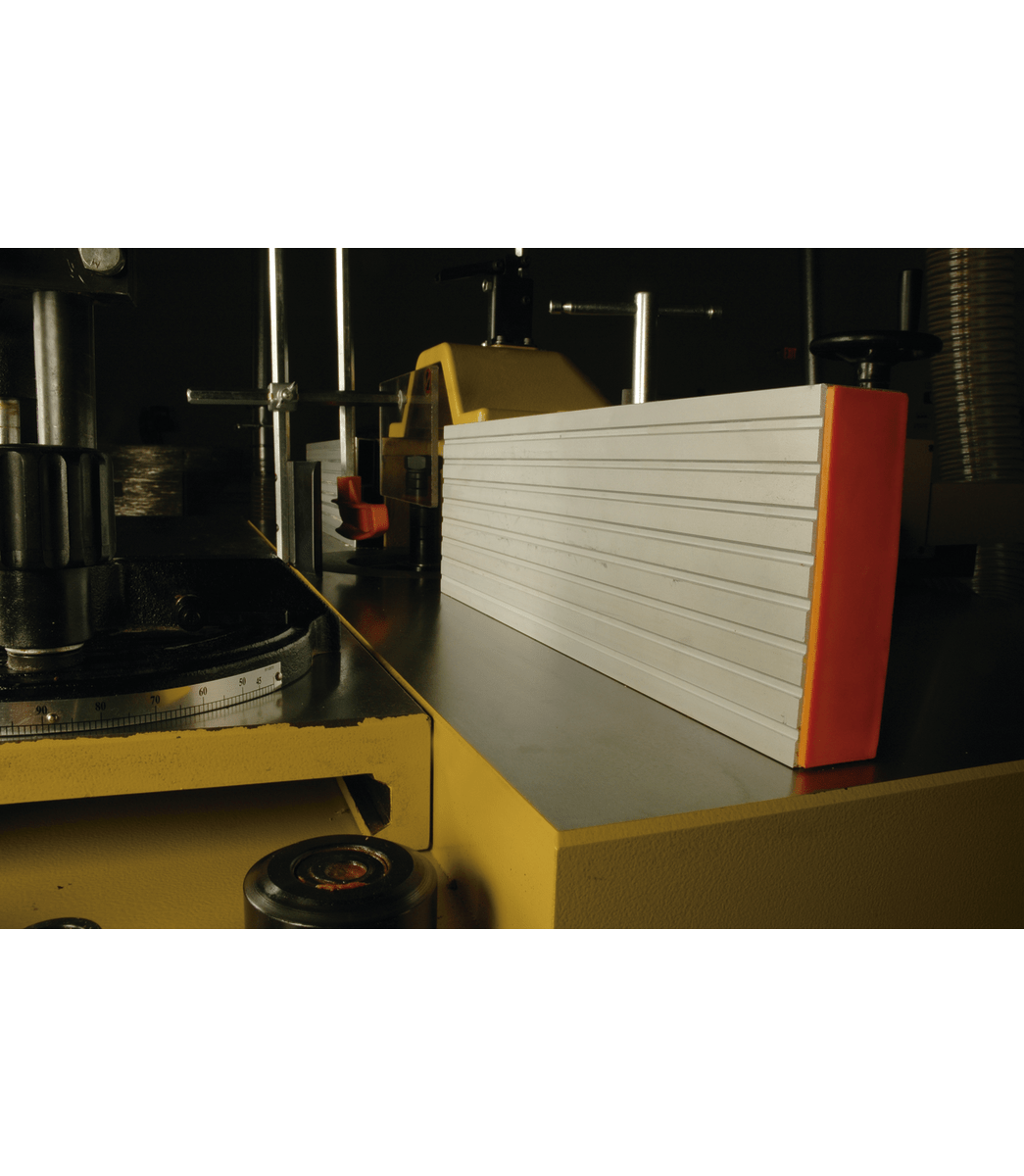

  • Fully adjustable fence has dual digital readout positioning with micrometer adjustments

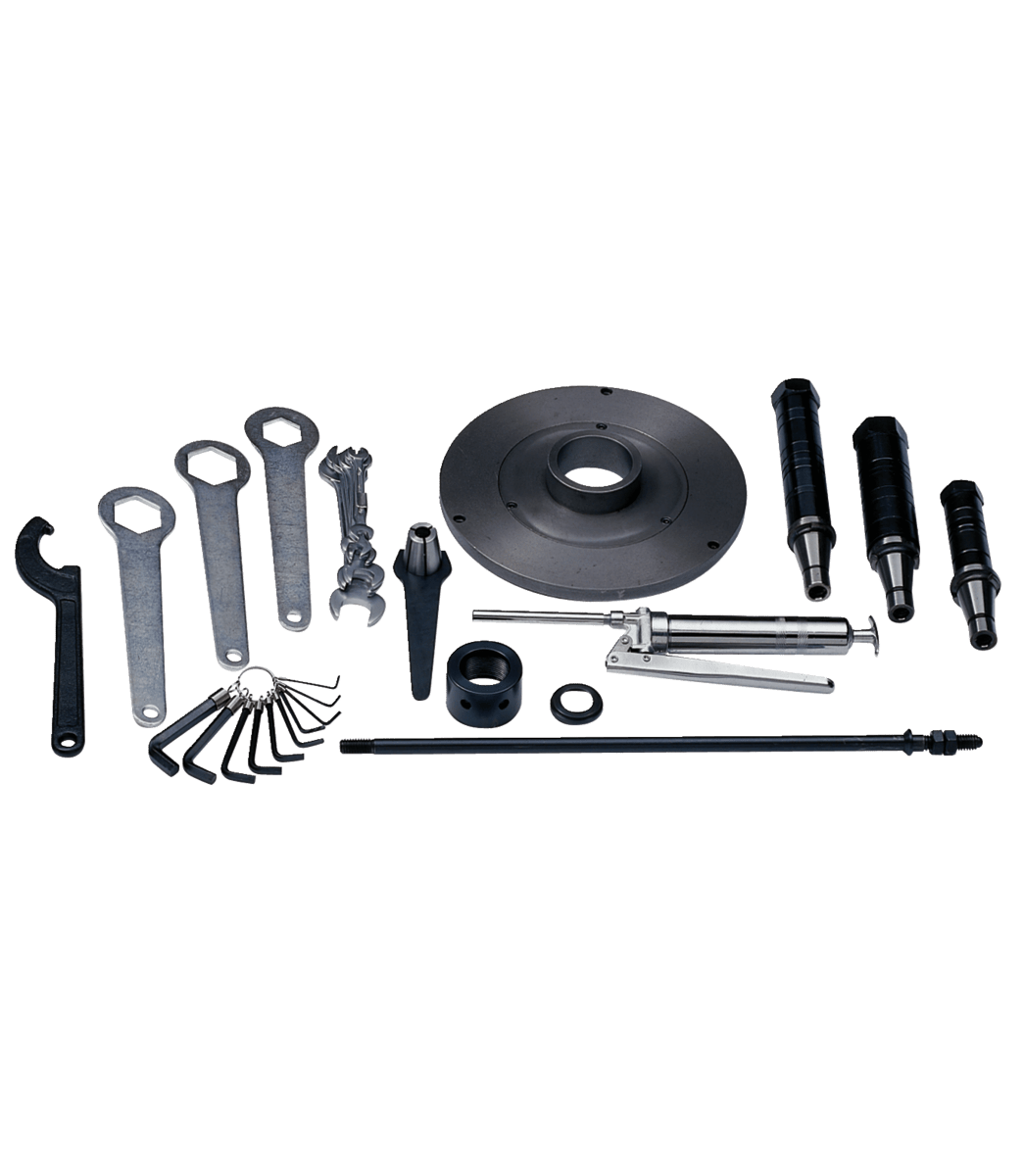

  • Includes 3/4", 1" and 1-1/4" spindles
  • Large diameter multiple table inserts accommodate virtually any size cutter
  • Large table with built-in slider with room for stock feeder
  • Sliding table travels a full 49-1/4 inches
  • Tilting spindle for additional angles
More Information
Stock Number 1791284
Dust Collection Minimum CFM Required (CFM) 800
Dust Port Outside Diameter (In.) 5
Maximum Diameter Cutter Above Table (In.) 12
Maximum Diameter Cutter Below Table (In.) 9
Maximum Spindle Diameter (In.) 1-1/4
Motor Phase 3
Motor Power (HP) 7-1/2
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
Prop 65 Cancer and Reproductive Harm
Style (Type) Closed Stand
