Designed for storage of long parts close to the worksite. Long pieces stack vertically while shorter parts are kept horizontal on the three pan shelves. Designed to be placed up against a wall.

Unit is supplied with lag down points. Includes a restraint chain to hold items in each bay. The capacity is 3,000 lbs. when evenly distributed. Bolt together design with blue painted finish.Some assembly is required. (4) 1/2" mounting holes at the base plate. 3/8" mounting hardware needed to fasten.

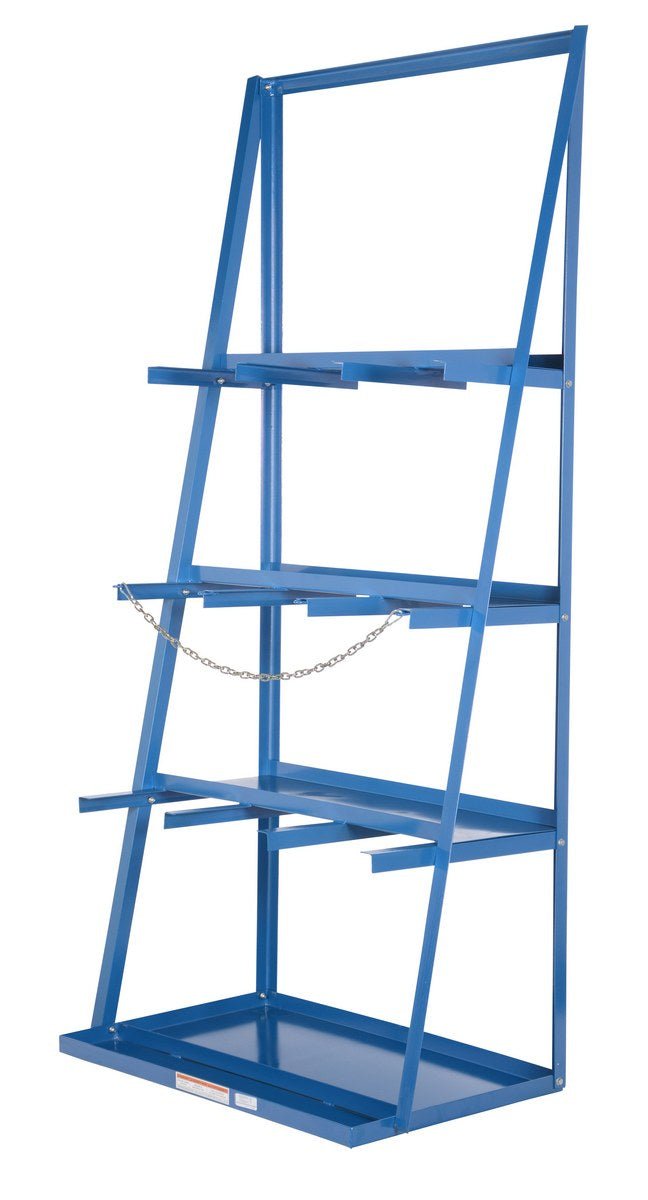

Vertical Bar Rack

Model Image PDF's Overall Size
of Bays
Between Shelves
VBR-9 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 39-1/4"x 24"x 84-1/2" 3 18-1/2" 152

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
