Single Phase Concrete Vacuum Cleaner is special designed for the floor grinding and polishing industry

Product Description:

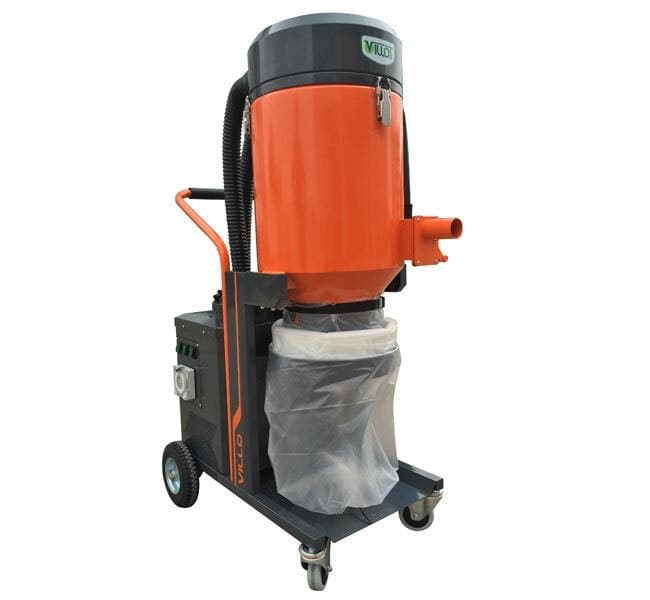

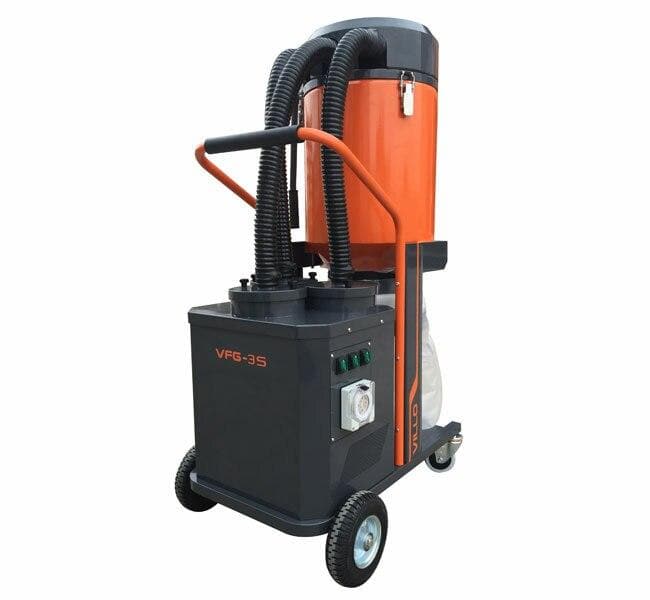

VFG-3S Vacuum cleaner is special designed for the floor grinding and polishing industry. With the characteristic as below:
• Strong suction, two-stage filter unit, stable and reliable, space saving, flexible mobility and easy operation.
• Suitable for the work site that requires single phase and adjustable air flow or continuous working, has large amount of fine dust particle.
• Applied to grinding field, small polishing or grinding machines (Email us for the matching list), shot blasting field, etc.
• 3 motors installed, which can be controlled independently.

  • Voltage/Hz: Single phase 220V/60Hz (or it can be customized)
  • Power: 3*1.2Kw
  • Max Airflow: 560m3/h
  • Max air pressure: 2200mmH2O

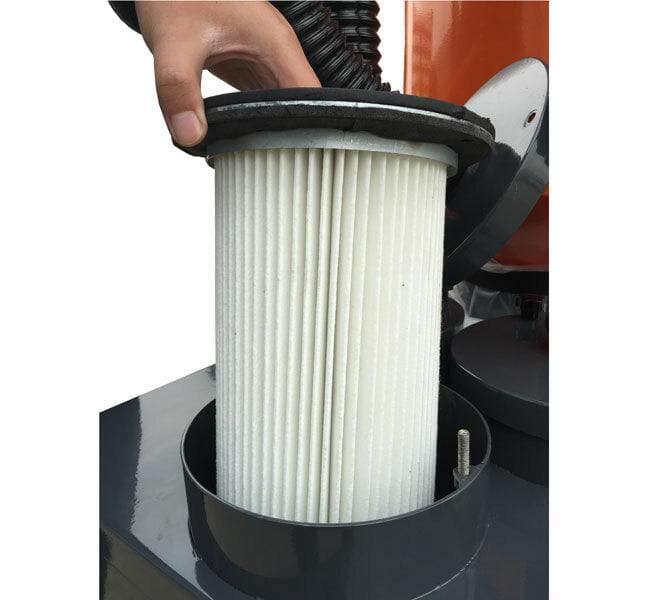

  • QTY of the filters: 1pc the 1st stage filter and 3pcs the 2nd stage filters
  • Air inlet: Ø50MM
  • Noise: 82±2dB
  • Filter efficiency: 99%
  • Material for the filter: Polyester with PTFE coated (H13 standard)
  • Fineness: 0.3-1Μm
  • Main filtering method: Outer-filtering type for 1st stage filter Inner-filtering type for 2nd stage filter
  • Dimension: 930mm*58mm*1350mm
  • Weight(kg): 89kgs

VFG-3s is considered to the best partner with floor grinders as below:

Innovatech P1800

Sase: PDG 5000, SC8E, SC10E, SC12E

Blastrac: 1-8DEC, 1-8DEZ, 1-8DPS30

Diamatic: 535Pro-R, 580Pro-R

Husqvarna: PG400, PG530

Prepmaster: STI2807

Lavina: 16Pro, 20Pro, 20-S, 20N-S, 25G-S

EDCO: 2EC-1.5B, 2EC-2B, 2EC-3B, 2GC-5.5H

Terrco 200

Levetec: Avenger 550

Werkmaster: Viper XT, Raptor XT

Scanmaskin: 450NS, 500i,

Klindex: Hercules 530, Rafter 580T, Rotoklin 400
