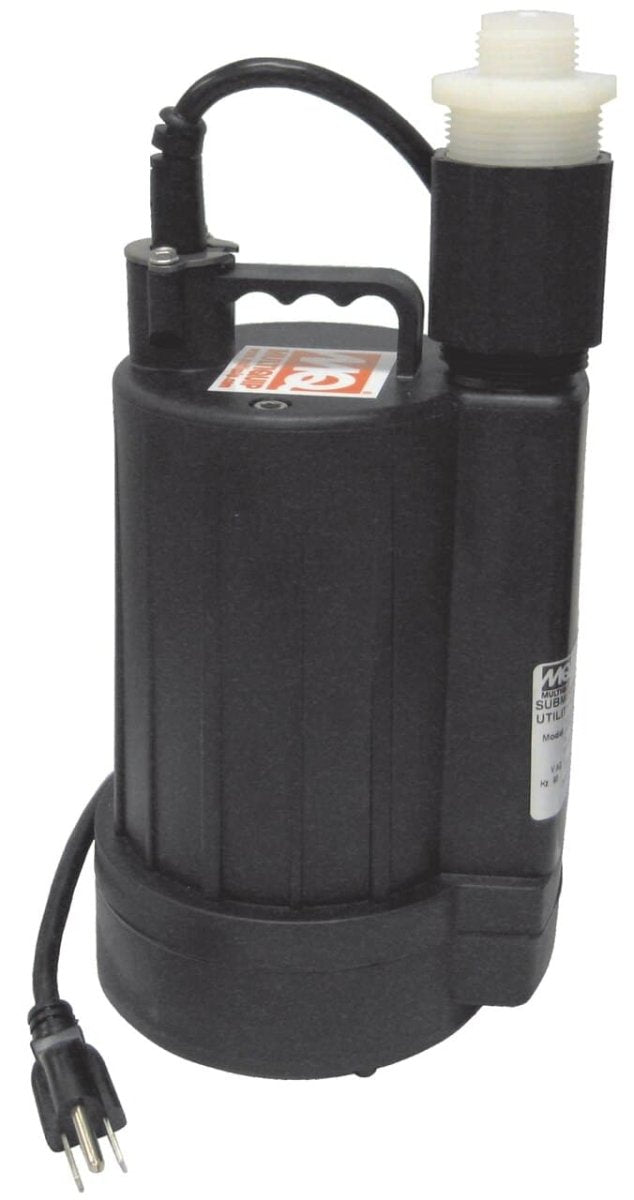

YELLSUB Submersible Pump

1.25 Inch Discharge, .25 HP, 115V, 1320 GPH, 15 ft. Total Head
The Yellow Submarine is MQ's most lightweight, compact submersible pump. It is a great choice for common household moving water applications such as: flooded rooms, flat roofs, fill tanks, basins, fountains and waterfalls. One piece polymer pump casing body resists corrosion and heat. The YELLSUB incorporates internal thermal overload protection, dual shaft seals, and positive direct drive thermoplastic impeller secured with stainless steel fittings.


  • .25HP, 115V/2.5A, 1Ø, UL & CUL Listed Electric Motor.
  • Built-in Overload Protection.
  • 1 1/4" (NPT) Male Discharge w/1 ¼” Female Adapter and Thermoplastic Garden Hose Adapter.
  • Total Head: 15 ft.
  • MAX Capacity: 33 gpm.
  • Pumps Liquid Up To 120° F.
  • Dewaters Surfaces Up To 1/8" Levels.
  • Rated for 4,500 Hours of Intermittent Duty.
Unit Specifications
Impeller Type Plastic
Impeller Disc Size 1.25 in 31.7 mm
Total Head 15 ft 4.6 m
Water Capacity 33 gpm 125 lpm
Max. Solid Intake 0 in 0 mm
Electrical Specifications
Power 0.25 HP 0.185 kW
Phase Single
Voltage 115 V
Starting Amperage 11.5 A
Running Amperage 2.5 A
Cable Length 9 ft 2.7 m
Dimensions & Weights
Pump Diameter 6.25 in 159 mm
Overall Height 9.5 in 241 mm
Operating Weight 6 lb 2.72 kg
Notice: Features and equipment specifications are subject to change without notice.
