Every stone fabrication shop that runs CNC knows the productivity gap between profitable operations and shops that burn through consumables. That gap comes down to one thing: the tooling on the spindle. Choosing, using, and maintaining the right CNC tooling for stone fabrication determines edge quality, cycle time, and your bottom line. Browse Diamond Tool Store's full CNC tooling collection for the bits, pads, and wheels that top shops trust.
This guide covers the complete range of CNC tooling for stone fabrication shops: router bits, finger bits, profile wheels, and diamond polishing pads that handle every operation from slab calibration to final gloss. You will also get a practical maintenance routine that can extend tool life by 30 to 50 percent.
Whether you are outfitting a new CNC machine or rethinking your current tool crib, the sections that follow will help you match the right diamond bond to each stone type, structure a grit progression that delivers consistent results, and build a shop routine that protects your tool investment.
What Is CNC Tooling for Stone Fabrication?
CNC tooling for stone fabrication refers to the complete set of diamond-bonded and carbide cutting tools that mount on a CNC spindle to machine natural and engineered stone slabs. These tools work together with computer-controlled tool paths to produce finished edges, cutouts, surface profiles, and polished finishes with repeatable precision that manual methods cannot match.

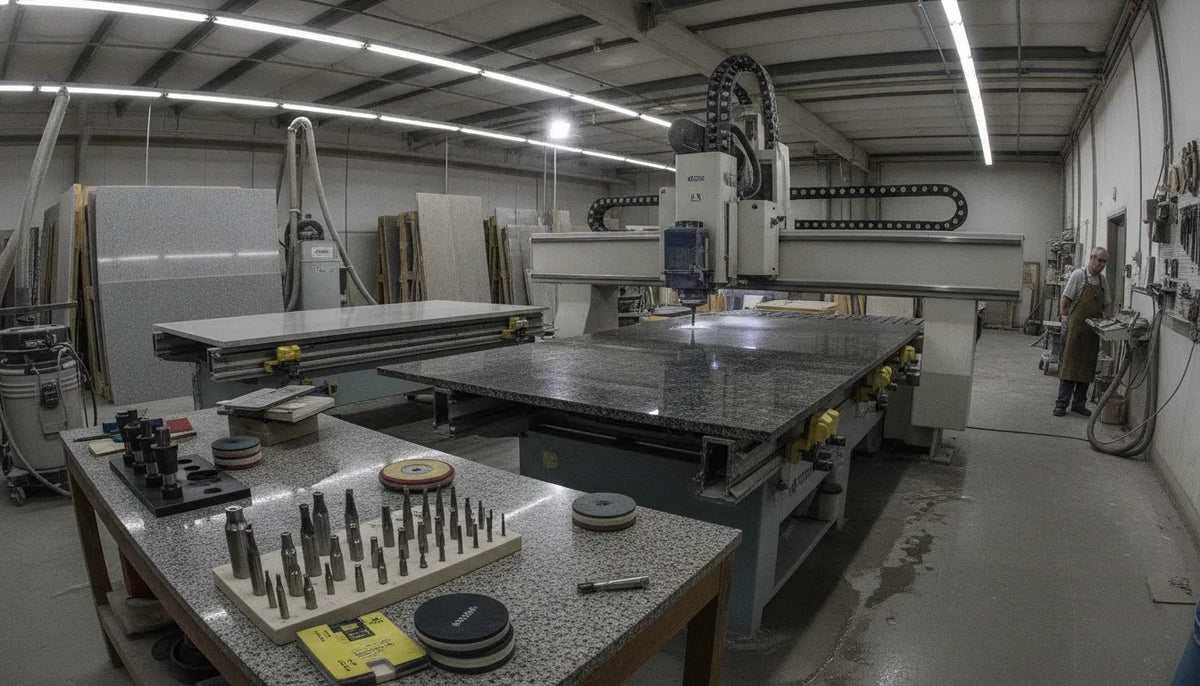

CNC stone machining centers have become standard equipment in professional fabrication shops. These systems move diamond-tipped cutting heads across a slab with tolerances of 0.1 mm or better, producing repeatable results on every part. The term CNC tooling for stone fabrication covers router bits, finger bits, profile wheels, core drill bits, stubbing wheels, drainboard tools, engraving bits, and polishing pads. Each category is designed for a specific operation, and using the correct tool for the material and the cut directly affects cycle time, surface finish, and tool longevity.
Diamond is the cutting medium of choice for stone because of its hardness. Granite, quartzite, and engineered quartz are abrasive materials that wear down steel or carbide rapidly. Synthetic diamond tools including sintered polycrystalline diamond (PCD), electroplated diamond, and resin-bonded diamond provide the wear resistance needed to cut these materials economically. Diamond Tool Store stocks a comprehensive range covering all of these categories, from basic router bits to specialty profile wheels sourced from leading manufacturers serving the stone industry.
The seven fundamental categories of CNC stone tooling cover every stage of fabrication:
- Engraving router bits for fine detail and lettering
- Router bits for relief carving and shaping
- Finger bits for initiating cuts and clearing sink openings
- Stubbing wheels for slab calibration
- Profile wheels for edge shaping
- Core drill bits for clean plumbing holes
- Drainboard tools for groove cutting
What CNC Bits and Router Tools Do You Need for Stone?
The cutting tools on your CNC spindle determine what your machine can accomplish. Choosing the right bits starts with matching the bit type and diamond bond to the material and the operation. Granite, marble, quartz, and engineered stone each require different tool constructions because of how they wear down diamond bonds.
Most professional shops maintain a full complement of bit types ready to handle everything from initial roughing cuts to fine engraving. Here is how the core tool categories break down by application.
Router bits and engraving tools
CNC engraving router bits handle lettering, decorative designs, relief finishing, and fine detail work in stone surfaces. For hard stones like granite, the bit must use polycrystalline diamond (PCD) tips that resist the abrasive wear of high-silica material. Marble is softer and allows widia (tungsten carbide) or electroplated diamond tools, which produce a clean cut without chipping. The fitting is typically a 10 mm shaft that mounts via an ER collet or adaptor. Router bits for heavier relief carving use larger shanks (1/2 inch or 10/14 mm) and come in sintered diamond or PCD for granite and electroplated for marble. Diamond Tool Store offers continuous rim, segmented, electroplated, and vacuum brazed router bits in its stone router bits collection, covering the full range from aggressive shaping to precision finishing.
Finger bits and core drills
Finger bits are the workhorse for initiating cuts in stone CNC machining. These side-cutting tools start cutouts, clear material for sink openings, and shape interior edges. They are available with diamond-impregnated solid bases or as replaceable-tip designs where only the cutting section wears out. Common shank sizes include 1/2 inch and 1/2 inch gas, fitting most standard CNC spindles. Using high-quality finger bits with the correct diamond concentration for the material reduces tool deflection and produces straighter cuts.
Core drill bits create precise holes for faucets, soap dispensers, and plumbing hardware in stone countertops. These bits must stay sharp to avoid cracking the slab as the core breaks through. When penetration slows, the diamond segments can be dressed with an abrasive block to expose fresh cutting grit. Consistent water flow through the bit center is essential to keep the diamond cool and flush stone slurry out of the cut zone during drilling. Diamond Tool Store stocks a full range of diamond core bits for stone applications.
Profile wheels and stubbing wheels
Profile wheels shape the final edge of a stone countertop into the desired profile: bullnose, ogee, bevel, demi-bullnose, or custom shapes. These wheels must match the CNC spindle type (HSK, ISO, or half-gas adaptors) and are run in a sequence to take the edge from rough-machined to finished shape. Many fabricators rely on Diamut CNC profile wheels for their consistent profile geometry and long service life on both natural and engineered stone. The profile wheel set typically includes a roughing wheel, a shaping wheel, and a finishing wheel that together produce the full edge detail.
Stubbing wheels (also called tolerance wheels) are heavy diamond grinding tools used for slab calibration. They remove material from the underside of the slab to produce uniform thickness. Even a 1 mm mismatch at a seam line is visible in the finished installation, making thickness calibration critical for large jobs. Stubbing wheels mount with flange adaptors matched to the machine spindle and are used in the first machining pass before edge profiling.
Diamond Polishing Pads for CNC Applications
Diamond polishing pads are the final link in the CNC fabrication chain. They take a machined edge or surface from a ground finish to a high-gloss mirror finish, and the quality of that finish is what customers judge first on a completed countertop. Getting consistent results requires the right pad for the stone, a disciplined grit progression, and proper machine settings.
Master the grit sequence
CNC polishing follows a graduated grit sequence that moves the stone surface from rough to refined in controlled steps. The standard progression starts with a 50-grit pad for shaping and removing saw marks, then moves through 100, 200, 400, 800, 1,500, and 3,000 grits, finishing with a BUFF pad for the final gloss. Skipping a grit or moving too fast through the sequence leaves deep scratches that finer pads cannot remove, forcing the operator to back up and rework the surface. Diamond Tool Store carries a wide selection of diamond polishing pads for every grit and bond type, organized for quick identification in the shop.
Granite typically needs a full pass through every grit. Marble and softer stones may allow skipping one or two intermediate grits, but experienced shops run the full sequence for consistency. The total cycle time depends on the stone type and the starting finish condition.
Match bond types to stone
The diamond bond in a polishing pad determines how well it cuts on a given material. Three main bond types serve the vast majority of stone fabrication applications:
- Sintered (metal-bond) pads have diamond particles embedded in a metal matrix that wears slowly, making them the best choice for hard granite and quartzite where cutting action must last through many slabs.
- Resin-bond pads use diamond grit suspended in a resin binder that breaks down during use, exposing fresh diamond as it cuts. These produce a finer finish on softer stones like marble and limestone.
- Hybrid and electroplated pads offer the best balance of cut rate and finish quality for engineered stone and quartz slabs, with cooler-cutting bonds that resist resin loading.
Wet polishing with adequate water flow is non-negotiable for all bond types. Water flushes away abrasive slurry, prevents heat buildup that glazes the diamond, and extends pad life across every grit step.
Backer pads and RPM matching
The backer pad between the CNC spindle and the polishing pad affects contact and finish uniformity. Hard backers provide aggressive cutting for the lower grits (50-200), while soft foam or rubber backers conform to curved edges during the higher grits. Matching pad diameter to spindle RPM is equally important: running a 4-inch pad at 3,000 RPM versus 5,000 RPM changes the surface speed significantly, and each pad manufacturer specifies an optimal RPM range for each bond type. Operating outside that range overheats the bond, reduces pad life, and can burn the stone surface.
How to Choose the Right CNC Tooling by Stone Material
Stone types vary widely in hardness, abrasiveness, and chip resistance, and each property affects how a diamond tool performs. Matching the tool's diamond bond, grit size, and tool geometry to the specific stone type is the fastest way to improve cut quality, reduce cycle time, and extend consumable life.
Granite and quartzite
Granite is among the hardest and most abrasive stones in the fabrication shop. It requires sintered diamond or polycrystalline diamond (PCD) bits where the diamond particles are bonded into a metal matrix that withstands high cutting temperatures. Sintered finger bits and PCD router bits maintain their cutting edge through extended production runs. The same approach applies to quartzite, which is even harder than granite and demands the highest diamond concentration available. Diamond Tool Store's CNC tooling collection includes multiple sintered and PCD tool options rated for these materials.
Marble and limestone
Marble is considerably softer than granite but presents its own challenges: it chips and scratches more easily, and heat from an aggressive tool can burn the surface. Electroplated diamond tools are the standard choice for marble because they produce a sharp, clean cut with less pressure than sintered tools. Resin-bonded polishing pads work well on marble, producing a high gloss without discoloring the stone. For best results on marble edges, diamond polishing pads with finer diamond grits produce a gloss finish without burn marks.
Engineered stone and quartz
Engineered quartz slabs contain approximately 90 to 93 percent quartz aggregate bound with polyester resin. The resin content changes how diamond tools interact with the material: the resin can melt and clog standard diamond bonds, reducing cut rate and glazing the tool surface. Hybrid-bond and electroplated diamond tools with cooler-cutting profiles perform best on engineered stone. Polishing pads formulated specifically for quartz have bonds that resist resin loading, allowing the full grit progression from 50 through BUFF without glazing mid-job.
Ceramic and porcelain slabs
Large-format ceramic and porcelain slabs are extremely hard but also brittle. They require diamond tooling with fine-grit diamond mesh and optimized water cooling to prevent thermal shock cracking. Sintered continuous-rim blades with narrow kerf profiles reduce edge chipping. Low feed rates paired with high water volume keep the cut zone cool. The table below summarizes the recommended tool type for each common stone material.
| Material | Recommended Tool Type | Diamond Bond | Key Consideration |
|---|---|---|---|
| Granite | Sintered finger bits, PCD router bits | Sintered metal (PCD) | High heat resistance, longest tool life |
| Quartzite | Sintered tools, PCD engraving bits | Sintered metal (PCD) | Highest diamond concentration needed |
| Marble | Electroplated router bits | Electroplated / Resin | Gentler cut to prevent chipping |
| Limestone | Electroplated tools | Electroplated | Low pressure, clean finish |
| Quartz (engineered) | Electroplated, hybrid-bond tools | Electroplated / Hybrid | Resin-clog resistance critical |
| Ceramic / Porcelain | Fine-mesh sintered blades | Fine-grit sintered | Water cooling essential to avoid cracking |
CNC Tooling Maintenance Best Practices
A well-structured maintenance routine can reduce tooling costs by 30 to 50 percent while improving cut quality and reducing unplanned downtime. These practices apply to the three most expensive consumable categories in a stone shop: diamond blades, polishing pads, and core drill bits.
Inspect diamond tools daily
Every diamond blade should be inspected before it is mounted at the start of a production day. Look for cracks in the steel core (any visible crack means the blade must be retired immediately), missing or damaged diamond segments, and deformation of the blade body indicating it was run dry or overheated. Check that the arbor hole is clean and undamaged, as a damaged arbor hole causes the blade to run off-center. Inspect the mounting flanges at every blade change and remove any debris or rust.
Manage the water cooling system
Water cooling is the single most impactful factor in diamond blade and bit life. The diamond grinding tools on your CNC spindle generate significant heat at the cutting interface, and without adequate water flow, that heat degrades the diamond bond and shortens tool life by a factor of three or more. Inspect water delivery nozzles at the beginning of every production week and clean mineral deposits with a small wire. Check water pump filters monthly and clean or replace them as needed. In hard water areas, apply a descaling treatment every quarter to prevent mineral buildup from restricting flow.
Follow a structured maintenance routine
- Inspect all diamond blades for cracks, segment damage, or deformation before mounting each day. Retire any blade with visible cracks immediately. Check the arbor hole and flanges are clean.
- Clean water delivery nozzles weekly and flush the cooling system. Measure flow rate monthly to catch restrictions before they cause heat damage. Descale the system quarterly in hard water areas.
- Store polishing pads flat and dry after every use. Never stack pads unevenly or leave them on the machine overnight. Clean off abrasive slurry immediately to prevent bond glazing.
- Dress core drill bits when penetration slows. Use a dressing stone or coarse abrasive block to expose fresh diamond on the cutting face. Dress more frequently on engineered stone, which tends to glaze diamond faster than natural stone.
- Assign fixed storage locations for every tool category. Return tools to their designated homes after each use to prevent damage from tools being dropped, stacked, or buried under debris.
Keep bits and pads sharp
Core drill bits gradually lose cutting efficiency as the diamond tips glaze over during use. A bit that was drilling clean holes at 30 seconds per hole may slow to 60 seconds. That is the signal to dress the cutting face with an abrasive block. For polishing pads, cleaning after every use is critical. Stone slurry left on the pad surface dries and hardens, clogging the diamond matrix and reducing cutting action. A quick rinse and a pass across a dressing brick keeps the pad cutting freely through the full grit progression.
A blade rated for 1,500 linear feet of cut may deliver only 600 feet if water flow is low, coolant nozzles are clogged, and the blade is run past the point where segments need re-sharpening. A clean, organized shop where tools are returned to fixed storage after every use prevents the handling damage that accounts for a surprising share of premature tool failure.
CNC Machining Workflow Best Practices
Understanding the full CNC fabrication workflow helps you see where tooling choices have the most impact on cycle time and final quality. A typical stone fabrication run follows this sequence: digital templating, part programming, slab setup, CNC machining, finishing, and quality inspection. The tooling selection at the programming stage determines what the machine can accomplish during the cutting pass.
Three-axis CNC routers are the most common entry point for small to mid-size fabrication shops. A quality 3-axis machine handles edge profiling, sink cutouts, surface routing, and miter cutting for most standard countertop work. These machines range from $40,000 to $120,000, making them accessible for shops making the transition from manual fabrication to automated production. The ROI calculation for a 3-axis machine factors in labor savings from reduced hand finishing, increased throughput on repeatable edge profiles, and the ability to bid on jobs that require CNC precision.
Five-axis CNC routers add two rotational axes, allowing the cutting head to approach the stone at angles that a 3-axis machine cannot reach. This capability is essential for undercut profiles, mitered corners, and complex three-dimensional shapes. Five-axis machines range from $80,000 to $250,000 and are typically found in high-volume production shops and specialty fabrication facilities. The decision between 3-axis and 5-axis depends on the edge profiles you produce most frequently and whether your typical jobs include complex geometry that justifies the higher machine investment.
Beyond the machine itself, the tool crib setup directly affects production efficiency. Organizing tools by operation type, maintaining a tooling inventory log, and scheduling regular calibration checks on the spindle and tool holders all contribute to consistent cut quality. Diamond Tool Store offers diamond tools for every stage of this workflow, from rough material removal to final polish, all from a single source.
Frequently Asked Questions
CNC tooling is a significant investment, and choosing the right combination of bits, pads, and wheels matters for every job. This section answers the most common questions about diamond tool selection, maintenance, and best practices for stone fabrication shops.
What CNC tooling is used for granite fabrication?
Granite fabrication requires sintered diamond or polycrystalline diamond (PCD) tools that withstand high cutting temperatures. The recommended tool set includes sintered finger bits, PCD router bits for profiling, and metal-bond diamond polishing pads for the grit progression from 50 through 3,000 grit.
What is the difference between 3-axis and 5-axis CNC stone routers?
A 3-axis CNC router moves the cutting head along X, Y, and Z axes and handles edge profiling, sink cutouts, and miter cutting for standard countertop work. A 5-axis router adds two rotational axes for angled cuts, undercut profiles, and complex three-dimensional shapes.
How do I choose the right diamond polishing pad grit sequence?
The standard grit progression for CNC stone polishing starts at 50 grit for shaping, then moves through 100, 200, 400, 800, 1,500, and 3,000 grits, finishing with a BUFF pad. Granite requires a full pass through every grit for consistent results.
How often should CNC tooling be inspected and maintained?
Diamond blades should be inspected before every use for cracks or segment damage. Water delivery nozzles should be cleaned weekly, and pump filters checked monthly. A full descaling treatment is recommended quarterly in hard water areas.
What causes CNC polishing pads to wear out too fast?
Premature pad wear is most often caused by running pads outside their recommended RPM range, inadequate water flow that overheats the bond, using the wrong bond type for the material, or failing to clean slurry off pads after use.
What tools are needed for CNC engraving on stone?
CNC engraving on stone requires diamond engraving router bits with polycrystalline diamond (PCD) tips for hard stones like granite, or electroplated diamond bits for marble and softer materials. These bits mount via a 10 mm shaft in an ER collet.
