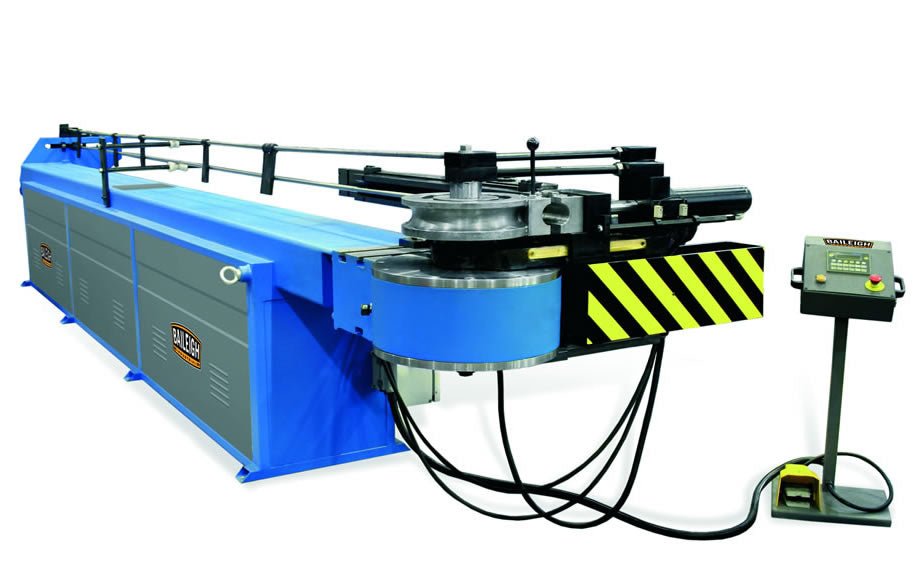

Mandrel Tube Benders MB-NCE-1 SERIES
Call for Pricing
The next step up in the mandrel bender range, the MB- NCE-1 has an NC control unit to allow the operator to program the bend axis (Y) – the standard memory can store up to 25 programs each with 10 sequential bends (an optional larger memory can be installed at build).
This allows the operator to select from the memory the bend sequence they require and load the tube and start bending. The Y & Z axis (bend and rotation) are controlled manually and like the MB-4/8 the NCE-1 mandrel pipe bender benefits from hydraulic clamping, mandrel extractor, pressure die and pressure die assist.
Features
- 1 axis NC control
- Memory can store 25 programs x 10 bends – (Y)
- Sequential flip stop axis control - (X)
- Fully hydraulic clamping
- Hydraulic mandrel extractor
- Hydraulic pressure die
- hydraulic pressure die assist
- Available in in 35, 60 & 90mm OD capacities
Options
- Automatic mandrel lubrication
- Useful bed length can be increased in 1mn increments
- Split die system for square and custom sections
|
Capacities |
MB-35NCE-1 |
MB-60NCE-1 |
MB-90NCE-1 |
|
Max Tube O.D (Mild Steel) |
35 x 3mm |
60 x 3mm |
90 x 4mm |
|
Max Tube O.D (SS) |
30 x 2mm |
51 x 2mm |
76 x 2mm |
|
Max Square Tube (Mild Steel) |
30 x 30 x 2mm |
51 x 51 x 3mm |
76 x 76 x 2mm |
|
Max Bend Angle |
1900 |
1900 |
1900 |
|
Maximum Center Line Radius |
130mm |
225mm |
325mm |
|
Maximum Useful Length |
3000mm |
3000mm |
3000mm |
|
Bending Direction |
Clockwise |
Clockwise |
Clockwise |
|
Motor |
5.5 Kw |
8 Kw |
8 Kw |
|
Dimensions |
4050 x 1000 x 1120mm |
4250 x 1200 x 1170mm |
4560 x 1550 x 1270mm |
|
Weight |
1100kgs |
1700kgs |
2350kgs |
|
Power Requirements |
400V, 50Hz, 3 Phase |
400V, 50Hz, 3 Phase |
400V, 50Hz, 3 Phase |
FEATURES
- 1-axis NC control
- Memory can store 25 programs x 10 bends - (Y)
- Sequential flip stop axis control
- Fully hydraulic clamping
- Hydraulic mandrel extractor
- Hydraulic pressure die
- Hydraulic pressure die assist
- Available in 35, 60, and 90mm capacities
OPTIONAL
- Split die system
- Automatic mandrel lubrication
- Additional useful bed length (1 metre increments)
